Valve Flow Coefficient (Cv) Explained: How to Size Like a Pro

When choosing and sizing control valves for oil and gas processes, it is important to know the valve flow coefficient. The Cv number tells you how much fluid a valve can handle at a certain temperature and pressure. It is calculated by measuring how fast water flows through a valve at 60°F (gallons per minute) and a pressure difference of 1 pound per square inch. Getting this size right has a direct effect on how well the system works, how safe it is to use, and how long the equipment lasts. If drilling engineers or procurement managers don't do the right Cv estimates, they could end up with valves that are too small and cause too many pressure drops, or valves that are too big and make it hard to control and cost too much.

Understanding Valve Flow Coefficient (Cv) Fundamentals

What Cv Actually Represents in Real-World Applications

The flow coefficient is a normal way for engineers to compare the pros and cons of different valve designs. Cv is a number that tells you how much resistance a valve makes to fluid flow. A higher Cv value means less resistance and more flow capacity. A lower value, on the other hand, means less resistance and less flow capacity. This metric is especially important when working with high-pressure wellhead assemblies or pipeline regulation, where accurate flow control is needed to keep things running smoothly. The Cv number is based on the internal geometry of the valve, such as the size of the ports, the design of the seats, and how the flow paths are set up.

Key Factors Influencing Cv Performance

There are a number of factors that affect how the Cv of a control valve works in the field. When compared to the normal water-based reference conditions, fluid properties like viscosity, density, and temperature have a big effect on how fluids flow. In upstream activities that work with natural gas or crude oil, these differences need to be taken into account when calculations are made. When engineers size tools for Christmas tree installations or mudline systems, they have to take into account how the control valve's internal design affects turbulence and pressure recovery. Choosing the right actuator is also important because electric and gas actuators have different response times and modulation accuracy.

Why Accurate Cv Assessment Matters for Operational Success

If you do a proper CV evaluation, you can avoid expensive field failures and output stops. Too fast of a flow is caused by valves that are too small, which damages components early through corrosion and cavitation. When valves that are too big work too close to their seats, control becomes unsteady and turndown ratios go down. Correct sizing is especially helpful for pipeline owners who are in charge of long-distance transmission because it keeps pressure profiles at their best and lowers the cost of compression energy. To keep the process stable under different load situations and still meet strict safety standards, refineries and petrochemical plants need exact Cv specifications.

How to Calculate and Size a Control Valve Using Cv

Gathering Essential System Data

Before we can start figuring out the Cv, we need to know certain operating factors from the process design. The expected flow rate, inlet and outlet pressures, fluid temperature, and the physical properties of the medium being managed are some of the things that are needed. During drilling activities, multiphase flows or fluids that aren't standard are common and need to be characterized in more detail. Engineers should also find out if the service includes liquid, gas, or steam, since each type needs a different way of calculating. Having correct design flow rates and worst-case scenarios written down helps make sure that the chosen valve can handle both normal operation and any expected process upsets.

Applying the Cv Formula Step-by-Step

To find the basic Cv formula for liquid service, multiply the flow rate in GPM by the square root of the specific gravity and divide that number by the square root of the pressure drop. This equation works well for fluids that can't be squished, like water, hydraulic oils, and liquid hydrocarbons. For use with gas and steam, models need to be changed to take into account critical pressure ratios and effects of compressibility. Engineers must use the right viscosity correction factors when doing these calculations if they are working with heavy crudes or glycol solutions. A lot of valve makers offer sizing software that does these estimates automatically and includes their own product performance curves.

Common Mistakes That Lead to Sizing Errors

One mistake that people often make is using wrong control valve pressure differential numbers. Engineers often forget to consider the pipe losses that happen between the measurement places and the control valve location, which results in choices that are too small. Another mistake that teams make is not thinking about how the process will grow or how the flow will rise in the future. This can lead to control valves that can't handle growth. Another common mistake is misjudging the properties of the fluid, especially in midstream uses where the composition changes with the seasons. Some professionals also don't pay attention to the difference between installed characteristic and inherent characteristic, thinking that catalog Cv values will work the same way in their specific system setup.

Real-World Sizing Success Stories

A big refinery on the Gulf Coast recently improved their oil unit preheat train by figuring out the Cv needs for temperature controllers all over again. The original valves were almost 40% too big, which led to hunting and bad temperature stability. They got better control and used 12% less energy after adding globe valves that were the right size and had the right Cv ratings. A Permian Basin operator also got better wellhead choke performance by making sure the valves they used were the right size for their multiphase output streams. They got rid of erosion problems that needed valve replacements every three months by doing a thorough compositional analysis and doing the right two-phase flow calculations.

Advanced Tips for Optimal Cv-Based Control Valve Sizing

Managing Pressure Drop and Velocity Limits

Taking care of the limits on pressure drop and speed. When there is too much pressure drop across a valve, the fluid moves quickly, which speeds up wear and can cause damaging events. Keeping velocity below the recommended limits keeps performance reliable and improves the life of the service. When it comes to gas service, extra care needs to be taken because sonic velocity at the vena contracta limits flow, even when there are bigger pressure differences downstream. Engineers should make sure that the chosen Cv causes pressure drops that are reasonable and don't cause choked flow in gas applications or flashing in liquid applications. It's sometimes better to spread the pressure decrease across several valves than to make one control valve handle the whole differential.

Recognizing and Preventing Cavitation Damage

Cavitation happens when the pressure in a certain area goes below the vapor pressure of the fluid. This creates bubbles that violently collapse when the pressure rises again further downstream. Through repeated microscopic implosion hits, this effect destroys the inside of valves. Figuring out the cavitation index helps you figure out if a certain mix of Cv and pressure drop will cause damage. By splitting the pressure drop into smaller steps, multi-stage trim designs stop vapor bubbles from forming and reduce cavitation. Water pumping systems and pipeline pressure reduction stations often have problems with cavitation that can be fixed by choosing the right Cv and adding anti-cavitation trim.

Addressing Noise and Vibration Concerns

High-speed flow through control valves that aren't big enough makes a lot of noise, which is bad for both worker safety and following the rules. Aerodynamic noise in gas service can be more than 100 dBA if the right control valve size and trim are not chosen. Low-noise trim designs have many flow paths that lower sound pressure and turbulence while still meeting the minimum Cv ratings. Vibrations caused by unstable flow can wear out pipe connections and control valve parts, which can lead to fails in the long run. When choosing control valves, acoustic analysis is a great way to make sure that compressor stations and gas processing plants stay within the rules for noise exposure at work.

Material Selection Linked to Cv and Service Conditions

The materials used to make valves have to be able to handle the high and low temperatures, erosion, and corrosion that happen in the working environment. For sour service uses, you need a special kind of metal that doesn't crack under sulfide stress and keeps the structure strong. Hard-facing trim materials last longer in erosive environments, but they might limit the CV choices because of how they are made. For petrochemical uses that involve corrosive media, you need rare metals like Hastelloy or titanium that can keep working even when attacked by chemicals. Finding the right balance between material needs and CV needs can take creative solutions, like lined valves or protective coatings that keep flow capacity while not breaking down.

Maintenance Strategies for Sustained Cv Performance

Valves lose their useful Cv over time because of wear and tear, corrosion, and buildup of deposits on the inside. Based on the level of service, regular inspections help find wear and tear before it causes control or safety problems. Keeping an eye on the link between valve travel and flow shows changes in effective Cv that show wear inside the valve. Rebuilding or changing trim parts brings back the original performance and increases the life of an asset. Valve condition assessment is becoming a bigger part of pipeline integrity programs as a whole. This is because degraded CV affects both operating efficiency and the risk of an accident.

Procurement Insights for Control Valves With Correct Cv Sizing

Verifying Manufacturer Cv Data and Documentation

Checking the data and paperwork on the manufacturer's CV. Reliable manufacturers give thorough CV data that comes from real flow tests that are done according to ISA standards. Teams in charge of buying things should ask for certified test reports and public CV curves that show how well the product works across the whole stroke range. When comparing CV values from different vendors, it's important to keep in mind the test settings and correction factors that were used. Some makers give Cv ratings that are too high and don't take into account effects that are already installed or manufacturing tolerances. Along with the flow coefficients, quality documents should include material certifications, dimensional data, and pressure-temperature ratings. When you buy an API-certified control valve product, you can be sure that the published CV values meet standard testing procedures used in the business.

Evaluating Lead Times and Supply Chain Considerations

Standard valve designs usually ship within a few weeks, but solutions that are specially designed, such as those involving a control valve, may take a few months. When putting together project schedules or turnaround repair windows, procurement planning needs to take these dates into account. Building relationships with manufacturers who keep stock in the area lowers the costs and risks of having to buy things quickly in an emergency. Some suppliers have framework agreements or consignment plans that make sure that common CV ratings and sizes are always available. Early involvement with valve makers during the design phase helps EPC contractors make sure that specifications match up with realistic delivery times and production capacity.

Balancing Technical Requirements and Commercial Terms

Finding the right balance between technical needs and business terms. Technical CV requirements determine the first valve choice, but business factors have a big effect on the total project costs. Standardizing on fewer types of valves across a plant cuts down on the need for training and spare parts. If the normal CV ratings work for most uses, bulk purchasing agreements can lower the cost per unit without affecting how well the product works. Warranty terms and service level agreements protect against early failures caused by flaws in the manufacturing process or wrong CV data. Planning for cash flow is affected by payment terms and currencies, especially when buying things internationally and having to wait a long time for delivery.

Trusted Manufacturers in the Flow Control Industry

Leading brands like Emerson, Fisher, and Metso have built their reputations over many years of field success and constant improvement in valve technology. Their wide range of products covers almost all CV needs in oil and gas uses. These companies put a lot of money into research and testing facilities that make sure that published CV data is correct in real-world operating situations. Their global service networks give them access to technical support and aftermarket parts that smaller providers can't match. Many operators choose these well-known brands for important services where reliability and past success make the higher price point worth it.

Conclusion

When you master control valve flow coefficient size, choosing valves goes from being a guessing game to a precise engineering task. The CV metric gives us a consistent way to compare choices and guess how well they will work in different situations. When choosing wellhead equipment for drilling, pipeline regulators for midstream transport, or process valves for refining complexes, it's important to do accurate Cv estimates to avoid mistakes that cost a lot of money and make the system work as efficiently as possible. Advanced factors like turbulence, noise, and material compatibility make sure that the control valve system will work well for a long time after it is first put into service. When procurement teams know enough about CVs, they can make choices that balance technical needs with business realities. This leads to better project outcomes and operational performance.

Partner With CEPAI for Precision-Engineered Flow Control Solutions

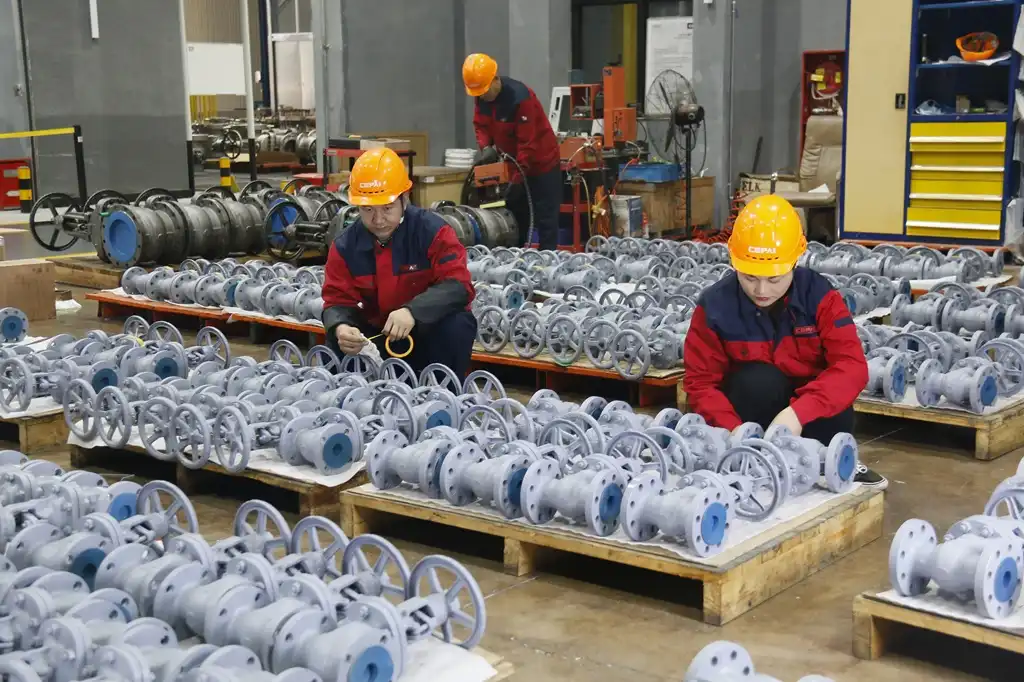

To pick the right control valve maker, you need to be sure of their specialized skills and quality control. CEPAI is an expert at making high-performance valves that are designed to work in tough oil and gas situations, like wellhead systems and pipeline control. We are dedicated to meeting the highest standards in our business, as shown by our many certifications, such as API Q1, API 6A, API 6D, and ISO 9001. We make sure that our throttle valves, regulating valves, and emergency shut-off valves work exactly as described by giving them thorough testing methods and detailed CV documentation. Our engineering team works closely with clients to help them choose the best valves for their individual operating conditions. They do this by taking into account things like pressure ratings, materials, and how the actuator fits in. Learn why top operators around the world choose CEPAI as their chosen control valve supplier for mission-critical applications by contacting us at cepai@cepai.com to discuss your next project's flow control needs.

FAQ

1. What is the difference between Cv and Kv in valve sizing?

The terms Cv and Kv both mean "flow coefficient," but they are measured in different ways. A valve with a one-PSI pressure drop is used to measure flow in US gallons per minute at 60°F. Kv uses metric values to measure flow, which are cubic meters per hour at 15°C and a pressure drop of one bar. In terms of ratio, Kv is equal to about 0.865 times Cv. European and foreign standards often use Kv, while most North American standards use Cv. Manufacturers of valves usually list both numbers so that they can meet the needs of buyers around the world.

2. How often should valve Cv be recalculated during a facility's lifecycle?

When the process changes, the capacity grows, or the properties of the fluid change, the Cv needs to be recalculated. Major turnarounds give you a chance to look at how well valves are working in the current operating circumstances. Monitoring tools that keep track of the position of the valves compared to the flow rate can tell if the effective CV has decreased because of erosion or fouling. Reviewing key control loops once a year can help find valves that aren't working in the best range, which could mean there are problems with the size of the system. Changes to regulations or safety studies may also lead to reviews to make sure that current Cv scores meet the new standards.

3. Can oversizing a valve by selecting higher Cv cause operational problems?

Control valve designs that are too big or have too high of a Cv value cause a lot of problems during operation. When everything is normal, the valve works close to its seat, where it has the worst control and small changes in position cause big changes in flow. This makes it harder to control and makes automatic control loops behave like they are hunting. Oversized valves also have higher velocity at the seat interface, which speeds up wear even though the total pressure drop is lower. The installed characteristic is very different from the inherent characteristic listed by the maker. This makes it harder to figure out what's wrong.
