Understanding Pneumatic Butterfly Valve Design and Operation
Core Components of Pneumatic Butterfly Valves

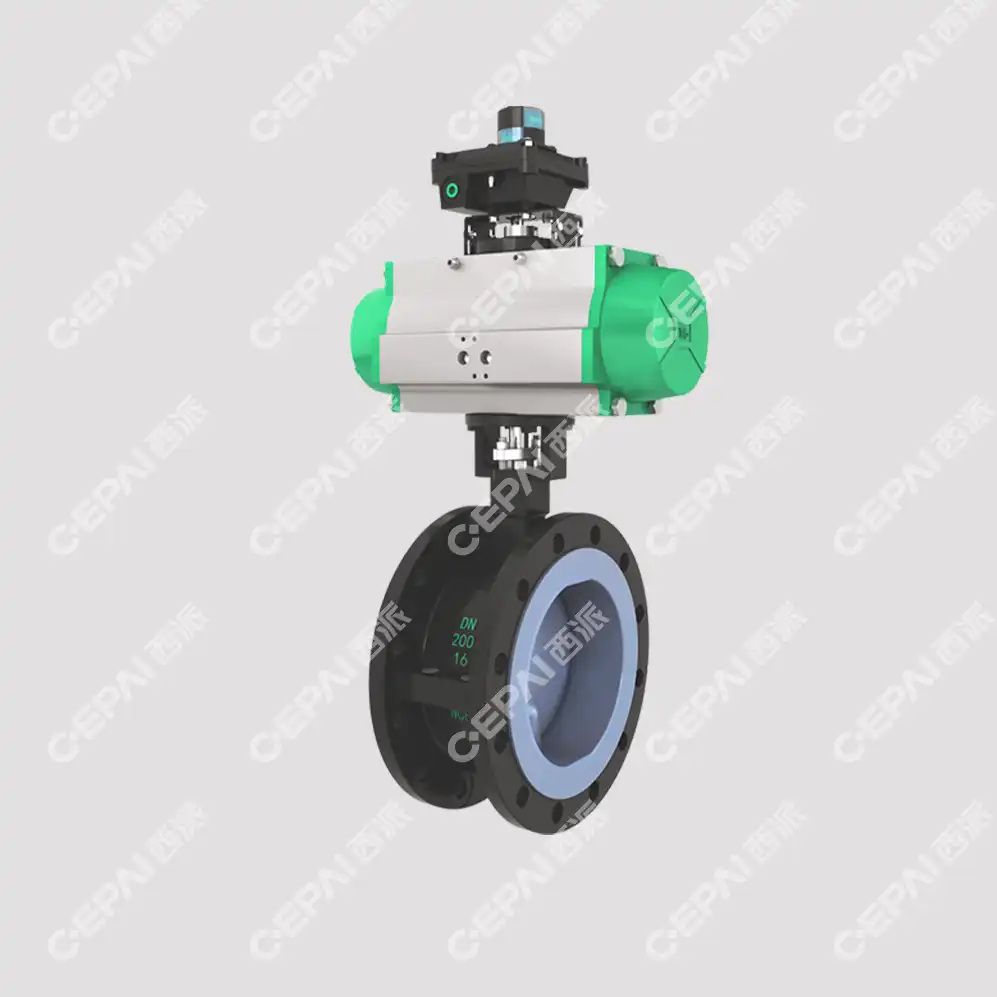

Pneumatic butterfly valves consist of several key components that work in harmony to control fluid flow. The valve body houses a circular disc, which serves as the primary flow control mechanism. This disc is mounted on a shaft that extends through the valve body. The actuator, typically a pneumatic cylinder, is connected to the shaft and provides the rotational force needed to open or close the valve. Sealing elements, such as seat rings and gaskets, ensure a tight seal when the valve is closed. The pneumatic control system includes solenoid valves, air lines, and sometimes positioners for precise control.
Operating Principles and Mechanisms
The operation of pneumatic butterfly valves relies on the principle of compressed air actuation. When air pressure is applied to one side of the actuator's piston, it creates a force that rotates the valve disc. This rotation can be quarter-turn (90 degrees) or modulating, depending on the specific design and application requirements. The air pressure can be adjusted to control the speed and force of the valve's movement. Some advanced designs incorporate feedback mechanisms and positioners to achieve precise control over the valve's position, allowing for fine-tuned flow regulation.
Advantages of Pneumatic Actuation in Butterfly Valves
Pneumatic actuation offers several benefits in butterfly valve applications. The use of compressed air provides a clean, readily available power source that is safe for use in potentially explosive environments. Pneumatic systems are known for their quick response times, making them ideal for rapid shutoff or modulation requirements. They're also highly reliable and can operate in a wide range of temperatures and pressures. The simplicity of pneumatic systems often results in lower maintenance needs compared to electric or hydraulic alternatives. Additionally, pneumatic butterfly valves can be easily integrated into existing compressed air systems in industrial settings, providing a cost-effective solution for flow control.
Applications and Industries Utilizing Pneumatic Butterfly Valves
Oil and Gas Industry Applications
In the oil and gas sector, pneumatic butterfly valves play a crucial role in various processes. They're commonly used in pipeline systems for controlling the flow of crude oil, natural gas, and refined products. These valves are particularly valuable in remote locations where electrical power may be limited or hazardous. Pneumatic butterfly valves are employed in storage tank farms for isolation and blending operations. Their ability to handle large flow rates makes them suitable for transfer lines between processing units. In offshore platforms, these valves are used in seawater cooling systems and fire protection networks, where reliability and corrosion resistance are paramount.
Water and Wastewater Treatment Processes
The water and wastewater treatment industry relies heavily on pneumatic butterfly valves for flow control and process isolation. In water treatment plants, these valves are used to regulate the flow of raw water into filtration systems and to control the distribution of treated water. They're also employed in backwash operations for filter cleaning. In wastewater treatment facilities, pneumatic butterfly valves are utilized in aeration tanks to control air flow, in sludge handling systems, and in effluent discharge lines. The corrosion-resistant materials used in these valves make them suitable for handling various chemicals and abrasive slurries encountered in water treatment processes.
Chemical and Petrochemical Industry Uses
Pneumatic butterfly valves find extensive use in the chemical and petrochemical industries due to their versatility and reliability. They're employed in reactor feed lines, product transfer systems, and storage tank farms. These valves are particularly valuable in handling corrosive or hazardous chemicals, where their tight shutoff capabilities and minimal leakage are essential for safety and process integrity. In distillation columns, pneumatic butterfly valves control the flow of various fractions. They're also used in cooling water systems and in emergency shutdown applications where quick response times are critical. The ability to specify different materials for valve construction allows for compatibility with a wide range of chemical processes and environments.
Selection Criteria and Maintenance Best Practices for Pneumatic Butterfly Valves
Factors Influencing Valve Selection
Choosing the right pneumatic butterfly valve involves considering several key factors. The nature of the fluid being controlled, including its temperature, pressure, and chemical composition, is a primary consideration. The required flow rate and pressure drop across the valve must be evaluated to ensure proper sizing. The operating environment, including ambient temperature, humidity, and potential exposure to corrosive elements, influences material selection for valve components. The frequency of operation and the need for precise control may dictate the choice of actuator and control system. Regulatory requirements and industry standards also play a role in valve selection, particularly in safety-critical applications. It's essential to consider the availability of compressed air and the quality of the air supply when opting for pneumatic actuation.
Installation and Commissioning Guidelines
Proper installation and commissioning are crucial for the optimal performance of pneumatic butterfly valves. The valve should be installed in a location that allows easy access for maintenance and operation. Proper alignment of the valve with the piping system is essential to prevent stress on the valve body and ensure smooth operation. The compressed air supply should be clean, dry, and properly regulated to meet the valve's specifications. During commissioning, it's important to verify the correct operation of the valve through its full range of motion and under various operating conditions. This includes checking for leaks, ensuring proper seating, and confirming the accuracy of any positioning systems. Documentation of the installation and initial performance characteristics provides a baseline for future maintenance and troubleshooting.
Maintenance Strategies and Troubleshooting Tips
Regular maintenance is key to ensuring the longevity and reliability of pneumatic butterfly valves. A comprehensive maintenance program should include periodic inspections of valve components, including the disc, seat, and actuator. Lubrication of moving parts, as per manufacturer recommendations, helps prevent wear and ensures smooth operation. The integrity of seals and gaskets should be checked regularly to prevent leakage. Air supply systems should be maintained to ensure clean, dry air is consistently delivered to the valve. Implementing a predictive maintenance approach, using techniques such as vibration analysis or thermal imaging, can help identify potential issues before they lead to valve failure. When troubleshooting, common issues to look for include air leaks in the actuator or control lines, sticking or binding of the valve disc, and wear or damage to the valve seat. Keeping detailed maintenance records and analyzing performance trends can aid in identifying recurring issues and optimizing maintenance schedules.
Conclusion
Pneumatic butterfly valves are indispensable in numerous industrial applications, offering reliable and efficient flow control solutions. Their design simplicity, coupled with the advantages of pneumatic actuation, makes them a preferred choice in various sectors. By understanding the intricacies of their operation, selection criteria, and maintenance requirements, engineers and technicians can maximize the performance and longevity of these vital components. As technology advances, we can expect further innovations in pneumatic butterfly valve design, enhancing their capabilities and expanding their applications in the ever-evolving industrial landscape.
