What is a Detector Check Valve? Use Cases in Fire Systems

A detector check valve is a special kind of non-return flow control device made for fire safety systems. Its job is to stop backflow contamination while also watching the flow of water to set off alarms. Unlike most check valves, this one has a detection chamber and a metering assembly built into one. When flow is detected, the metering assembly sets off warning panels, so people are immediately alerted in case of a fire. Its two functions—maintaining one-way flow and monitoring the system in real time—make it essential in commercial buildings, factories, and tall buildings where the water supply must be reliable and quick fire action is needed.

Understanding Detector Check Valves

Core Operating Principles

There are two chambers in the device, one for controlling the main flow and one for checking for leaks. The main chamber of the check valve has a disc or clapper that is loaded with springs and automatically closes when the forward pressure drops. This stops water from the fire system from flowing back into potable water sources. At the same time, a parallel detecting chamber has a small bypass line and a precision metering assembly that checks the speed of the flow. The metering assembly sends hydraulic or electronic signals to connected alarm panels whenever water moves through the system, like when the sprinklers are turned on or when the system is being tested for repair.

This two-chamber design solves a long-standing problem in fire safety: keeping water quality separate while letting you check on the system's state in real time. Traditional check valves do a great job of stopping backflow, but they don't let you know that the system is on until you can see that the sprinklers are releasing water. The detection bypass gets rid of this delay, so fire departments and building control systems are notified within seconds of the flow starting.

Mechanical vs. Electronic Detection Systems

Mechanical detection systems use turbine meters or paddle wheels that are powered by water and physically set off alarm switches when flow levels hit certain levels, usually 1-2 GPM, and a detector check valve. These systems work very reliably even in places with limited electricity infrastructure and don't need any extra power. Electronic versions have ultrasonic or magnetic flow sensors that send digital signals to SCADA systems. This lets them be monitored from afar and data to be stored for predictive repair programs.

From working with downstream petrochemical plants, we know that electronic systems work better with automation platforms, especially when tracking safety across the whole plant needs centralized control. In remote drilling operations and pipeline pump stations where power goes out often and techs want field-serviceable parts that can be swapped out, mechanical assemblies are still the best choice.

Common Design Variants

Spring-Loaded Disc Check Valves: These small valves use stainless steel compression springs to speed up disc closing, which lowers water hammer in fast systems. The short stroke distance (15–30 mm for 2–6-inch sizes) makes it possible for the pump to respond quickly when the pressure upstream drops. This keeps the pump equipment from being damaged by reverse flow.

Swing Check with Alarm Bypass: Traditional hinge-mounted clapper designs have a secondary metering line that sends a small percentage of the flow through the detection chamber. This is called a swing check with alarm bypass. This set-up works well for gravity-fed systems because the longer closing stroke doesn't hurt the structure of the system and the disc slam can be controlled by dampers that can be adjusted.

Silent Check with Integrated Monitoring: These valves use guided disc assemblies and dashpot dampening to get rid of closure shock while keeping sensitive alarm activation. They work without making noise and can sense flow. They deal with issues of noise pollution in occupied buildings and process areas that are sensitive to vibrations.

Knowing about these variations helps buying teams match the features of valves to the needs of each system. Spring-loaded designs work best for high-rise buildings that need to respond quickly, while industrial buildings that are worried about contamination should choose strong swing check setups with usable detection chambers.

Critical Role of Detector Check Valves in Fire Protection Systems

Backflow Prevention and Water Quality Protection

When pressure differences let reverse flow from fire system pipes that aren't being used cause contamination of municipal water sources that serve both residential and fire protection loads, the risk is always there. The detector check valve part makes a physical barrier that shuts off when supply pressure falls below system pressure. This stops chemicals, rust, and germs from getting into networks that distribute potable water. In petrochemical and refining plants, where fire suppression systems may have foam concentrates or corrosion inhibitors that are not allowed in drinking water, this feature is very important.

We have records of instances where facilities that didn't have proper backflow separation experienced cross-contamination when supply mains broke. This led to expensive water quality violations and system repairs. The spring-assisted closure mechanism of the valve makes sure that it seals properly even when the pressure is low. This keeps the separation integrity from 20 to 300 PSI, based on the valve rating.

Flow Detection and Alarm Activation

Because the sensor chamber can pick up on very low flow rates (as low as 0.5 GPM in precision models), it can let you know right away when sprinklers go off or system leaks happen. This early warning system lowers property loss by letting building management know about a fire before it gets too big to put out. The metering assembly, including the detector check valve, can tell the difference between normal changes in pressure and real flow events. This keeps simpler pressure-based monitoring systems from going off too often.

Facilities can use intelligent response methods when they are integrated with building automation systems. When the detection assembly sends out signals, automated processes can turn off HVAC systems to stop the smoke from spreading, open emergency exits, and send facility teams to the scene of the fire before the fire department gets there. This ability to coordinate responses has been especially useful in pipeline operations and drilling sites, where quickly putting out hydrocarbon fires requires coordination between many systems right away.

System Compliance and Equipment Protection

Backflow prevention and system tracking are required by NFPA 13 and NFPA 25 standards in fire protection installations. There are specific rules about how sensitive the detection must be and how reliable the alarm must be. When devices are properly defined, they meet these regulatory needs and protect equipment upstream from damage caused by reverse flow. When check valves don't work right, water hammer and backward rotation can happen, which shortens the life of pumps, jockey pumps, and pressure maintenance systems.

The valve is important for more than just following the rules. It's also good for the bottom line. Damage to a single pump from reverse flow can cost between $15,000 and $50,000 in repairs and downtime, which is a lot more than what you would pay for good backflow protection. Our customers in the equipment OEM and EPC contracting industries often say that longer equipment lifecycles and lower maintenance costs are the main reasons they choose certified devices over cheaper ones.

Choosing the Right Detector Check Valve for Your Fire System

Material Selection and Durability Considerations

Bronze and ductile iron bodies are most often used for fire safety, and each has its own benefits. Bronze assemblies are better at resisting corrosion in coastal areas and places with harsh water chemistry, and they can last for ten years with little upkeep. Ductile iron types are better at withstanding force and pressure, which is why they are chosen for high-rise buildings and industrial plants that work at 175 to 300 PSI.

Careful material selection is needed for internal parts. Discs and springs made of stainless steel are better at resisting corrosion and mineral scaling than those made of mild steel. This is especially important in systems where there are long times of inactivity between flow events. Standard seat materials are EPDM and Buna-N elastomers. However, Viton compounds that can withstand constant 200°F exposure may be needed for high-temperature applications close to boilers or process heaters.

Sizing and Pressure Rating Requirements

The device should meet the hydraulic calculations of the fire system. For commercial and industrial use, the sizes are usually between 2 and 10 inches. Too small of valves cause too much pressure drop, which hurts the performance of sprinklers at faraway heads. On the other hand, too big of assemblies cost more and might make detecting less sensitive at low flows. Hydraulic analysis figures out the right size by looking at the system demand (GPM), the source pressure, and the amount of head loss that is acceptable through the assembly.

Pressure ratings must be higher than the system's highest pressure plus a safety margin. At room temperature, working pressures of 300 PSI for Class 150 assemblies and 750 PSI for Class 300 assemblies cover most situations. To keep overpressure failures from happening, facilities with fire pumps that produce high discharge pressures or those in tall buildings with a lot of elevation head need to carefully check their ratings.

Comparison with Alternative Check Valve Technologies

Standard swing check valves that can't detect anything cost less at first, but they need separate flow tracking devices, which raises the total cost of installation and adds the chance of failure. Ball check valves are small and easy to place, but they don't have a detector check valve or a detection chamber built in, which is needed for single devices to meet backflow and alarm requirements. Lift check valves do a great job of closing, but they cause bigger drops in pressure, which could hurt the hydraulics of the system.

Putting backflow prevention and flow detection in the same assembly makes installation easier and cuts down on the amount of pipe needed and the number of flanged connections that could be leak spots. This consolidation is especially good for equipment OEMs and EPC contractors that are making skid-mounted fire protection systems. Less wasted room and fewer parts mean lower costs and better system reliability.

Supplier Evaluation and Certification Verification

Manufacturers you can trust keep their FM Global, UL, and LPCB approvals, which show that their products have been tested and proven to work by a third party. These approvals make sure that the devices meet NFPA standards and work properly within the pressure and temperature ranges that are given. People who work in procurement should check directly with approval agencies to see what goods are currently certified, since old certificates may mean that the products don't meet new standards.

In fire protection applications, the technical help that a supplier can provide is very important. Facilities need to be able to get help with hydraulic calculations, installation instructions, and quick answers to questions that come up during testing. Manufacturers that offer technical collaboration, especially those with experience in oil and gas, pipeline, and petrochemical applications, add value beyond just selling parts by helping to improve system designs and solve difficult integration problems. The detector check valve technology available today benefits significantly from this high level of engineering support.

Future Trends and Innovations in Detector Check Valve Technology

Smart Valve Integration and IoT Connectivity

The fire protection business is moving toward smart systems that watch all the time instead of alarms that go off when something goes wrong. Newer devices have wireless transceivers that send data to cloud-based systems about pressure, flow, and valve position in real time. These features allow predictive maintenance tools to find problems before they become system failures. For example, changes in flow pattern or gradual pressure loss could mean that discs are wearing out.

Remote diagnostics make maintenance a lot cheaper for sites that are spread out, like offshore drilling platforms and pipeline networks. Instead of making regular site visits, maintenance teams access valve health data from afar, including from the detector check valve, and only send techs when diagnostics show that they need to be there. This targeted method cuts down on labor costs and raises system availability by finding problems early on.

Regulatory Evolution and Design Impacts

New guidelines put a lot of emphasis on making sure that connected fire safety devices are safe and can work even when the power goes out for a long time. As a result, manufacturers have come up with hybrid systems that keep working mechanical alarms while also giving optional electronic monitoring. This makes sure that life safety functions properly no matter what the IT infrastructure status is. Water quality rules also push for new ideas. For example, stricter backflow protection rules have led to the creation of better sealing technologies and materials that are resistant to new contaminants.

Standards for energy economy also have an effect on how systems are built. Low-pressure-drop detector check valve designs reduce the amount of horsepower needed for the pump. This lowers the cost of capital equipment and the amount of energy used during operation. More and more, facilities that want to get LEED certification and meet carbon reduction goals ask manufacturers to make parts that are better at using hydraulics. This has led manufacturers to invest in things like advanced disc designs and streamlined internal flow lines that cut head loss by 20 to 30 percent compared to traditional assemblies.

Conclusion

detector check valves are an important example of how backflow control and system monitoring can work together to meet the strict fire safety needs of both industrial and commercial settings. Their ability to keep water quality isolation while activating alarms right away cuts down on emergency reaction times and protects both people and property. For the right choice, you need to pay close attention to how long the material will last, how much pressure it can handle, and how sensitive its detection is in relation to the design of the system. As smart tracking and predictive maintenance become more common in fire safety technology, these devices change to offer better connectivity while still having the mechanical dependability that has made them essential to modern fire suppression systems. When businesses buy certified, correctly specified assemblies, they get practical benefits like lower maintenance costs, better compliance with regulations, and better emergency reaction capabilities.

FAQ

1. What Distinguishes a Detector Check Valve from a Standard Check Valve?

The main difference is the built-in monitoring chamber that checks the flow and sets off alarms. Standard check valves only stop backflow and don't show the status of the system. detector check valve assemblies, on the other hand, stop backflow and measure flow, which sends an instant alert when water moves through fire protection pipes. This two-in-one feature meets the needs for both hydraulic isolation and tracking in a single device.

2. Can These Valves Be Used in All Fire Sprinkler System Types?

They work well in pre-action, deluge, wet pipe, and dry pipe systems, but construction arrangements are different. Standard horizontal or vertical installations are used for wet systems. On the other hand, heated enclosures may be needed for dry systems to keep the detection room from freezing. Pre-action systems gain from sensitive flow detection that can tell the difference between air leaks and real water flow, which lowers the number of false trips.

3. What Maintenance Intervals Do Manufacturers Recommend?

NFPA 25 calls for visual checks every three months and functional flow tests once a year. Every three to five years, based on the water quality and how often the system is used, it is usually taken apart completely for an internal inspection. Facilities with harsh water chemistry or systems that are turned on and off a lot should check the insides more often to find wear before it affects performance.

Partner with CEPAI for Advanced Flow Control Solutions

We know how very important it is to have reliable flow control in industrial and fire defense settings. CEPAI has been making high-pressure check valves, precision control valves, and specialty flow management devices that meet API, ISO, and CE standards for more than 20 years. Our engineering team works directly with procurement managers and project engineers to find the exact parts your system needs, whether you're putting together fire safety infrastructure or building wellhead assemblies for drilling.

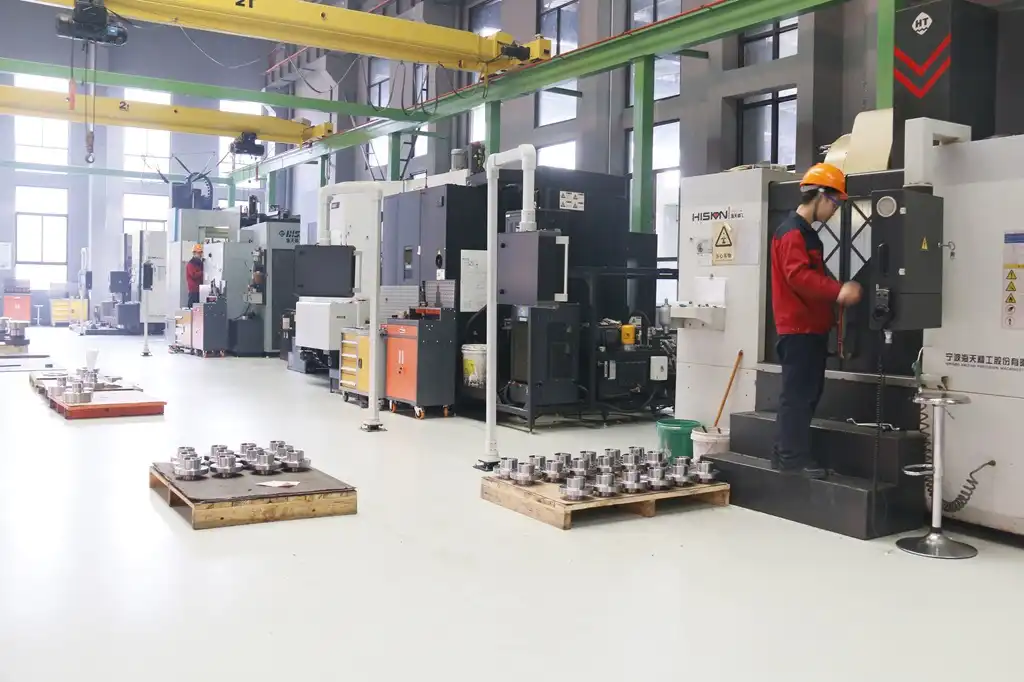

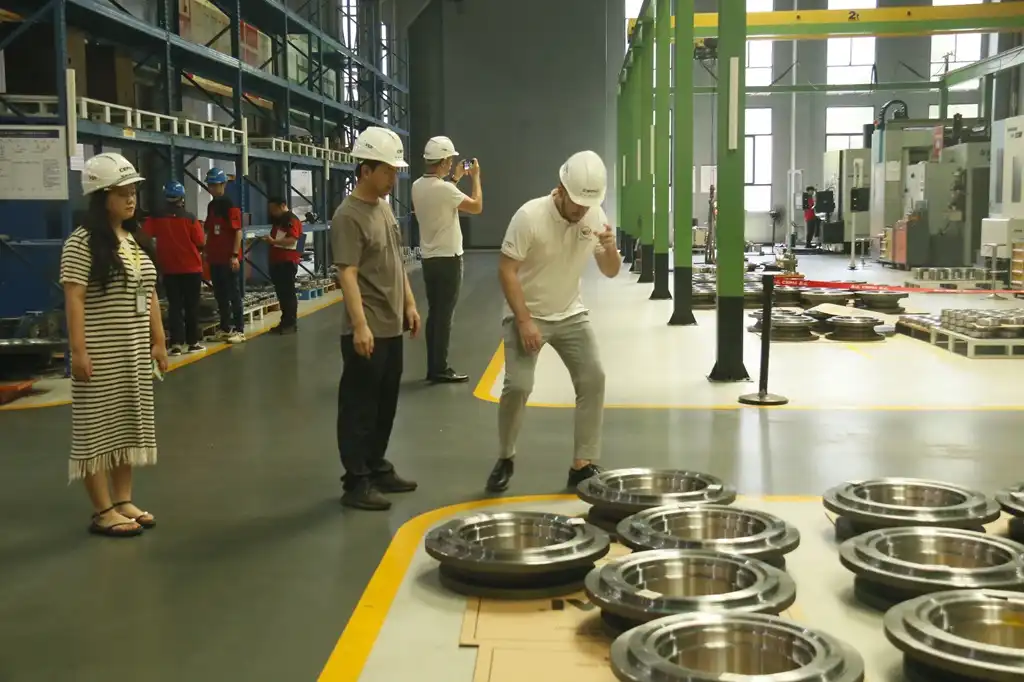

As a manufacturer of detector check valves that can ship goods all over the world, we offer quality-certified products that come with full technical documentation and quick customer service after the sale. Our factory has strict quality controls that are backed up by APIQ1, API6A, and ISO9001 standards. This makes sure that every valve meets the performance requirements that are important to your operations. Email our technical team at cepai@cepai.com to talk about the needs of your project, ask for help with hydraulic calculations, or get full instructions for designing your fire protection system. We have competitive lead times and customization choices that work with the schedules of EPC projects and the dates for commissioning facilities.

References

1. National Fire Protection Association. NFPA 13: Standard for the Installation of Sprinkler Systems. 2022 Edition.

2. National Fire Protection Association. NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems. 2020 Edition.

3. FM Global. Property Loss Prevention Data Sheet 2-81: Fire Protection System Inspection, Testing and Maintenance. 2021.

4. American Water Works Association. AWWA Manual M14: Backflow Prevention and Cross-Connection Control. 4th Edition.

5. Underwriters Laboratories. UL 312: Standard for Check Valves for Fire Protection Service. Current Edition with Revisions through 2021.

6. International Code Council. International Fire Code Chapter 9: Fire Protection and Life Safety Systems. 2021 Edition.
