Understanding Pneumatic Butterfly Valves

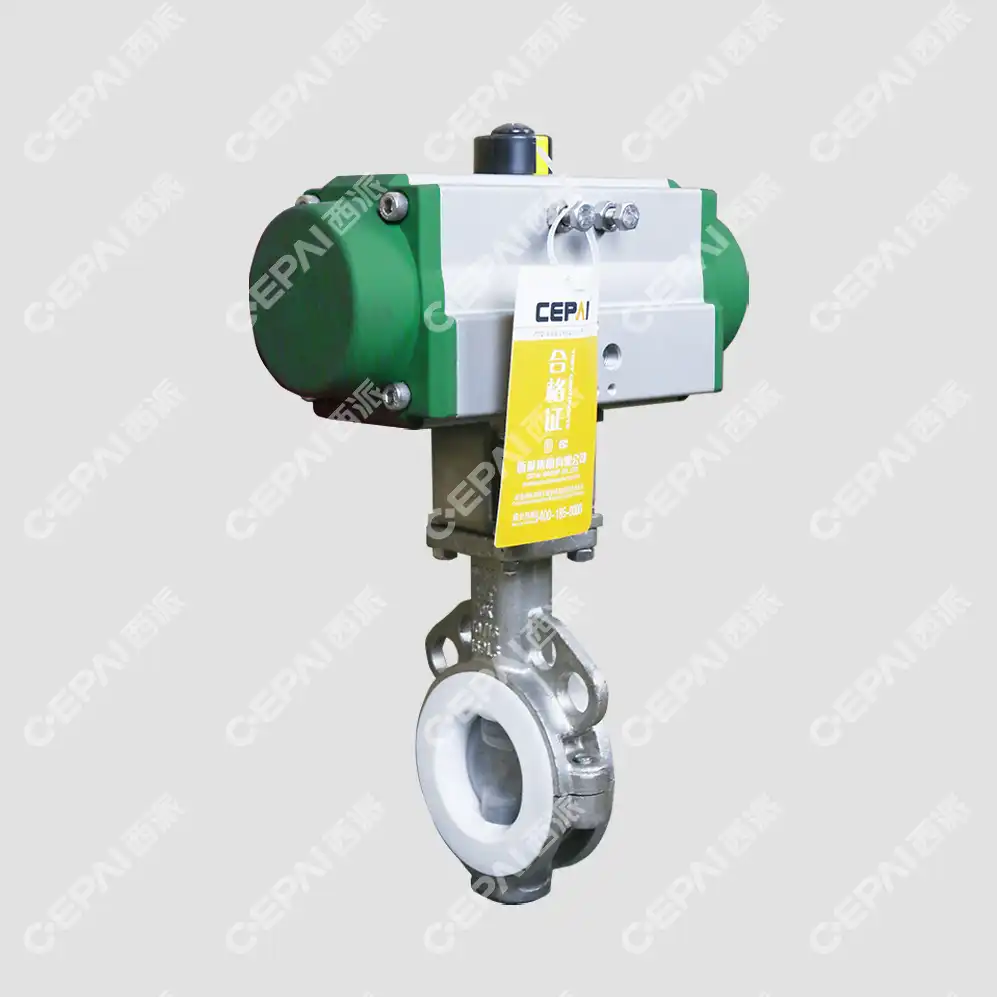

How Pneumatic Butterfly Valves Work
Pneumatic butterfly valves operate using compressed air or gas to actuate the valve disc. The pneumatic actuator, typically a piston or diaphragm type, converts the air pressure into mechanical motion, which then rotates the valve disc. This simple yet effective mechanism allows for quick opening and closing of the valve, making it highly responsive to control signals. The actuator's spring-return design ensures fail-safe operation, automatically closing or opening the valve in case of air supply failure, depending on the specific configuration.
Advantages of Pneumatic Butterfly Valves
Pneumatic butterfly valves offer several notable advantages. Their rapid actuation speed makes them ideal for applications requiring quick response times, such as emergency shutdowns or process isolation. The simplicity of their design translates to lower maintenance requirements and increased reliability. Additionally, pneumatic valves are inherently explosion-proof, making them suitable for hazardous environments without the need for additional protective measures. Their ability to operate in extreme temperatures and harsh conditions further expands their applicability across various industries.
Applications and Industries
The versatility of pneumatic butterfly valves makes them suitable for a wide range of applications. In the oil and gas industry, they're frequently used for wellhead control, pipeline isolation, and tank farm operations. The food and beverage sector relies on these valves for their sanitary properties and quick cleaning capabilities. In water treatment plants, pneumatic butterfly valves play a crucial role in flow control and process isolation. Their robustness and reliability also make them popular choices in the chemical processing, pharmaceutical, and power generation industries, where they handle various fluids and gases under diverse operating conditions.

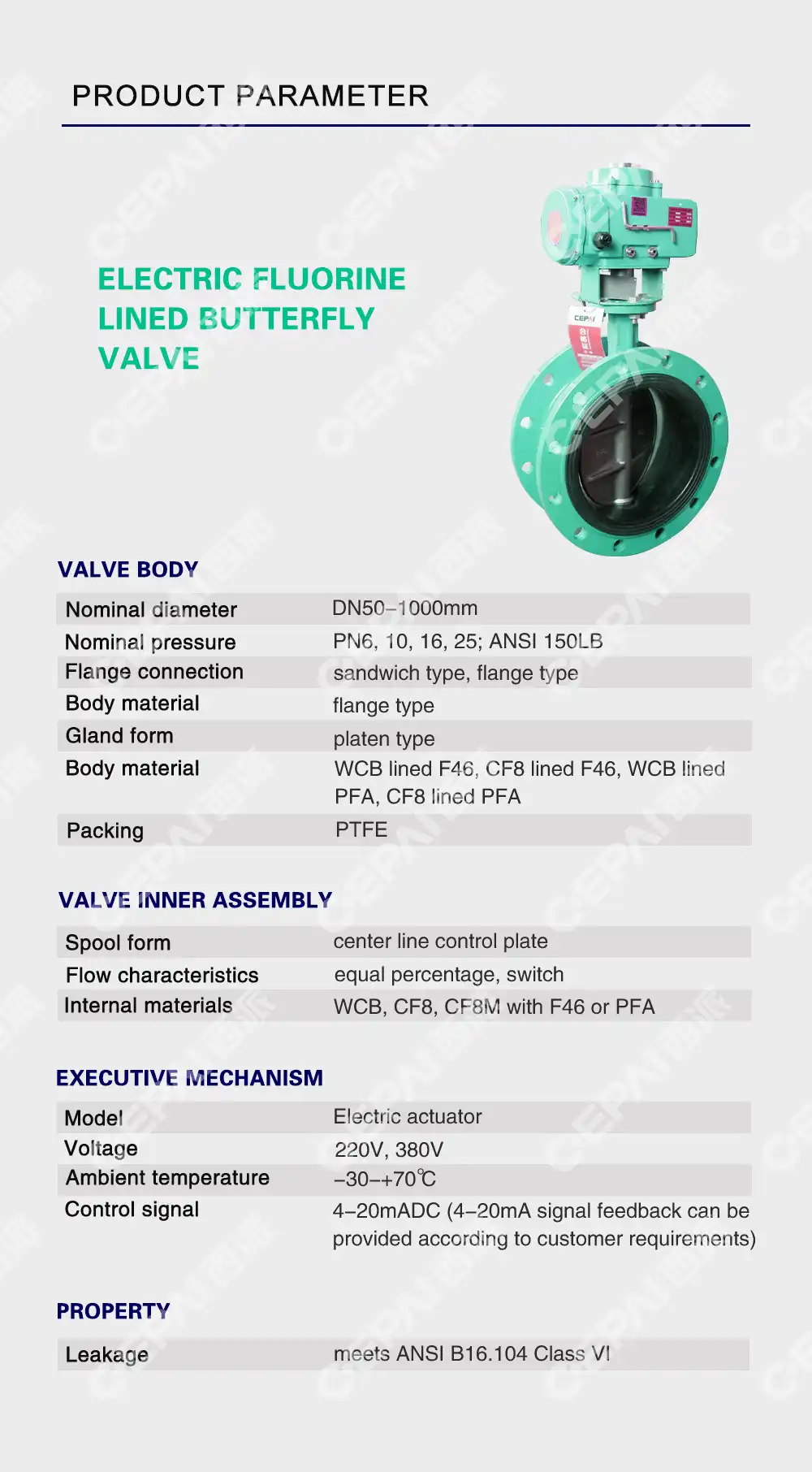

Exploring Electric Butterfly Valves
Electric Actuator Technology
Electric butterfly valves utilize electric motors to drive the valve disc. These actuators typically consist of a motor, gearbox, and control unit. The motor converts electrical energy into rotational motion, which is then transmitted through the gearbox to achieve the desired torque and speed for valve operation. Advanced electric actuators incorporate features such as position feedback, torque sensing, and built-in controls, allowing for precise positioning and monitoring of the valve's status. This technology enables seamless integration with modern control systems and industrial automation networks.
Benefits of Electric Butterfly Valves
Electric butterfly valves excel in applications requiring precise control and positioning. Their ability to achieve partial opening allows for accurate flow regulation, making them ideal for modulating service. The inherent compatibility with digital control systems facilitates remote operation and monitoring, enhancing overall process efficiency. Electric actuators offer energy efficiency, consuming power only during valve movement, which can lead to significant energy savings in the long run. Unlike a pneumatic butterfly valve, the absence of compressed air requirements simplifies installation and reduces ongoing operational costs associated with maintaining air supply systems.
Suitable Applications
Electric butterfly valves find extensive use in industries where precise flow control and automation are paramount. In HVAC systems, they regulate air and water flow for optimal temperature control. The water and wastewater treatment sector employs these valves for accurate chemical dosing and flow balancing. In the power generation industry, electric butterfly valves play critical roles in boiler feedwater systems and cooling water management. Their ability to provide accurate positioning makes them valuable in process industries for batch control and blending operations. The marine and offshore sectors also benefit from electric butterfly valves due to their reliability and resistance to harsh environmental conditions.
Comparing Pneumatic and Electric Butterfly Valves
Performance Factors
When evaluating pneumatic and electric butterfly valves, several performance factors come into play. Pneumatic valves generally offer faster actuation speeds, making them superior for rapid cycling applications. However, electric valves provide more precise positioning, which is crucial for fine flow control. In terms of torque output, pneumatic actuators can deliver high torque quickly, while electric actuators offer consistent torque throughout the stroke. The choice between the two often depends on the specific requirements of the application, such as response time, control accuracy, and duty cycle.
Cost Considerations
The cost analysis of pneumatic versus electric butterfly valves extends beyond the initial purchase price. A pneumatic butterfly valve typically has lower upfront costs but may require investment in air compressors and air treatment equipment. Electric valves, while potentially more expensive initially, can offer lower long-term operational costs due to their energy efficiency and reduced maintenance requirements. When considering total cost of ownership, factors such as energy consumption, maintenance frequency, and lifespan of the valve and actuator assembly should be taken into account. In some cases, the higher initial investment in electric valves can be offset by long-term savings in energy and maintenance costs.
Environmental and Safety Aspects
Environmental considerations play an increasingly important role in valve selection. Electric butterfly valves have an edge in terms of energy efficiency and reduced carbon footprint, as they don't require continuous compressed air supply. Pneumatic valves, however, offer inherent safety advantages in hazardous environments due to their explosion-proof nature. In terms of noise pollution, electric valves generally operate more quietly than their pneumatic counterparts. Both types can be designed to meet stringent environmental regulations, but the specific requirements of the application and local environmental standards should guide the final choice. Safety features such as fail-safe operation can be implemented in both pneumatic and electric designs, ensuring reliable performance in critical applications.
Conclusion
In the debate between pneumatic and electric butterfly valves, there's no universal winner. The choice depends on the specific needs of your application, considering factors such as response time, control precision, energy efficiency, and environmental conditions. Pneumatic butterfly valves excel in rapid cycling and fail-safe applications, while electric butterfly valves offer superior precision and integration with automated systems. By carefully evaluating your process requirements, operational environment, and long-term costs, you can select the valve type that best optimizes your system's performance, reliability, and efficiency.
