Understanding Butterfly Valves: Design, Operation, and Applications
Butterfly Valve Design and Components

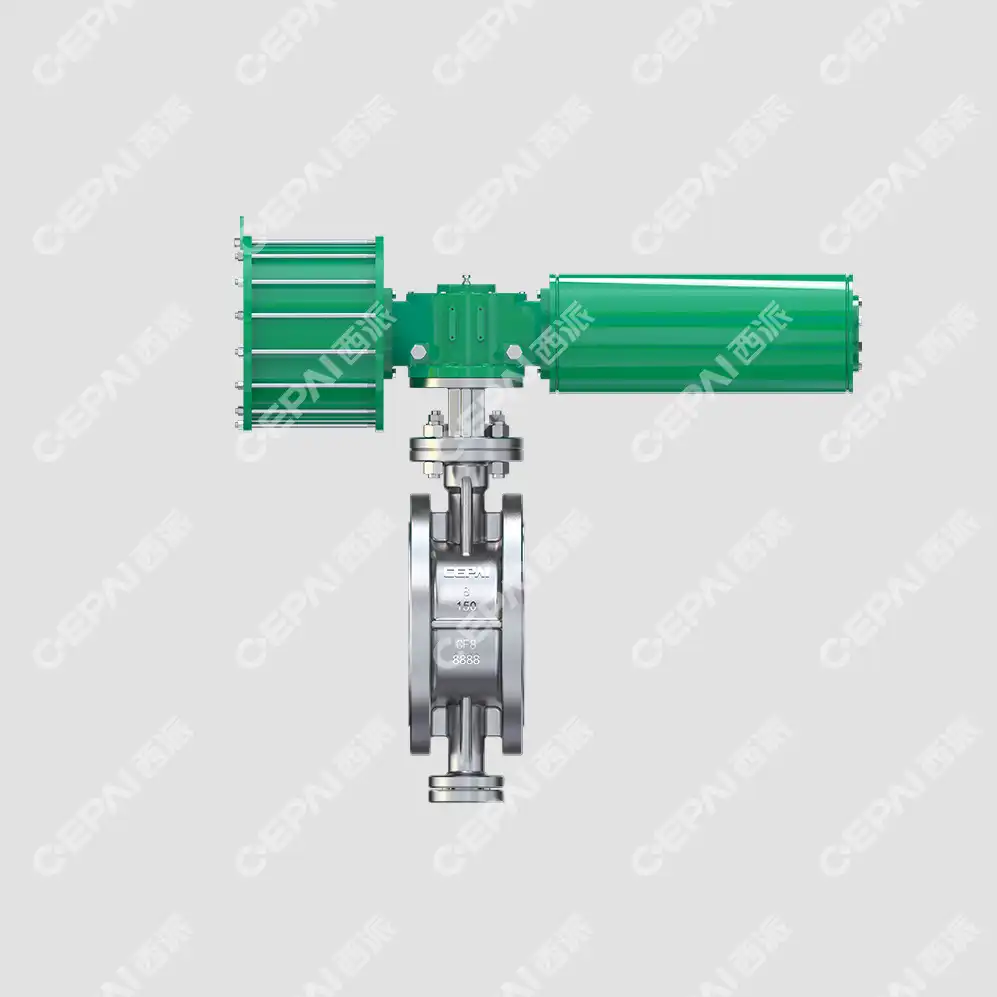

Butterfly valves feature a unique design centered around a rotating disc. The valve body houses this disc, which is connected to an actuator through a stem. The disc, typically made of durable materials like stainless steel or cast iron, rotates perpendicular to the flow. Seat rings, often composed of elastomers or polymers, provide sealing when the valve is closed. The compact nature of butterfly valves makes them suitable for installations with space constraints.
Operating Principles of Butterfly Valves
The operation of a butterfly valve is straightforward yet effective. When the actuator turns the stem, it rotates the disc either parallel or perpendicular to the flow. In the open position, the disc aligns with the flow, allowing fluid passage. As the disc rotates to the closed position, it gradually restricts flow until it completely blocks the pipeline. This quarter-turn operation enables quick opening and closing, making butterfly valves ideal for rapid shut-off scenarios.
Applications and Advantages of Butterfly Valves
Butterfly valves find extensive use in various industries due to their versatility. In the oil and gas sector, they're commonly employed in pipeline systems for both liquid and gas applications. Their ability to provide efficient throttling makes them suitable for flow control in refineries and processing plants. The lightweight design and low-pressure drop characteristics of butterfly valves make them excellent choices for large diameter pipelines. Additionally, their quick operation and reliable sealing properties make them valuable in emergency shutdown systems.
Gate Valves: Structure, Functionality, and Industrial Use
Gate Valve Construction and Key Elements

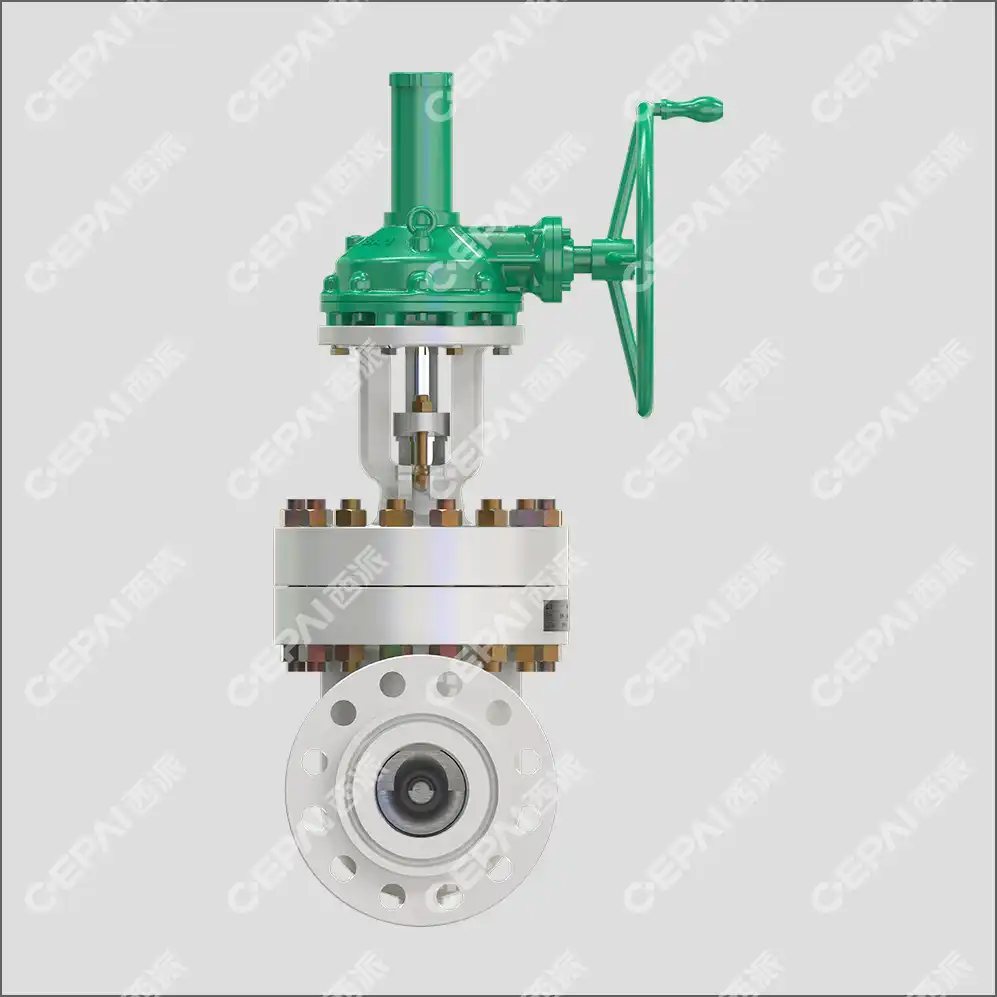

Gate valves possess a distinct structure designed for robust flow control. The valve body contains a gate or wedge that moves perpendicular to the flow path. This gate is typically made of strong materials like forged steel or bronze to withstand high pressures. The stem, connected to the gate, extends through a bonnet and is operated by a handwheel or actuator. Sealing surfaces, often made of resilient materials, ensure tight closure when the gate is fully lowered. The robust construction of gate valves allows them to handle high-pressure applications effectively.
Working Mechanism of Gate Valves
Gate valves operate on a simple yet effective principle. When opened, the gate rises, creating an unobstructed flow path. This design results in minimal pressure drop, making gate valves ideal for applications requiring full flow capacity - unlike a butterfly valve. Closing the valve lowers the gate, gradually reducing the flow area until it completely blocks the passage. The linear motion of the gate provides excellent sealing capabilities, especially in fully open or closed positions. However, this design is less suitable for precise flow regulation or throttling applications.
Industrial Applications and Benefits of Gate Valves
Gate valves are widely used in industries requiring robust flow control. In oil and gas operations, they're commonly found in wellhead assemblies, pipeline systems, and refinery processes. Their ability to provide tight shut-off makes them invaluable in high-pressure scenarios. Gate valves excel in applications where infrequent operation is needed, such as isolation valves in main pipeline systems. Their design allows for bidirectional flow, adding to their versatility. The durability and reliability of gate valves make them a preferred choice for critical safety systems in industrial plants.
Comparative Analysis: Butterfly Valves vs. Gate Valves
Performance Characteristics and Operational Efficiency
When comparing butterfly valves and gate valves, several performance factors come into play. Butterfly valves offer quicker operation due to their quarter-turn design, making them suitable for frequent cycling. They provide good throttling capabilities, allowing for precise flow control. Gate valves, while slower to operate, excel in providing full bore flow when fully open, resulting in minimal pressure drop. This makes gate valves ideal for applications requiring maximum flow capacity. In terms of sealing, both valve types can provide tight shut-off, but gate valves generally offer better sealing in high-pressure scenarios.
Maintenance Requirements and Longevity
Maintenance needs differ between butterfly and gate valves. Butterfly valves, with fewer moving parts, typically require less maintenance. Their compact design makes them easier to service in confined spaces. However, the sealing elements may need more frequent replacement due to wear from the rotating disc. Gate valves, while more complex, often have longer service lives in severe service conditions. Their robust construction allows them to withstand harsh environments, but they may require more extensive maintenance when repairs are needed. Regular lubrication of the stem and gate is crucial for smooth operation of gate valves.
Cost Considerations and Space Requirements
Cost and space factors play a significant role in valve selection. Butterfly valves are generally more cost-effective, especially in larger sizes, due to their simpler design and fewer materials. They also have a smaller footprint, making them ideal for installations with space constraints. Gate valves, while often more expensive, provide better value in high-pressure applications where their robust design is necessary. They require more installation space due to their linear operation, which can be a limiting factor in some scenarios. When considering lifecycle costs, the choice between butterfly and gate valves depends on the specific application requirements and operational conditions.
Conclusion
Choosing between butterfly valves and gate valves depends on specific application needs. Butterfly valves offer quick operation, compact design, and good throttling capabilities, making them ideal for frequent use and space-constrained environments. Gate valves provide excellent sealing, full bore flow, and robustness for high-pressure applications, suited for infrequent operation and critical shut-off scenarios. Understanding these differences enables engineers and operators to make informed decisions, ensuring optimal performance and efficiency in fluid control systems across various industries, including oil and gas operations.
