Understanding Three Eccentric Butterfly Valve Design and Operation

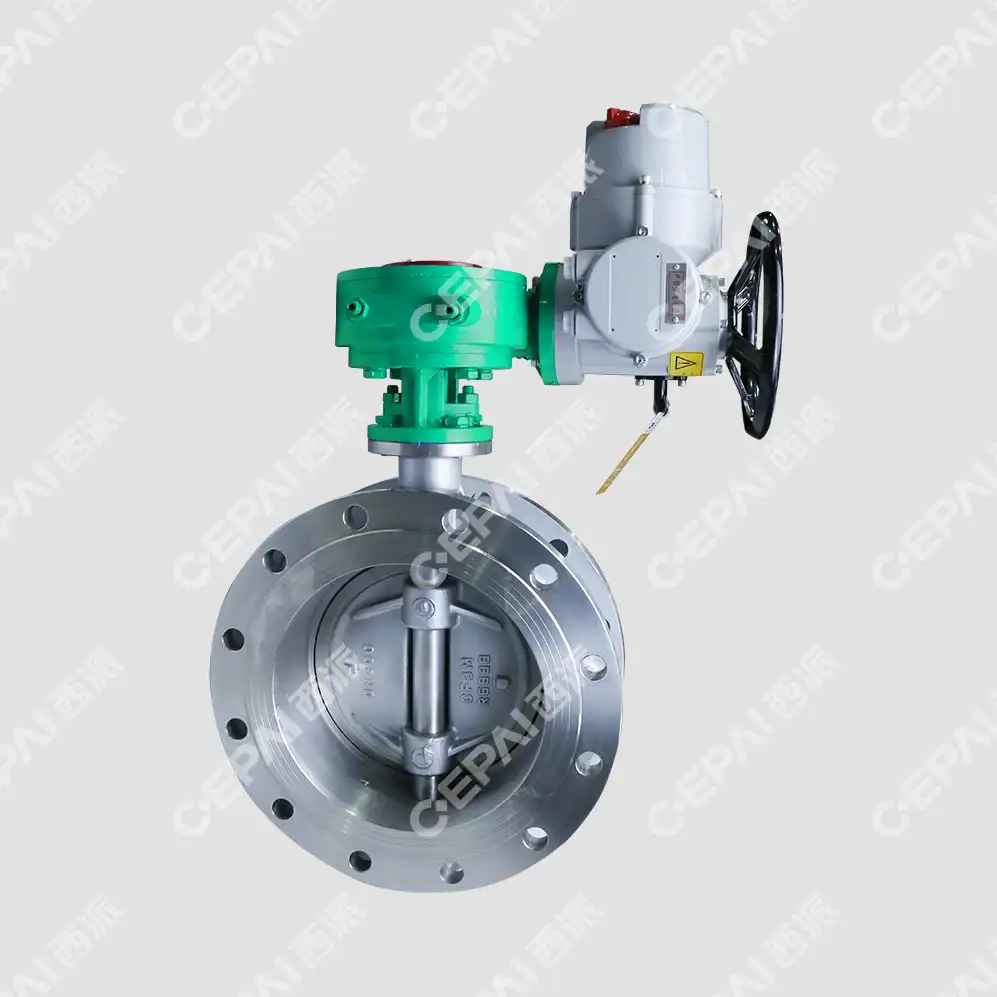

Principles of Three Eccentric Butterfly Valve Construction
Three eccentric butterfly valves are engineered with a unique design that sets them apart from traditional butterfly valves. The term "eccentric" refers to the offset positioning of the disc in relation to the valve body and seat. This design incorporates three distinct offsets: the shaft is positioned behind the disc face, the shaft is moved off-center from the valve and body centerline, and the disc seat is inclined in relation to the body centerline. These offsets work in harmony to create a cam-like action during valve operation, reducing wear on the seat and ensuring a tighter seal.
The valve's construction typically includes a robust body, usually made of materials like carbon steel or stainless steel, to withstand high pressures and temperatures. The disc, which is the primary sealing element, is carefully engineered to provide maximum flow capacity when open and a tight seal when closed. The seat, often made of resilient materials like PTFE or metal for more demanding applications, is designed to complement the disc's movement and ensure zero leakage at closure.
Operational Advantages of Three Eccentric Design
The three eccentric design offers several operational advantages that make these valves particularly suitable for challenging industrial applications. One of the key benefits is the reduced torque required for operation. As the disc rotates away from the seat during opening, it quickly breaks contact, minimizing friction and wear. This results in smoother operation and extended valve life.
Another significant advantage is the valve's ability to provide bidirectional sealing. This means the valve can effectively seal against pressure from either direction, enhancing its versatility in various system configurations. The design also allows for excellent shut-off capabilities, often achieving bubble-tight closure even in high-pressure scenarios.
Applications Suitable for Three Eccentric Butterfly Valves
Three eccentric butterfly valves find widespread use in industries where reliable shut-off and control are paramount. In the oil and gas sector, these valves are commonly employed in pipeline systems, process control applications, and isolation services. They excel in handling a variety of media, including crude oil, natural gas, and refined petroleum products.
The power generation industry also heavily relies on these valves for applications such as boiler feed water systems and steam lines. Their ability to withstand high temperatures makes them ideal for these demanding environments. In chemical processing, three eccentric butterfly valves are used in reactors, distillation columns, and storage tank systems, where their corrosion resistance and tight sealing properties are highly valued.
Key Factors in Selecting the Appropriate Three Eccentric Butterfly Valve
Assessing System Requirements and Operating Conditions
When selecting a three eccentric butterfly valve, a thorough assessment of the system requirements and operating conditions is essential. Begin by evaluating the maximum operating pressure and temperature the valve will encounter. These parameters will significantly influence the choice of valve materials and design specifications. Consider the normal operating conditions as well as any potential upset scenarios to ensure the valve can handle all possible situations.
Flow characteristics are another critical factor. Determine the required flow rate and consider any potential pressure drops across the valve. The valve's Cv (flow coefficient) should be appropriate for your system's needs. Additionally, assess the cycling frequency – how often the valve will be opened and closed – as this impacts the choice of actuator and affects long-term wear.
Material Selection for Valve Components
Choosing the right materials for valve components is crucial for ensuring longevity and reliability. The body material should be selected based on its ability to withstand the system pressure and temperature while also being compatible with the process media. Common choices include carbon steel for general applications, stainless steel for corrosive environments, and specialized alloys for extreme conditions.
The disc and seat materials require particular attention. The disc must be strong enough to withstand the flow forces and resist deformation, while the seat material needs to provide an effective seal and maintain its properties over time. For high-temperature applications, metal seats might be preferred, while soft seats like PTFE offer excellent sealing in less demanding conditions.
Sizing and Capacity Considerations
Proper sizing of the three eccentric butterfly valve is critical for optimal performance. An undersized valve may not provide sufficient flow capacity, leading to system inefficiencies, while an oversized valve can result in poor control and unnecessary expense. Consider the pipe size, but remember that the valve size may not always match the pipe size exactly.
Evaluate the required flow capacity and compare it with the valve's flow characteristics. Many manufacturers provide detailed flow coefficient (Cv) data for their valves, which can be used to determine the appropriate size. It's also important to consider the pressure drop across the valve and its impact on the overall system performance. In some cases, a smaller valve with a higher pressure drop might be more suitable for better control.
Advanced Features and Considerations for Three Eccentric Butterfly Valves
Actuation and Control Options
The choice of actuation system for a three eccentric butterfly valve can significantly impact its performance and suitability for specific applications. Manual actuation, typically through a handwheel or lever, is suitable for valves that require infrequent adjustment or in locations where automated control is not necessary. However, for more demanding applications, automated actuation is often preferred.
Pneumatic actuators are widely used due to their simplicity, reliability, and cost-effectiveness. They are particularly suitable for on/off applications and can be equipped with positioners for modulating control. Electric actuators offer precise control and are ideal for remote locations where compressed air is not available. They can be easily integrated into digital control systems, providing advanced monitoring and control capabilities.
Sealing Technologies and Their Impact on Performance
The sealing technology employed in a three eccentric butterfly valve is crucial for achieving tight shut-off and preventing leakage. Metal-to-metal seals are often used in high-temperature or high-pressure applications where soft seals might degrade. These seals can provide excellent performance but require precise manufacturing and may be more susceptible to wear over time.
Soft seats, typically made from materials like PTFE or RTFE, offer superior sealing capabilities in less extreme conditions. They can provide bubble-tight shut-off and are often more forgiving in terms of wear and minor imperfections. Some advanced designs incorporate a combination of metal and soft seals to leverage the benefits of both technologies.
Maintenance and Long-term Reliability Factors
When selecting a three eccentric butterfly valve, consider the long-term maintenance requirements and overall reliability. Look for designs that facilitate easy maintenance, such as those with replaceable seats or seals that can be changed without removing the valve from the line. The quality of stem seals is particularly important, as these are often the first components to show signs of wear.
Evaluate the manufacturer's track record and the availability of spare parts. A valve from a reputable manufacturer with a history of reliability and good after-sales support can save significant costs and downtime over its lifecycle. Consider also the valve's resistance to common issues like cavitation and erosion, especially in applications where these phenomena are likely to occur.
Conclusion
Selecting the right three eccentric butterfly valve requires a comprehensive approach that considers system requirements, material compatibility, sizing, and advanced features. By carefully evaluating these factors and understanding the unique advantages of three eccentric design, you can choose a valve that offers optimal performance, reliability, and efficiency for your specific application. Remember that consulting with experienced valve manufacturers and engineers can provide valuable insights and ensure that your selection meets both current needs and future operational demands.
