Modern process control systems can't work without pneumatic control valves. They use compressed air to exactly control the flow, pressure, temperature, or amount of liquid in pipes. A valve body and a gas actuator work together in these valves to turn air signals into mechanical movement. A lot of engineers choose them because they work reliably in harsh conditions, respond quickly, and are safe to use in dangerous areas. Pneumatic control valves are used to make oil and gas, process chemicals, make electricity, and clean water. They work great in places where exact control is needed without electrical sparks, like on ocean sites and in factories where explosions are common.

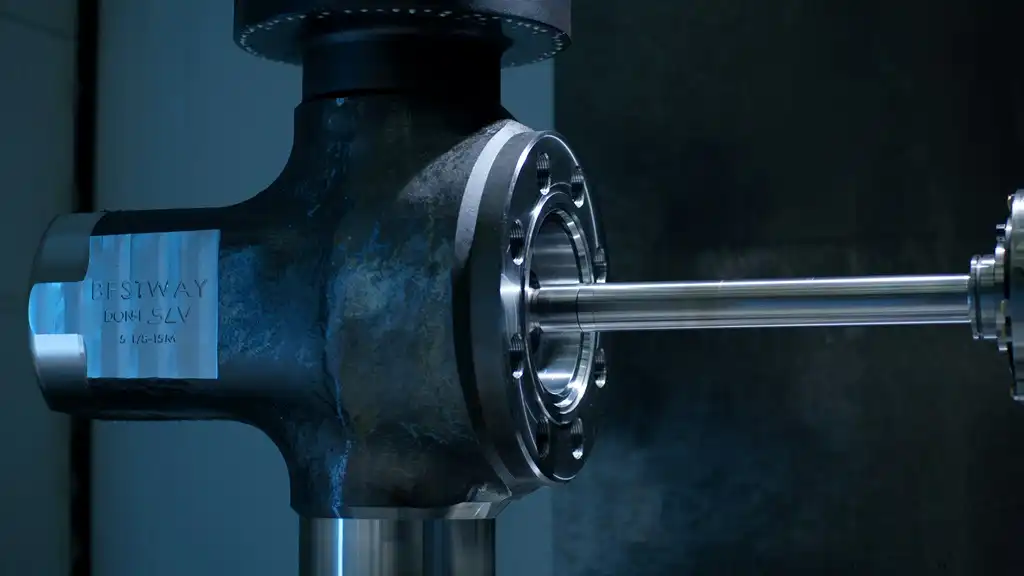

Valves

Understanding Pneumatic Control Valves

Core Components and Design

The valve body, the actuator, and the positioner are the three major parts of a standard pneumatic control valve. The trim (plug, seat, and cage) that actually limits flow is inside the valve body. The stem is moved by compressed air going to the pneumatic actuator, which is usually a diaphragm or piston type. The positioner makes sure that the valve goes exactly where the computer system tells it to. Low-bleed positioners are used in newer designs; they use up to 90% less air than older types.

How Pneumatic Actuation Works?

The controller sends an air signal of 3 to 15 psi or 6 to 30 psi to the actuator. When this pressure hits the diaphragm, it makes force that is stronger than the spring tension and moves the valve stem. Spring-return valves are used in fail-safe systems. When air pressure is lost, they move to a safe state (open or closed). Double-acting actuators use air pressure to open and close, which lets them stroke faster in important situations.

Control Signal Types and Integration

I/P sensors change 4-20 mA data into air pressure, which is what most systems use. Smart positioners that can talk to either HART or Foundation Fieldbus can do digital control, diagnosis, and automatic adjustment. Recent studies in the industry show that these digital systems can find packing wear, actuator leaks, or valve stiction before they break. This cuts down on unplanned downtime by up to 40%.

Major Industry Applications

Oil and Gas Production and Drilling

Pneumatic control valves are very important for controlling the wellhead, the level of the separator, gas lift systems, and emergency shutdowns. They are in charge of choke valves, managed produced water injection, and chemical injection rates on offshore sites. Because they can't explode, they are the best choice when expensive safe casings are needed for electrical devices. When used with high-pressure sour gas, these valves keep a tight stop and don't corrode when exposed to H₂S or CO₂.

Refining and Petrochemical Processing

For controlling the temperature of the reactor, mixing, and controlling the distillation column, refineries depend on air control valves a lot. They can handle harsh working conditions like cavitation, high temps up to 850°F (454°C), and fluids that eat away at metal. In FCC units and hydrocrackers, these valves keep the exact pressure drop rates to keep the catalysts from getting damaged and the quality of the product high.

Power Generation and Water Treatment

Pumps that move air are used in power plants to handle boiler feedwater, steam treatment, and cooling water. In water treatment plants, they are in charge of controlling the pH, adding chemicals, and the order of filter backwashes. Because they can handle high flow rates while still being easy to control, they are perfect for these tough jobs.

Selection and Performance Optimization

Advantages Over Electric and Hydraulic Systems

Electric motors take 10 to 30 seconds to respond, but pneumatic systems respond in just 1 to 3 seconds for a full stroke. They don't need power at the valve site, so there is no risk of sparks in dangerous places. Because most industrial sites already have compressed air systems, operating costs stay low. Because pneumatic parts have fewer moving parts than electric motors, they are easier to maintain.

Critical Selection Parameters

Engineers have to think about the pressure drop, temperature range, flow properties (linear, similar percentage, quick opening), and how well the materials work together. Cavitation, flashes, and too much noise can be avoided by using the right size. The flow coefficient (Cv) of the pneumatic control valve must meet the needs of the system at both low and high flow rates. When flows are low, valves that are too big make it hard to control, and when they are too small, they waste energy and cause too much pressure drop.

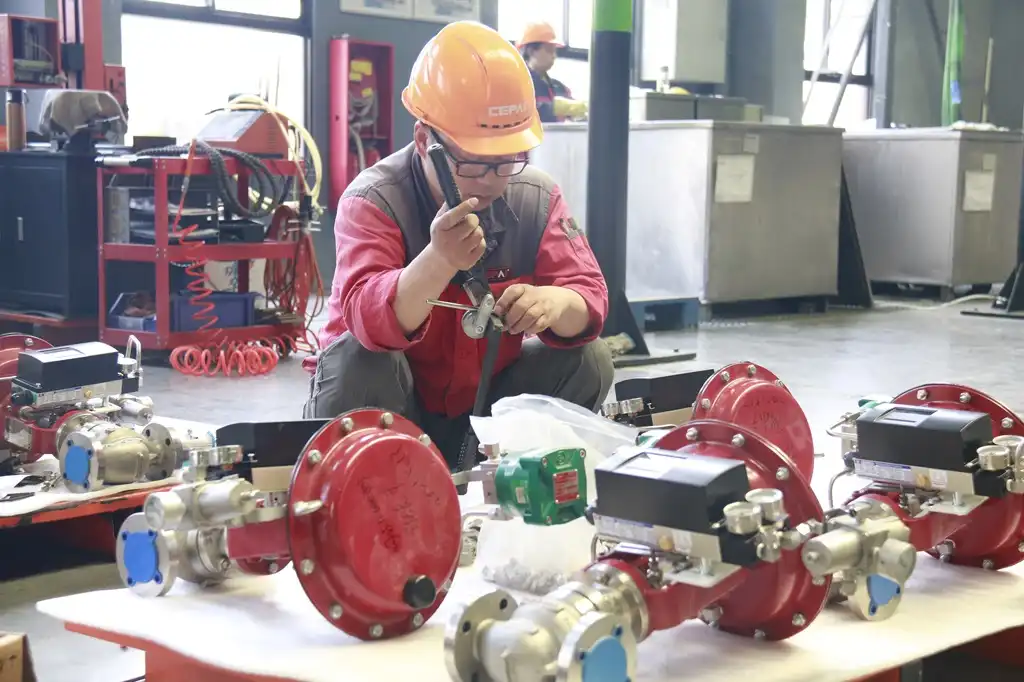

Cepai Control Valves

Maintenance Best Practices

Regular repair keeps process control accurate and extends the life of valves. Do stroke tests every three months in important work. Every year, check the state of the diaphragm and repair it if cracks show up. Use debugging tools to keep an eye on how well the positioner is working. Keep the air source dry and clean. Water and oil get into pneumatic actuators and cause 80% of them to fail. Use data from smart positioners to plan fixes before they happen with predictive maintenance.

Conclusion

In harsh and dangerous industrial settings, pneumatic control valves are still the most important part of process control. Because they are safe, reliable, fast, and accurate, they can't be replaced in oil and gas activities around the world. If you choose the right size, shape, and take care of it, it will last for decades and work well, with little to no downtime and low running costs. Modern smart positioners have taken these devices, which were already very strong, to a whole new level of performance and monitoring ability.

FAQs

In what range of pressures do air control valves usually work?

Most of them work with control signals that are between 3 and 15 psi or 6 and 30 psi and sensor air that is 20 to 150 psi.

In the oil field, how long do gas valves last?

With the right care, 10 to 15 years is normal, even in tough ocean settings.

Can air control valves close all the way?

Yes, ANSI Class VI shutdown is possible with properly stated soft-seated designs. Class IV or V shutoff is possible with metal-seated valves.

Where does the loss usually happen?

Most of the time, fail-closed designs are used, but fail-open and fail-last-position designs are also offered for certain safety needs.

How do limits on temperature affect choice?

From -40°F to 450°F (-40°C to 232°C), standard designs can handle it. For cryogenic or high-temperature service up to 850°F (454°C), special setups are possible.
