When mining and metallurgy operations deal with abrasive slurries, picking the right valve technology is very important for success. Out of all the different kinds of valves that are out there, butterfly valves are excellent for moving slurry. The flow can be controlled very well by these rotary valves, and they are strong enough to last in harsh mining conditions. When it comes to shutting off high-pressure slurry lines, gate valves work well, while ball valves are better for situations that need to be quick and tight. It is better to use pinch valves for materials that are very rough, and knife gate valves work well with thick, sticky slurries. Each type of valve has its own benefits in different mining situations. Making the right choice is important for maximizing operational efficiency and lowering maintenance costs.
Why Should Mining Operations Pay Attention to Specialized Slurry Valves?
Valve solutions that can work reliably in harsh conditions are needed in mining and metallurgical processes. Abrasive particles, chemicals that eat away at metal, and high pressures that destroy standard industrial valves quickly are some of the problems that slurry transport systems have to deal with.
Because of erosion, cavitation, and chemical attack, traditional valves often fail too soon in these situations. This pattern of failure causes unplanned shutdowns, repairs that need to be done right away, and safety risks that mining companies can't afford. These problems can be solved by specialized slurry valves that use new materials, creative designs, and better sealing technologies.
The choice of valve has an effect on your finances that goes beyond the cost of the initial purchase. When mining companies choose the wrong valves, they have to replace them more often, hire more people to do maintenance, and lose production, all of which can cost millions of dollars each year. On the other hand, slurry valves that are properly chosen have longer service lives, require less maintenance, and are more reliable in operation.
Important Things to Look for in Mining Slurry Valves
To choose the best valves for slurry applications, you need to carefully look at a lot of technical and operational factors. In harsh mining environments, performance characteristics have a direct effect on how long valves last and how reliable the system is.
Abrasion resistance is the most important thing to think about because slurry particles constantly hit valve surfaces while they are working. Standard valve materials don't wear down as quickly as materials like hardened stainless steel, ceramic coatings, and specialized alloys.
Ratings for pressure and temperature must take into account how the system will be used while leaving enough room for error. Mining slurry systems often work at pressures higher than 1000 PSI and with materials that are very hot, so the valves need to be very strong.
Flow characteristics affect how well a system works and how much energy it uses. Valves should keep the pressure drop as small as possible while controlling the flow accurately across the whole operating range. Because they make flow paths more straight, butterfly valves are great in this situation.
Total cost of ownership is greatly affected by how easy it is to do maintenance. Valves that need to be serviced often should have easy-to-reach parts that are wearing out and simple replacement steps to keep downtime to a minimum.
When materials for valves are chemically compatible, they don't rust when exposed to process chemicals and slurry components. Acidic or alkaline slurries that quickly break down materials that don't work with them are common in mining.
The five best butterfly valves for mining slurry applications
Seated Butterfly Valve with High Performance and Resilience
When it comes to general slurry transport in mining operations, resilient seated butterfly valves are the most flexible option. The elastomeric seats in these valves mold to the disc surface, making a good seal even when there are some particles in the fluid.
The design includes a strong body made of cast iron or ductile iron that is coated inside with epoxy to protect it from corrosion. The disc is usually made of stainless steel, but it can also have a hard facing to make it more resistant to wear. Some types of seat materials are EPDM, NBR, and special compounds made for slurry service.
Some of the benefits of operating this machine are its bubble-tight shutoff feature, low operating torque needs, and low-cost maintenance procedures. The flexible seat design makes up for small disc wear, so service intervals are longer than with metal-seated options.
Tailings transport, process water systems, and moderate-duty slurry lines that need to be shut off tightly are all examples of uses. These valves can effectively handle particles up to 10 mm in size while still working reliably.
Installation flexibility lets you mount it in any direction, but the best performance comes from installing it horizontally with the stem vertical. The small face-to-face dimensions make the piping system simpler and lower the cost of installation.
Simple seat replacement is part of maintenance tasks that don't require taking the valve out of the pipeline. Because of this feature, scheduled maintenance can be done with less downtime and lower labor costs.
Limits on temperature usually fall between -20°F and 200°F, depending on the seat material. This range covers most mining slurry uses. Standard designs can handle pressures up to 250 PSI, but higher ratings are available for certain uses.
High-Performance Butterfly Valve with a Metal Seat
Butterfly valves with metal seats can be used in the roughest slurry situations where resilient seats can't handle the working conditions. The metal seats and discs in these valves have been hardened so that they can handle high temperatures and heavy wear.
Body parts made of carbon steel or stainless steel with built-in seat rings are part of the construction. For the best resistance to wear, the disc's sealing surfaces are made of stellite or tungsten carbide facing. Stem designs use construction that doesn't allow for blowouts and multiple seal arrangements.
It can work at temperatures up to 800°F and pressures higher than 600 PSI, among other things. The metal-to-metal sealing system can handle a lot of particle contamination while still letting enough air leak through.
The hardened sealing surfaces make this butterfly valve configuration more resistant to wear than any other. In harsh slurry situations, resilient seated valves often have 300–500% longer service lives.
The improved body geometry and streamlined disc profile keep the flow control at a high level. Even when the valve is only partially open, there isn't much of a drop in pressure across it.
As part of routine maintenance, the seat and disc need to be fixed up every so often by welding and milling. Although they are more complicated than resilient seated valves, the longer service intervals usually make up for the extra work that needs to be done for maintenance.
Concentrate slurry lines, high-temperature process streams, and heavy-duty isolation service are just a few of the uses. When other technologies fail because of harsh operating conditions, these valves do a great job.
Design of a Double-Offset Butterfly Valve
Double-offset butterfly valves use advanced geometry to get rid of seat friction while they're working, which also makes them better at sealing. The disc centerline is not in line with the pipe centerline or the seat sealing surface. This makes a cam action while the machine is running.
One benefit of the design is that the disc moves away from the seat as soon as the valve opens. This stops the sliding friction that wears down regular butterfly valves. This quality is very important in abrasive slurry service, where particle contamination speeds up seat wear.
The bodies are usually made of carbon steel or stainless steel, and the seat rings can be changed. Discs can be made of stainless steel with a hard facing, or they can be made of a full hard alloy for extreme conditions.
A bubble-tight shutoff is achieved by the cam action that presses the disc firmly against the seat when the door closes. The offset geometry makes sure that there is a positive sealing force that is equal to the line pressure.
Because of the geometric advantages, the operating torque stays low throughout the whole range of motion. This property makes the actuator less needed and greatly increases its service life.
Depending on the materials used, they can handle temperatures from very cold to over 1000°F. The metal-seated design gets rid of the problems that come with elastomers while keeping the sealing performance that is very good.
As part of routine maintenance, seat rings are replaced and discs are fixed up as needed. The design of the replaceable seat makes it possible to do maintenance in the field without having to use special tools or wait for a long time.
Technology for Triple-Offset Butterfly Valves
For important slurry applications, triple-offset butterfly valve designs are the best butterfly valve technology available. The third offset makes a cone-shaped sealing surface that stops any rubbing while the machine is running and stops any leaks.
Geometric design uses three different offsets: an offset of the disc centerline from the pipe centerline, an offset of the disc centerline from the seat centerline, and an offset of the cone angle that makes an elliptical seal. When compared to standard designs, this complex geometry gives better performance.
To handle the roughest slurry conditions, the materials selection includes rare alloys and special coatings. Carbon steel and super duplex stainless steel are used for the bodies, and stellite, tungsten carbide, or ceramic coatings are used on the sealing surfaces.
Through metal-to-metal contact around the whole circumference, sealing performance achieves zero leakage. The conical shape makes sure that the contact pressure is the same and accounts for thermal expansion and system deflection.
Standard designs have pressure ratings higher than 2500 PSI, and custom engineering can make ratings even higher. Temperature ranges from -320°F to 1500°F, depending on the material used.
Because the disc profile has been streamlined and the flow passages have been improved, the flow characteristics remain excellent. The cv values get closer to those of gate valves while keeping the small size of the butterfly valves' face-to-face dimensions.
Some of the uses are critical isolation service, high-pressure slurry lines, and uses that need to be emission-free. The longer life and higher reliability of these valves make up for their higher price.
Ways to Fix Lined Butterfly Valves
Lined butterfly valves are used in slurry applications where the process media can be corrosive because the valve body is completely sealed off from the media. Different lining materials offer chemical resistance while keeping the operational benefits of butterfly valve technology.
For construction, bodies are made of carbon steel and are lined on the inside with PTFE, PFA, ETFE, or special rubber compounds. The disc comes with matching liner notes to make sure that the media is completely isolated.
Chemical resistance depends on the type of liner used. Fluoropolymer linings are very resistant to acids, bases, and organic solvents. Rubber linings are very resistant to wear and tear and are also chemically compatible.
Limits on temperature are very different for different liner materials. PTFE linings can work in temperatures ranging from -50°F to 400°F, while some rubber compounds can work in temperatures as high as 250°F.
When installing, you have to be careful not to damage the liner and pay attention to how it expands and contracts when it gets hot or cold. To keep the liner from getting damaged during installation, some materials need specific bolt torque rules.
The main part of maintenance procedures is checking the liners and replacing them as needed. Because the liner is removable, it can often be changed in the field without having to replace the valve body.
Acid mine drainage, chemical processing in mining operations, and any corrosive slurry use where regular materials don't work well are all examples of applications.
Features of the Global Market and Regulatory Issues to Think About
Mining operations around the world have to deal with stricter environmental rules that affect their choice of valve. Low-leakage valve technologies are in high demand, especially in developed markets like North America, Europe, and Australia, where emission control rules are strict.
Regional preferences are very different because of how engineering is done and how suppliers are connected. Most of the time, metric sizes and EN standards are used in European markets, while ANSI standards are mostly used in North American markets. As engineering skills in Asia improve, more and more Asian markets are choosing ISO standards.
Global requirements for quality certification keep growing. For example, API, ISO, and regional standards are now required for all major mining projects. Third-party testing and documentation requirements make things more complicated, but they also make the valves more reliable overall.
As mining companies try to simplify their inventory and stick to reliable suppliers, supply chain issues become more important in choosing valves. For multinational mining operations to work, they need to be able to get help from anywhere in the world.
Environmental laws about fugitive emissions force butterfly valve designs to be low-emission and have certified leakage rates. This trend is especially bad for coal and mineral processing plants that are located in areas that are good for the environment.
Advice on Buying and Important Things to Think About
When looking at butterfly valve options for slurry service, strategies for buying valves should put the total cost of ownership ahead of the initial purchase price. Life cycle analysis shows that the costs of repairs and lost production due to premature failures often outweigh the costs of the valves by a factor of 10 to 1.
When evaluating a supplier, you need to look at their technical support, availability of spare parts, and service network coverage. For mining operations in remote areas, suppliers need to have a global support infrastructure and be able to respond quickly.
Standardization can greatly cut down on inventory costs and the difficulty of maintenance. Setting preferred valve sizes, materials, and configurations makes it easier to buy them and better at keeping them in good shape.
Performance guarantees and warranty terms are very helpful for keeping things from breaking down too soon. Suppliers with a good reputation back up their products with long warranties and performance guarantees.
Full technical specifications, test certificates, and maintenance procedures should all be required as documentation. Proper documentation is necessary to follow the rules and make maintenance programs work.
Training programs for maintenance workers make sure that the right way to install, operate, and maintain valves is done. Training from the supplier cuts down on operational problems and increases the life of the valve.
Trends in the Industry and the Future
More and more, digital monitoring technologies are being built into butterfly valves to give real-time information about how they're working. Smart valve systems keep an eye on position, torque, and vibration to figure out when maintenance is needed and stop failures before they happen.
New materials are being developed all the time to make valves work better in harsh slurry situations. Nanotechnology coatings and composite materials promise to make things more resistant to wear and tear while also making them lighter and better at moving fluids.
As mines try to make their sites safer and cut down on labor costs, automation is becoming standard for all new mines. More and more, butterfly valve actuators have advanced control features and communication protocols that make it easy to integrate them into systems.
Conclusion
This is how you should choose the right butterfly valve technology for moving slurry in mining and metallurgy: think about the working conditions, performance needs, and overall costs. We talked about five different kinds of valves. Each one is good for a different job. They include resilient-seated designs that can be used for any purpose and triple-offset designs that are made for critical service.
To be successful, you need to make sure that the valve's features match the needs of the job and that it will last for a long time. You should also think about how to maintain and repair it. When mining companies work with suppliers with a lot of experience, like CEPAI, they can get access to technologies that have been used before, technical support, and the ability to provide services all over the world.
Getting good valve solutions is a great idea because they make things safer to use, more reliable, and cost less to maintain. This is because slurry transport applications are very demanding and need high-end valve technologies that work better and last longer.
FAQs
What makes butterfly valves suitable for slurry applications compared to other valve types?
Butterfly valves excel in slurry service due to their streamlined flow path that minimizes turbulence and reduces particle settling. The quarter-turn operation provides quick response times, while the compact design reduces installation costs and space requirements compared to gate or globe valves.
How do I determine the correct butterfly valve size for my slurry transport system?
Proper sizing requires analysis of flow rates, pressure drop limitations, and slurry characteristics. Generally, butterfly valves can be sized closer to pipe diameter than other valve types due to their excellent flow characteristics, but velocity limitations must be considered to prevent excessive erosion.
What maintenance schedule should I follow for butterfly valves in slurry service?
Maintenance intervals depend on slurry abrasiveness and operating conditions. Typical schedules include monthly visual inspections, quarterly operational testing, and annual seat/seal replacement. Severe applications may require more frequent attention, while mild conditions can extend intervals significantly.
Partner with CEPAI for Superior Butterfly Valve Solutions
CEPAI delivers world-class butterfly valve solutions specifically engineered for demanding mining and metallurgical applications. Our comprehensive product portfolio includes resilient seated, metal seated, and specialized designs that maximize performance while minimizing operational costs.

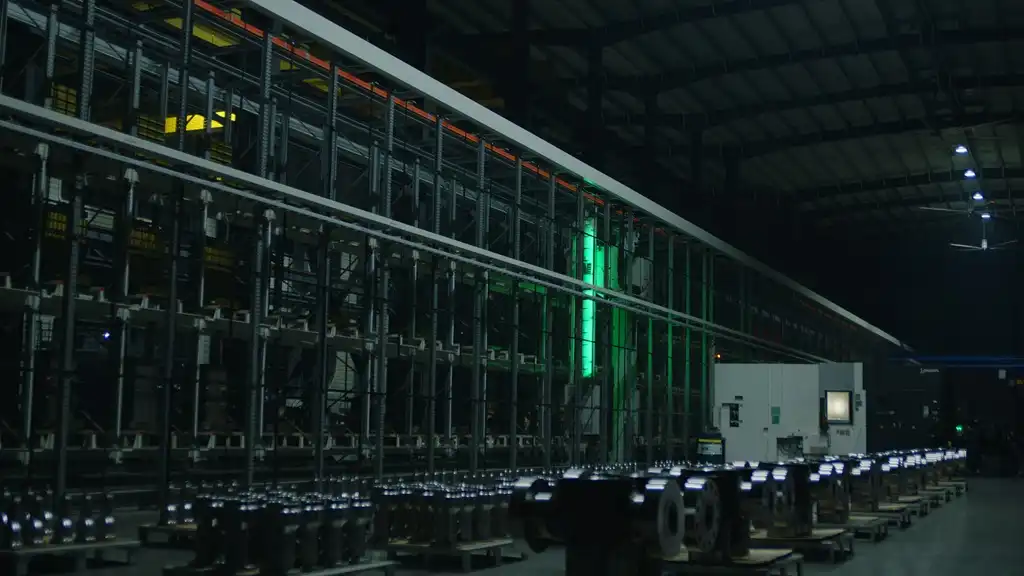

Our manufacturing capabilities encompass complete API and ISO certifications including APIQ1, API6A, API6D, and ISO9001 quality systems. These certifications ensure consistent quality and reliability across our entire butterfly valve product range.
Engineering support services include application analysis, custom valve design, and performance optimization to match specific slurry transport requirements. Our experienced team works directly with mining engineers to specify optimal valve solutions for each application.
Global service network provides technical support, spare parts supply, and maintenance services wherever your operations require assistance. As a trusted butterfly valve manufacturer, we understand the critical nature of mining operations and respond accordingly.
Quality documentation and testing capabilities meet the most demanding project requirements while ensuring regulatory compliance. Our comprehensive testing facilities verify performance before shipment to eliminate field problems.
Contact our technical team to discuss your slurry valve requirements and discover how CEPAI can improve your operational reliability. Reach out to us at cepai@cepai.com to connect with our butterfly valve specialists and explore customized solutions for your specific applications.
