Understanding Control Valves in Refinery Applications
Functionality and Design of Control Valves
As the last control element in process control loops, control valves are the workhorses of refinery pipelines. By shifting a plug or ball's location in relation to the seat, these advanced devices control the fluid flow. Usually, a controller's electric, hydraulic, or pneumatic impulses cause the valve stem to move precisely. This makes it possible to maintain desirable process variables like temperature, pressure, and flow rate in real time.
Several essential elements are included into the design of control valves. The trim, which consists of the plug and seat, is housed in the valve body. Accurate stem alignment is ensured by the positioner, while the actuator supplies the motive force for plug positioning. Smart positioners that allow for diagnostics and improved control capabilities may also be found in advanced control valves.
Types of Control Valves Used in Refineries
Different kinds of control valves are used in refineries to satisfy a range of process needs. Globe valves' exceptional control qualities and capacity to withstand high pressures make them popular. Ball valves are appropriate for on-off applications and specific modulating services because of their rapid opening and shutting capabilities. Because of its small size and little pressure loss, butterfly valves are used, especially in lines with a big diameter.
Certain refinery requirements are met by specialized control valves, such as three-way and angle valves. Angle valves are often used in applications requiring a large pressure drop or in situations with limited space. In temperature control systems or product blending activities, three-way valves' ability to mix or divert is crucial.
Benefits and Limitations of Control Valves
Precision and adaptability are the main benefits of control valves. They provide precise control over several variables and can manage a broad variety of process conditions. Even at low flow rates, precise control is possible because to greater rangeability provided by advanced control valve technology. Furthermore, predictive maintenance and remote monitoring are made easier by contemporary control valves with digital positioners, which improves plant dependability overall.
Control valves do not, however, have all the advantages. In contrast to more straightforward valve types, they may be somewhat costly and complicated. They are prone to wear since they have moving parts, particularly under harsh operating circumstances. In order to prevent problems like cavitation or flashing, which may drastically shorten valve life and performance, proper size and selection are essential.
Exploring Pressure Reducing Valves in Refinery Pipelines
Operating Principles of Pressure Reducing Valves
Pressure reduction valves (PRVs) and control valves work on entirely different concepts. Regardless of changes in the upstream pressure or flow rate, these separate devices automatically lower and maintain a constant downstream pressure. A spring-loaded diaphragm or piston responds to variations in downstream pressure by modifying the valve opening to keep the specified pressure constant.
The spring force overcomes the pressure acting on the diaphragm when downstream pressure falls below the preset position, further opening the valve to enhance flow and restore pressure. The diaphragm's force compresses the spring, partly shutting the valve to lower flow and pressure if downstream pressure exceeds the predetermined threshold. A self-regulating device that ensures constant downstream pressure is the continuous downstream pressure.
Applications of Pressure Reducing Valves in Refineries
In refinery pipes, where maintaining a steady lower pressure is essential, pressure lowering valves are often used. They are often positioned to prevent overpressure on downstream equipment at the junction of high-pressure and low-pressure systems. Because they control steam pressure for a variety of process heating applications, PRVs are essential components of utility systems. Additionally, they are used in the refinery's water distribution networks, which provide steady pressure for cooling systems, safety showers, and other auxiliary services.
PRVs contribute to safe and effective operations in fuel gas systems by helping to maintain steady pressure for burners and other combustion equipment. These valves are also crucial to instrument air systems because they provide a steady pressure for control valves and pneumatic control devices around the refinery.
The main benefits of pressure-reducing valves are their dependability and simplicity. They are perfect for distant or dangerous areas since they run independently without the need for external power or control signals. An extra line of defense against unexpected pressure spikes is provided by PRVs, which react swiftly to changes in pressure. Because they are self-contained, they can also keep working even in the event of a control system failure or power loss.
When compared to control valves, pressure lowering valves are less precise in their control. They cannot readily handle different setpoints without human modification since they are intended to maintain a fixed downstream pressure. Additionally, under certain flow circumstances, especially at extremely low flow rates, PRVs may be vulnerable to hunting or instability. For steady operation across the anticipated range of flow rates and pressures, proper size and selection are essential.
Comparative Analysis: Control Valves vs Pressure Reducing Valves
Performance Characteristics and Control Capabilities
It's essential to take into account the different performance characteristics of control valves and pressure lowering valves when comparing them. Control valves are excellent in precisely and dynamically regulating a variety of process factors. They may react to intricate control algorithms, enabling optimal process performance under a variety of circumstances. In applications needing strict control of temperature, pressure, or product quality, control valves are vital due to their ability to accurately modify flow.
Although they have fewer control options, pressure reduction valves are very stable at maintaining a steady downstream pressure. Because they don't depend on external control loops, they usually react to pressure changes more quickly than control valves. Because of this, PRVs are very good at shielding downstream machinery from pressure changes.
Installation and Maintenance Considerations
Control valves and pressure-reducing valves have rather different installation requirements. Positioners, I/P converters, and connection with the plant's control system are common requirements for control valves' more complicated instrumentation. Higher initial expenses and more complicated installation processes may result from this. Control valve maintenance usually entails routine positioner calibration and trim component examination.
Because they are self-contained, pressure lowering valves often have easier installation requirements. They simplify piping and instrumentation since they don't need external power or control signals. PRVs typically need less regular maintenance, with the primary goal being to keep the pressure-sensing mechanism clean and in working order. However, changing a PRV's set pressure often requires physical intervention, which may be difficult in certain plant configurations.
Cost-Effectiveness and Long-Term Reliability
The particular application greatly influences how cost-effective control valves are in comparison to pressure-reducing valves. Control valves provide more flexibility and may increase process efficiency, which can result in considerable operating savings over time, although being normally more costly up front. Their capacity to interface with cutting-edge control systems may help optimize the plant as a whole and save energy use.
In situations where consistent pressure reduction is the main need, pressure lowering valves may be more cost-effective due to their simpler design and lower starting cost. Their self-contained design generally leads in decreased maintenance costs and increased dependability in difficult situations. However, the difficulty to readily update setpoints remotely may restrict their application in processes needing frequent modifications.
Reliability over the long run is essential to refinery operations. The more intricate mechanisms of control valves may have more regular maintenance, but when fitted with smart positioners, they provide the benefit of predictive diagnosis. Because they have fewer moving parts, pressure-reducing valves often exhibit exceptional long-term dependability, especially during steady-state operations.
Conclusion
Both control valves and pressure lowering valves are essential components of refinery pipeline systems, with each kind performing best in a particular application. Control valves are essential for improving refinery operations because they provide unmatched flexibility and accuracy in handling complex processes. For system safety and a steady utility supply, pressure lowering valves provide dependable, independent pressure management. The particular demands of each application will determine which of these valve types is best, taking into account variables like reaction time, control accuracy, maintenance requirements, and system architecture. In order to guarantee effective, secure, and dependable operations, a well-designed refinery pipeline system will ultimately strategically integrate both valve types.
FAQs
What is the main difference between control valves and pressure reducing valves?
Control valves regulate multiple variables like flow, pressure, and temperature, while pressure reducing valves specifically maintain a constant downstream pressure.
Can pressure reducing valves replace control valves in refinery applications?
Not entirely. While PRVs are excellent for maintaining constant pressure, they lack the versatility and precision of control valves for complex process control.
How do control valves contribute to refinery efficiency?
Control valves enable precise regulation of process parameters, optimizing production, reducing energy consumption, and improving product quality.
Expert Control Valve Solutions for Refinery Pipelines | CEPAI

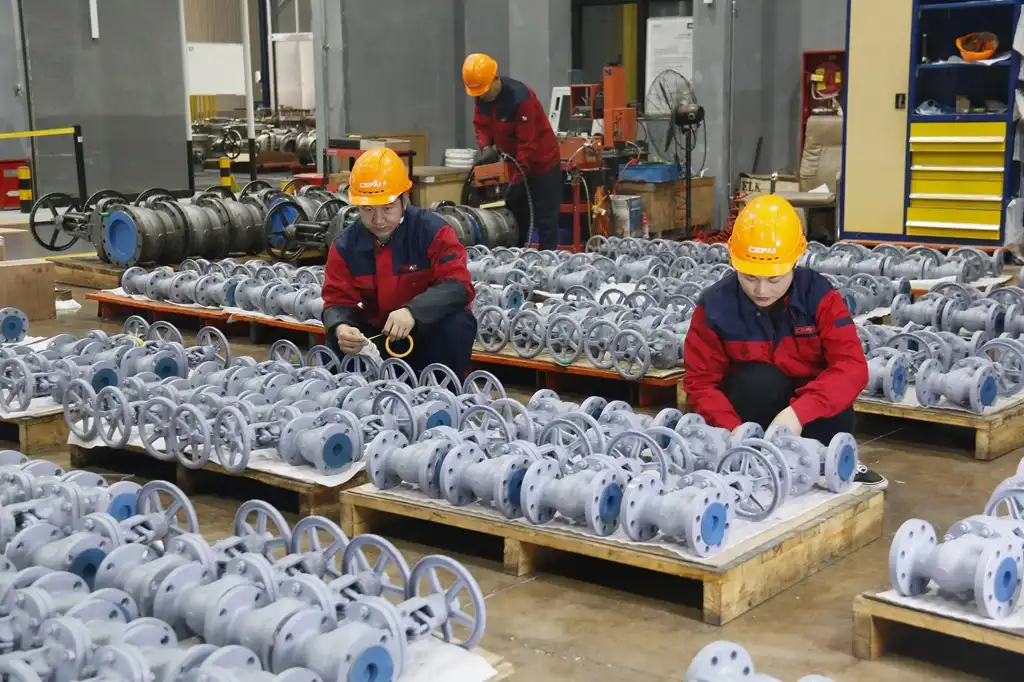

At CEPAI, we specialize in manufacturing high-quality control valves tailored for the demanding environments of refinery pipelines. Our state-of-the-art manufacturing facility, featuring Asia Pacific's longest high-precision intelligent production line, ensures unparalleled quality and innovation. As a leading control valve supplier and manufacturer, we offer expert solutions that enhance refinery efficiency and safety. For cutting-edge valve technology and superior customer service, contact our factory at cepai@cepai.com.
