Factors Influencing Valve Seat Material Selection
Operating Environment Considerations
The operating environment plays a pivotal role in determining the most suitable valve seat material for butterfly valves. Factors such as temperature, pressure, and chemical composition of the media being controlled significantly impact material performance. In high-temperature applications, metal seats like stainless steel or nickel alloys may be preferred due to their heat resistance. Conversely, in corrosive environments, materials like PTFE or PFA offer superior chemical resistance. Understanding the specific environmental challenges allows engineers to select valve seat materials that can withstand the rigors of the application, thereby extending the butterfly valve's lifespan.
Mechanical Stress and Wear Resistance
Valve seats are subject to considerable mechanical stress during operation, particularly in high-cycle applications. Materials must possess excellent wear resistance to maintain a tight seal over extended periods. Elastomers like EPDM or FKM provide good resilience and wear resistance in moderate conditions. For more demanding applications, reinforced PTFE or metal-backed composites offer enhanced durability. The ability of the valve seat material to withstand repeated cycling without degradation is crucial in preserving the butterfly valve's functionality and extending its operational life.
Compatibility with Process Media
The compatibility between valve seat materials and the process media is paramount in ensuring long-term performance. Incompatible materials can lead to chemical reactions, swelling, or degradation of the valve seat, compromising the seal integrity. For instance, in oil and gas applications, materials resistant to hydrocarbons are essential. In food and beverage industries, FDA-approved materials that don't contaminate the product are required. By carefully matching the valve seat material to the specific process media, operators can prevent premature failure and significantly extend the butterfly valve's lifespan.
Impact of Different Valve Seat Materials on Butterfly Valve Longevity
Elastomeric Seat Materials
Elastomeric seat materials, such as EPDM, Nitrile, and Viton, offer excellent sealing properties and are widely used in butterfly valves. These materials provide good flexibility and resilience, allowing for effective sealing even with minor surface imperfections. EPDM excels in water and steam applications, while Nitrile is suitable for oil and gas services. Viton, known for its chemical resistance, performs well in high-temperature environments. The elasticity of these materials contributes to extended valve life by maintaining a tight seal over numerous cycles. However, their lifespan can be limited in extreme temperatures or highly abrasive media, necessitating careful selection based on specific operating conditions.
Thermoplastic Seat Materials
Thermoplastic materials like PTFE, PEEK, and UHMWPE offer unique advantages in butterfly valve applications. PTFE, known for its exceptional chemical resistance and low friction properties, is ideal for corrosive environments. PEEK provides excellent mechanical strength and thermal stability, making it suitable for high-temperature applications. UHMWPE offers outstanding wear resistance and impact strength, beneficial in abrasive media. These materials can significantly extend valve lifespan by resisting chemical attack and wear. However, they may have limitations in high-pressure applications or extreme temperatures. The selection of thermoplastic seat materials should consider the specific operational requirements to maximize butterfly valve longevity.
Metal Seat Materials
Metal seat materials, including stainless steel, nickel alloys, and titanium, are employed in butterfly valves for severe service conditions. These materials offer superior strength, temperature resistance, and durability compared to elastomers or thermoplastics. Stainless steel seats are widely used for their corrosion resistance and mechanical properties. Nickel alloys like Inconel provide excellent performance in high-temperature and corrosive environments. Titanium seats offer an exceptional strength-to-weight ratio and corrosion resistance. Metal seats can significantly extend butterfly valve lifespan in extreme conditions where other materials would fail. However, they may require more precise manufacturing and can be more challenging to achieve a perfect seal compared to softer materials.
Maintenance Strategies for Maximizing Butterfly Valve Lifespan
Regular Inspection and Cleaning Procedures
Implementing a rigorous inspection and cleaning regimen is crucial for maximizing the lifespan of butterfly valves. Regular visual inspections can identify early signs of wear, corrosion, or damage to valve seat materials. This proactive approach allows for timely interventions before minor issues escalate into major problems. Cleaning procedures should be tailored to the specific valve seat material and process media. For instance, elastomeric seats may require gentle cleaning to avoid damaging the surface, while metal seats might tolerate more aggressive cleaning methods. Removing debris, scale, or chemical deposits prevents accelerated wear and ensures consistent sealing performance, thereby extending the valve's operational life.
Lubrication and Preventive Maintenance
Proper lubrication is essential for maintaining the functionality and longevity of butterfly valves, particularly for moving components that interact with the valve seat. The choice of lubricant should be compatible with both the valve seat material and the process media to prevent contamination or degradation. Regular lubrication reduces friction, minimizes wear, and ensures smooth operation. Preventive maintenance schedules should include periodic replacement of seals and gaskets, even if they appear functional, to preempt potential leaks. This proactive approach to maintenance can significantly extend the lifespan of butterfly valves by addressing potential issues before they lead to valve failure or compromised performance.
Monitoring and Analysis of Valve Performance
Implementing advanced monitoring and analysis techniques can provide valuable insights into butterfly valve performance and the condition of valve seat materials. Utilizing technologies such as acoustic emission testing, thermal imaging, or online valve diagnostics allows for real-time assessment of valve health. These methods can detect issues like seat wear, misalignment, or impending failures before they become apparent through conventional inspections. By analyzing performance trends over time, operators can optimize maintenance schedules, predict when seat replacement might be necessary, and make informed decisions about valve operation. This data-driven approach to valve management can significantly extend the lifespan of butterfly valves by ensuring timely interventions and preventing catastrophic failures.
Conclusion
The choice of valve seat materials significantly impacts the lifespan and performance of butterfly valves. By carefully considering factors such as operating environment, mechanical stress, and media compatibility, operators can select materials that optimize valve longevity. Elastomeric, thermoplastic, and metal seats each offer unique advantages for different applications. Implementing comprehensive maintenance strategies, including regular inspections, proper lubrication, and advanced monitoring techniques, further enhances valve lifespan. As industries continue to demand higher efficiency and reliability, the importance of selecting appropriate valve seat materials and maintaining them effectively cannot be overstated in ensuring the long-term success of butterfly valve applications.
FAQs
1. How often should butterfly valve seats be replaced?
The replacement frequency depends on factors like operating conditions and material quality. Generally, inspect annually and replace every 3-5 years or when signs of wear appear.
2. Can valve seat materials affect flow characteristics?
Yes, different materials can impact flow dynamics. Smoother materials like PTFE may offer less resistance, while some elastomers might slightly alter flow patterns.
3. Are there universal valve seat materials suitable for all applications?
No single material is ideal for all scenarios. Selection should be based on specific application requirements, considering factors like temperature, pressure, and media compatibility.
Expert Butterfly Valve Solutions | CEPAI

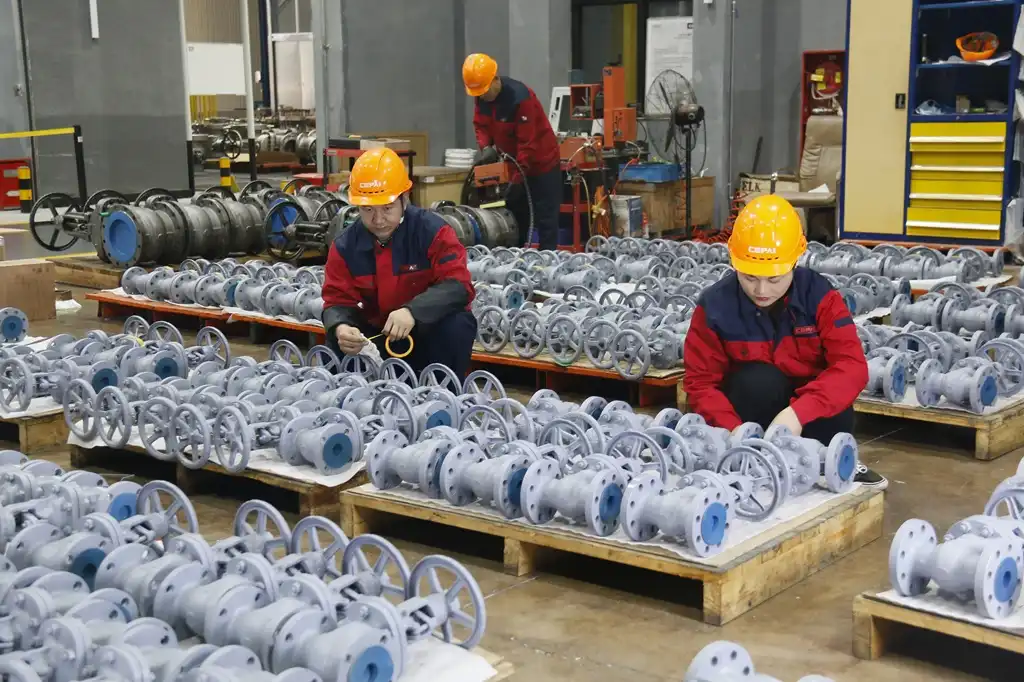

CEPAI Group Co., Ltd. leverages cutting-edge technology and expertise to deliver superior butterfly valve solutions. Our state-of-the-art manufacturing facility, featuring Asia Pacific's longest high-precision intelligent production line, ensures unparalleled quality and performance. With a focus on innovation and customer satisfaction, CEPAI offers tailored valve seat materials and designs to maximize valve lifespan across diverse industries. For expert guidance on optimizing your butterfly valve performance, contact us at cepai@cepai.com.
