Can a Butterfly Valve Handle Steam or High-Temperature Media?

Butterfly valves are versatile flow control devices widely used in various industries. When it comes to handling steam or high-temperature media, butterfly valves can indeed be suitable, but with certain considerations. The ability of a butterfly valve to handle steam or high-temperature media depends on several factors, including the valve's design, materials, and specific operating conditions. High-quality butterfly valves with appropriate seals, materials, and temperature ratings can effectively manage steam and high-temperature fluids up to certain limits. However, it's crucial to select the right valve configuration and ensure proper installation and maintenance for optimal performance and safety in these demanding applications.

​​​​​​​

Understanding Butterfly Valves and Their Capabilities

Basic Structure and Operation of Butterfly Valves

Butterfly valves consist of a circular disc mounted on a rotating shaft. The disc acts as the closure mechanism, rotating perpendicular or parallel to the flow. This simple yet effective design allows for quick opening and closing, making butterfly valves popular in various applications. The valve's body houses the disc and shaft, while seat rings provide sealing when the valve is closed. Actuators, either manual or automated, control the disc's rotation, enabling precise flow regulation.

Materials Used in Butterfly Valve Construction

The choice of materials plays a crucial role in determining a butterfly valve's ability to handle high temperatures. Common materials for butterfly valves include:

- Body: Cast iron, ductile iron, carbon steel, stainless steel

- Disc: Stainless steel, aluminum bronze, nickel-aluminum bronze

- Seat: PTFE, RTFE, EPDM, Viton, metal seats

- Shaft: Stainless steel, nickel alloys

Each material has unique properties that affect its performance under high-temperature conditions. For instance, stainless steel offers excellent corrosion resistance and maintains strength at elevated temperatures, making it suitable for steam applications.

Temperature Ratings and Limitations

Butterfly valves come with specific temperature ratings that indicate their operational limits. These ratings are determined by the materials used in construction and the valve's design. Standard butterfly valves typically handle temperatures up to 200°C (392°F), while high-performance models can withstand temperatures exceeding 400°C (752°F). It's crucial to select a valve with a temperature rating that exceeds the maximum expected operating temperature of the system. Factors such as pressure, media composition, and cycling frequency also influence a valve's ability to perform reliably at high temperatures.

Butterfly Valves in Steam Applications

Challenges of Steam Handling

Steam presents unique challenges for valve operation due to its high temperature, pressure, and potential for rapid expansion. The primary concerns when using butterfly valves in steam applications include:

- Thermal expansion: Valve components may expand differently, affecting sealing and operation

- Seat material degradation: High temperatures can cause soft seat materials to deteriorate

- Erosion and corrosion: Steam can be corrosive and erosive, especially with impurities present

- Water hammer: Rapid steam condensation can lead to damaging pressure spikes

Addressing these challenges requires careful valve selection and system design to ensure safe and efficient operation.

Specialized Butterfly Valves for Steam Service

To overcome the challenges of steam handling, manufacturers have developed specialized butterfly valves designed specifically for steam applications. These valves often feature:

- Metal seats: Provide better resistance to high temperatures and erosion compared to soft seats

- Stellite overlays: Enhance wear resistance on sealing surfaces

- Live-loaded packing: Compensates for thermal expansion and maintains stem sealing

- Multi-layer disc construction: Improves thermal management and reduces warping

- Advanced seal designs: Ensure tight shutoff even under challenging conditions

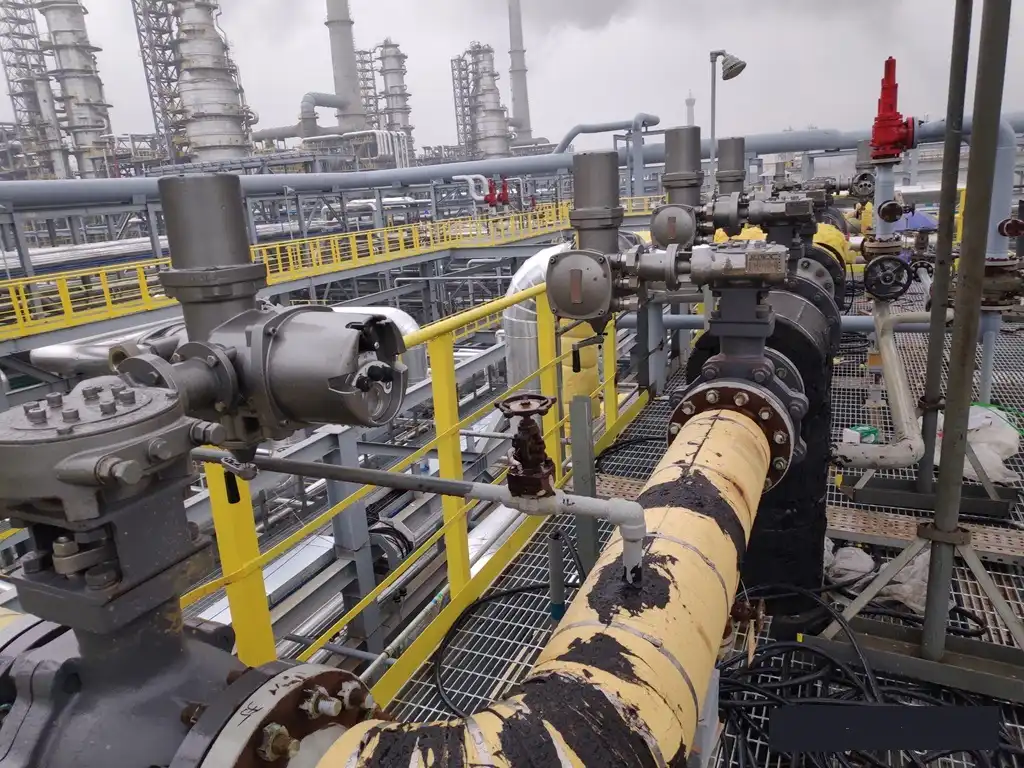

These features enable specialized butterfly valves to handle steam effectively, making them suitable for various steam applications in power plants, industrial processes, and HVAC systems.

Performance Considerations in Steam Systems

When employing butterfly valves in steam systems, several performance factors must be considered:

- Pressure drop: Butterfly valves may create significant pressure drops in steam lines, affecting system efficiency

- Flow characteristics: The valve's flow coefficient (Cv) should be properly sized for the application

- Actuation speed: Rapid opening or closing can lead to water hammer or pressure surges

- Thermal cycling: Frequent temperature changes can affect valve components and sealing

- Maintenance requirements: Regular inspection and maintenance are crucial for longevity and reliability

Proper valve selection, installation, and operation practices help ensure optimal performance and safety in steam applications. It's essential to consult with valve manufacturers or experts when designing steam systems to select the most appropriate butterfly valve configuration.

High-Temperature Media Applications for Butterfly Valves

Types of High-Temperature Media

Butterfly valves find applications in various high-temperature media beyond steam. Some common high-temperature fluids include:

- Hot oils and heat transfer fluids

- Molten salts in solar thermal plants

- High-temperature gases in industrial processes

- Superheated water in power generation

- Exhaust gases in automotive and industrial applications

Each of these media presents unique challenges, requiring careful consideration of valve materials, design, and operating parameters to ensure reliable performance and longevity.

Material Selection for Extreme Temperatures

Selecting appropriate materials is crucial for butterfly valves operating in extreme temperature environments. Considerations include:

- Disc and body materials: High-temperature alloys such as Inconel, Hastelloy, or specialized stainless steels

- Seat materials: Metal seats, graphite, or high-performance polymers like PEEK

- Shaft and bearing materials: Heat-resistant alloys with low thermal expansion

- Packing and gasket materials: Graphite-based or metal-reinforced sealing elements

The chosen materials must maintain their mechanical properties, resist corrosion, and provide adequate sealing at the operating temperature. In some cases, specialized coatings or surface treatments may be applied to enhance temperature resistance and wear characteristics.

Design Modifications for High-Temperature Service

Butterfly valves for high-temperature applications often incorporate design modifications to enhance performance and reliability:

- Thermal barriers: Insulation or heat dissipation features to protect sensitive components

- Stem extensions: Allow actuators to be positioned away from hot valve bodies

- Bellows seals: Provide superior stem sealing in high-temperature, high-pressure applications

- Reinforced disc designs: Prevent warping or deformation at extreme temperatures

- Specialized bearings: Self-lubricating or high-temperature materials to maintain smooth operation

These design elements, combined with appropriate material selection, enable butterfly valves to handle a wide range of high-temperature media effectively. However, it's essential to work closely with valve manufacturers to ensure the selected valve meets the specific requirements of the application.

Conclusion

Butterfly valves can indeed handle steam and high-temperature media when properly designed and selected. Their ability to manage these challenging applications depends on factors such as material selection, valve design, and specific operating conditions. While standard butterfly valves may be limited in their temperature handling capabilities, specialized high-performance models can effectively control flow in extreme temperature environments. By carefully considering the application requirements, consulting with experts, and selecting the appropriate valve configuration, engineers can successfully implement butterfly valves in steam and high-temperature systems, ensuring efficient and reliable operation.

FAQs

1. What is the maximum temperature a butterfly valve can handle?

The maximum temperature depends on the valve's design and materials. Standard valves handle up to 200°C, while specialized high-performance models can exceed 400°C.

2. Are butterfly valves suitable for all steam applications?

Not all butterfly valves are suitable for steam. Specialized steam service valves with appropriate materials and design features should be used.

3.  How often should butterfly valves in high-temperature applications be maintained?

Maintenance frequency depends on the specific application and operating conditions. Regular inspections and manufacturer-recommended maintenance schedules should be followed to ensure reliability.

Experience the CEPAI Advantage in High-Temperature Valve Solutions

At CEPAI, we leverage our cutting-edge manufacturing capabilities and extensive R&D to deliver superior butterfly valves for steam and high-temperature applications. Our state-of-the-art production line and intelligent manufacturing processes ensure unparalleled quality and precision. Experience the difference with CEPAI's innovative valve solutions, backed by our global certifications and commitment to excellence. Contact us at cepai@cepai.com to explore how our high-performance butterfly valves can meet your challenging temperature requirements.
