Understanding Stainless Steel Butterfly Valve Basics
Composition and Design
Stainless steel butterfly valves are engineered with precision to provide reliable flow control in various industrial applications. The valve's body is typically constructed from high-grade stainless steel, offering excellent corrosion resistance and durability. At the heart of the valve lies the disc, a circular plate that rotates on an axis to control flow. This disc is often made from stainless steel or coated with materials like PTFE for enhanced chemical resistance.
The valve's seat, which creates a seal when the disc is closed, can be composed of various materials such as PTFE, EPDM, or Viton, each offering different levels of chemical compatibility and temperature resistance. Understanding the interplay between these components is crucial for selecting a valve that will perform optimally in your specific operating conditions.
Operating Principles
Stainless steel butterfly valves operate on a simple yet effective principle. As the valve stem rotates, it turns the disc either parallel or perpendicular to the flow. When the disc is parallel to the flow, the valve is fully open, allowing maximum flow. As the disc rotates to a perpendicular position, it gradually restricts flow until it completely stops when fully closed.
This quarter-turn operation makes butterfly valves quick and easy to operate, whether manually or through automated actuators. The streamlined design also results in minimal pressure drop across the valve when fully open, contributing to energy efficiency in your system.
Applications and Industries
The versatility of stainless steel butterfly valves makes them suitable for a wide range of industries and applications. In the oil and gas sector, these valves are often used in pipelines for isolation and control purposes. The food and beverage industry relies on stainless steel butterfly valves for their sanitary properties and ease of cleaning.
Water treatment facilities utilize these valves for their excellent corrosion resistance and ability to handle large flow volumes. In chemical processing, the chemical compatibility of stainless steel and various seat materials allows for safe handling of aggressive substances. Understanding the specific requirements of your industry and application is key to selecting the most appropriate stainless steel butterfly valve.
Critical Factors in Stainless Steel Butterfly Valve Selection
Pressure and Temperature Ratings
When selecting a stainless steel butterfly valve, it's imperative to consider the pressure and temperature ratings. These ratings indicate the maximum pressure and temperature at which the valve can safely operate. Exceeding these limits can lead to valve failure, potentially causing system downtime or safety hazards.
Pressure ratings for stainless steel butterfly valves can range from low-pressure applications of a few bar to high-pressure scenarios exceeding 50 bar. Temperature ratings typically span from cryogenic temperatures to over 200°C, depending on the valve's design and materials. It's crucial to match these ratings with your system's operating conditions, including any potential pressure spikes or temperature fluctuations.
Material Selection and Corrosion Resistance
The choice of stainless steel grade significantly impacts the stainless steel butterfly valve's performance and longevity. Common grades include 304, 316, and duplex stainless steels. Grade 304 offers good general corrosion resistance, while 316 provides enhanced resistance to chlorides and acids. Duplex stainless steels combine high strength with excellent corrosion resistance, making them suitable for more demanding applications.
Consider the nature of the media flowing through the valve when selecting materials. Aggressive chemicals, high temperatures, or abrasive particles may necessitate specialized stainless steel grades or additional coatings. The valve's external environment should also be taken into account, as factors like coastal air or industrial pollutants can affect the valve's longevity.
Seat and Seal Materials
The seat and seal materials play a crucial role in the valve's performance and chemical compatibility. PTFE (Teflon) seats offer excellent chemical resistance and low friction but may have temperature limitations. EPDM provides good temperature resistance and is suitable for water and steam applications but may not be compatible with oils and hydrocarbons. Viton offers a balance of chemical resistance and temperature capability but at a higher cost.
Selecting the appropriate seat material ensures a tight shut-off and prevents leakage. It's essential to consider not only the primary media but also any cleaning agents or secondary fluids that may come into contact with the valve. Mismatched seat materials can lead to premature wear, reduced service life, and potential contamination of the process media.
Optimizing Performance and Maintenance of Stainless Steel Butterfly Valves
Actuation and Control Options
Stainless steel butterfly valves can be equipped with various actuation methods to suit different operational requirements. Manual operation via a lever or handwheel is common in smaller valves or where infrequent adjustment is needed. For automated control, pneumatic, hydraulic, or electric actuators can be employed. These allow for remote operation and integration with process control systems, enhancing efficiency and safety.
Advanced control options include positioners for precise flow regulation and limit switches for position feedback. When selecting an actuation method, consider factors such as required torque, speed of operation, and available power sources. The choice of actuator can significantly impact the valve's responsiveness and overall system performance.

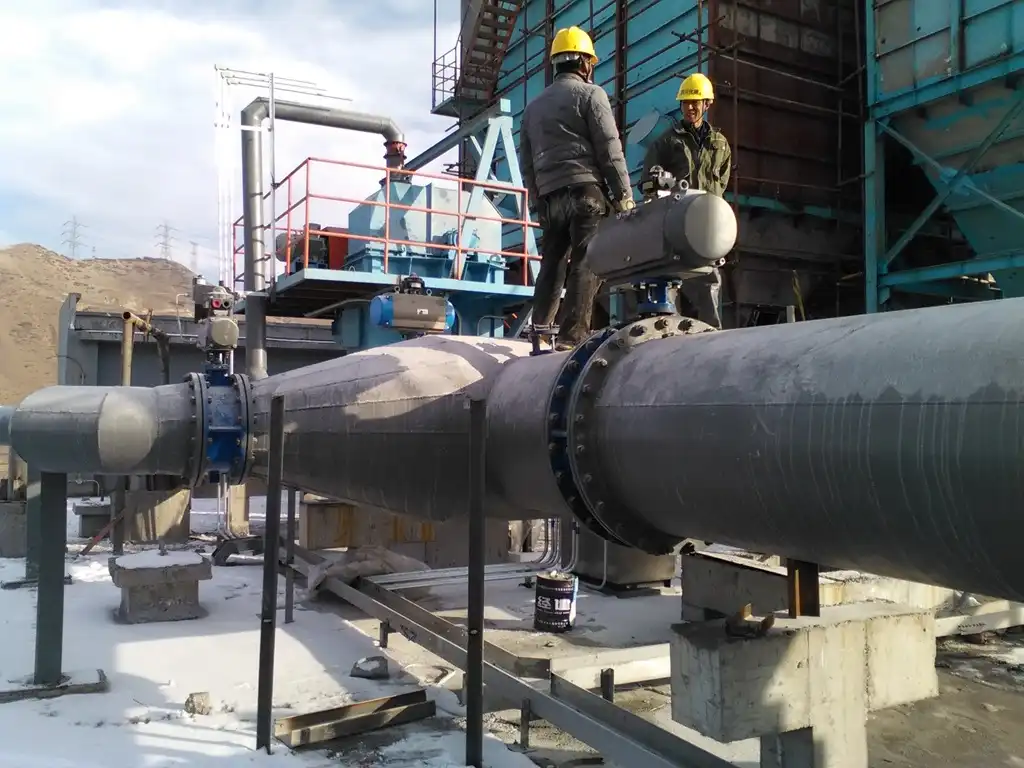

Installation and Alignment Considerations
Proper installation is crucial for the optimal performance of stainless steel butterfly valves. Ensure that the pipeline is clean and free from debris that could damage the valve seat or impede disc movement. The valve should be installed with the shaft in a horizontal position to distribute wear evenly and reduce the risk of premature failure.
Alignment is critical, especially in larger valves. Misalignment can lead to increased wear, leakage, and higher operating torque. Use appropriate gaskets and follow manufacturer guidelines for bolt tightening sequences and torques. In some cases, special installation tools or procedures may be required to ensure proper seating and alignment of the valve within the piping system.
Maintenance and Longevity
While stainless steel butterfly valves are known for their durability, regular maintenance is essential to ensure long-term reliability. Establish a maintenance schedule that includes periodic inspections for signs of wear, corrosion, or leakage. Check for smooth operation of the disc and ensure that actuators are functioning correctly.
Lubrication of moving parts, particularly in manual valves, can extend service life and maintain ease of operation. In automated systems, verify that limit switches and positioners are calibrated correctly. For valves in critical applications, consider implementing predictive maintenance techniques such as vibration analysis or acoustic emission monitoring to detect potential issues before they lead to failure.
Conclusion
Selecting the right stainless steel butterfly valve requires careful consideration of various factors, from material composition and pressure ratings to actuation options and maintenance requirements. By understanding these key aspects, you can make an informed decision that ensures optimal performance and longevity in your specific application. Remember that while initial cost is a consideration, the long-term value lies in selecting a valve that offers reliability, efficiency, and ease of maintenance. When in doubt, consult with valve experts or manufacturers to guide you through the selection process and ensure you choose a stainless steel butterfly valve that meets your exact needs and operating conditions.
FAQs
1. What are the main advantages of using stainless steel butterfly valves?
Stainless steel butterfly valves offer excellent corrosion resistance, durability, and versatility across various industries. They provide efficient flow control with minimal pressure drop and are relatively compact and lightweight.
2. How often should stainless steel butterfly valves be maintained?
The maintenance frequency depends on the application and operating conditions. Generally, it's recommended to inspect valves annually and perform maintenance as needed. Critical applications may require more frequent checks.
3. Can stainless steel butterfly valves handle high-temperature applications?
Yes, certain stainless steel butterfly valves are designed for high-temperature applications. However, it's crucial to select the appropriate grade of stainless steel and seat material that can withstand the specific temperature range of your application.
