How a Double Check Valve Prevents Backflow: Visual Mechanics

A double check valve works with a complex dual-barrier device that pairs two separate check valves together in a single unit. When there is forward flow, both internal check valves open one after the other, letting fluid pass. When there is overflow, the downstream check valve stops as soon as the pressure changes, and the upstream valve acts as an extra safety measure. This double-checked design makes sure that if one valve breaks or lets a small amount of water leak out, the second valve keeps the system whole, stopping contamination and keeping the flow going in the right way in important industrial settings.

Understanding Double Check Valves and Their Role in Backflow Prevention

Reliable backflow protection is important for keeping processes safe and in line with safety standards in the oil and gas, petrochemical, and pipeline industries. Double check valve units are a big step forward in flow control technology because they have two different check valve systems inside a single valve body. This way of designing takes into account the problems that come with single check valve systems, where a broken valve can cause terrible backflow contamination.

The basic structure is made up of two check valves that are placed next to each other along the flow line and are either spring-loaded or run by gravity. Each valve works on its own, providing extra safety against situations where the flow is going the wrong way. When the pressure in the system goes below the closing pressure threshold, both valves instantly close, stopping flow from sources further downstream. This mechanical process doesn't need any outside power or control signals, which makes it perfect for fail-safe and emergency stop situations.

Primary Applications in Industrial Environments

These valves are used a lot by oil and gas research companies in Christmas tree and wellhead systems. The two valves are very important for keeping formation fluid from flowing backwards during drilling, especially when pressure differences aren't expected. Pipeline companies connect these systems to transmission networks, which can have risks of two-way flow that could damage processes upstream or put people in danger.

In process lines that handle toxic chemicals and high-temperature fluids, refineries and petrochemical plants use double check valve systems. Because there are two ways to seal, even if the temperature changes a lot or chemicals get exposed, at least one barrier will still work. This factor of dependability becomes very important for keeping up with constant output schedules and meeting environmental compliance standards.

Operational Principles and Flow Dynamics

Differential pressure across each valve disc or ball is what makes the mechanism work. When there is normal forward flow, the difference in pressure makes both check elements open, letting flow through without any problems. The lowest opening pressure is set by the spring tension or gravitational force on each check element. This pressure is usually between 0.5 and 2.0 PSI, but it can be higher or lower based on the valve size and the needs of the application.

When backpressure comes from sources further downstream in a double check valve, the difference in pressure flips, pressing both check elements against their seats. When the pressure changes, the downstream valve reacts right away, and the upstream valve acts as a backup. This sequential stopping action makes a sure shut-off, even if one valve's seat is damaged or gets clogged with debris.

​​​​​​​

Visual Breakdown of Double Check Valve Mechanics

To understand how double check valve systems work on the inside, you have to look at how pressure forces, spring mechanisms, and closing surfaces interact with each other. Between the two check valves, the valve body usually has test ports that let workers check the soundness of each sealing part separately. These test ports are used for two things: finding leaks and making sure the system is working properly during regular repair cycles.

Internal Component Configuration

The backpressure forces start at the downstream check valve, which has to shut against the whole system's pressure difference. To do its main job of containment, this valve usually has a stronger spring loading or better closing materials. The upstream valve works under less stress, but it is very important to have as a backup in case the downstream valve partially fails or gets messed up by debris.

Valve disc materials vary based on application requirements, with options including stainless steel, bronze, and engineered plastics. Different types of seats are available, from metal-to-metal designs for use in high-temperature situations to flexible seats made of PTFE or EPDM for better fitting. The selection factors are based on the types of fluids that can be used, the temperature ranges that they can handle, and the pressure grades that are needed for each installation.

Installation Requirements and Best Practices

The best performance and life of the valve are guaranteed by installing it in the right way. The body of the valve has directional flow lines that show the right way to install it, since installing it backwards completely defeats the purpose of stopping backflow. Horizontal setups need enough support so that pipe stress doesn't mess up the alignment and closing of the valves.

Upstream and downstream straight pipe standards usually say that there must be at least 5 pipe diameters of space upstream and 2 pipe diameters of space downstream. These rules make sure that flow patterns stay stable and stop changes in pressure caused by turbulence that could affect how valves work. When designing a system, it's important to think about how easy it will be to connect test ports and do maintenance.

As part of the construction process for double check valve, pressure testing procedures are used to make sure the system works properly before it is turned on. Hydrostatic testing at 150% of the maximum working pressure makes sure the structure is solid, and seat leakage testing at operating pressure makes sure the seals work well. Recording test results helps with following the rules and gives basic information on performance for planning future maintenance.

Comparing Double Check Valves with Other Backflow Prevention Solutions

To choose the right backflow avoidance technology, you need to know how well each option works and what problems it might have. Single check valves are easier to build and less expensive, but they don't provide the extra protection that is needed for important situations. Differential pressure tracking makes reduced pressure zone (RPZ) valves safer, but they are harder to set up and need to be tested regularly, which might not work in all situations.

Performance Analysis Against Alternative Technologies

Spring check valves work with discs that are loaded with springs to make sure they open and close in an expected way. However, long-term use of a spring can cause it to wear out, which can lower its closing performance and make upkeep more necessary. This problem is fixed by double check valve assemblies, which spread working stress across two separate spring systems. This makes the valves last longer and require less upkeep.

Swing check valves use disc systems that are driven by gravity and can be installed horizontally with steady flow patterns. When installed vertically or in situations where the flow changes direction often, these valves can't work as well, which can lead to disc chatter and early wear. Chatter problems are eliminated by the dual-valve design of double check systems, which lets each check element work on its own.

Ball check valves are great at closing and can handle small particles, but they might get stuck in situations with thick fluids or particle contamination. The redundant design of double check systems makes sure that they can keep working even if one ball gets partly blocked. This keeps the system safe and allows for regular repair windows for cleaning or replacing parts.

Regulatory Compliance and Industry Standards

Standards from the American Water Works Association (AWWA) list double check valve systems for medium-risk backflow control jobs. These standards tell makers how to test their products, what materials they need, and what performance standards they must meet in order to get certified. Following AWWA C510 makes sure that installations can work with city water systems and meet insurance standards for business installs.

The API guidelines that control how pipeline valves can be used include specific rules for stopping backflow in important services. The API 6D standards talk about the materials, tests, and paperwork that are needed for pipeline valves, including for double check valve. They also talk about double check configurations that are used in safety-critical and custody transfer situations. Meeting these standards shows that you are dedicated to operating success and following the rules.

When making the choice, local laws and industry standards must be taken into account, as these may require certain types of valves or testing rates. Consulting with regulatory experts during the development of specifications makes sure that they are in line with the relevant codes and lowers the project risks that come with choosing equipment that doesn't meet the standards.

Procurement and Specification Guidance for B2B Buyers

To buy double check valve systems successfully, you need to know a lot about the technical requirements, quality standards, and provider skills. Material choice is the most important part of the design process. For general use, cast iron and carbon steel are good choices, while stainless steel and exotic metals are better for corrosive situations. The type of material you choose has a direct effect on how much the valve costs, when it is delivered, and how well it works in the long run.

Critical Specification Parameters

The highest working conditions plus the right safety margins must match the pressure and temperature ratings. There are standard pressure classes of 150, 300, and 600 ANSI ratings, and higher ratings can be used for certain tasks. Temperature limits are very different depending on the suitability of the body material and sealing element. This means that process conditions, such as upset scenarios and yearly changes, need to be carefully looked at.

End link specs affect what needs to be installed and how well the system works with it. Flanged connections are strong and make upkeep easy, but they need enough room and support structures. Threaded connections have small fitting features that work with smaller pipe sizes, but they might not work well in places with a lot of vibration or where the temperature changes often.

Here are the essential quality control measures that procurement teams should implement when evaluating potential suppliers:

• Certification Requirements: Make sure that the companies you're considering have the right quality standards, such as ISO 9001, API Q1, and approvals that are special to their products. These certificates show that you are dedicated to quality management systems and following the rules set by your business.
• Testing Documentation: Ask for full test records that include hydrostatic pressure testing, seat leakage checking, and cycle operation testing. Full paperwork helps with following the rules and gives basic performance information for planning upkeep.
• Material Traceability: Make sure that all of the material certifications are full, such as mill test records for valve bodies and trim parts. Documentation that can be tracked is very important for uses that involve toxic chemicals or high temperatures, since the qualities of the materials directly affect how long they last.

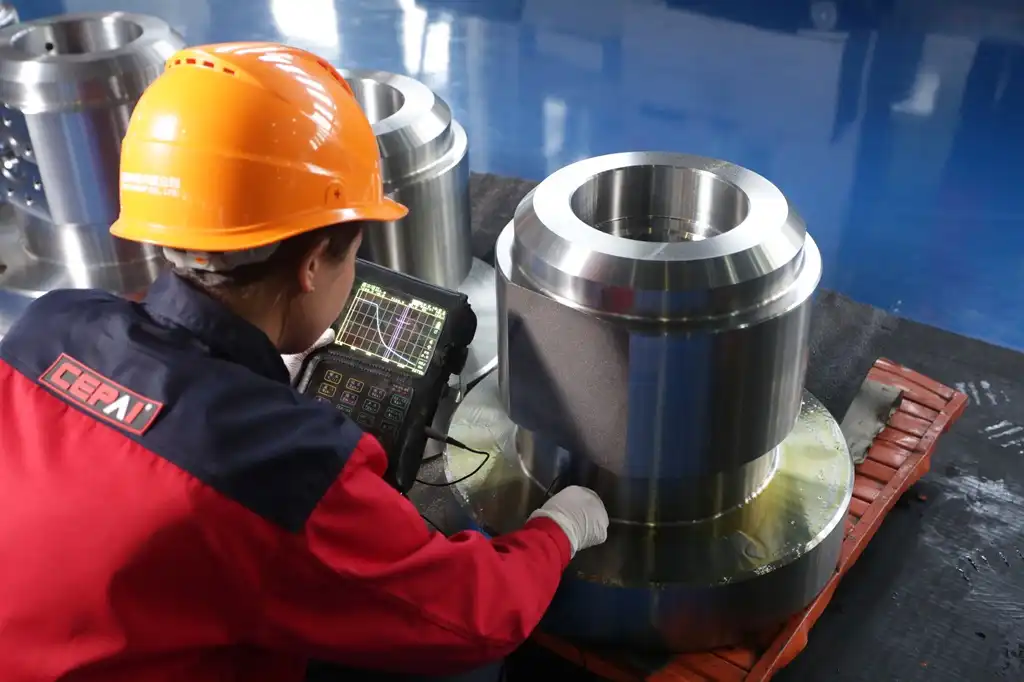

• Inspection Protocols: Set up processes for incoming inspections that include checking for dimensions, making sure the surface meets standards for finish, and trying functionality. These procedures help find possible quality problems before they are installed, which lowers the risk of problems happening during installation.

These quality control measures help procurement teams find trusted suppliers and lower the project risks that come with problems with tools or not following the rules.

Supplier Evaluation and Selection Criteria

Long-term project success depends a lot on the reputation and professional help skills of the manufacturer. Established makers with a lot of experience with specific applications can help with engineering during the standard development phase and with troubleshooting during the testing phase. The availability of technical help, such as field service skills and spare parts stock, has an impact on the total prices and dependability of an operation.

Production ability and delivery success have a direct effect on how projects are scheduled and how inventory is managed. Suppliers who have enough producing capacity and well-established supply lines can handle both large orders and urgent replacement needs. A supplier's delivery past, which includes the percentage of on-time shipments and quality standards, can help you figure out how reliable they are and what risks the project might face.

Conclusion

Double check valve technology provides essential backflow prevention capabilities for critical industrial applications across oil and gas, petrochemical, and pipeline operations. The redundant design philosophy addresses inherent limitations of single valve systems while maintaining mechanical simplicity and fail-safe operation characteristics. Understanding the visual physics and operating principles enables informed specification decisions that balance performance requirements with cost considerations. Proper selection, installation, and maintenance of these systems support regulatory compliance, operational reliability, and long-term cost effectiveness in demanding industrial environments.

FAQ

What maintenance schedule should be followed for double check valves?

Industry standards recommend annual testing of backflow prevention assemblies in critical service applications. The testing procedure includes leak detection through test ports, pressure differential verification, and visual inspection of accessible components. High-cycle applications may require more frequent inspection intervals based on operational experience and manufacturer recommendations. Recording test results helps with following the rules and finding patterns that mean maintenance is about to be done.

Are double check valves suitable for high-temperature applications?

Temperature limits depend on the materials used and how well they work with the closing part. Standard bodies made of brass or cast iron and seats that don't break easily usually stop working at 200°F (93°C). For high-temperature uses, bodies made of stainless steel or carbon steel and metal seats rated for high-temperature use are needed. PTFE sealing elements can handle temperatures up to 400°F (204°C) and are chemically compatible with most process fluids.

What kinds of licenses do pipeline apps need?

Most pipeline apps need to follow API 6D standards, which include rules for design, materials, and tests. Some other certifications that may be needed are NACE MR0175 for sour service uses and specific government licenses for pipeline systems that are regulated. Some systems may need to be tested for fire safety according to API 607. Specifications for purchases should list the standards and certifications that apply based on the needs of the product and the rules in place.

Partner with CEPAI for Superior Double Check Valve Solutions

CEPAI delivers industry-leading backflow prevention solutions engineered specifically for oil and gas, pipeline, and petrochemical applications. Our comprehensive double check valve product line meets stringent API 6A, API 6D, and ISO certification requirements while providing exceptional reliability in demanding operational environments. With extensive manufacturing capabilities and global technical support, we serve as your trusted double check valve manufacturer for critical flow control applications. Contact our engineering team at cepai@cepai.com to discuss your specific requirements and discover how our proven valve technology can enhance your operational safety and compliance.

References

American Water Works Association. "AWWA C510-07: Double Check Valve Backflow Prevention Assembly." American Water Works Association Standards, 2007.

American Petroleum Institute. "API Standard 6D: Pipeline Valves." Twenty-fourth Edition, American Petroleum Institute, 2021.

Johnson, R.M. and Thompson, A.L. "Backflow Prevention in Industrial Process Systems: Design Principles and Applications." Journal of Flow Control Engineering, vol. 45, no. 3, 2019, pp. 234-251.

National Association of Corrosion Engineers. "NACE MR0175/ISO 15156: Materials for Use in H2S-Containing Environments in Oil and Gas Production." NACE International, 2020.

Peterson, K.J. "Performance Analysis of Dual Check Valve Systems in High-Pressure Pipeline Applications." Pipeline Technology Conference Proceedings, 2018, pp. 412-428.

Society of Petroleum Engineers. "SPE 194523: Reliability Assessment of Backflow Prevention Systems in Offshore Production Facilities." SPE Production & Operations Symposium, 2019.
