Globe Valve vs Butterfly Valve: Which is Better for Throttling

When it comes to precise control, the globe valve is still the better choice for slowing uses than the butterfly valve. The linear plug-and-seat form of globe valves lets them change the flow very well, and they give exact control over a wide range of pressures. Their controlling properties keep cavitation and erosion to a minimum, which makes them perfect for oil and gas activities that need to precisely control flow. Butterfly valves are cheaper and easier to install, but globe valves work best in situations that need precise control, higher pressure ratings, and reliable performance in important systems where throttling accuracy affects both safety and economy.

Understanding Globe Valves and Butterfly Valves

Choosing the right valve technology is very important for industrial slowing uses that need to control flow well. Globe and butterfly valves are fundamentally different from each other, and the differences go beyond how they work to include benefits in certain working environments.

Globe Valve Design and Functionality

Globe valves have a stem that moves a plug or disc in a straight line across the flow path. This makes a hole that can be changed precisely to change the flow. With this setup, workers can make small changes to the flow rate across the whole valve stroke range. There is an internal baffle in the valve body that guides fluid flow through the seat area. This makes for great throttling with little noise.

The seat and plug design of globe valves makes them better at closing, which is especially important for high-pressure drilling jobs that need to be leak-tight. Many globe valves have trim parts that can be replaced. This lets workers change the flow patterns for different uses without having to replace the whole valve assembly.

Butterfly Valve Mechanisms and Applications

Butterfly valves have a disc that spins on a central rod. They can be turned a quarter of the way from fully closed to fully open. This design makes a small, light solution that can be used for large-diameter pipeline uses where weight and installation room are important factors.

For a globe valve, flow area is determined by where the disc is placed, and throttling is done by placing the disc at an angle between fully open and closed. But the disc stays in the flow stream no matter where it is, which could cause turbulence and pressure drop that could affect how well the system works in precision control situations.

There are different types of butterfly valves, such as wafer-style valves that are installed between flanges, lug-style valves with threaded pieces that make removal easy, and flanged valves that offer strong connection options. These choices let you place them in a variety of pipeline configurations while still following the basic quarter-turn operation concept.

Detailed Comparison: Globe Valve vs Butterfly Valve for Throttling

When it comes to oil and gas operations, throttling performance is a key factor in choosing which valves to use because precise flow control has a direct effect on both safety and production efficiency. When it comes to throttling, globe and butterfly valves are very different in how they work, which makes them less suitable for some uses.

Flow Control Precision and Rangeability

Because of the way they naturally control flow, globe valves are better at throttling because they can give you linear or equal percentage flow curves, based on the form of the trim. Because the link between valve position and flow rate is always the same, operators can make accurate flow changes across the whole working range. Globe valves usually have a rangeability of more than 50:1, allowing for efficient control of flows from very low to very high.

Because of the shape of the disc and how it interacts with the flow stream, butterfly valves have more complicated flow properties. The throttling slope isn't always straight, and there are big changes in flow at the very end of the starting range. This trait can make exact flow control hard, especially in situations where the flow needs to be stable at intermediate points.

Pressure Drop Considerations

The shape of the internal flow line has a big effect on how much pressure drops when these valve types are used. Because the flow path through a globe valve is more complicated, the pressure drop is higher. However, this design is very good at slowing and lowers the risk of cavitation in liquid uses.

When fully open, butterfly valves cause smaller drops in pressure than a globe valve, which makes them a good choice for situations where saving energy is very important. However, the position of the disc during slowing can lead to uneven pressure distribution and possible shaking problems, especially in situations where flow speeds or pressure differences are high.

Durability and Maintenance Requirements

Because their internal parts are more complicated and they are exposed to flow-induced wear, globe valves usually need more frequent upkeep. The stem packing needs to be adjusted or replaced every so often, and if the service conditions are rough, the seat and plug surfaces may need to be refinished. Many globe valves, on the other hand, are modularly designed so that repair can be done in-line without having to take the valve completely off.

Butterfly valves are easier to build and have fewer places where they can wear out, so they need less upkeep when they're working properly. The main parts that need to be maintained are the shaft seals and bearing surfaces. The disc and seat surfaces, on the other hand, tend to wear down less quickly than globe valve trim parts.

When to Choose a Globe Valve over a Butterfly Valve?

While choosing between globe and butterfly valves, it's important to keep in mind that the best choice for each installation will depend on working conditions, performance needs, and cost.

High-Pressure and High-Temperature Applications

Globe valves work great in tough conditions where temperatures get very high and pressure values are higher than 1500 PSI. Globe valves are good for wellhead uses, high-pressure injection systems, and important process control points in processing operations because of their strong body construction and metal-to-metal closing capabilities.

Globe valve sealing performance is constant across a range of pressure and temperature situations thanks to the linear actuator force distribution. In the oil and gas drilling business, where machine failure can cause major safety issues and downtime, this dependability is very important.

Precision Flow Control Requirements

The features of globe valves are useful in situations where precise flow adjustment is needed, like in monitoring systems, chemical injection services, and process control. Because the flow rates are repeatable, they can be used for accurate process control integration and reliable automatic operation with pneumatic or electric actuators.

Globe valves are very stable for controlling things when the pressure upstream changes or the fluid's features change. This stability is very important in pipeline regulation stations, where keeping pressures steady downstream needs valves that can respond quickly to changing working conditions.

Space and Weight Constraints

Butterfly valves are very useful in large-diameter situations where installation room and weight limits make smaller versions more desirable. Butterfly valve installations are often helpful for pipelines with diameters greater than 12 inches. This is especially true on offshore sites or in rural areas where the cost of shipping and installation is high.

Butterfly valves can quickly close in an emergency because they can be turned a quarter of the way. This makes them good for separate services where quick closing is needed for safety reasons. This is a benefit, but it has to be weighed against the fact that it is less precise at throttling than globe valve options.

Enhancing Throttling Efficiency: Practical Tips and Solutions

To get the best performance from a valve, its size, material, and how it is actuated must be carefully thought out for each throttling purpose. Modern valve technologies have better features that can make operations much more efficient and tools last longer.

Material Selection and Trim Optimization

Choosing the right material for the working conditions can improve the performance of a globe valve. In sour gas uses, stainless steel trim is very resistant to corrosion, and areas that have been hardened last longer in erosive conditions. Specialized coats and surface treatments make things work even better in tough conditions.

Engineers can get the best performance out of globe valves for certain flow control needs by choosing the right trim features. Linear trim raises flow steadily with each unit of valve travel, while equal percentage trim gives you better control at low flow rates and bigger changes in flow as the valve gets closer to fully open.

Actuation and Control Integration

Pneumatic actuators work reliably in dangerous areas, which are popular in oil and gas facilities. Electric actuators, on the other hand, can be precisely placed for tasks that need precise flow control. Putting positioners and feedback systems together makes it possible to place valves accurately and make the control more stable.

Modern control valve systems use smart positioning technology that gives diagnostic information about how well the valves are working. This lets repair plans be made ahead of time and cuts down on unplanned downtime. These systems can find problems like stem sticking, actuator issues, or changes in the process before they have an effect on how well the machine works.



Installation and Maintenance Best Practices

Using the right fitting methods has a big effect on how well valves work and how long they last. When using a globe valve, you need to pay attention to the flow direction, make sure the actuator assembly is supported correctly, and make sure there is enough space for upkeep. The stem orientation should take into account the fitting surroundings to keep contamination to a minimum and make inspections easier.

To make sure the best throttle, regular upkeep should include adjusting the packing, calibrating the actuator, and checking the performance. By using condition tracking tools, you can spot trends in performance loss before they lead to control issues or equipment failures.

Procurement Guide: How to Source the Best Globe and Butterfly Valves for Throttling?

To buy globe valve successfully, you need to know a lot about the supplier's skills, quality certifications, and expert support services. Because oil and gas uses are so complicated, they need suppliers with a track record of success and strong quality control systems.

Quality Certifications and Standards Compliance

Checking that possible providers have the right quality certifications is a very important part of the evaluation process. API 602 certification for globe valves makes sure that they meet the standards for materials, design, and tests used in the oil business. Certification as an ISO 9001 quality management system means that quality control and continuous growth steps are done in a planned way.

Suppliers should show that they follow the safety rules and instructions for pressure tools that are relevant to the conditions of the planned service. As proof of quality security, the paperwork should have material certificates, records of pressure tests, and information on how the materials can be tracked.

Supplier Evaluation and Selection Criteria

When you do a technical capability review, you should look at the supplier's engineering help, customization skills, and application knowledge. Suppliers with a lot of experience in oil and gas uses can help you choose the right materials, think about the right sizes, and deal with operating problems that are unique to the industry.

Manufacturing ability and wait time affect how projects are scheduled and how inventory is managed. Suppliers should show that they have enough production capacity to meet delivery deadlines and keep quality standards high throughout the whole manufacturing process. Being in the right place geographically and having local help makes it easier to meet professional support and after-sales service needs.

Total Cost of Ownership Considerations

When making purchases, people should look at the total cost of ownership instead of just the beginning cost of the item. In some situations, globe valves can provide better performance and longer service life, but they may require a bigger initial investment. The study should look at the costs of upkeep, changes in energy use, and possible lost work time due to differences in performance.

The general value offer is affected by the supplier's financing options, warranty terms, and expert support services. Having a lot of detailed information, training programs, and spare parts on hand all help with managing assets well throughout the duration of a valve.

Conclusion

Globe valves offer better precision control in high-pressure, high-temperature situations, so they should be chosen over butterfly valves for throttling uses. Globe valves shine in applications requiring accurate flow modulation and reliable performance, while butterfly valves have benefits in large-diameter, low-pressure applications where installation space is limited. Investing in the right valve technology pays off in the form of higher working efficiency, lower upkeep costs, and better safety performance in oil and gas operations.

FAQ

Which valve type provides better throttling control?

Because they are made with a straight plug-and-seat design, globe valves are better at controlling speed than butterfly valves. Because they have a wide range and reliable flow properties, globe valves are perfect for precise control tasks that need accurate flow modulation to run smoothly.

What are the pressure limitations for each valve type?

Globe valves can handle much higher pressures; for some special designs, they can handle more than 2500 PSI. Up to 600 PSI is usually enough for butterfly valves to work properly, but high-performance versions can go higher with the right materials and building methods.

How do maintenance requirements differ between these valve types?

Because their internal parts are more complicated and they are exposed to flow-induced wear, globe valves need to be serviced more often. Butterfly valves are easier to maintain because they are made with fewer parts that need to be fixed. However, both types of valves need to be inspected and maintained regularly to make sure they work at their best.

Partner with CEPAI for Superior Throttling Valve Solutions

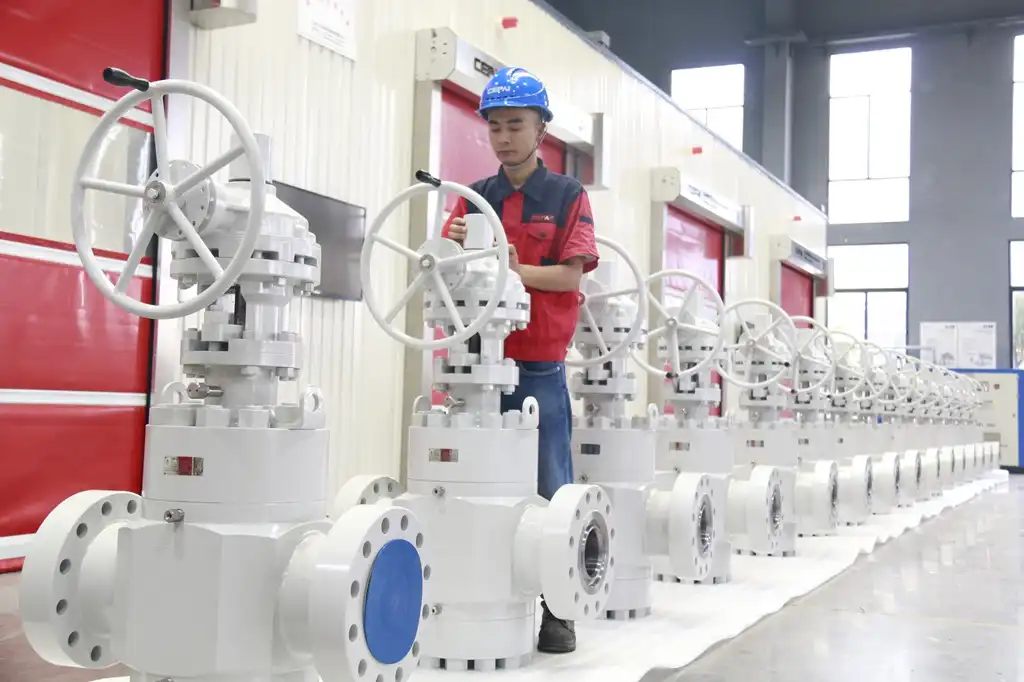

CEPAI is one of the best companies that makes globe valves and specializes in high-performance slowing solutions for oil and gas operations. Our API-certified globe valves offer great precision control, come with full expert support, and have been used successfully in the field. With certificates like API Q1, API 6A, and ISO 9001, CEPAI makes sure that all of our valves are of the highest quality. Email our tech team at cepai@cepai.com to talk about your unique throttling needs and find out how our custom solutions can help your operations run more smoothly and reliably.

References

American Petroleum Institute. "API Standard 602: Steel Gate, Globe, and Check Valves for Sizes DN 100 and Smaller for the Petroleum and Natural Gas Industries." API Publishing Services, 2019.

Baumann, Hans D. "Control Valve Primer: A User's Guide to the Technology of Process Control Valves." ISA Publications, 2018.

Emerson Process Management. "Fisher Control Valve Handbook: Primary and Advanced Control Solutions." Emerson Automation Solutions, 2020.

International Society of Automation. "ISA-75.01: Flow Equations for Sizing Control Valves." ISA Standards and Practices Department, 2017.

Lyons, William C. and Gary J. Plisga. "Standard Handbook of Petroleum and Natural Gas Engineering." Gulf Professional Publishing, 2019.

Valve Manufacturers Association. "VMA Technical Bulletin: Proper Application and Selection of Control Valves for Process Industries." VMA Technical Committee, 2021.
