Characteristics and Design Features of Butterfly and Diaphragm Valves
Butterfly Valve Structure and Operation
Butterfly valves feature a circular disc mounted on a rotating shaft, which controls the flow of fluid through the valve. When fully open, the disc aligns parallel to the flow, allowing maximum passage. As the disc rotates perpendicular to the flow, it gradually restricts and eventually stops the fluid movement. This simple yet effective design makes butterfly valves compact and lightweight, ideal for applications where space is limited. The valve's quarter-turn operation enables quick opening and closing, enhancing operational efficiency in time-sensitive processes.
Diaphragm Valve Mechanics and Functionality
Diaphragm valves utilize a flexible membrane, typically made of rubber or similar elastomeric materials, to control fluid flow. This membrane is connected to a compressor, which, when actuated, presses the diaphragm against the valve body, creating a seal that stops or regulates flow. The absence of cavities or crevices in the valve body where fluid can accumulate makes diaphragm valves particularly suitable for hygienic applications. Their ability to provide a tight shut-off and handle slurries or fluids with suspended solids makes them invaluable in certain industrial processes.
Key Differences in Performance and Application
While both valve types serve to control fluid flow, their distinct designs lead to differences in performance and suitability for various applications. Butterfly valves generally offer lower pressure drop and are more suitable for high-flow, low-pressure applications. They excel in handling large volumes of fluids and gases, making them popular in water treatment plants and HVAC systems. Diaphragm valves, conversely, provide superior sealing capabilities and are better suited for applications requiring frequent cleaning or sterilization. Their ability to handle abrasive or corrosive media without damage to the valve body makes them indispensable in pharmaceutical and food processing industries.
Industry-Specific Applications of Butterfly and Diaphragm Valves
Water and Wastewater Treatment
In water and wastewater treatment facilities, butterfly valves play a crucial role in managing large volumes of water. Their ability to handle high flow rates makes them ideal for main water lines, pump isolation, and backflow prevention. Butterfly valves' low maintenance requirements and long service life contribute to the overall efficiency of these facilities. For more specialized applications within the same industry, such as chemical dosing systems, diaphragm valves are often preferred due to their excellent sealing properties and resistance to corrosive chemicals commonly used in water treatment processes.

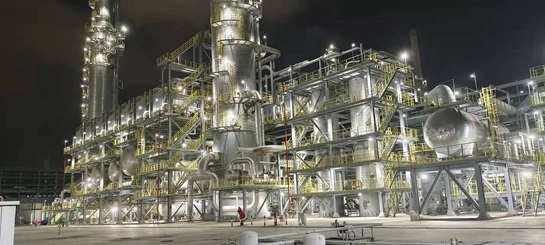

Oil and Gas Industry
The oil and gas sector relies heavily on robust valve solutions capable of withstanding extreme pressures and temperatures. Butterfly valves find extensive use in pipeline systems for crude oil and natural gas transportation, offering quick shut-off capabilities crucial for emergency situations. Their lightweight design also makes them suitable for offshore platforms where weight considerations are paramount. Diaphragm valves, while less common in mainstream oil and gas operations, are utilized in specific applications such as handling slurries or in refinery processes where contamination control is critical.
Food and Beverage Processing
In the food and beverage industry, maintaining hygiene and preventing contamination are top priorities. Diaphragm valves excel in this environment due to their cleanability and ability to achieve a complete shut-off, preventing product cross-contamination. They are commonly used in dairy processing, beverage production, and other applications requiring frequent cleaning or sterilization. Butterfly valves also find application in this sector, particularly in larger piping systems for bulk liquid handling, such as in breweries or bottling plants, where their quick operation and low pressure drop characteristics are advantageous.
Factors Influencing Valve Selection in Different Industries
Operational Requirements and Environmental Considerations
Selecting between butterfly and diaphragm valves often comes down to the specific operational requirements of an industry. Factors such as flow rate, pressure, temperature, and the nature of the media being handled play crucial roles in this decision. For instance, industries dealing with high-temperature fluids might lean towards butterfly valves with appropriate sealing materials, while those handling corrosive chemicals might prefer the added protection offered by diaphragm valves. Environmental considerations, such as the potential for leakage and its impact, also influence valve choice, with diaphragm valves often preferred in environments where even minor leaks could have significant consequences.
Maintenance and Longevity Aspects
The ease of maintenance and expected service life are critical factors in valve selection across industries. Butterfly valves generally offer lower maintenance requirements and longer service intervals, making them attractive for large-scale operations where frequent valve maintenance could lead to significant downtime. Their simple design also allows for easier in-line maintenance in many cases. Diaphragm valves, while potentially requiring more frequent maintenance due to the wear on the flexible diaphragm, offer the advantage of easy replacement of the diaphragm without removing the entire valve from the line. This can be particularly beneficial in industries where production interruptions must be minimized.
Cost-Effectiveness and ROI Considerations
The initial cost of valve installation and the long-term return on investment (ROI) are crucial considerations for any industry. Butterfly valves often present a more cost-effective solution for large diameter applications, offering significant savings in both material and installation costs compared to other valve types. Their energy efficiency, due to low pressure drop, can also contribute to long-term operational savings. Diaphragm valves, while potentially more expensive initially, can offer superior ROI in applications where their unique benefits, such as excellent sealing and contamination prevention, are critical. Industries must weigh these factors against their specific needs and budget constraints to make the most economical choice without compromising on performance or safety.
Conclusion
The choice between butterfly valves and diaphragm valves is not a one-size-fits-all decision but depends on the specific requirements of each industry and application. Butterfly valves shine in scenarios requiring high flow rates, quick operation, and space efficiency, making them invaluable in water treatment, oil and gas, and large-scale industrial processes. Diaphragm valves, with their superior sealing and contamination control, are indispensable in industries where hygiene and precise flow control are paramount, such as pharmaceuticals and food processing. By carefully considering operational needs, environmental factors, maintenance requirements, and long-term cost-effectiveness, industries can make informed decisions that optimize their fluid control systems, ensuring efficiency, safety, and reliability in their operations.
