The Evolution of Valve Technology: From Traditional to Butterfly
Historical Context of Traditional Valves
Traditional valves have been the backbone of fluid control systems for centuries. These valves, including gate valves, globe valves, and plug valves, have served industries well, providing reliable flow control in various applications. Each type has its unique mechanism and advantages. Gate valves, for instance, offer a straight-through flow path when fully open, while globe valves provide excellent throttling capabilities. However, as industrial processes have evolved and demands for efficiency have increased, the limitations of these traditional valves have become more apparent.
Introduction and Rise of Butterfly Valves

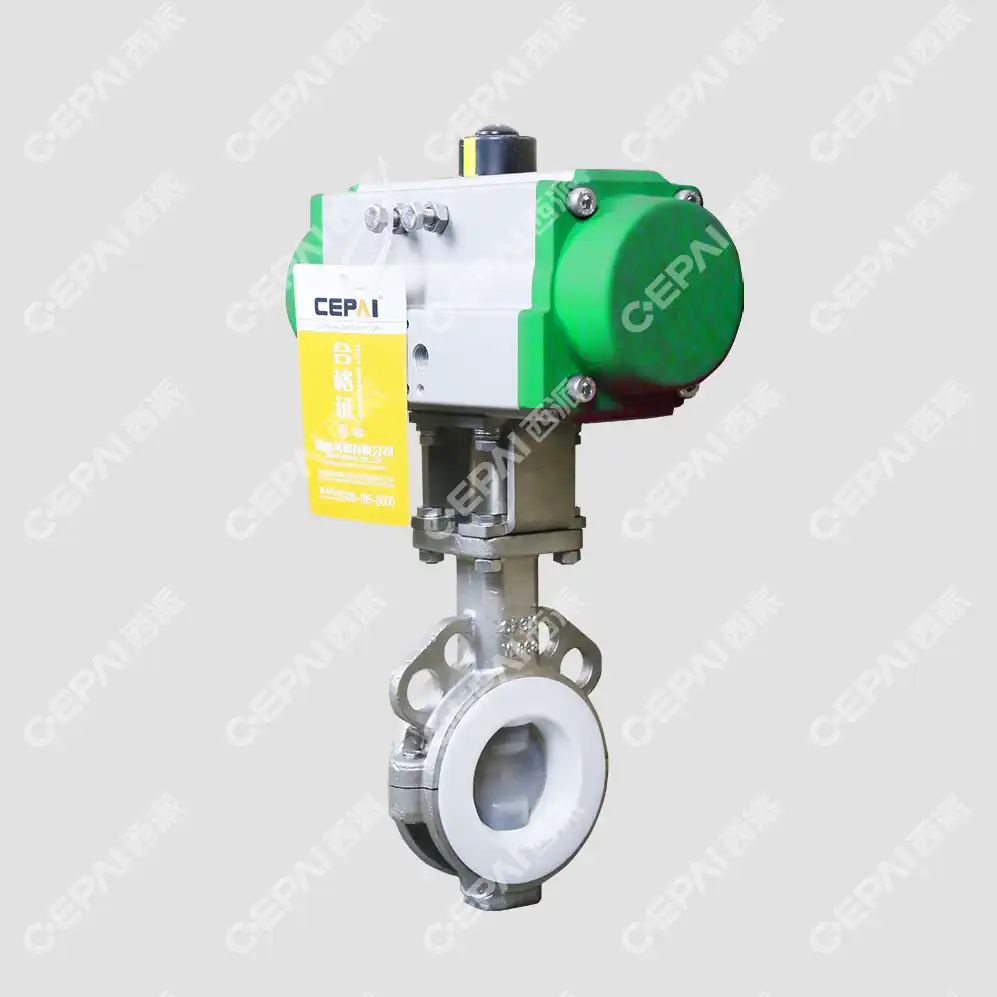

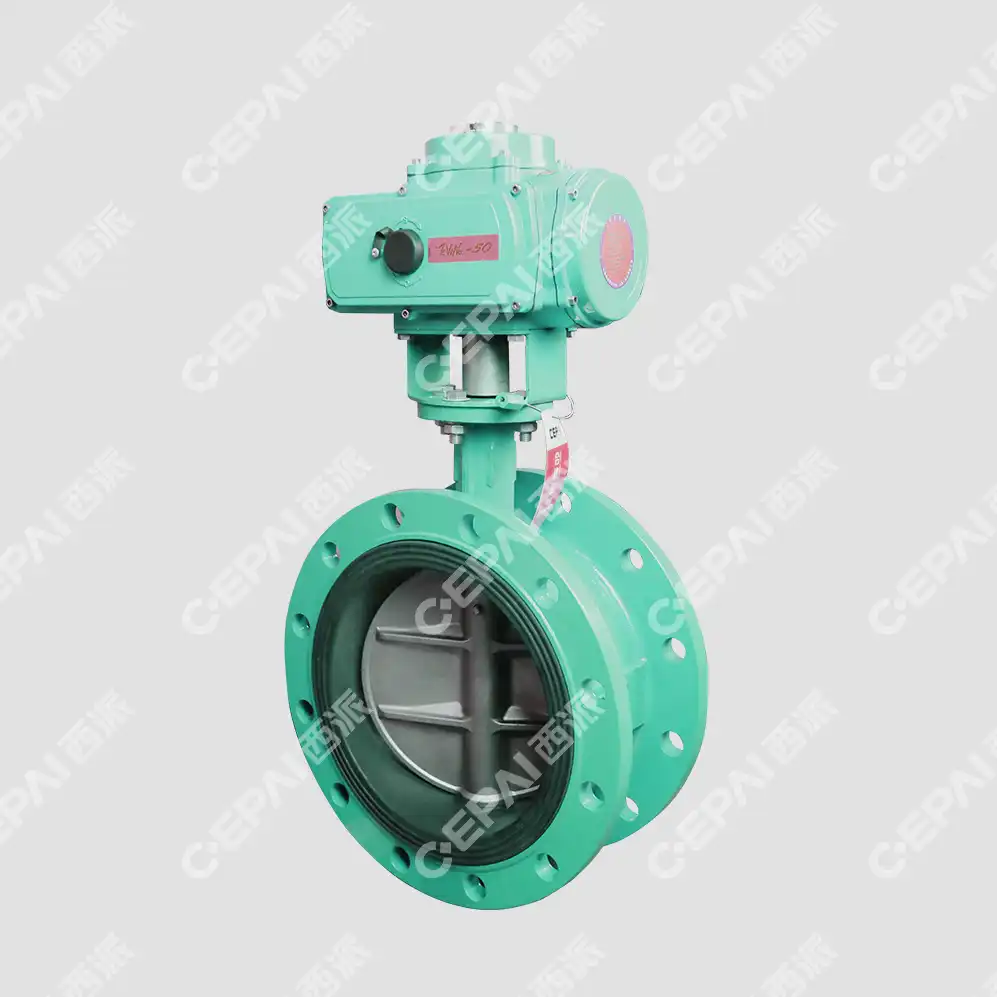

Butterfly valves emerged as a revolutionary solution in the mid-20th century. Their design was a departure from traditional valve types, offering a simpler mechanism that could achieve the same or better flow control. The core component of a butterfly valve is a disc that rotates on an axis, which can quickly open or close the flow path. This design breakthrough led to several advantages, including faster operation, reduced weight, and lower manufacturing costs. As industries began to recognize these benefits, the adoption of butterfly valves accelerated across various sectors.
Comparative Analysis: Traditional vs. Butterfly Valves
When comparing butterfly valves to traditional valve types, several key differences become apparent. Butterfly valves generally offer a more compact design, making them ideal for installations where space is at a premium. They also tend to be lighter, which can significantly reduce the overall weight of piping systems. In terms of operation, butterfly valves typically require less torque to open and close, leading to reduced energy consumption and wear on actuators. While traditional valves may still hold advantages in certain high-pressure or extreme temperature applications, butterfly valves have proven to be superior in many common industrial scenarios, offering a balance of performance, cost-effectiveness, and ease of use that is hard to match.
Advantages of Butterfly Valves in Modern Industrial Applications
Enhanced Flow Characteristics and Control
One of the most significant advantages of butterfly valves is their superior flow characteristics. The disc design allows for excellent flow control with minimal obstruction when fully open. This results in lower pressure drop across the valve, which can lead to energy savings in pumping systems. The ability to fine-tune flow rates with precision makes butterfly valves ideal for applications requiring accurate control. In industries such as water treatment or chemical processing, where precise flow regulation is crucial, butterfly valves have become the go-to choice for many engineers and plant operators.
Space and Weight Savings
The compact design of butterfly valves offers substantial space and weight savings compared to traditional valve types. This characteristic is particularly valuable in offshore oil and gas platforms, where every kilogram and cubic meter count. The reduced weight and size of butterfly valves can lead to significant cost savings in terms of support structures and installation labor. Moreover, their compact nature allows for easier integration into existing systems during retrofits or upgrades, minimizing downtime and disruption to operations. These space and weight advantages have made butterfly valves increasingly popular in industries where spatial efficiency is a priority.
Cost-Effectiveness and Maintenance Benefits
Butterfly valves offer compelling cost advantages throughout their lifecycle. The simplicity of their design translates to lower manufacturing costs, making them more economical to purchase initially. Installation costs are also reduced due to their lighter weight and compact size. In terms of maintenance, butterfly valves generally require less upkeep than their traditional counterparts. The straightforward mechanism means fewer components that can fail, leading to increased reliability and reduced maintenance frequency. When maintenance is necessary, the simplicity of the design often allows for quicker and easier servicing, minimizing downtime and associated costs. These economic benefits have made butterfly valves an attractive option for companies looking to optimize their operational expenses without compromising on performance.
Future Trends and Innovations in Butterfly Valve Technology
Advanced Materials and Coatings
The future of butterfly valve technology is closely tied to advancements in materials science. Researchers and manufacturers are exploring new alloys and composite materials that can enhance the durability and performance of butterfly valves. These materials aim to improve resistance to corrosion, erosion, and extreme temperatures, expanding the range of applications where butterfly valves can be effectively used. Additionally, innovative coatings are being developed to reduce friction and wear on valve components, potentially extending service life and reducing maintenance requirements. These material advancements could lead to butterfly valves that can operate reliably in even the most challenging industrial environments, further solidifying their position as a preferred valve type across various sectors.
Integration of Smart Technologies
The integration of smart technologies is set to revolutionize butterfly valve operation and maintenance. Advanced sensors and monitoring systems are being incorporated into valve designs, allowing for real-time performance tracking and predictive maintenance. These smart valves can provide valuable data on flow rates, pressure differentials, and valve position, enabling operators to optimize processes and anticipate potential issues before they occur. Some cutting-edge designs even incorporate self-diagnostic capabilities, alerting maintenance teams to specific components that may require attention. As industrial processes become increasingly automated and data-driven, these smart butterfly valves are poised to play a crucial role in the evolution of fluid control systems.
Customization and Modular Designs
The trend towards customization and modular designs is gaining momentum in the butterfly valve industry. Manufacturers are developing more flexible production processes that allow for greater customization to meet specific application requirements. This approach enables the creation of butterfly valves tailored to unique operating conditions, ensuring optimal performance in diverse industrial settings. Modular designs are also becoming more prevalent, allowing for easier upgrades and component replacements. This modularity not only simplifies maintenance but also extends the lifespan of valve systems by enabling partial upgrades rather than complete replacements. As industries continue to demand more specialized solutions, the ability to provide customized and modular butterfly valves will likely become a key differentiator for manufacturers in the market.
Conclusion
Butterfly valves have emerged as a game-changing technology in the world of fluid control, offering a compelling alternative to traditional valve types. Their unique design provides superior flow characteristics, space and weight savings, and cost-effectiveness, making them an ideal choice for a wide range of industrial applications. As material science advances and smart technologies become more integrated, the capabilities of butterfly valves are set to expand even further. The trend towards customization and modular designs will ensure that these valves can meet increasingly specific industry needs. With their numerous advantages and ongoing innovations, butterfly valves are well-positioned to continue replacing traditional valves across various sectors, driving efficiency and performance in fluid control systems for years to come.
