Understanding Fire-Safe Butterfly Valves
Defining Fire-Safe Butterfly Valves

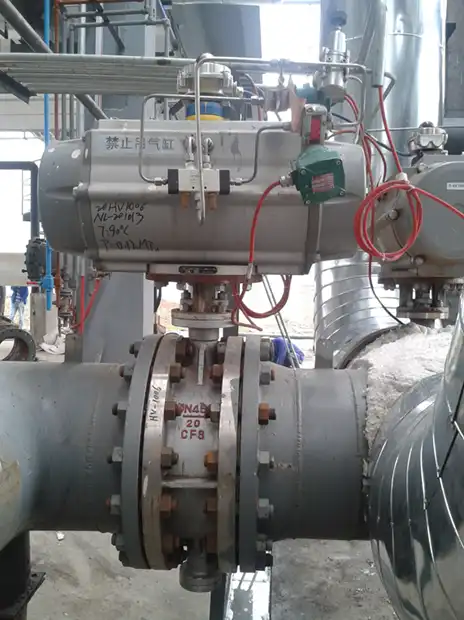

Fire-safe butterfly valves are specialized flow control devices designed to maintain their operational integrity and sealing capabilities during and after exposure to extreme heat or fire conditions. These valves play a crucial role in preventing the spread of fire and hazardous materials in industrial settings, particularly in oil and gas facilities where the risk of fire is significant.
The primary function of a fire-safe butterfly valve is to provide a reliable shut-off mechanism that can withstand high temperatures without compromising its sealing ability. This is achieved through a combination of fire-resistant materials, innovative design features, and rigorous testing procedures to ensure compliance with industry standards.

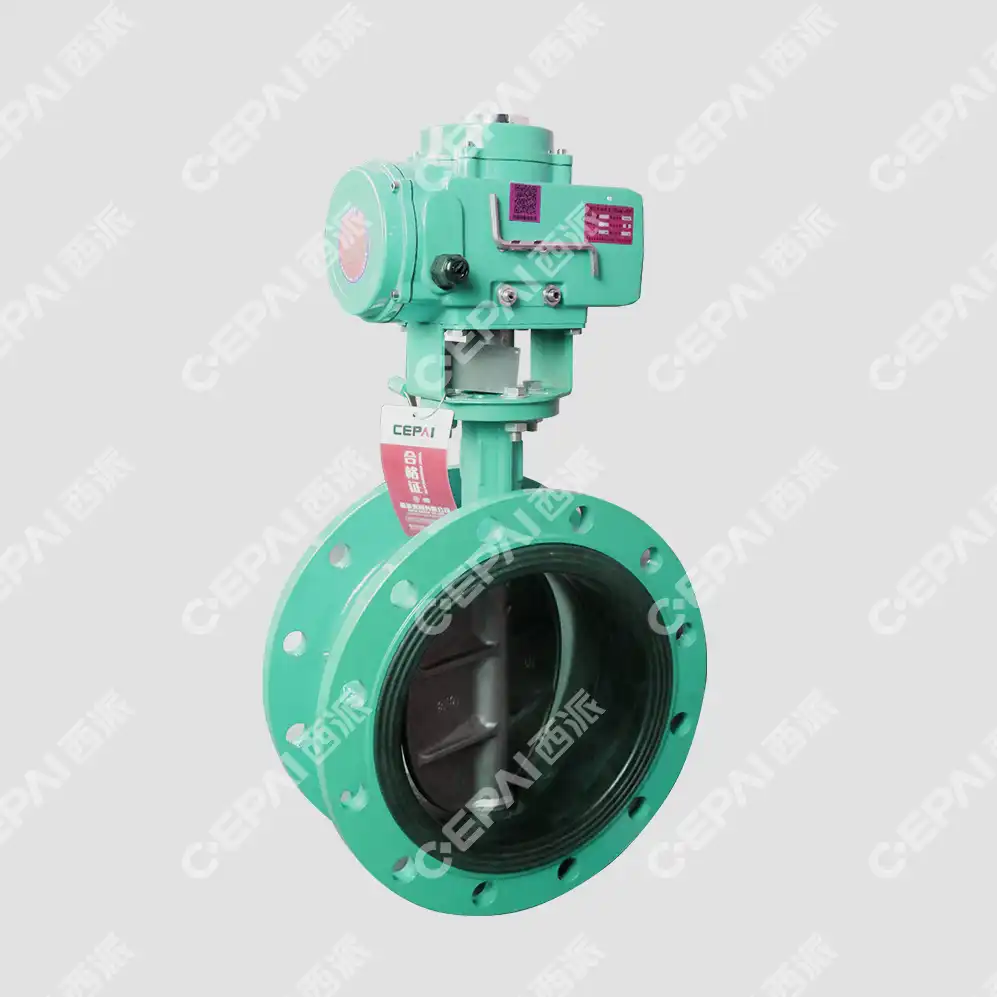

Key Components of Fire-Safe Butterfly Valves
Fire-safe butterfly valves consist of several essential components that contribute to their ability to withstand fire conditions:
- Valve Body: Typically constructed from high-grade, fire-resistant materials such as stainless steel or ductile iron.
- Disc: The main closure element, often made of stainless steel or other heat-resistant alloys.
- Stem: A critical component that connects the disc to the actuator, usually made of hardened stainless steel.
- Seats: Fire-safe valves employ specialized seating materials that can withstand high temperatures without degrading or losing their sealing properties.
- Seals: Advanced sealing systems are incorporated to prevent leakage during and after fire exposure.
- Actuator: Fire-safe actuators are designed to maintain functionality even in extreme heat conditions.
Importance in Industrial Applications
The implementation of fire-safe butterfly valves in industrial settings is crucial for several reasons:
- Safety: These valves provide an additional layer of protection in fire scenarios, helping to contain fires and prevent the release of hazardous materials.
- Regulatory Compliance: Many industries, especially oil and gas, are required to use fire-safe valves to meet safety regulations and standards.
- Business Continuity: By minimizing damage and downtime in the event of a fire, these valves help maintain operational continuity and reduce financial losses.
- Environmental Protection: Fire-safe valves play a vital role in preventing environmental contamination by containing potentially harmful substances during fire incidents.
Design Principles of Fire-Safe Butterfly Valves
Material Selection for Fire Resistance
The choice of materials is paramount in the design of fire-safe butterfly valves. Engineers carefully select materials that can withstand extreme temperatures and maintain their structural integrity during fire conditions. Common materials used include:
- Valve Body and Disc: High-grade stainless steel alloys, such as 316 or 321, are often employed due to their excellent heat resistance and corrosion resistance. In some cases, specialized alloys like Inconel or Hastelloy may be used for even greater fire resistance.
- Seats and Seals: Fire-safe valves typically use a combination of metal and soft seats. The metal seat, often made of stainless steel or Inconel, provides a secondary sealing surface when the soft seat material burns away. The soft seat is usually made of high-temperature polymers like PTFE (polytetrafluoroethylene) or graphite-based materials.
- Stem: Hardened stainless steel or nickel-based alloys are preferred for stems due to their strength and resistance to thermal expansion.
Sealing Mechanisms for Fire Safety
The sealing mechanism in fire-safe butterfly valves, including fire safe butterfly valve designs, is designed to maintain a tight shut-off even when exposed to extreme heat. This is typically achieved through a dual-sealing system:
- Primary Seal: Under normal operating conditions, the soft seat provides the primary seal. This ensures tight shut-off and low torque operation.
- Secondary Seal: In fire conditions, as the soft seat material burns away, the metal-to-metal contact between the disc and the valve body or a metal seat ring creates a secondary seal. This metal-to-metal seal maintains the valve's ability to prevent flow, even at high temperatures.
Some advanced designs incorporate graphite or metal-reinforced seals that can withstand fire conditions while maintaining flexibility for effective sealing.
Thermal Expansion Considerations
Fire-safe butterfly valve designs must account for thermal expansion of components during fire conditions. Key considerations include:
- Clearances: Proper clearances are maintained between moving parts to allow for thermal expansion without binding or seizing.
- Flexible Components: Some designs incorporate flexible elements that can accommodate thermal expansion without compromising the valve's functionality.
- Material Compatibility: The thermal expansion coefficients of different materials used in the valve construction are carefully considered to ensure they work together harmoniously under high-temperature conditions.
- Stress Analysis: Advanced finite element analysis is often employed to simulate the valve's behavior under fire conditions, ensuring that thermal stresses do not lead to failure.
Testing and Certification of Fire-Safe Butterfly Valves
Industry Standards and Regulations
Fire-safe butterfly valves must adhere to stringent industry standards and regulations to ensure their reliability in fire scenarios. Some of the key standards include:
- API 607: This standard, set by the American Petroleum Institute, outlines the fire test requirements for quarter-turn valves and valves equipped with nonmetallic seals.
- ISO 10497: An international standard that specifies requirements for testing valves for fire-safe and fire-resistant qualities.
- BS 6755 Part 2: A British standard that defines the method for fire-type testing of valve assemblies.
These standards typically require valves to undergo rigorous testing procedures that simulate real-world fire conditions. Compliance with these standards is often mandatory for valves used in high-risk industries such as oil and gas, petrochemical, and power generation.
Fire Testing Procedures
Fire testing of fire safe butterfly valve involves subjecting the valve to extreme heat conditions to evaluate its performance. The typical fire test procedure includes:
- Pre-Test Evaluation: The valve is inspected and its sealing capability is verified before the test.
- Fire Exposure: The valve is subjected to direct flame impingement at temperatures typically exceeding 1800°F (982°C) for a specified duration, usually 30 minutes.
- Thermal Cycling: After the fire exposure, the valve may be rapidly cooled with water to simulate firefighting conditions.
- Post-Fire Evaluation: The valve's sealing capability is re-evaluated to ensure it maintains an acceptable level of tightness.
- Operational Test: The valve is operated to verify that it can still function after fire exposure.
These tests are designed to simulate worst-case scenarios and ensure that the valve can maintain its integrity and functionality in real-world fire situations.
Certification and Quality Assurance
Obtaining certification for fire-safe butterfly valves involves a comprehensive process:
- Third-Party Testing: Fire tests are typically conducted by independent, accredited laboratories to ensure impartiality and adherence to standards.
- Documentation: Detailed reports of the fire tests, including test conditions, results, and any observations, are prepared.
- Certification: Based on successful test results, certification bodies issue certificates confirming the valve's compliance with relevant standards.
- Quality Assurance: Manufacturers must implement strict quality control measures to ensure that production valves consistently meet the certified design specifications.
- Traceability: Each fire-safe valve typically carries unique identification to allow traceability back to its manufacturing and testing records.
- Periodic Re-certification: Some industries or regulations may require periodic re-testing or re-certification of fire-safe valves to ensure ongoing compliance and reliability.
This rigorous certification process provides assurance to end-users that the fire-safe butterfly valves will perform as expected in critical fire situations, enhancing safety and reliability in high-risk industrial applications.
