Understanding Control Valves: Features and Applications

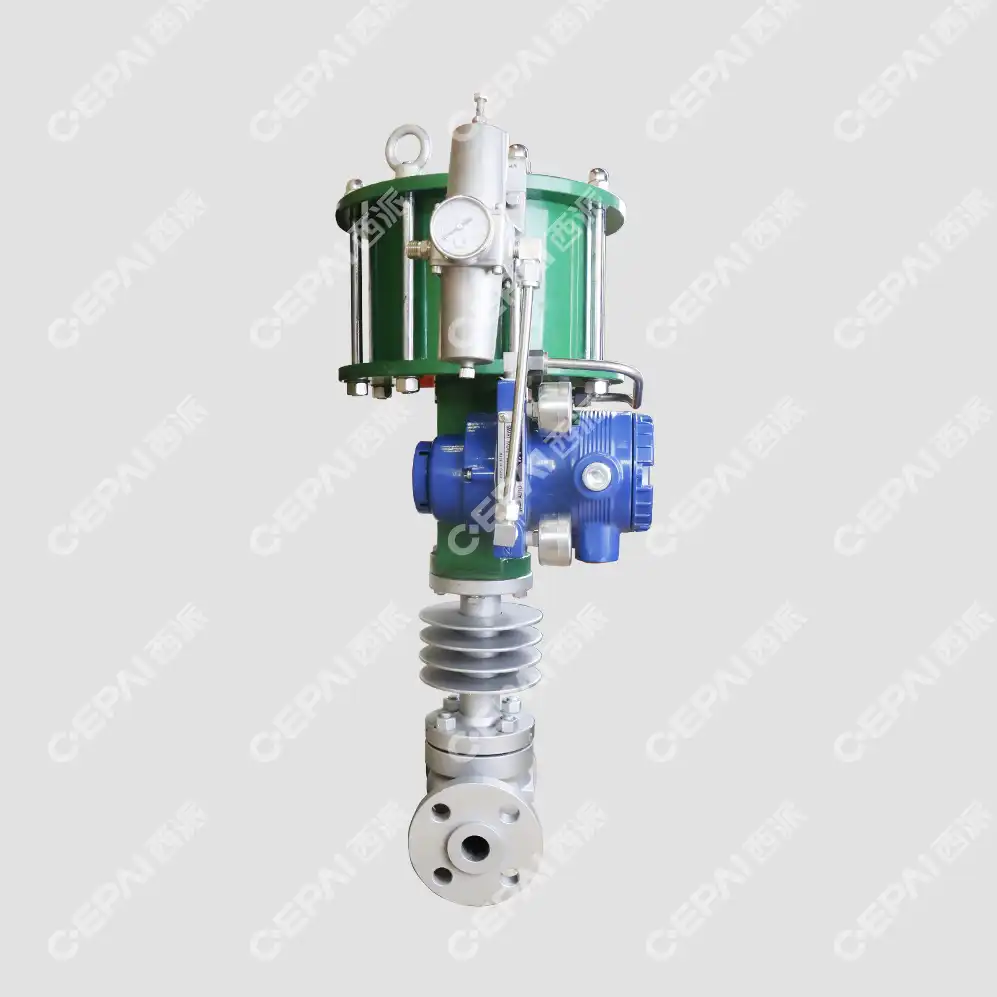

Anatomy of a Control Valve
A control valve is a sophisticated device that enables precise regulation of process flow by integrating several key components. The valve body forms the outer casing and provides the connection to the pipeline, ensuring durability under different operating pressures. Inside, the trim, which includes the plug, stem, and seat, governs the actual modulation of flow. The actuator supplies the mechanical force required to move the trim, and the positioner translates the control signal into accurate valve movement. Together, these elements guarantee dependable and repeatable flow control.
Types of Control Valves
Control valves come in various types, each tailored to distinct industrial needs. Globe valves are highly favored due to their exceptional throttling accuracy and versatility in flow regulation. Ball valves, with their quarter-turn mechanism, are ideal for applications requiring bubble-tight shutoff and high-pressure performance. Angle valves are specifically designed to mitigate flashing and cavitation problems. Diaphragm valves, thanks to their hygienic construction, are preferred in pharmaceutical and food processing systems. Butterfly valves, offering rapid actuation and lightweight design, are frequently used in large-diameter pipeline operations.
Industries and Applications
Control valves find extensive use across various industries. In the oil and gas sector, they regulate the flow of hydrocarbons in refineries and production facilities. Chemical processing plants rely on control valves for precise reactant mixing and product separation. Power generation plants use these valves for boiler feedwater control and turbine bypass systems. The pharmaceutical industry employs control valves in sterile processing applications, while the food and beverage sector uses them for batch control and ingredient dosing.
Exploring Pneumatic Butterfly Valves: Advantages and Use Cases
Design and Operation Principles
Pneumatic butterfly valves consist of a circular disc mounted on a rotating shaft. When the valve is open, the disc is parallel to the flow, offering minimal resistance. As the disc rotates to the closed position, it seals against a seat in the valve body. The pneumatic actuator, powered by compressed air, provides the rotational force to open or close the valve. This simple yet effective design allows for quick operation and reliable performance.
Benefits of Pneumatic Actuation
The pneumatic actuation in butterfly control valves offers several advantages. It provides rapid opening and closing, which is crucial in emergency shutdown scenarios. The actuators are compact and lightweight, making installation and maintenance easier. Pneumatic systems are inherently safe in hazardous environments as they don't generate sparks. Moreover, they're cost-effective compared to electric or hydraulic alternatives, both in terms of initial investment and long-term operational costs.
Suitable Applications
Pneumatic butterfly valves excel in applications requiring quick on/off control or simple throttling. They're commonly used in the water treatment industry for flow control in large diameter pipes. In the HVAC sector, these valves regulate air and water flow in heating and cooling systems. The pulp and paper industry employs them for controlling the flow of various fluids in the production process. They're also prevalent in the mining industry for slurry control and in the power generation sector for cooling water systems.
Making the Right Choice: Factors to Consider
Process Requirements
The decision between a control valve and a pneumatic butterfly valve must start with a clear understanding of the process requirements. Control valves are designed to provide highly accurate regulation of flow, pressure, and temperature, making them suitable for critical operations where conditions fluctuate frequently. They are particularly effective in applications that involve corrosive, abrasive, or high-temperature fluids, ensuring consistent performance under demanding circumstances. Pneumatic butterfly valves, on the other hand, are better suited for situations where fast actuation is essential or where handling large volumes of low-pressure fluids is the priority.
Performance Characteristics
Control valves excel in precision and rangeability, offering the ability to fine-tune flow across a wide spectrum of process conditions. Their superior shutoff capabilities make them indispensable in scenarios where zero leakage or strict compliance with safety standards is necessary. Pneumatic butterfly valves, although less accurate for throttling, stand out for their rapid open-and-close performance, which is vital in emergency operations. Additionally, they perform well with fluids containing suspended solids, as their design reduces the likelihood of clogging, making them reliable in slurry and similar challenging applications.
Cost and Maintenance Considerations
When comparing costs, it is important to consider both the upfront investment and long-term maintenance needs. Control valves are typically more expensive due to their intricate construction and precision parts, and they demand regular upkeep to maintain performance. While this increases operational expenses, their ability to optimize efficiency may offset costs in critical applications. Pneumatic butterfly valves, being structurally simpler, generally have lower purchase and maintenance costs. However, total cost of ownership should include factors such as energy usage, downtime during servicing, and the potential impact of reduced precision on process efficiency.
Conclusion
Choosing between a control valve and a pneumatic butterfly valve requires careful consideration of various factors. Control valves offer unparalleled precision and are ideal for complex processes in industries like oil and gas, chemical processing, and pharmaceuticals. Pneumatic butterfly valves, with their quick operation and cost-effectiveness, are well-suited for applications requiring rapid on/off control or simple throttling. The decision should be based on a thorough analysis of process requirements, performance needs, and long-term cost implications. By making an informed choice, industries can optimize their operations, enhance efficiency, and ensure reliable performance in their fluid control systems.
FAQs
1. What is the main difference between a control valve and a pneumatic butterfly valve?
Control valves offer precise flow regulation and are ideal for complex processes, while pneumatic butterfly valves provide quick operation and are suitable for simple on/off control.
2. In which industries are control valves commonly used?
Control valves are widely used in oil and gas, chemical processing, power generation, and pharmaceutical industries.
3. What are the advantages of pneumatic butterfly valves?
Pneumatic butterfly valves offer rapid operation, compact design, cost-effectiveness, and are suitable for large diameter pipelines.
Expert Valve Solutions for Industry Needs | CEPAI

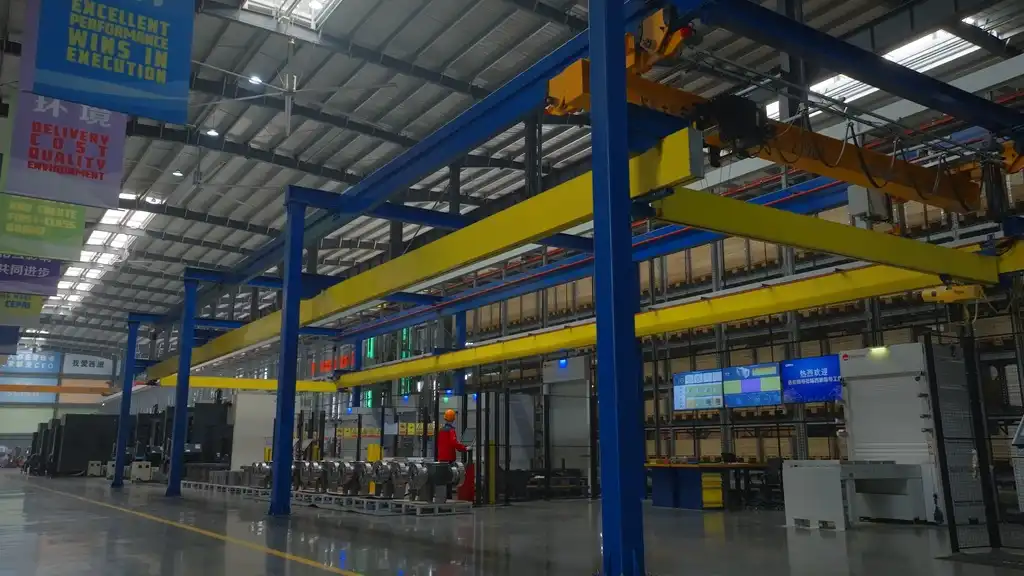

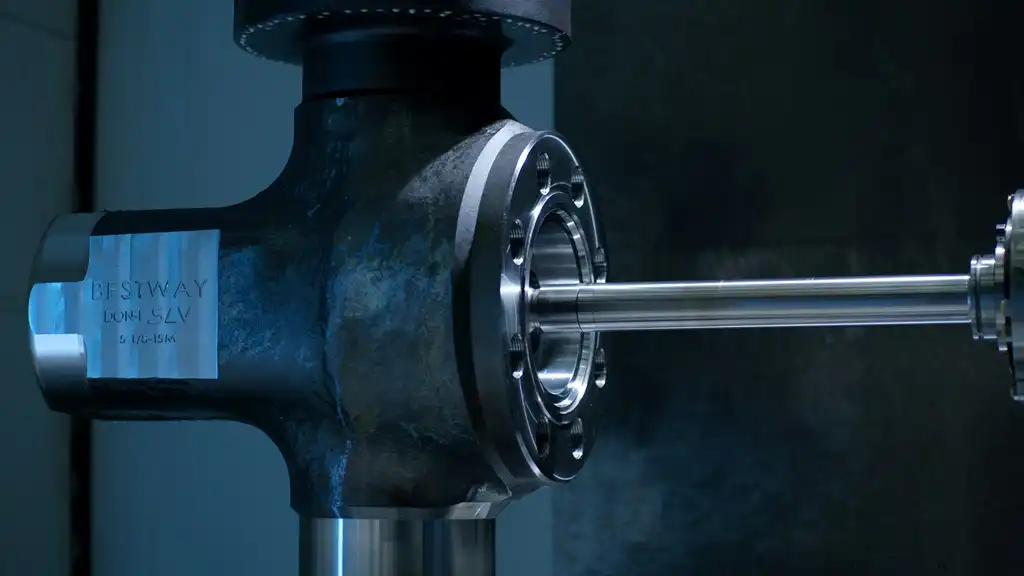

CEPAI Group Co., Ltd. stands at the forefront of valve technology, offering cutting-edge solutions for diverse industrial needs. Our state-of-the-art manufacturing facility, equipped with the longest high-precision intelligent production line in the Asia Pacific region, ensures unparalleled quality and innovation. Whether you need control valves for precise regulation or pneumatic butterfly valves for quick operation, CEPAI has the expertise to deliver. Contact us at cepai@cepai.com to explore our advanced valve solutions tailored to your specific industry requirements.
