Understanding Dual Plate Check Valve Functionality
Design and Working Principle

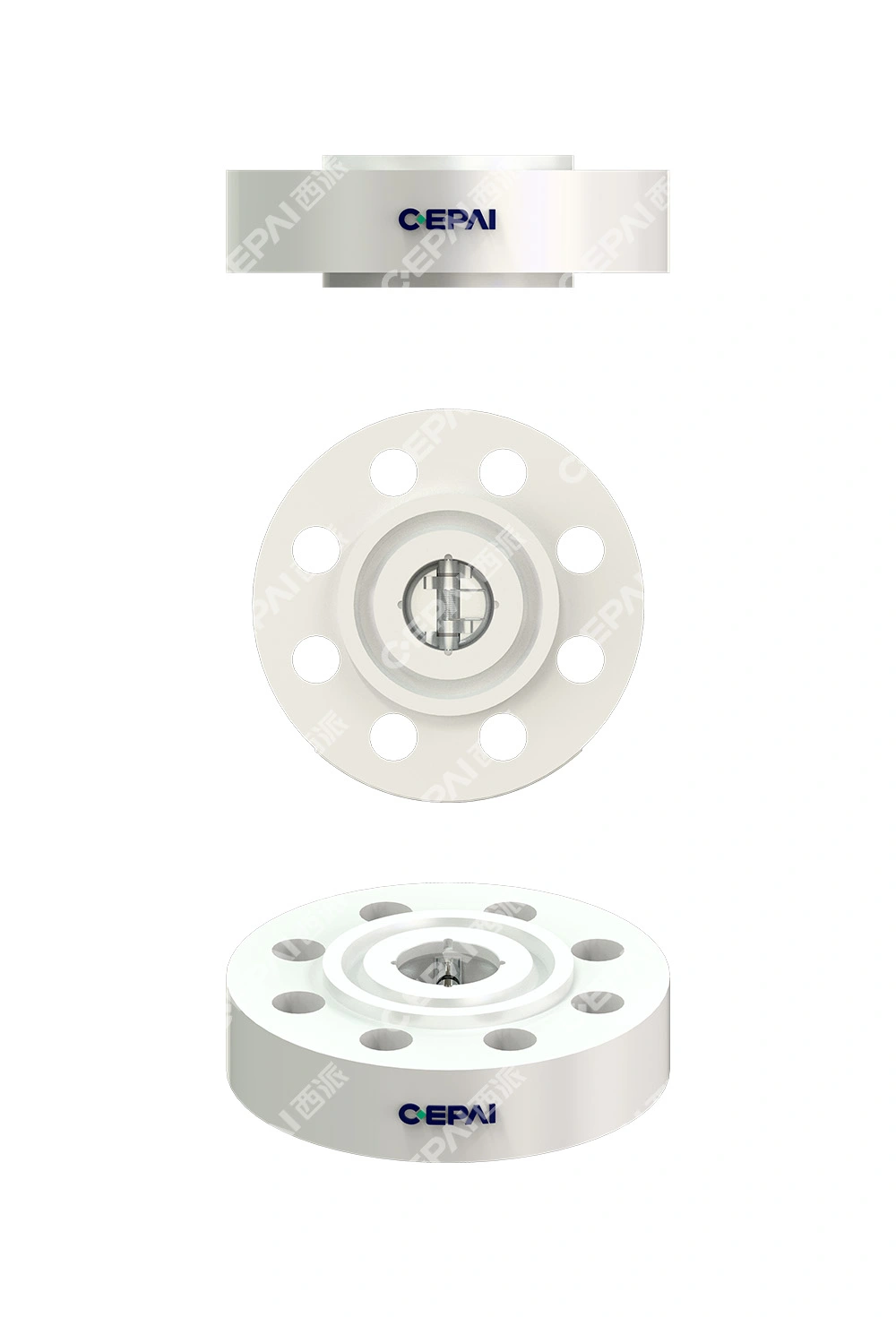

Dual plate check valves, also known as double door check valves, feature a unique design that sets them apart from traditional swing check valves. The valve body houses two semicircular plates hinged at the center, which open and close like butterfly wings. This design allows for swift response to flow changes, making them ideal for applications requiring rapid closure. The plates are typically spring-loaded, ensuring they close quickly when flow reverses, effectively preventing backflow. The streamlined design of dual plate check valves results in minimal pressure drop across the valve, contributing to overall system efficiency.
Advantages over Single Plate Valves
Compared to single plate check valves, dual plate variants offer several advantages. The dual plate design provides a more balanced and stable operation, reducing the risk of valve chatter and associated wear. This design also allows for a more compact installation, making dual plate check valves suitable for applications where space is at a premium. The split disc configuration enables faster closure times, crucial in preventing water hammer effects in high-pressure systems. Additionally, dual plate check valves typically exhibit lower pressure drop characteristics, contributing to improved flow efficiency and reduced energy consumption in pumping systems.
Materials and Construction
Dual plate check valves are available in a wide range of materials to suit various applications. Common body materials include cast iron, carbon steel, stainless steel, and exotic alloys for corrosive environments. The plate and spring materials are chosen based on the specific fluid properties and operating conditions. For instance, stainless steel plates and springs are often used in water and steam applications, while nickel-alloy components might be employed in highly corrosive chemical processes. The versatility in material selection allows dual plate check valves to be used across diverse industries, from water treatment plants to offshore oil platforms.
Optimal Applications for Dual Plate Check Valves
Oil and Gas Industry Applications
In the oil and gas sector, dual plate check valves play a critical role in various processes. They are extensively used in pipeline systems to prevent backflow and protect expensive equipment like compressors and pumps. In offshore platforms, these valves are crucial in maintaining the integrity of subsea pipelines, preventing seawater ingress during shutdowns. Dual plate check valves are also employed in gas lift systems, where they control the flow of high-pressure gas into oil wells to enhance production. Their quick-closing characteristic is particularly valuable in these high-pressure environments, where rapid shut-off is essential for safety and equipment protection.
Water Treatment and Distribution Systems
Water treatment facilities and distribution networks benefit significantly from the use of dual plate check valves. In these systems, the valves are installed to prevent backflow contamination, ensuring the safety and quality of potable water. They are commonly used in pump discharge lines, protecting pumps from reverse flow when they are shut down. The low-pressure drop characteristics of dual plate check valves make them ideal for maintaining efficient water flow in distribution networks, reducing energy consumption and operational costs. Their compact design also allows for easy installation in confined spaces often found in water treatment plants.
Chemical and Process Industries
The chemical and process industries utilize dual plate check valves in a variety of applications. These valves are particularly useful in reactor feed lines, preventing backflow of reactive materials and ensuring process safety. In chemical transfer systems, dual plate check valves help maintain the direction of flow, crucial for maintaining product purity and preventing cross-contamination. Their ability to handle a wide range of fluids, including corrosive chemicals and abrasive slurries, makes them versatile components in chemical processing plants. The quick-closing action of dual plate check valves is especially valuable in batch processing operations, where rapid isolation of process streams is often necessary.
Factors Influencing Dual Plate Check Valve Selection
Flow Characteristics and Pressure Requirements
Selecting the appropriate dual plate check valve requires careful consideration of the system's flow characteristics and pressure requirements. The valve's size and design must match the expected flow rates to ensure optimal performance. It's crucial to consider both the normal operating conditions and potential extreme scenarios, such as sudden flow reversals or pressure spikes. The valve's pressure rating must exceed the maximum system pressure to ensure safety and reliability. Additionally, the pressure drop across the valve should be evaluated to minimize energy losses in the system. Some applications may require low-cracking pressure valves for systems with low flow rates, while others may need high-pressure rated valves for demanding industrial processes.
Environmental and Operational Conditions
The environment in which the dual plate check valve will operate plays a significant role in its selection. Factors such as temperature, corrosiveness of the fluid, and presence of particulates must be considered. For high-temperature applications, such as steam systems, special materials and designs may be necessary to ensure proper functionality and longevity. In corrosive environments, selecting appropriate valve and seal materials is crucial to prevent premature failure. The presence of solid particles in the fluid may necessitate the use of valves with enhanced wear resistance or special coatings. Operational factors, such as frequency of valve cycling and potential for water hammer effects, also influence the choice of valve design and materials.
Maintenance and Lifecycle Considerations
When selecting a dual plate check valve, it's important to consider long-term maintenance requirements and overall lifecycle costs. While initial purchase price is a factor, the total cost of ownership, including maintenance and potential downtime, should be evaluated. Valves with easily replaceable components, such as seals and springs, can reduce maintenance time and costs. The frequency of required inspections and the ease of in-line serviceability are important considerations, especially for critical applications where downtime is costly. Some dual plate check valve designs offer features like external indicators or the ability to be serviced without removal from the pipeline, which can significantly reduce maintenance efforts and improve system reliability.
Conclusion
Dual plate check valves are versatile and efficient components crucial in various industrial applications. Their unique design offers advantages in terms of quick closure, low pressure drop, and compact installation. These valves are particularly well-suited for use in oil and gas operations, water treatment systems, and chemical processing plants. When selecting a dual plate check valve, it's essential to consider factors such as flow characteristics, pressure requirements, environmental conditions, and long-term maintenance needs. By carefully evaluating these aspects, engineers and system designers can ensure optimal performance, enhanced safety, and improved operational efficiency in their fluid handling systems.
