Understanding the Mechanics of Pinch Valves
Design and Operation of Pinch Valves
Pinch valves are elegantly simple in their design, consisting of a flexible rubber or elastomeric sleeve housed within a rigid body. The operation of a pinch valve involves applying external pressure to the sleeve, which causes it to deform and close, effectively stopping or regulating the flow of media through the valve. This pressure can be applied mechanically, hydraulically, or pneumatically, depending on the specific valve design and application requirements.
The simplicity of the pinch valve's design offers several advantages. With no internal moving parts that come into contact with the media, pinch valves are less susceptible to wear and tear, making them particularly suitable for handling abrasive or corrosive substances. The full-bore design when the valve is open allows for unobstructed flow, minimizing pressure drop and reducing the risk of clogging.
Advantages and Applications of Pinch Valves
Pinch valves excel in applications involving slurries, powders, and other solid-laden fluids. Their ability to provide a tight seal even in the presence of particulates makes them invaluable in industries such as mining, wastewater treatment, and food processing. The self-cleaning nature of pinch valves, where the flexing action of the sleeve helps to dislodge any accumulated particles, further enhances their suitability for handling difficult media.
In addition to their robustness in handling challenging fluids, pinch valves offer excellent throttling capabilities. The gradual deformation of the flexible sleeve allows for precise flow control, making them suitable for applications that require variable flow rates. This characteristic, combined with their ability to provide bubble-tight shutoff, makes pinch valves a versatile choice for a wide range of flow control scenarios, unlike globe check valves which are better suited for clean fluids and gases.
Limitations of Pinch Valves
Despite their numerous advantages, pinch valves do have certain limitations that need to be considered. The elastomeric sleeve, while durable, may have temperature limitations depending on the material used. High-temperature applications may require specialized sleeve materials, which can increase the cost of the valve. Additionally, pinch valves may not be suitable for high-pressure applications, as excessive pressure can cause the sleeve to collapse or deform permanently.
The size range of pinch valves is also somewhat limited compared to other valve types. While they are readily available in smaller sizes, larger diameter pinch valves may be more challenging to manufacture and operate efficiently. These factors need to be carefully evaluated when considering pinch valves for specific applications, especially in industries where high temperatures or pressures are common.

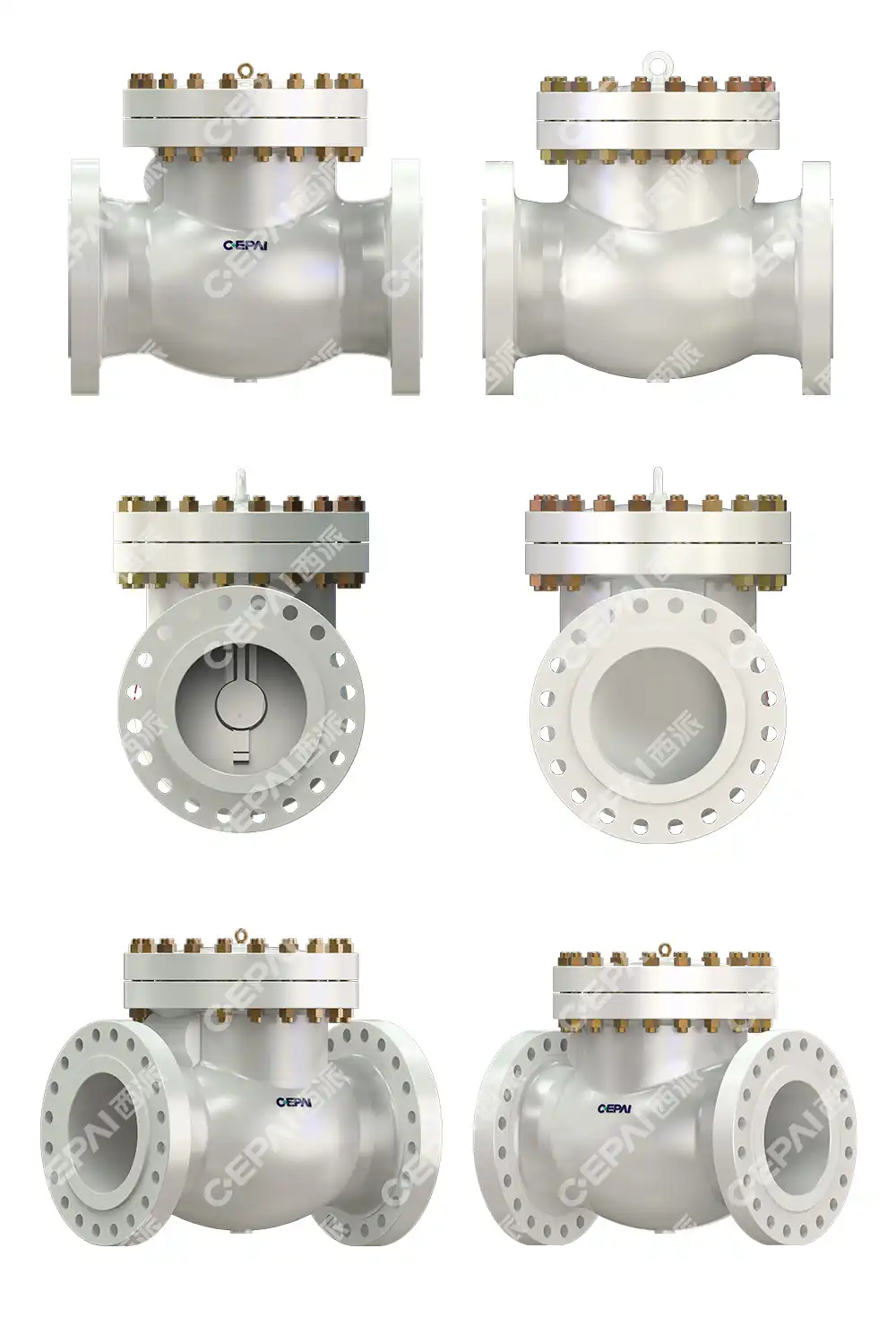

Exploring the Functionality of Globe Valves
Design and Operation of Globe Valves
Globe valves are characterized by their distinctive internal structure, which includes a movable disk-type element and a stationary ring seat within a globular body. The operation of a globe valve involves the linear motion of the disk, which moves perpendicular to the fluid flow. As the valve stem is rotated, the disk moves towards or away from the seat, controlling the flow through the valve. This design allows for precise flow regulation and provides excellent shutoff capabilities.
The internal components of a globe valve are typically made of durable materials such as stainless steel or bronze, allowing them to withstand a wide range of temperatures and pressures. The seat and disk can be designed with various materials and configurations to suit specific application requirements, enhancing the valve's versatility across different industries.
Advantages and Applications of Globe Valves
Globe valves are renowned for their exceptional flow control characteristics. The design of the valve allows for precise adjustment of flow rates, making them ideal for applications that require frequent throttling or modulation. This precision control is particularly valuable in processes where maintaining specific flow rates is critical, such as in chemical processing plants or HVAC systems.
Another significant advantage of globe valves is their ability to provide tight shutoff. The perpendicular seating action of the disk against the seat creates a robust seal, effectively preventing leakage when the valve is closed. This feature is crucial in applications where zero leakage is required, such as in high-pressure steam systems or in handling hazardous materials.
Globe valves, including the globe check valve variant, find extensive use in a wide range of industries. In the oil and gas sector, they are employed for controlling the flow of various fluids in pipelines and processing facilities. In power generation, globe valves play a critical role in steam systems and feedwater control. Their versatility and reliability make them a staple in many industrial applications where precise flow control and tight shutoff are essential.
Limitations of Globe Valves
While globe valves offer numerous advantages, they are not without limitations. One of the primary drawbacks is the pressure drop associated with their design. The tortuous flow path through the valve body results in a higher pressure loss compared to other valve types, which can be a concern in systems where maintaining pressure is critical.
Globe valves also tend to be larger and heavier than some other valve types, which can make installation and maintenance more challenging, especially in confined spaces. The complexity of their internal components can also lead to higher manufacturing costs, particularly for larger sizes or specialized materials.
Additionally, globe valves may not be suitable for applications involving slurries or fluids with high solid content, as particles can accumulate around the seat and disk, potentially affecting the valve's performance over time. In such cases, alternative valve types like pinch valves or specialized globe valve designs may be more appropriate.
Comparative Analysis: Pinch Valves vs. Globe Valves
Performance in Various Applications
When comparing pinch valves and globe valves, it's essential to consider their performance across different applications. Pinch valves excel in handling abrasive slurries and solid-laden fluids due to their simple, obstruction-free design. They are particularly effective in industries such as mining, wastewater treatment, and food processing where the media can be challenging to handle.
Globe valves, on the other hand, demonstrate superior performance in applications requiring precise flow control and tight shutoff. Their ability to handle clean fluids, gases, and steam makes them indispensable in industries like oil and gas, chemical processing, and power generation. The globe check valve variant, in particular, offers excellent backflow prevention capabilities, further expanding its utility in various systems.
In terms of throttling capabilities, both valve types offer good performance, but with different characteristics. Pinch valves provide a more gradual control over a wide range of flows, while globe valves offer more precise control, especially at lower flow rates. This makes globe valves particularly suitable for applications where fine-tuning of flow is critical.
Maintenance and Longevity Considerations
Maintenance requirements and longevity are crucial factors in valve selection. Pinch valves generally have lower maintenance needs due to their simple design with no internal moving parts. The self-cleaning nature of the flexible sleeve helps to prevent buildup of materials, reducing the frequency of cleaning and maintenance operations. However, the elastomeric sleeve may require periodic replacement, especially in applications involving harsh or abrasive media.
Globe valves, while more complex in design, are known for their durability and long service life when properly maintained. The robust construction of globe valves allows them to withstand high pressures and temperatures, making them suitable for demanding industrial applications. However, they may require more frequent maintenance, particularly in terms of seat and disk replacement, especially in applications involving frequent cycling or exposure to corrosive media.
Both valve types can offer excellent longevity when properly selected and maintained for their specific applications. The choice between pinch valves and globe valves in terms of maintenance and longevity often depends on the specific operating conditions, media properties, and maintenance capabilities of the facility.
Cost-Effectiveness and ROI Analysis
When evaluating the cost-effectiveness of pinch valves versus globe valves, it's important to consider both initial costs and long-term operational expenses. Pinch valves generally have lower initial costs due to their simpler design and fewer components. They can be particularly cost-effective in applications involving corrosive or abrasive media, where more expensive valve types might require frequent replacement or repair.
Globe valves, including specialized types like the globe check valve, may have higher initial costs, especially for larger sizes or when constructed with premium materials. However, their versatility and precise control capabilities can lead to significant operational savings in processes where accurate flow regulation is crucial. The ability of globe valves to provide tight shutoff can also contribute to energy savings and reduced product loss in many industrial applications.
The return on investment (ROI) for both valve types can be substantial when properly applied. Pinch valves often provide excellent ROI in applications where their ability to handle difficult media leads to reduced downtime and maintenance costs. Globe valves, while potentially more expensive upfront, can offer superior ROI in applications where their precise control and reliable shutoff capabilities result in improved process efficiency and product quality.
Conclusion
In conclusion, the choice between pinch valves and globe valves depends on the specific requirements of the application. Pinch valves offer simplicity, robustness in handling difficult media, and low maintenance, making them ideal for slurries and abrasive fluids. Globe valves, including the versatile globe check valve, provide precise flow control, excellent shutoff capabilities, and adaptability to various process conditions. By carefully considering factors such as media properties, control requirements, and operational constraints, engineers and plant managers can select the most appropriate valve type to optimize their processes, enhance efficiency, and ensure long-term reliability in their fluid handling systems.
