Understanding the Mechanics of Single Plate and Double Plate Check Valves
Single Plate Check Valve Design and Operation
Single plate check valves, also known as swing check valves, consist of a single disc or plate attached to a hinge pin. The disc swings open when fluid flows in the desired direction and closes when flow reverses or stops. This simple design makes them reliable for various applications, particularly in systems with lower flow rates or where cost-effectiveness is a priority.
The operation of a single plate check valve relies on the pressure differential across the valve. When the upstream pressure exceeds the downstream pressure, the disc swings open, allowing fluid to pass through. As the flow decreases or reverses, the disc closes, preventing backflow. This mechanism is straightforward but can be subject to slower response times and potential water hammer effects in certain situations.

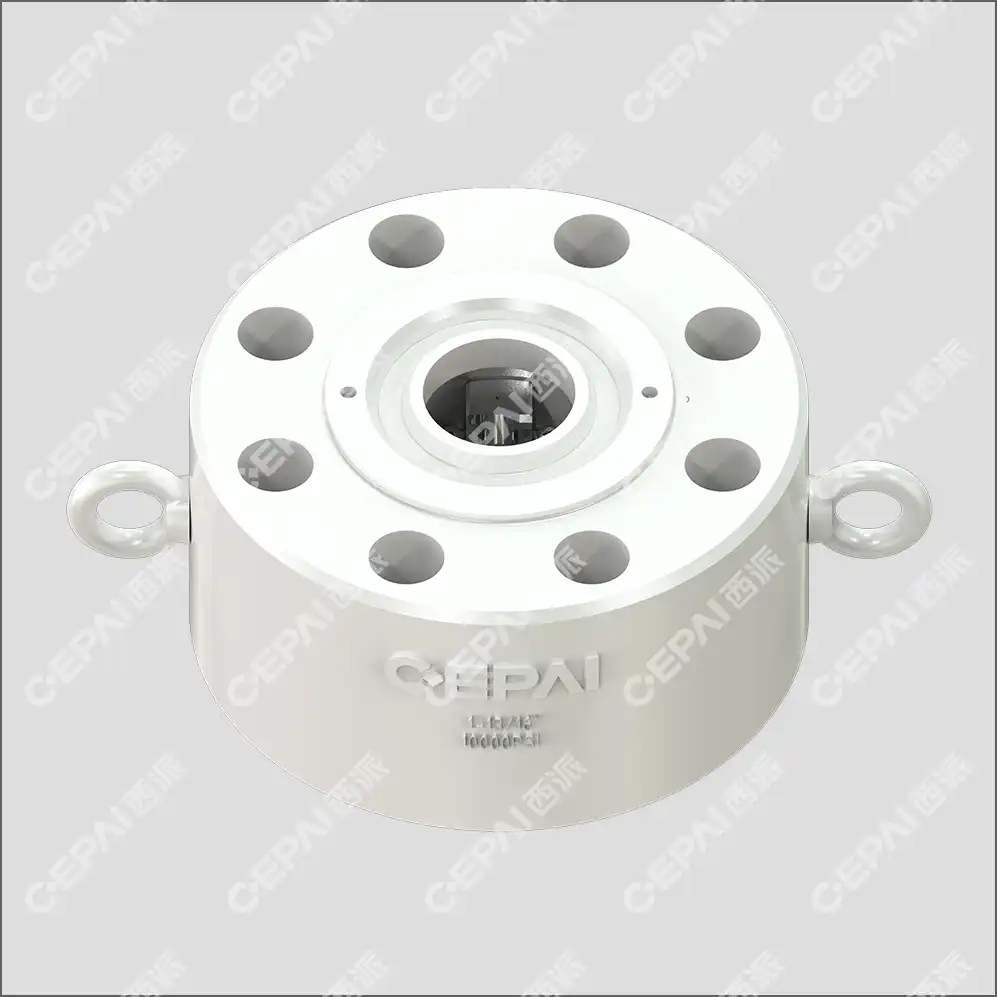

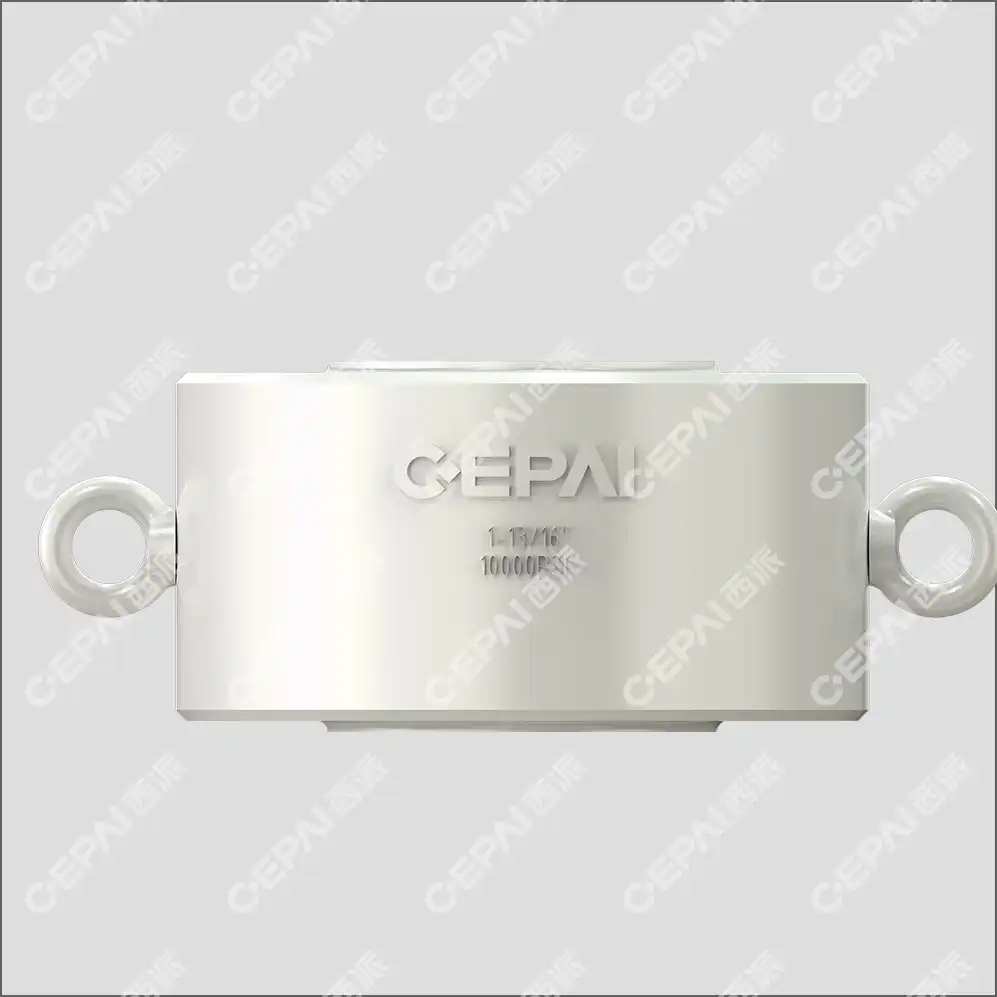

Double Plate Check Valve Design and Operation
Double plate check valves, alternatively called dual plate or wafer check valves, feature two semicircular plates hinged at the center. These plates open like butterfly wings when fluid flows in the forward direction and close rapidly when flow reverses. The design of double plate check valves allows for a more compact installation and faster response times compared to single plate versions, and shares functional principles with the double check valve.
The operation of a double plate check valve is enhanced by the use of a spring mechanism. The spring assists in closing the plates quickly when flow decreases or reverses, reducing the risk of water hammer and improving overall valve performance. This rapid closure capability makes double plate check valves particularly suitable for applications with frequent flow reversals or pulsating flows.
Comparative Analysis of Valve Performance
When comparing single plate and double plate check valves, several performance factors come into play. Double plate check valves generally exhibit lower pressure drop due to their streamlined design, which allows for smoother fluid flow. This characteristic can lead to energy savings in pump systems and reduced wear on related equipment.
In terms of response time, double plate check valves typically outperform single plate versions. The dual plate design, assisted by spring mechanisms, enables quicker closure upon flow reversal, minimizing the risk of backflow and associated issues. This rapid response is particularly beneficial in systems with frequent flow fluctuations or where maintaining system integrity is critical.
Applications and Industry-Specific Uses of Check Valves
Single Plate Check Valve Applications
Single plate check valves find widespread use in various industries due to their simplicity and reliability. In water treatment plants, these valves are often employed in pump discharge lines to prevent backflow and protect pumps from reverse rotation. The oil and gas industry utilizes single plate check valves in pipelines and processing facilities to maintain unidirectional flow and safeguard equipment from pressure surges.
In HVAC systems, single plate check valves play a crucial role in preventing the backflow of refrigerants and maintaining system efficiency. Their ability to handle a wide range of temperatures and pressures makes them suitable for both residential and commercial HVAC applications. Additionally, the food and beverage industry relies on single plate check valves in processing lines to ensure product quality and maintain sanitary conditions.
Double Plate Check Valve Applications
Double plate check valves excel in applications requiring quick response times and minimal pressure drop. In the petrochemical industry, these valves are often used in high-pressure pipeline systems where rapid closure is essential to prevent backflow and potential contamination. The compact design of double plate check valves makes them ideal for installations with limited space, such as offshore platforms and refineries, and they share functional similarities with the double check valve.
The power generation sector frequently employs double plate check valves in boiler feed systems and steam lines. Their ability to handle high temperatures and pressures, coupled with fast closure times, helps protect critical equipment and maintain system efficiency. In the mining industry, double plate check valves are used in slurry pipelines, where their robust construction and reliable performance in handling abrasive materials prove invaluable.
Selecting the Right Check Valve for Specific Industries
Choosing between single plate and double plate check valves requires careful consideration of industry-specific requirements. Factors such as flow characteristics, pressure ratings, and installation space play crucial roles in the selection process. For instance, the chemical processing industry may prefer double plate check valves in reactor feed lines due to their quick response and ability to handle corrosive fluids.
In the pharmaceutical industry, where cleanliness and contamination prevention are paramount, the choice of check valve depends on the specific application. Single plate check valves might be favored in low-flow, sanitary applications, while double plate versions could be selected for high-purity fluid handling systems requiring rapid closure. Understanding the unique demands of each industry and application is essential for making an informed decision between single plate and double plate check valves.
Maintenance, Longevity, and Cost Considerations
Maintenance Requirements for Single and Double Plate Check Valves
Maintaining check valves is crucial for ensuring their longevity and optimal performance. Single plate check valves generally require less frequent maintenance due to their simpler design. Regular inspections should include checking the hinge pin for wear, examining the seating surface for damage, and ensuring the disc moves freely. Lubrication of the hinge pin may be necessary periodically, depending on the application and environmental conditions.
Double plate check valves, while more complex, also benefit from regular maintenance. Key areas to focus on include the spring mechanism, which should be inspected for proper tension and signs of fatigue. The sealing surfaces of the plates require careful examination to ensure they provide a tight seal when closed. In applications involving abrasive or corrosive fluids, more frequent inspections and potential part replacements may be necessary to maintain valve integrity.
Longevity and Durability Factors
The longevity of check valves depends on various factors, including material selection, operating conditions, and maintenance practices. Single plate check valves often demonstrate excellent durability in moderate flow conditions and can last for many years with proper care. Their simple design contributes to their robustness, making them less prone to mechanical failures.
Double plate check valves, while potentially more susceptible to wear due to their additional moving parts, can offer comparable or even superior longevity in certain applications. The rapid closure mechanism of double plate valves can reduce the impact of water hammer effects, potentially extending the life of the valve and surrounding piping system. However, in highly cyclic or severe service conditions, the spring mechanism may require more frequent replacement compared to the simpler single plate design.
Cost Analysis: Initial Investment vs. Long-term Value
When considering the cost implications of single plate versus double plate check valves, it's essential to look beyond the initial purchase price. Single plate check valves typically have a lower upfront cost due to their simpler construction. This makes them an attractive option for budget-conscious projects or applications where basic functionality is sufficient.
Double plate check valves, while often more expensive initially, can offer long-term cost benefits in certain scenarios. Their improved flow characteristics and reduced pressure drop can lead to energy savings in pump systems, potentially offsetting the higher purchase price over time. Additionally, in applications where preventing backflow is critical, the superior sealing and faster response of double plate valves may justify the higher investment by reducing the risk of costly system failures or contamination incidents.
Conclusion
The choice between single plate and double plate check valves hinges on a thorough understanding of their unique characteristics and the specific requirements of the application at hand. Single plate check valves offer simplicity and reliability, making them suitable for a wide range of general applications. Double plate check valves excel in scenarios demanding rapid response times, minimal pressure drop, and compact installation. By carefully considering factors such as flow conditions, system requirements, and long-term operational costs, engineers and facility managers can make informed decisions that optimize performance, efficiency, and safety in their fluid control systems.
