What Is a Double Plate Check Valve?

A double plate check valve, also known as a dual plate check valve or wafer check valve, is a crucial component in fluid control systems. It consists of two semicircular plates hinged at the center, allowing flow in one direction while preventing backflow. This valve design offers compact size, lightweight construction, and quick response time. Double plate check valves are widely used in various industries, including oil and gas, water treatment, and chemical processing, due to their efficiency, reliability, and ability to handle high-pressure applications. These valves play a vital role in protecting pumps, compressors, and other equipment from reverse flow, ensuring system integrity and operational safety.

Design and Operation of Double Plate Check Valves

Components and Construction

Double plate check valves are engineered with precision to ensure optimal performance. The main components include the valve body, two semicircular plates, a central hinge pin, and springs. The valve body is typically made of durable materials such as stainless steel, carbon steel, or alloy steel, depending on the application requirements. The plates, often referred to as "flappers," are carefully designed to provide a tight seal when closed while minimizing flow resistance when open. The central hinge pin allows the plates to pivot, and the springs assist in rapid closure to prevent backflow.

Working Principle

The operation of a double plate check valve is based on the principle of differential pressure. When fluid flows in the intended direction, it pushes the plates open, allowing free passage. The plates remain open as long as the flow continues. As soon as the flow stops or reverses, the pressure difference across the valve causes the plates to close quickly, aided by the spring mechanism. This rapid closure prevents backflow and protects upstream equipment from potential damage. The dual plate design ensures a more balanced and stable operation compared to single-plate check valves, and shares functional similarities with the double check valve, especially in high-flow or pulsating flow conditions.

Advantages of Double Plate Design

The double plate configuration offers several advantages over traditional swing check valves. Its compact design allows for easy installation in tight spaces, making it ideal for applications with limited room. The lightweight construction reduces stress on the piping system, contributing to overall system efficiency. The quick response time of double plate check valves minimizes the risk of water hammer effects, enhancing system safety. Additionally, the balanced design of the two plates results in lower pressure drop across the valve, improving overall flow characteristics and reducing energy consumption.

Applications and Industries Utilizing Double Plate Check Valves

Oil and Gas Industry

In the oil and gas sector, double plate check valves play a crucial role in various processes. They are extensively used in wellhead equipment, pipeline systems, and refinery operations. These valves help prevent backflow in high-pressure pipelines, protecting expensive pumps and compressors from damage. In offshore drilling platforms, double plate check valves are utilized in seawater injection systems, ensuring unidirectional flow and maintaining system integrity. Their compact design and ability to handle high pressures make them ideal for the demanding conditions encountered in oil and gas applications.

Water Treatment and Distribution

Water treatment plants and distribution networks rely heavily on double plate check valves to maintain water quality and system efficiency. These valves are installed in pumping stations to prevent backflow, which could contaminate treated water supplies. In large-scale water distribution systems, double plate check valves, like the double check valve, help maintain pressure zones and prevent water hammer effects. Their quick response time and low-pressure drop characteristics contribute to energy savings and improved overall system performance. Additionally, the corrosion-resistant materials used in their construction ensure long-term reliability in water treatment applications.

Chemical and Process Industries

The chemical and process industries benefit from the versatility and reliability of double plate check valves. These valves are used in various applications, including chemical transfer lines, reactor feed systems, and process cooling circuits. Their ability to handle a wide range of fluids, including corrosive chemicals and slurries, makes them indispensable in these industries. Double plate check valves help prevent cross-contamination between different process streams and protect sensitive equipment from backflow. Their compact design allows for easy integration into complex piping systems, while their quick closure mechanism ensures rapid isolation in case of process upsets or emergencies.

Maintenance and Troubleshooting of Double Plate Check Valves

Regular Inspection and Maintenance Procedures

To ensure the longevity and optimal performance of double plate check valves, regular inspection and maintenance are essential. A comprehensive maintenance program should include visual inspections for signs of wear, corrosion, or damage to the valve body and internal components. The plates should be checked for proper alignment and freedom of movement. Hinge pins and springs should be inspected for wear and replaced if necessary. Regular cleaning of the valve internals helps prevent buildup of debris or scale that could impair valve operation. It's crucial to follow manufacturer-recommended maintenance schedules and procedures to maximize valve life and minimize the risk of unexpected failures.

Common Issues and Troubleshooting Techniques

Despite their robust design, double plate check valves may encounter operational issues over time. Common problems include leakage, sticking plates, and excessive noise or vibration. Leakage can often be attributed to worn or damaged sealing surfaces on the plates or valve body. In such cases, replacement of the affected components or valve refurbishment may be necessary. Sticking plates can result from corrosion, scaling, or improper lubrication of the hinge mechanism. Thorough cleaning and lubrication can often resolve this issue. Excessive noise or vibration may indicate improper sizing, installation, or flow conditions. Analyzing system parameters and consulting with valve specialists can help identify and address the root cause of these problems.

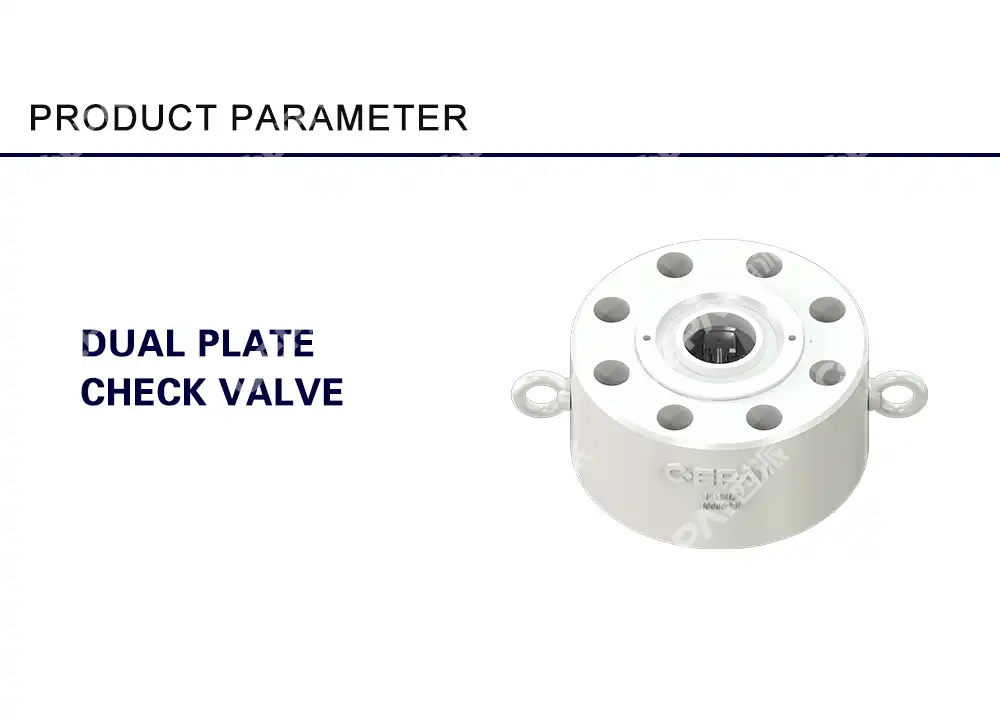

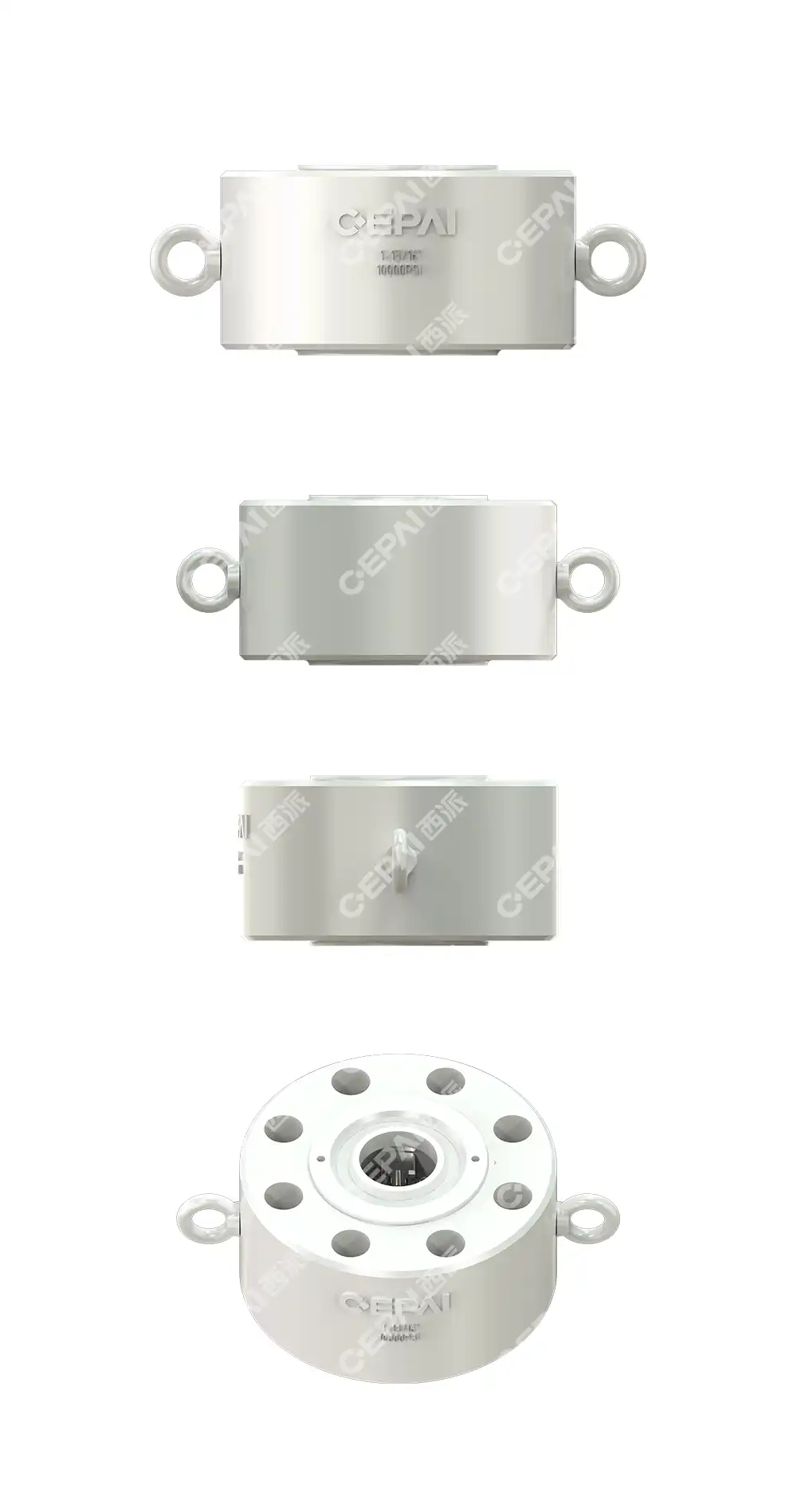

blog-1-1

Valve Selection and Installation Best Practices

Proper selection and installation of double plate check valves are crucial for ensuring optimal performance and longevity. When selecting a valve, factors such as flow rate, pressure rating, temperature range, and fluid compatibility must be carefully considered. It's important to choose a valve with the appropriate pressure class and material of construction for the specific application. During installation, proper alignment with the pipeline is critical to prevent uneven wear and ensure smooth operation. Adequate support should be provided to minimize stress on the valve body. Following manufacturer guidelines for installation torque and bolt tightening sequences helps prevent leaks and ensures proper sealing. Proper valve sizing is essential to prevent issues such as chatter or premature wear, which can occur if the valve is oversized or undersized for the application.

Conclusion

Double plate check valves are indispensable components in fluid control systems across various industries. Their unique design offers a combination of compact size, quick response, and reliable performance, making them ideal for applications ranging from oil and gas production to water treatment and chemical processing. By understanding the principles of operation, maintenance requirements, and best practices for selection and installation, engineers and maintenance professionals can maximize the benefits of these versatile valves. As technology continues to advance, double plate check valves will undoubtedly play a crucial role in ensuring the safety, efficiency, and reliability of fluid handling systems in diverse industrial settings.
