What Is the Difference Between a Double Check Detector Assembly and a Double Check Valve Assembly?

Understanding Double Check Valve Assemblies

Components of a Double Check Valve Assembly

A double check valve assembly is a critical component in water supply systems, designed to prevent backflow and maintain water quality. At its core, this assembly consists of two independent check valves arranged in series within a single body. Each check valve incorporates a spring-loaded disc or clapper that allows water to flow in one direction while preventing reverse flow.

The assembly typically includes two resilient-seated shutoff valves, one installed upstream and another downstream of the check valves. These shutoff valves facilitate maintenance and testing procedures without disrupting the entire water supply system. Additionally, four test cocks are strategically placed throughout the assembly, enabling technicians to perform routine testing and ensure proper functionality.

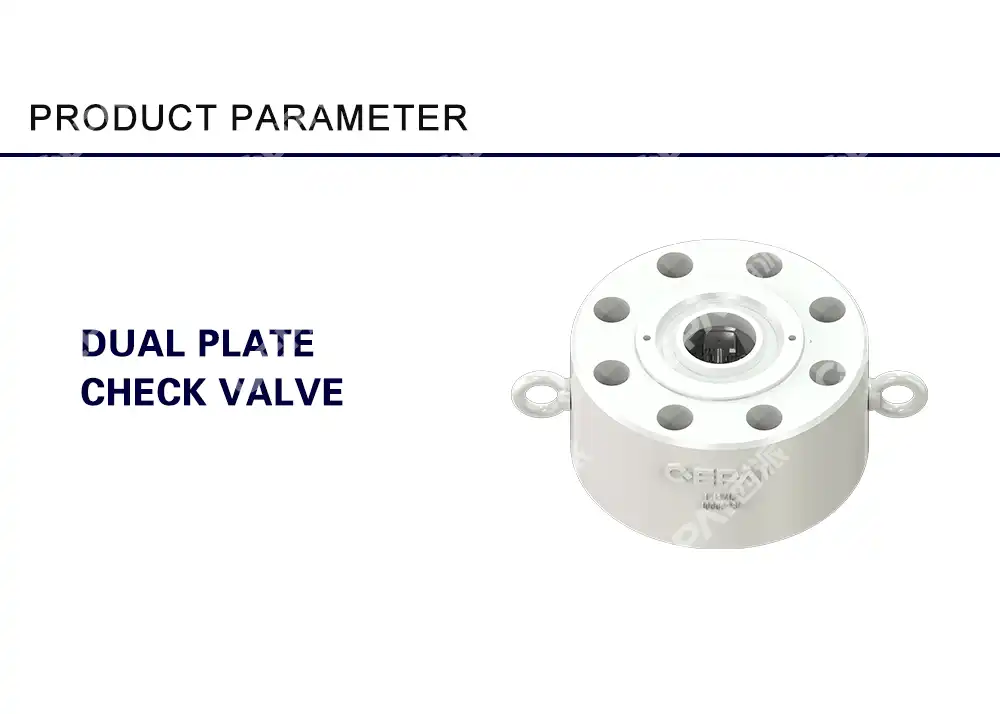

Some advanced double check valve assemblies may incorporate a double plate check valve, which utilizes two semicircular plates hinged at the top. This design offers improved sealing capabilities and reduced pressure drop compared to traditional swing check valves.

Operating Principles of Double Check Valve Assemblies

The operating principle of a double check valve assembly is based on the concept of redundancy and fail-safe protection. When water flows in the intended direction, both check valves open, allowing the fluid to pass through with minimal resistance. The spring-loaded discs or plates in each valve are designed to close quickly and securely when the flow stops or reverses.

In the event of a backflow condition, the first check valve acts as the primary barrier, closing immediately to prevent reverse flow. If the first valve fails or experiences leakage, the second check valve serves as a backup, providing an additional layer of protection against contamination.

The double check valve assembly's effectiveness lies in its ability to handle various pressure differentials and flow rates while maintaining a tight seal against backflow. This makes it particularly suitable for applications where moderate hazard levels exist, such as irrigation systems, fire sprinkler systems, and general potable water supply lines.

Applications and Benefits of Double Check Valve Assemblies

Double check valve assemblies find widespread use in numerous applications across industrial, commercial, and residential sectors. In the oil and gas industry, these assemblies play a crucial role in maintaining the integrity of drilling equipment and preventing contamination of wellbores. They are often integrated into wellhead devices and pipeline systems to ensure unidirectional flow and protect sensitive equipment from backpressure.

One of the key benefits of double check valve assemblies is their ability to provide reliable backflow prevention without the need for external power sources or complex monitoring systems. This passive operation makes them ideal for remote locations or areas with limited access to electricity.

Furthermore, the compact design of double check valve assemblies, especially those incorporating double plate check valves, allows for easy installation in confined spaces. This feature is particularly advantageous in offshore drilling platforms and other space-constrained environments where equipment footprint is a critical consideration.

Exploring Double Check Detector Assemblies

Key Features of Double Check Detector Assemblies

Double check detector assemblies build upon the foundation of standard double check valve assemblies by incorporating additional components for enhanced functionality. The most distinguishing feature is the inclusion of a bypass line equipped with a water meter and an auxiliary check valve. This bypass system is designed to detect small leaks or unauthorized water usage that might go unnoticed in a standard assembly.

The main line of a double check detector assembly typically consists of two independent check valves, similar to those found in a standard double check valve assembly. However, the bypass line introduces a parallel path for water flow, allowing for more precise monitoring of low-flow conditions. The water meter in the bypass line is calibrated to detect even minimal water movement, providing valuable data for system operators and maintenance personnel.

Advanced double check detector assemblies may incorporate double plate check valves in both the main line and bypass line, offering improved sealing and flow characteristics. This configuration ensures optimal performance across a wide range of flow rates and pressure conditions.

Functionality and Operation of Double Check Detector Assemblies

The operation of a double check detector assembly is based on a dual-path flow principle. Under normal operating conditions, water flows primarily through the main line, passing through the two check valves as in a standard assembly. The bypass line remains closed due to the higher resistance created by the water meter and auxiliary check valve.

When water demand is low or during periods of minimal usage, any small flow or leakage is directed through the bypass line. The sensitive water meter in this line registers even minute volumes of water passing through, allowing for the detection of potential issues such as leaks, unauthorized taps, or malfunctioning equipment.

In the event of a significant backflow condition, both the main line check valves and the auxiliary check valve in the bypass line work in concert to prevent reverse flow and protect the water supply system from contamination. This redundant protection ensures the highest level of safety and reliability.

Advantages and Specific Uses of Double Check Detector Assemblies

Double check detector assemblies offer several advantages over standard double check valve assemblies, making them particularly valuable in certain applications. The primary benefit is the ability to detect and monitor small leaks or unauthorized water usage, which can lead to significant water loss and increased operational costs if left unaddressed.

These assemblies are commonly used in fire protection systems, where the ability to detect small leaks is crucial for maintaining system readiness and compliance with safety regulations. The bypass meter allows facility managers to identify and address issues promptly, ensuring that fire suppression systems remain fully operational at all times.

In industrial settings, such as oil and gas processing facilities, double check detector assemblies provide an additional layer of security and monitoring capability. By accurately tracking water usage, operators can identify potential process inefficiencies, equipment malfunctions, or security breaches that might otherwise go unnoticed.

The incorporation of double plate check valves in some double check detector assemblies further enhances their performance, offering reduced pressure drop and improved sealing characteristics. This makes them particularly suitable for applications where maintaining consistent flow rates and minimizing energy loss are critical factors.

Comparative Analysis and Selection Criteria

Performance Comparison: Double Check Valve vs. Double Check Detector Assemblies

When comparing double check valve assemblies and double check detector assemblies, it's essential to consider their performance characteristics in various applications. Both types of assemblies provide effective backflow prevention, but their capabilities differ in terms of leak detection and monitoring.

Double check valve assemblies excel in simplicity and reliability. Their straightforward design, often incorporating double plate check valves, ensures consistent performance with minimal maintenance requirements. These assemblies are particularly effective in applications where the primary concern is preventing backflow without the need for detailed usage monitoring.

On the other hand, double check detector assemblies offer enhanced capabilities in terms of leak detection and water usage tracking. The bypass meter allows for precise monitoring of low-flow conditions, making these assemblies ideal for applications where water conservation and system integrity are paramount. However, this additional functionality comes at the cost of increased complexity and potentially higher initial investment.

In terms of pressure drop, assemblies utilizing double plate check valves generally perform better than those with traditional swing check valves. This characteristic is particularly important in high-flow applications or systems with strict pressure requirements.

Regulatory Compliance and Industry Standards

Both double check valve assemblies and double check detector assemblies are subject to various regulatory requirements and industry standards. In the United States, these devices must typically comply with standards set by organizations such as the American Society of Sanitary Engineering (ASSE) and the Foundation for Cross-Connection Control and Hydraulic Research (FCCCHR).

Double check valve assemblies are generally approved for use in moderate hazard applications, as defined by local plumbing codes and water authorities. They are often suitable for irrigation systems, fire sprinkler systems, and general industrial applications where the risk of contamination is present but not severe.

Double check detector assemblies, due to their enhanced monitoring capabilities, may be required in certain high-risk applications or where precise water usage tracking is mandated by local regulations. Fire protection systems, in particular, often require the use of detector assemblies to ensure compliance with fire safety codes and insurance requirements.

When selecting either type of assembly, it's crucial to consult local regulations and industry-specific standards to ensure compliance. This is particularly important in specialized applications such as oil and gas drilling, where additional certifications like API6D or API16C may be required.

Factors Influencing Selection and Implementation

Choosing between a double check valve assembly and a double check detector assembly depends on several factors that must be carefully evaluated:

- Application Requirements: Consider the specific needs of the system, including the level of hazard protection required, the importance of leak detection, and any regulatory mandates.

- System Characteristics: Evaluate factors such as typical flow rates, pressure conditions, and space constraints. Assemblies with double check valves may be preferable in high-flow or limited-space scenarios.

- Maintenance and Testing: Consider the long-term maintenance requirements and ease of testing for each type of assembly. Double check detector assemblies may require more frequent inspections due to their additional components.

- Cost Considerations: Weigh the initial investment against long-term benefits. While detector assemblies may have a higher upfront cost, their leak detection capabilities can lead to significant water and cost savings over time.

- Environmental Factors: Consider the operating environment, including temperature ranges, potential exposure to corrosive substances, and vibration levels. These factors can influence the selection of materials and design features.

- Integration with Existing Systems: Assess how easily the assembly can be integrated into existing infrastructure, including compatibility with control systems and monitoring software.

By carefully considering these factors and consulting with experts in the field, organizations can select the most appropriate backflow prevention solution for their specific needs. Whether opting for a simple double check valve assembly or a more advanced double check detector assembly, the goal remains the same: to ensure the safety, efficiency, and reliability of water supply systems across various industries and applications.

Conclusion

In conclusion, the choice between a double check detector assembly and a double check valve assembly depends on the specific requirements of the application. While both provide essential backflow prevention, the detector assembly offers additional leak detection capabilities, making it ideal for fire protection systems and applications requiring precise water usage monitoring. Double check valve assemblies, especially those incorporating double plate check valves, offer simplicity and reliability for general backflow prevention needs. Understanding the unique features, operational principles, and regulatory requirements of each assembly type is crucial for making an informed decision that ensures water system safety and efficiency across various industries.
