Components and Design of Swing Check Valves
Core Elements of a Swing Check Valve
Swing check valves consist of several key components that work in harmony to control fluid flow. The valve body, usually made of durable materials like stainless steel or cast iron, houses the internal mechanisms. Within this body, the disc, also known as the flapper, is the primary moving part. Attached to a hinge pin, the disc swings open or closed depending on the fluid pressure. The seat, against which the disc seals when closed, ensures a tight shutoff to prevent backflow. Some designs incorporate a spring to assist in closing the valve more quickly or to maintain closure in low-pressure situations.
Variations in Swing Check Valve Design

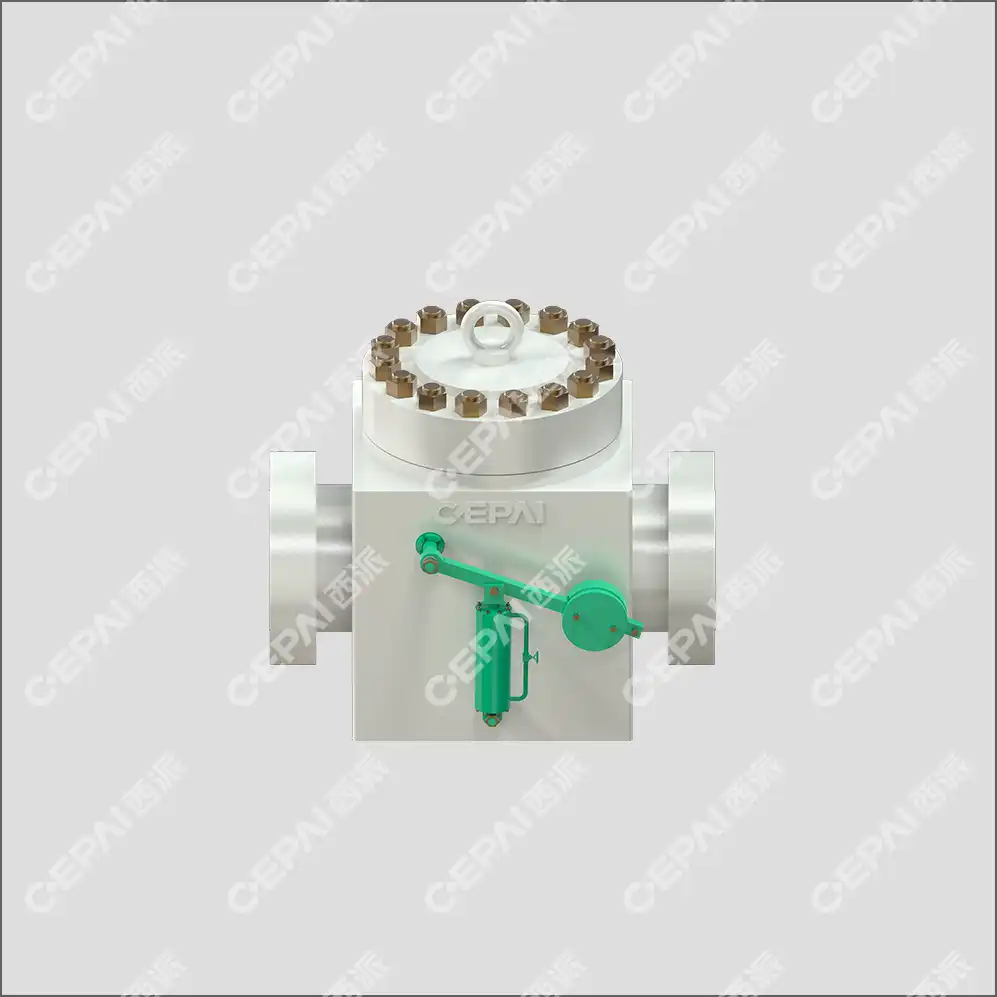

While the basic principle remains consistent, swing check valves come in various designs to suit different applications. Wafer-style swing check valves, for instance, are compact and lightweight, ideal for installations with space constraints. Tilting disc check valves, a variation of the swing check design, allow for a shorter stroke and quicker closure. Some models feature a lever and weight mechanism on the outside of the valve body, which can be adjusted to control the closing speed or to hold the disc open for maintenance purposes. Advanced designs may incorporate soft seats or special coatings to improve sealing performance and reduce wear over time.
Materials and Manufacturing Considerations
The choice of materials for swing check valves is crucial to their performance and longevity. Valve bodies may be cast, forged, or fabricated depending on the application and pressure rating required. For corrosive environments, materials like duplex stainless steel or nickel alloys might be necessary. The disc and seat materials are selected based on factors such as fluid compatibility, temperature, and frequency of operation. Manufacturing processes, such as precision machining and heat treatment, play a significant role in ensuring the valve's reliability. Quality control measures, including hydrostatic testing and radiographic examination, are often employed to verify the integrity of critical components.
Operating Principles and Flow Dynamics
Mechanism of Flow Control
The swing check valve's operation relies on the differential pressure across the valve. As fluid flows in the forward direction, it exerts force on the disc, causing it to swing open. The degree of opening is proportional to the flow rate, with higher flow rates resulting in a wider disc angle. This self-regulating feature allows the valve to accommodate varying flow conditions without external intervention. When flow ceases or reverses, the pressure differential shifts, and gravity or spring force (if present) causes the disc to swing back towards the seat. The moment the reverse flow pressure exceeds the cracking pressure of the valve, the disc fully closes against the seat, creating a seal.
Fluid Dynamics and Pressure Drop
Understanding the fluid dynamics within a swing check valve is essential for proper selection and installation. As fluid passes through the valve, it experiences a pressure drop due to the obstruction created by the disc and the changes in flow direction. This pressure drop is influenced by factors such as the valve's size, disc angle, and flow rate. Engineers must consider this pressure loss when designing piping systems to ensure adequate flow and pressure at the point of use. The valve's behavior during partial flow conditions is particularly important, as it can affect system stability and the potential for water hammer effects.
Response to Flow Reversal and Closure Dynamics
The response of a swing check valve to flow reversal is a critical aspect of its operation. The closure time, which is the interval between the initiation of reverse flow and the complete sealing of the valve, can significantly impact system performance. Factors affecting closure dynamics include the disc's mass, the fluid's density, and the presence of any closing assistance mechanisms. Rapid closure can lead to water hammer effects, potentially damaging the valve and surrounding piping. Conversely, slow closure may allow unacceptable amounts of backflow. Advanced valve designs may incorporate features like dashpots or counter-weights to optimize closure characteristics for specific applications, balancing the need for swift shutoff with the prevention of hydraulic shock.
Applications and Maintenance of Swing Check Valves
Industry-Specific Uses and Installations
Swing check valves find applications across numerous industries due to their reliability and simplicity. In water treatment facilities, they prevent backflow contamination in distribution systems. The oil and gas sector utilizes these valves in pipelines to maintain unidirectional flow and protect pumps from reverse rotation. In HVAC systems, swing check valves ensure proper circulation in heating and cooling loops. Marine applications often involve these valves in bilge pumping systems and engine cooling circuits. The versatility of swing check valves extends to chemical processing plants, where they safeguard against unwanted mixing of reactive substances. When selecting a swing check valve for a specific application, factors such as flow characteristics, media compatibility, and environmental conditions must be carefully considered to ensure optimal performance.
Maintenance Procedures and Best Practices
Proper maintenance is crucial for the longevity and reliable operation of swing check valves. Regular inspection schedules should be established to check for signs of wear, corrosion, or debris accumulation. The disc and seat interface requires particular attention, as this is where leakage is most likely to occur. Maintenance procedures may include disassembly for thorough cleaning, replacement of worn components, and reassembly with proper lubrication of moving parts. In some cases, non-invasive techniques like acoustic emission testing can be employed to assess valve condition without system shutdown. Implementing a preventive maintenance program, which might include periodic cycling of the valve under controlled conditions, can help identify potential issues before they lead to failure.
Troubleshooting Common Issues
Despite their simplicity, swing check valves can experience operational issues that require troubleshooting. Common problems include leakage, sticking, or chattering. Leakage often results from wear or damage to the disc or seat and may necessitate replacement of these components. A stuck valve might be caused by corrosion, debris, or improper installation, requiring cleaning or realignment. Chattering, which occurs when the disc rapidly opens and closes, can be addressed by adjusting the installation angle or modifying system parameters to ensure stable flow conditions. In some cases, upgrading to a more suitable valve design or material may be necessary to resolve persistent issues. Proper documentation of troubleshooting efforts and outcomes can provide valuable insights for future maintenance and system optimization.
Conclusion
Swing check valves are indispensable components in fluid control systems, offering reliable backflow prevention through their elegantly simple design. By understanding the intricacies of their operation, from the basic mechanics to the nuances of fluid dynamics, engineers and technicians can make informed decisions about valve selection, installation, and maintenance. As technology advances, swing check valve designs continue to evolve, offering improved performance and durability across a wide range of applications. The enduring popularity of these valves is a testament to their effectiveness and the ongoing innovation in their design and manufacturing processes.
