Understanding Butterfly Valves: Design, Function, and Applications

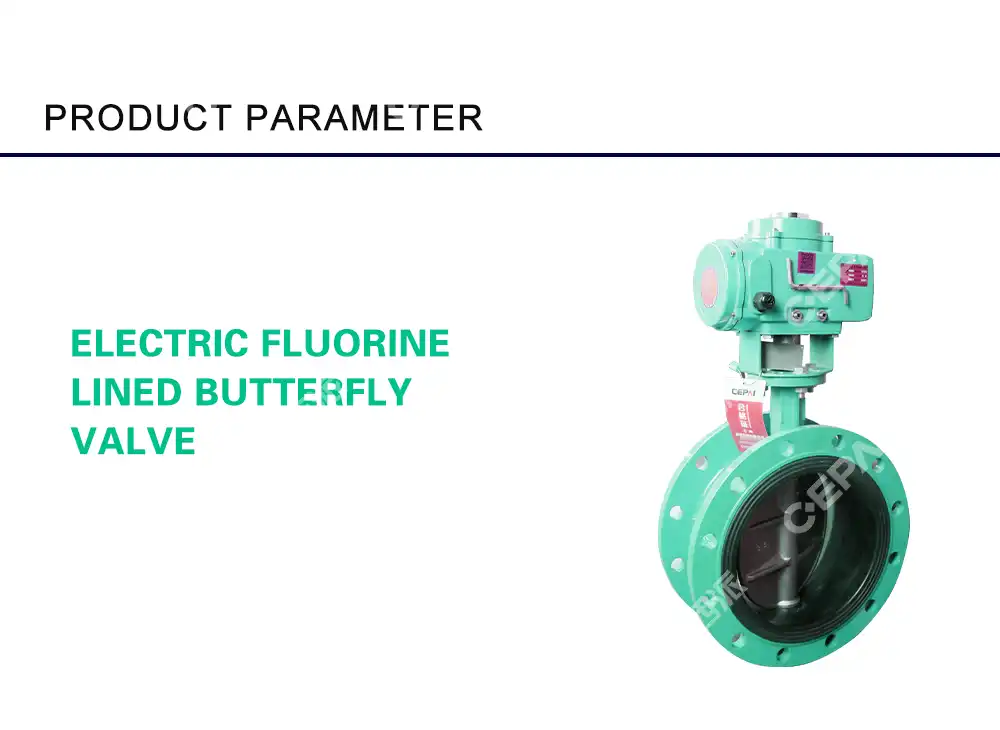

Design and Components of Butterfly Valves
Butterfly valves are characterized by their simple yet effective design. The main components include a disc, stem, seat, and body. The disc is a circular plate that rotates on the stem, which acts as the valve's axis. When the valve is fully open, the disc is parallel to the flow, allowing maximum flow rate. The seat provides a seal when the valve is closed, ensuring leak-tight shutoff. The body houses these components and connects to the pipeline.
Operational Mechanism of Butterfly Valves
The operation of a butterfly valve is straightforward. As the stem rotates, it turns the disc, which can be positioned at any angle between fully open and fully closed. This rotational movement allows for precise flow control, making butterfly valves ideal for throttling applications. The valve can be manually operated or automated using actuators, depending on the specific requirements of the system.
Applications and Advantages of Butterfly Valves
Butterfly valves find widespread use across various industries due to their versatility and efficiency. In the oil and gas sector, they are employed in pipeline systems for both onshore and offshore operations. Water treatment plants utilize butterfly valves for flow control in large diameter pipes. The chemical industry relies on these valves for handling corrosive fluids. Some key advantages of butterfly valves include their compact design, low pressure drop, quick operation, and ability to handle high flow rates. They are also cost-effective and require minimal maintenance, making them a popular choice for many applications.
Exploring Check Valves: Functionality, Types, and Uses
Operating Principle of Check Valves
Check valves operate on a simple yet crucial principle: they allow flow in one direction while preventing backflow. This functionality is achieved through a mechanical design that opens when fluid pressure pushes in the desired direction and closes automatically when the flow attempts to reverse. The closing mechanism can be gravity-assisted or spring-loaded, depending on the specific type of check valve. This automatic operation makes check valves essential for maintaining system integrity and preventing potential damage from reverse flow.
Common Types of Check Valves
There are several types of check valves, each designed for specific applications. Swing check valves use a hinged disc that swings open with forward flow and closes against a seat when flow reverses. Ball check valves employ a ball that lifts off its seat to allow flow and drops back to seal when flow stops. Lift check valves have a disc or piston that rises to permit flow and descends to block reverse flow. Diaphragm check valves use a flexible diaphragm that deforms under forward pressure and seals against backflow. Butterfly valve designs can also be adapted for check valve functionality in certain systems. Each type has its advantages and is chosen based on factors such as pressure requirements, fluid properties, and installation orientation.
Industrial Applications of Check Valves
Check valves play a critical role in numerous industrial applications. In the oil and gas industry, they are used in pumping stations to prevent backflow and protect equipment. Water supply systems employ check valves to maintain pressure and prevent contamination. In chemical processing, these valves ensure the integrity of mixing processes by preventing unwanted backflow of reactants. HVAC systems use check valves to control the direction of refrigerant flow. The versatility of check valves makes them indispensable in maintaining the efficiency and safety of various fluid handling systems across different sectors.
Comparative Analysis: Butterfly Valves vs. Check Valves
Flow Control Capabilities
When comparing butterfly valves and check valves, one of the most significant differences lies in their flow control capabilities. Butterfly valves excel in providing precise flow regulation. The disc can be positioned at various angles, allowing for fine-tuning of flow rates. This makes butterfly valves ideal for applications requiring adjustable flow control. In contrast, check valves are not designed for flow regulation. Their primary function is to allow flow in one direction while preventing backflow. They operate in a binary manner - either fully open or fully closed - without the ability to modulate flow rates.
Installation and Maintenance Considerations
Installation requirements differ between butterfly valves and check valves. Butterfly valves typically require less space for installation due to their compact design. They can be installed between flanges, making them suitable for tight spaces. Maintenance of butterfly valves involves periodic inspection of the disc, seat, and stem seals. Check valves, depending on the type, may have specific installation orientation requirements to function properly. For instance, swing check valves need to be installed horizontally or vertically with upward flow. Maintenance of check valves often focuses on ensuring the moving parts remain free from debris and the sealing surfaces are intact.
Performance in Different Operating Conditions
Butterfly valves and check valves perform differently under various operating conditions. Butterfly valves are versatile and can handle a wide range of pressures and temperatures. They are suitable for both liquids and gases and can operate effectively in bi-directional flow scenarios. However, they may not be ideal for very high-pressure applications. Check valves, on the other hand, are specifically designed to handle unidirectional flow. They excel in preventing backflow and are often used in high-pressure systems. Some types of check valves, like spring-loaded varieties, can operate in any orientation, making them suitable for diverse installation conditions. The choice between a butterfly valve and a check valve ultimately depends on the specific requirements of the application, including factors such as flow direction, pressure, temperature, and the need for flow control.
Conclusion
Understanding the differences between butterfly valves and check valves is crucial for making informed decisions in fluid control systems. Butterfly valves offer precise flow regulation and versatility, making them ideal for applications requiring adjustable flow control. Check valves, while simpler in design, play a vital role in preventing backflow and maintaining system integrity. Both valve types have their unique strengths and are essential in various industries, including oil and gas, water treatment, and chemical processing. By carefully considering the specific requirements of your application, you can choose the most appropriate valve type to ensure optimal performance and efficiency in your fluid handling systems.
