Understanding Butterfly Valve Operation and Design

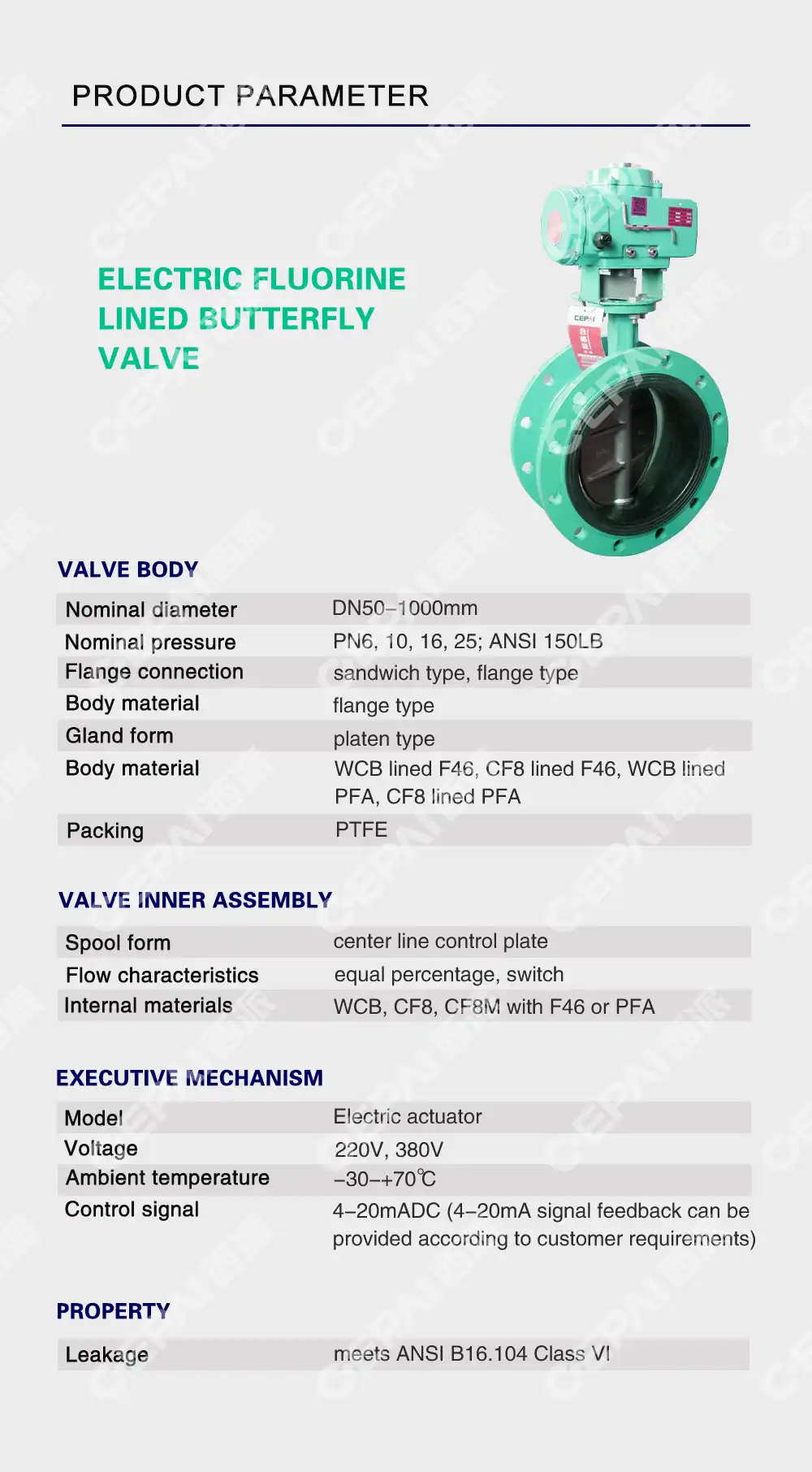

Basic Components of a Butterfly Valve
Butterfly valves are quarter-turn valves designed for efficient flow control in various applications. The main components include the valve body, disc, stem, seat, and actuator. The valve body houses the internal parts and connects to the pipeline. The disc, a circular plate, rotates to control flow. The stem transmits rotational force to the disc, while the seat provides a seal when closed. The actuator, whether manual or automated, controls the valve's position.
Working Principle of Butterfly Valves
Butterfly valves operate on a simple yet effective principle. As the stem rotates, it turns the disc either parallel or perpendicular to the flow. When parallel, the valve is fully open, allowing maximum flow. As the disc rotates towards a perpendicular position, it gradually restricts flow until completely closed. This quarter-turn operation enables quick and precise flow control, making butterfly valves ideal for applications requiring frequent adjustments or rapid shutoff.
Types of Butterfly Valves and Their Characteristics
There are several types of butterfly valves, each suited for specific applications. Concentric butterfly valves have a centered disc and stem, offering good sealing at lower pressures. Eccentric and double-eccentric designs feature offset disc and stem configurations, providing improved sealing and performance at higher pressures. Triple-eccentric butterfly valves offer the highest sealing capability and are suitable for extreme conditions. Understanding these variations is crucial for selecting the right valve for your specific needs and ensuring proper operation.
Visual and Physical Indicators of Butterfly Valve Position
Observing the Valve Stem and Disc Position
One of the most straightforward methods to determine if a butterfly valve is open is by observing the valve stem and disc position. In most designs, when the stem is aligned parallel to the pipe, the valve is fully open. Conversely, when the stem is perpendicular to the pipe, the valve is closed. Some valves have transparent sections or viewing ports that allow direct observation of the disc position within the valve body. This visual confirmation can be particularly useful in scenarios where quick checks are necessary without interrupting the process flow.
Interpreting Position Indicators and Markings
Many butterfly valves come equipped with position indicators or markings that provide clear visual feedback on the valve's status. These indicators can take various forms, such as color-coded markers, numbered dials, or pointer systems. Typically, these indicators are calibrated to show the degree of valve opening, from 0% (fully closed) to 100% (fully open). Some advanced valves feature digital displays that provide precise readouts of the valve position. Familiarizing yourself with these indicators and their specific markings is essential for accurate interpretation and reliable operation.
Tactile Feedback from Manual Operators
For manually operated butterfly valves, tactile feedback can offer valuable information about the valve's position. As you turn the handwheel or lever, you'll feel resistance at certain points, particularly when the valve is fully open or closed. Most manual operators have physical stops that prevent over-rotation, providing a clear indication when the valve reaches its limits. Additionally, some valves incorporate detents or notches in the operating mechanism, allowing operators to feel distinct positions as they adjust the valve. This tactile feedback, combined with visual cues, enhances the operator's ability to accurately set and verify the valve's position.
Advanced Methods for Monitoring Butterfly Valve Status
Utilizing Flow and Pressure Sensors
Advanced monitoring of butterfly valve status often involves the use of flow and pressure sensors. These devices provide real-time data on the fluid dynamics within the system, offering indirect but precise information about the valve's position. Flow sensors measure the volume or mass of fluid passing through the valve, with changes in flow rate indicating adjustments in valve opening. Pressure sensors detect variations in pressure before and after the valve, which correlate with the degree of valve opening. By analyzing this data, operators can infer the valve's position and performance, even in remote or inaccessible installations.
Implementing Valve Position Transmitters
Valve position transmitters are sophisticated devices that directly measure and communicate the exact position of the butterfly valve. These transmitters typically use technologies such as Hall effect sensors, potentiometers, or encoders to detect the valve stem's rotation. The position data is then converted into an electrical signal, often a 4-20 mA output or digital protocol, which can be integrated into control systems or displayed on remote monitors. This technology enables precise tracking of valve position, facilitates automated control, and enhances overall system efficiency and safety.
Integrating Smart Valve Technology
The advent of smart valve technology has revolutionized butterfly valve monitoring and control. Smart valves incorporate advanced sensors, microprocessors, and communication capabilities directly into the valve assembly. These intelligent systems not only provide accurate position feedback but also offer a wealth of additional data, including operational history, diagnostic information, and predictive maintenance alerts. By leveraging protocols such as HART, Foundation Fieldbus, or Profibus, smart valves can communicate seamlessly with distributed control systems, enabling comprehensive monitoring and control from centralized locations. This integration enhances operational efficiency, reduces downtime, and facilitates proactive maintenance strategies.
Conclusion
Accurately determining the position of a butterfly valve is essential for maintaining efficient and safe operations across various industries. From simple visual inspections to advanced smart valve technologies, there are numerous methods available to monitor valve status. By understanding these techniques and implementing the most suitable approach for your specific application, you can ensure optimal performance, prevent potential issues, and enhance overall system reliability. As valve technology continues to evolve, staying informed about the latest advancements in position monitoring will be crucial for maximizing the benefits of butterfly valves in your operations.
