Types and Components of Butterfly Valves
Common Butterfly Valve Types
Butterfly valves come in several variations, each designed for specific applications and operating conditions. Concentric butterfly valves, the most basic type, feature a disc that rotates around a central shaft. Double-eccentric (double offset) valves have two offsets in the shaft, reducing wear and providing a tighter seal. Triple-eccentric (triple offset) valves offer the highest sealing capability, making them ideal for high-pressure and high-temperature applications. Lugged and wafer butterfly valves differ in their body designs, with lugged types offering more secure mounting options. Understanding these types helps in selecting the most appropriate valve for a given system.
Key Components and Their Functions
The anatomy of a butterfly valve includes several critical components working in harmony. The valve body houses the internal parts and connects to the pipeline. The disc, the primary flow control element, rotates to regulate fluid passage. The stem transmits rotational force to the disc, while seat rings ensure a tight seal when the valve is closed. Actuators, whether manual, pneumatic, or electric, provide the necessary force to operate the valve. Bushings and bearings support the stem and reduce friction during operation. Each component plays a vital role in the valve's performance, reliability, and longevity.
Materials and Construction Considerations
The choice of materials for butterfly valves is crucial, as it directly impacts their performance and durability. Valve bodies are often made from cast iron, ductile iron, or steel, with stainless steel used for corrosive environments. Discs may be constructed from stainless steel, aluminum bronze, or even specialized alloys for extreme conditions. Seat materials range from resilient elastomers like EPDM and Viton to metal seats for high-temperature applications. The selection of materials depends on factors such as the nature of the fluid, operating pressure and temperature, and the presence of abrasive particles. Proper material selection ensures optimal valve performance and extends service life in challenging industrial environments.
Operational Principles and Advantages
How Butterfly Valves Control Flow
Butterfly valves operate on a simple yet effective principle. As the valve stem rotates, it turns the disc, which modulates the flow through the pipeline. When fully open, the disc aligns parallel to the flow, offering minimal obstruction. As the disc rotates towards the closed position, it progressively restricts the flow area, allowing for precise control. This quarter-turn operation enables quick adjustments and efficient flow regulation. The relationship between disc angle and flow rate is non-linear, with the most significant changes occurring in the middle of the valve's travel. This characteristic allows for fine-tuning of flow rates, making butterfly valves excellent for both on-off and throttling applications.
Benefits of Using Butterfly Valves
Butterfly valves offer numerous advantages that contribute to their widespread use. Their compact design results in space savings and reduced weight compared to other valve types, making them ideal for installations with limited space. The quick quarter-turn operation allows for rapid opening and closing, enhancing system responsiveness. Butterfly valves exhibit low pressure drop when fully open, contributing to energy efficiency in fluid systems. Their versatility in handling various media, from clean water to slurries, makes them suitable for diverse applications. Additionally, the relatively simple construction of butterfly valves translates to lower manufacturing costs and easier maintenance, reducing the total cost of ownership for industrial operators.
Comparing Butterfly Valves to Other Valve Types
When compared to other valve types, butterfly valves often stand out in several aspects. Unlike gate valves, which require multiple turns to open or close, butterfly valves operate quickly with a quarter-turn. They offer better throttling capabilities than ball valves, especially in larger sizes. Compared to globe valves, butterfly valves generally have a lower pressure drop and are more compact. However, butterfly valves may not be suitable for extremely high-pressure applications where gate or globe valves excel. In terms of cost, butterfly valves are often more economical than other types, particularly in larger diameters. Understanding these comparisons helps engineers and operators choose the most suitable valve type for their specific requirements, optimizing system performance and efficiency.
Applications and Maintenance of Butterfly Valves
Industries and Systems Utilizing Butterfly Valves
Butterfly valves find extensive use across numerous industries due to their versatility and efficiency. In the water treatment sector, they control flow in distribution systems and treatment processes. The oil and gas industry relies on butterfly valves for pipeline isolation and flow control in refineries. HVAC systems employ these valves for air handling and temperature regulation. In the chemical industry, butterfly valves manage the flow of various substances, including corrosive chemicals. Power generation plants use them in cooling systems and steam lines. The food and beverage industry utilizes sanitary butterfly valves in processing lines. Marine applications include ballast systems and fuel management. This wide-ranging applicability demonstrates the adaptability and reliability of butterfly valves in diverse operational environments.

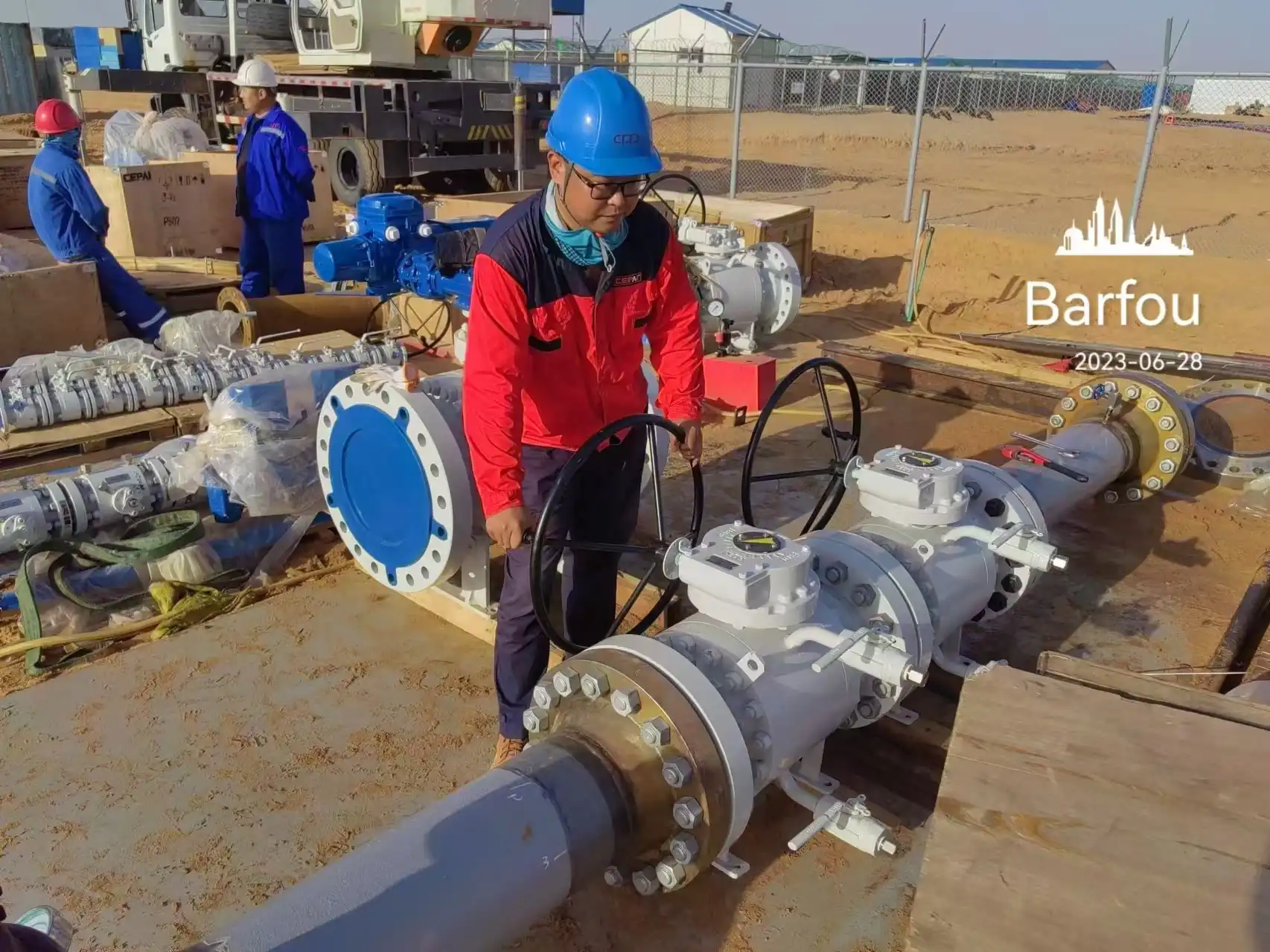

Installation and Maintenance Best Practices
Proper installation and maintenance are crucial for the optimal performance and longevity of butterfly valves. During installation, ensuring correct alignment is paramount to prevent leakage and uneven wear. The use of appropriate gaskets and careful torque application on flange bolts helps maintain a secure seal. Regular maintenance routines should include inspecting the disc and seat for wear or damage, checking stem seals for leaks, and lubricating moving parts as recommended by the manufacturer. Actuator performance should be periodically verified, especially in automated systems. In corrosive environments, more frequent inspections may be necessary. Implementing a preventive maintenance schedule based on operating conditions and valve criticality can significantly extend the service life of butterfly valves and minimize unexpected downtime.
Troubleshooting Common Issues
Despite their reliability, butterfly valves can encounter operational issues that require troubleshooting. Leakage is a common problem, often caused by worn seats, misalignment, or improper seating of the disc. This can be addressed by adjusting the disc position, replacing seals, or in severe cases, refurbishing the valve. Difficulty in operation may indicate issues with the actuator, stem, or internal components, necessitating inspection and possible repair or replacement of affected parts. Erosion of the disc or body can occur in applications with abrasive media, requiring more frequent inspections and potentially the use of harder materials. Cavitation, particularly in high-pressure drop scenarios, can damage valve internals and may require operational adjustments or valve redesign. By promptly addressing these issues, operators can ensure continued efficient and reliable performance of their butterfly valve systems.
Conclusion
Butterfly valves stand as a testament to innovative engineering in fluid control systems. Their simple yet effective design, coupled with versatility and efficiency, makes them indispensable across numerous industries. From water treatment to oil and gas, these valves continue to play a crucial role in managing flow with precision and reliability. As technology advances, butterfly valves evolve, incorporating new materials and smart technologies to meet the ever-growing demands of modern industrial processes. Understanding their operation, applications, and maintenance is key to harnessing their full potential in any fluid management system.
