The Anatomy and Functionality of Butterfly Valves
Basic Structure and Components
Butterfly valves are characterized by their relatively simple yet effective design. The main components include a circular body, a disc (also known as a vane or plate), a stem, and a seat. The disc is the key element, rotating on the stem to control flow. When fully open, the disc is parallel to the flow, offering minimal resistance. When closed, it's perpendicular, blocking the passage completely. The seat, typically made of resilient material, ensures a tight seal when the valve is closed.
Operating Mechanism
The operation of a butterfly valve is straightforward. As the stem is rotated, usually by a handle or actuator, the disc turns within the valve body. This rotation can be precisely controlled, allowing for fine adjustments in flow rate. The quarter-turn operation - from fully open to fully closed - makes butterfly valves quick and easy to operate. This simplicity contributes to their reliability and ease of maintenance.
Types of Butterfly Valves
There are several types of butterfly valves, each designed for specific applications. Concentric butterfly valves are the most common, with the stem centered in the disc. Eccentric and double-eccentric designs offer improved sealing capabilities by offsetting the disc from the stem. Triple-eccentric butterfly valves provide even better sealing and are often used in high-pressure or high-temperature applications. Understanding these variations is crucial for selecting the right valve for a particular system.
Applications and Advantages of Butterfly Valves
Industrial Uses
Butterfly valves find applications across a wide range of industries. In the oil and gas sector, they're used for controlling the flow of crude oil, natural gas, and refined products. Water treatment plants employ them for managing water flow in large pipelines. In the chemical industry, specialized butterfly valves handle corrosive substances. The food and beverage industry uses sanitary butterfly valves that meet strict hygiene standards. Their versatility makes them suitable for both liquid and gas applications, from low-pressure systems to high-pressure, high-temperature environments.
Benefits in Flow Control
One of the primary advantages of butterfly valves is their excellent flow characteristics. When fully open, they offer minimal resistance to flow, resulting in low pressure drop across the valve. This efficiency can lead to significant energy savings in pumping systems. The ability to provide precise flow control through partial opening makes them ideal for applications requiring variable flow rates. Additionally, their quick opening and closing capabilities are beneficial in emergency shutdown situations.
Space and Weight Considerations
Butterfly valves are known for their compact design. Compared to other valve types like gate or globe valves, they take up less space in piping systems. This compact nature makes them particularly useful in applications where space is at a premium, such as in offshore oil platforms or crowded industrial facilities. Their lightweight construction also contributes to easier installation and reduced support requirements, which can be a significant factor in large-scale projects or in applications where weight is a critical consideration.
Maintenance and Selection of Butterfly Valves
Routine Care and Inspection
Proper maintenance is key to ensuring the longevity and reliability of butterfly valves. Regular inspections should focus on checking for leaks, assessing the condition of the seat and disc, and verifying smooth operation of the stem. Lubrication of moving parts, particularly in manual valves, is essential. In automated systems, the actuator and control mechanisms should be regularly tested. Preventive maintenance, such as periodic cycling of the valve, can help prevent seizing and extend the valve's lifespan. It's important to follow manufacturer guidelines for maintenance schedules and procedures, as these can vary depending on the valve type and application.

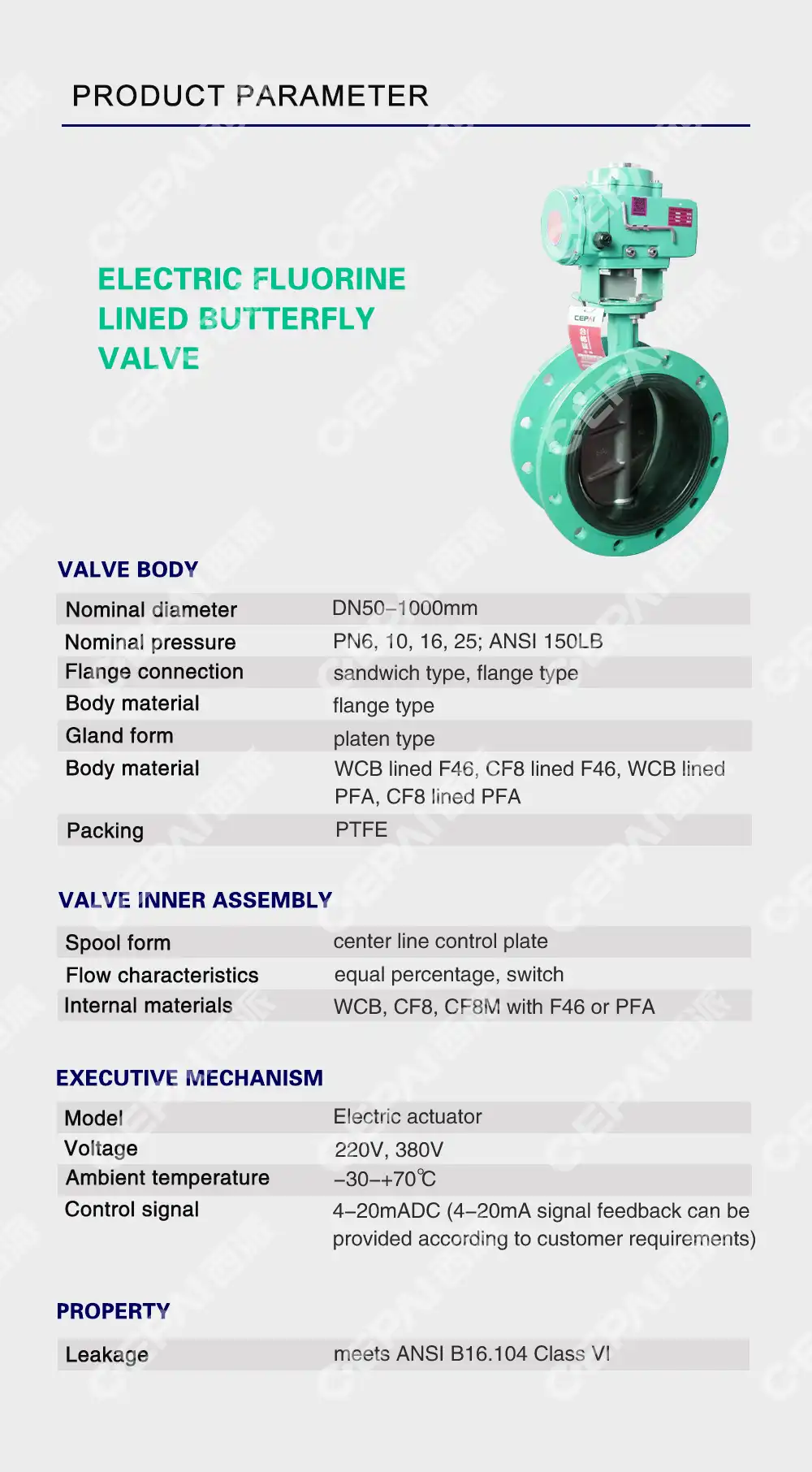

Choosing the Right Valve
Selecting the appropriate butterfly valve involves considering several factors. The nature of the fluid being controlled - its temperature, pressure, and chemical properties - is a primary consideration. The required flow rate and the system's operating conditions will influence the size and type of valve needed. Material selection for the valve body, disc, and seat is crucial, especially in corrosive or high-temperature environments. For critical applications, factors like fire safety ratings and fugitive emissions standards may also come into play. It's often beneficial to consult with valve experts or manufacturers to ensure the selected valve meets all operational and regulatory requirements.
Emerging Technologies and Future Trends
The field of butterfly valve technology is continually evolving. Recent advancements include the development of smart valves with integrated sensors and communication capabilities. These valves can provide real-time data on flow rates, valve position, and operating conditions, facilitating predictive maintenance and improved process control. Materials science is also driving innovation, with new alloys and composites offering enhanced durability and performance in extreme conditions. As industries move towards greater automation and efficiency, the role of butterfly valves in smart manufacturing and Industry 4.0 initiatives is likely to expand, potentially leading to more sophisticated, self-diagnostic valve systems.
Conclusion
Butterfly valves stand out as versatile, efficient, and reliable components in fluid control systems. Their simple yet effective design, combined with advantages like compact size, low pressure drop, and precise control capabilities, make them an excellent choice for a wide range of industrial applications. As technology advances, butterfly valves continue to evolve, offering improved performance and integration with modern control systems. Understanding their principles, applications, and maintenance requirements is crucial for engineers and operators looking to optimize their fluid handling processes.
