Key Industry Standards for Butterfly Valve Manufacturing
API 609: Butterfly Valves: Double-flanged, Lug- and Wafer-type

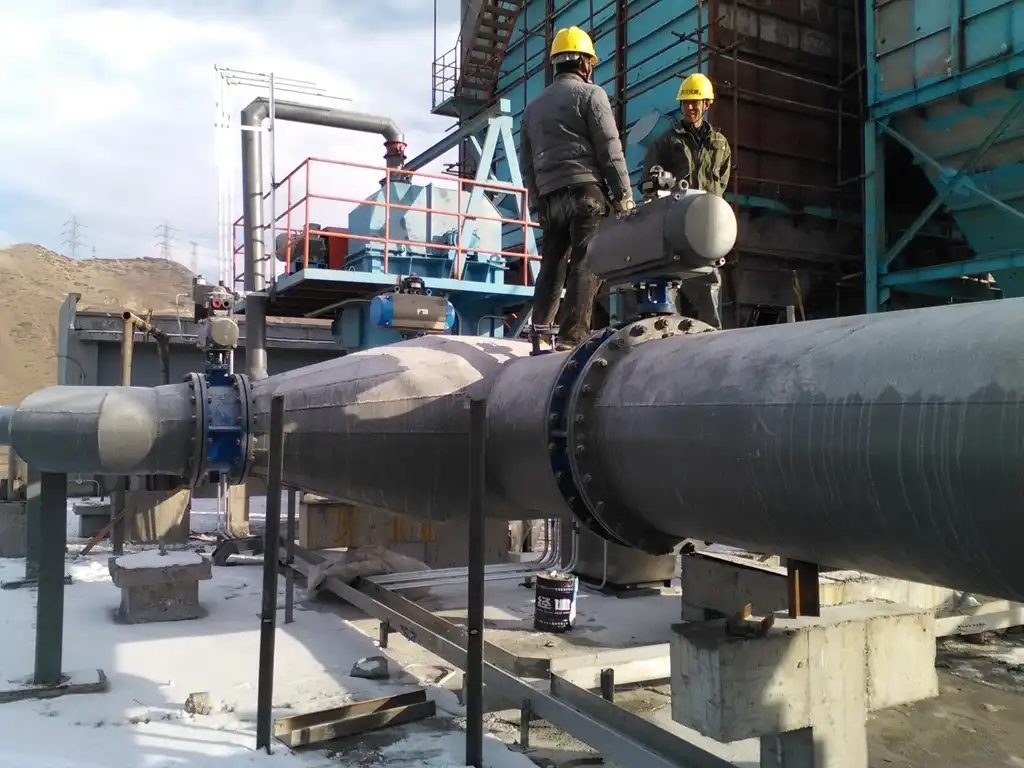

API 609 is a cornerstone standard in butterfly valve manufacturing, providing comprehensive guidelines for the design, materials, and testing of double-flanged, lug-type, and wafer-type butterfly valves. This standard ensures that valves meet specific performance criteria and dimensional requirements, crucial for interchangeability and reliability in various applications.
The standard covers essential aspects such as pressure-temperature ratings, face-to-face dimensions, and testing procedures. It specifies the minimum wall thickness requirements for valve bodies, ensuring structural integrity under various operating conditions. API 609 also outlines the necessary markings and documentation for butterfly valves, facilitating proper identification and traceability.
Manufacturers adhering to API 609 must conduct rigorous testing, including hydrostatic shell tests and seat leakage tests. These tests verify the valve's ability to withstand pressure and maintain a tight seal, critical factors in preventing leakage and ensuring safe operation in high-pressure environments.
ISO 5752: Metal Valves for Use in Flanged Pipe Systems - Face-to-Face and Centre-to-Face Dimensions
ISO 5752 plays a crucial role in standardizing the face-to-face and center-to-face dimensions of butterfly valves. This standard ensures that valves from different manufacturers can be interchanged without modifications to the piping system, promoting flexibility and ease of maintenance in industrial applications.
The standard categorizes valves into different series based on their dimensions, allowing engineers and end-users to select the appropriate valve for their specific piping requirements. By adhering to ISO 5752, manufacturers contribute to the overall efficiency and cost-effectiveness of valve installations across various industries.
Compliance with ISO 5752 also facilitates global trade in butterfly valves, as it provides a universal reference point for dimensional specifications. This standardization simplifies the procurement process and reduces the risk of compatibility issues in international projects.
ASME B16.34: Valves - Flanged, Threaded, and Welding End

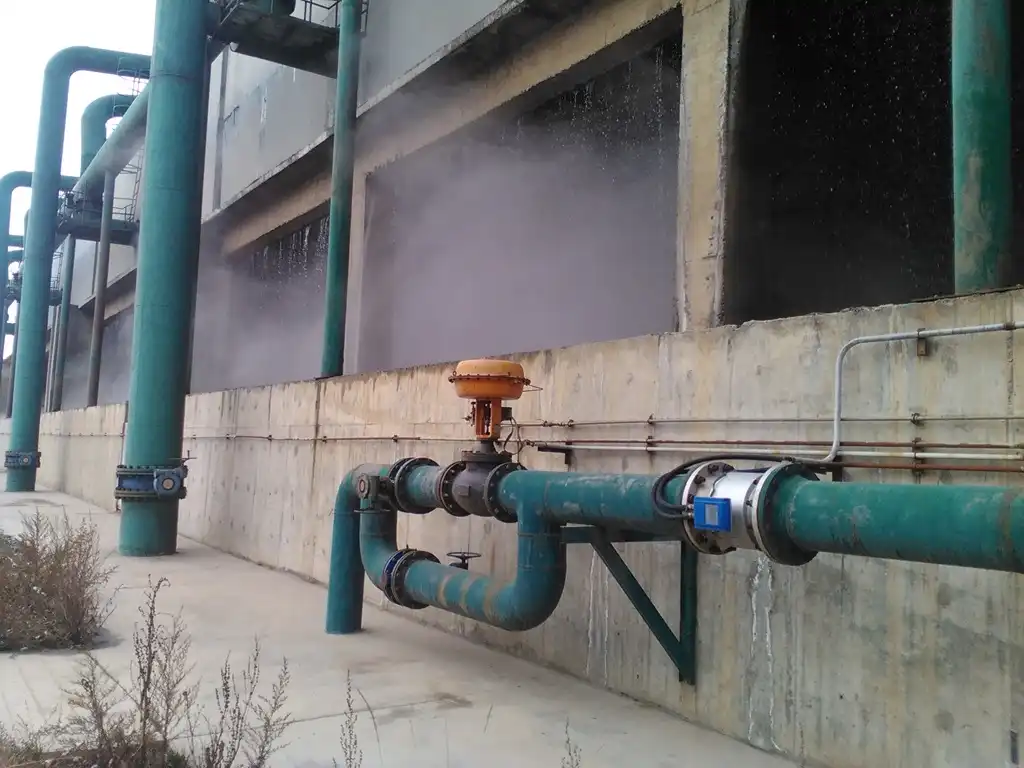

ASME B16.34 is a comprehensive standard that covers the design, materials, testing, and marking of butterfly valves, among other valve types. This standard is particularly important for high-pressure and high-temperature applications, ensuring that valves can withstand extreme operating conditions.
The standard provides detailed guidelines on pressure-temperature ratings, material selection, and wall thickness calculations. It also specifies the requirements for non-destructive examination (NDE) of valve components, ensuring the integrity of critical parts such as valve bodies and bonnets.
ASME B16.34 includes stringent testing requirements, including hydrostatic shell tests and seat leakage tests at various pressure levels. These tests verify the valve's ability to maintain its structural integrity and sealing capabilities under diverse operating conditions, contributing to the overall safety and reliability of industrial systems.
Material and Performance Standards in Butterfly Valve Manufacturing
ASTM Standards for Material Selection
ASTM International provides a range of standards that guide the selection and testing of materials used in butterfly valve manufacturing. These standards ensure that the materials used meet specific mechanical, chemical, and physical properties required for different applications and environments.
For instance, ASTM A216 covers carbon steel castings suitable for high-temperature service, often used in butterfly valve bodies. ASTM A351 specifies requirements for austenitic and duplex stainless steel castings, crucial for corrosion-resistant applications. These material standards play a vital role in ensuring the longevity and reliability of butterfly valves in diverse operating conditions.
Manufacturers must carefully select materials that comply with these ASTM standards to ensure optimal performance and durability of their butterfly valves. This adherence to material standards contributes significantly to the overall quality and reliability of the final product.
NACE MR0175: Petroleum and Natural Gas Industries
NACE MR0175 is a critical standard for butterfly valves used in oil and gas applications, particularly in environments with high concentrations of hydrogen sulfide (H2S). This standard provides guidelines for selecting materials resistant to sulfide stress cracking (SSC), a common issue in sour gas environments.
The standard specifies acceptable materials and their heat treatment conditions for various components of butterfly valves, including bodies, discs, and stems. Compliance with NACE MR0175 ensures that valves can withstand the corrosive effects of H2S, preventing premature failure and potential safety hazards in oil and gas facilities.
Manufacturers adhering to NACE MR0175 must carefully control the manufacturing process, including heat treatment and material composition, to meet the stringent requirements of this standard. This attention to detail results in butterfly valves that offer superior performance and longevity in challenging corrosive environments.
ISO 10497: Testing of Valves - Fire Type-testing Requirements
ISO 10497 is a crucial standard for butterfly valves used in fire-critical applications, such as in petrochemical plants or offshore platforms. This standard outlines the requirements for fire-type testing of valves, ensuring they can maintain their integrity and functionality during and after exposure to fire.
The standard specifies the test procedures, including the duration of fire exposure, temperature conditions, and performance criteria. Butterfly valves that pass these rigorous tests demonstrate their ability to prevent the spread of fire and maintain their sealing capabilities even under extreme conditions.
Compliance with ISO 10497 is often a mandatory requirement in industries where fire safety is paramount. Manufacturers who meet this standard provide customers with butterfly valves that offer an additional layer of safety and reliability in high-risk environments.
Quality Control and Certification in Butterfly Valve Manufacturing
ISO 9001: Quality Management Systems
ISO 9001 is a fundamental standard for quality management systems that plays a crucial role in butterfly valve manufacturing. This standard provides a framework for implementing and maintaining a robust quality management system, ensuring consistency and continuous improvement in the manufacturing process.
Manufacturers adhering to ISO 9001 must establish documented procedures for all aspects of their operations, from design and procurement to production and customer service. This systematic approach helps identify and address potential quality issues before they affect the final product, resulting in higher-quality butterfly valves.
Certification to ISO 9001 demonstrates a manufacturer's commitment to quality and customer satisfaction. It provides customers with confidence in the consistency and reliability of the butterfly valves they purchase, often serving as a prerequisite for supplier qualification in many industries.
API Q1: Quality Management System Requirements for Manufacturing Organizations
API Q1 is a specialized quality management standard developed by the American Petroleum Institute specifically for manufacturers serving the oil and gas industry. This standard builds upon ISO 9001 but includes additional requirements tailored to the unique challenges of producing equipment for petroleum and natural gas applications.
For butterfly valve manufacturers, compliance with API Q1 involves implementing rigorous quality control measures throughout the production process. This includes enhanced material traceability, stringent testing procedures, and comprehensive documentation of manufacturing processes.
Certification to API Q1 is often a requirement for manufacturers supplying butterfly valves to major oil and gas companies. It demonstrates a high level of quality assurance and reliability, critical factors in an industry where equipment failure can have severe consequences.
PED 2014/68/EU: Pressure Equipment Directive
The Pressure Equipment Directive (PED) 2014/68/EU is a crucial standard for butterfly valve manufacturers selling products in the European Union. This directive sets out the essential safety requirements for pressure equipment, including valves, operating above 0.5 bar.
Compliance with PED involves a comprehensive assessment of the valve's design, materials, and manufacturing processes. Manufacturers must implement a quality assurance system and conduct appropriate tests to ensure their butterfly valves meet the directive's safety requirements.
Butterfly valves that comply with PED must bear the CE marking, indicating their conformity with EU safety standards. This certification is essential for accessing the European market and demonstrates a manufacturer's commitment to producing safe and reliable pressure equipment.
Conclusion
Industry standards play a pivotal role in ensuring the quality, reliability, and safety of butterfly valves. From design specifications to material selection and quality control, these standards provide a comprehensive framework for manufacturers to produce valves that meet the demanding requirements of various industries. Adherence to standards such as API 609, ISO 5752, and ASME B16.34 ensures dimensional consistency and performance reliability. Material standards like ASTM and NACE MR0175 guide the selection of appropriate materials for specific applications, while quality management standards like ISO 9001 and API Q1 ensure consistent manufacturing processes. By complying with these industry standards, manufacturers can produce butterfly valves that offer optimal performance, longevity, and safety in diverse operational environments.
FAQs
What are the key factors to consider when selecting a butterfly valve?
When selecting a butterfly valve, consider factors such as the valve's pressure and temperature ratings, materials of construction, flow characteristics, and compatibility with the process media. Additionally, evaluate the valve's sealing capabilities, actuation method, and compliance with relevant industry standards for your specific application.
How often should butterfly valves be inspected and maintained?
The frequency of inspection and maintenance for butterfly valves depends on factors such as the operating conditions, process media, and criticality of the application. Generally, it's recommended to perform visual inspections annually and conduct more thorough maintenance, including seat replacement and actuator checks, every 3-5 years or as specified by the manufacturer's guidelines.
Advanced Manufacturing Techniques for High-Quality Butterfly Valves | CEPAI
At CEPAI, we leverage cutting-edge manufacturing techniques to produce premium butterfly valves. Our state-of-the-art factory, equipped with the longest high-precision intelligent manufacturing flexible production line in the Asia Pacific region, ensures unparalleled accuracy and consistency. We've invested heavily in smart manufacturing, creating an industrial Internet benchmark factory that sets new standards in valve production. Our commitment to innovation and quality makes us a trusted partner for all your butterfly valve needs. For more information or to discuss your requirements, contact us at cepai@cepai.com.
References
American Petroleum Institute. (2016). API Standard 609: Butterfly Valves: Double-flanged, Lug- and Wafer-type.
International Organization for Standardization. (2015). ISO 5752: Metal valves for use in flanged pipe systems - Face-to-face and centre-to-face dimensions.
American Society of Mechanical Engineers. (2017). ASME B16.34: Valves - Flanged, Threaded, and Welding End.
NACE International. (2015). NACE MR0175/ISO 15156: Petroleum and natural gas industries - Materials for use in H2S-containing environments in oil and gas production.
International Organization for Standardization. (2004). ISO 10497: Testing of valves - Fire type-testing requirements.
European Committee for Standardization. (2014). Directive 2014/68/EU of the European Parliament and of the Council on the harmonisation of the laws of the Member States relating to the making available on the market of pressure equipment.
