Is PTFE-Lined V-Type Ball Valve the Best for Acid Handling?

Electric V-type ball valves are indeed excellent choices for acid handling, but they're not always the best option. Their superior chemical resistance and low friction properties make them ideal for corrosive fluids. However, the "best" valve depends on specific application requirements, including pressure, temperature, and fluid characteristics. While PTFE-lined V-type ball valves excel in many acidic environments, alternatives like ceramic-lined or high-alloy valves might be more suitable in extreme conditions. Ultimately, the optimal valve choice balances performance, longevity, and cost-effectiveness for your unique acid handling needs.

Understanding PTFE-Lined V-Type Ball Valves and Their Application in Acid Handling

The Composition and Structure of PTFE-Lined V-Type Ball Valves

PTFE-lined V-type ball valves are engineered for demanding chemical applications. The valve body, typically made of durable materials like carbon steel or stainless steel, provides structural integrity. The interior is lined with PTFE (Polytetrafluoroethylene), a synthetic fluoropolymer known for its exceptional chemical resistance and low friction properties. This lining acts as a protective barrier, preventing direct contact between the corrosive fluid and the valve body.

The V-shaped ball, a key component of these valves, offers improved flow characteristics compared to traditional spherical designs. This unique shape allows for better control over fluid flow, especially in partially open positions. The ball is also coated with PTFE, ensuring complete protection against corrosive media.

Sealing elements, crucial for preventing leaks, are typically made from PTFE or other compatible materials. These seals maintain their integrity even when exposed to harsh chemicals, contributing to the valve's overall reliability in acid handling applications.

Benefits of PTFE-Lined V-Type Ball Valves in Corrosive Environments

Electric V-type ball valves offer numerous advantages in corrosive environments. Their exceptional chemical resistance allows them to withstand a wide range of acids, bases, and other aggressive chemicals without degradation. This resistance translates to longer service life and reduced maintenance requirements, making them cost-effective solutions for long-term use in harsh conditions.

The low friction properties of PTFE contribute to smooth operation and reduced wear, even after prolonged exposure to corrosive fluids. This characteristic is particularly beneficial in applications requiring frequent valve actuation, as it helps maintain consistent performance over time.

The V-shaped ball design enhances flow control precision, allowing for more accurate regulation of corrosive fluids. This improved control can be crucial in processes where precise dosing or mixing of acids is required, contributing to overall process efficiency and safety.

Limitations and Considerations When Using PTFE-Lined V-Type Ball Valves

Despite their many advantages, PTFE-lined V-type ball valves have some limitations that should be considered. Temperature constraints are one such factor; while PTFE performs well in a wide range of temperatures, extreme heat can cause the material to deform or lose its protective properties. High-pressure applications may also pose challenges, as the PTFE lining can be subject to deformation under intense pressure.

Permeation is another consideration, particularly with certain aggressive chemicals. Over time, some molecules may slowly penetrate the PTFE lining, potentially reaching the valve body. While this process is generally slow, it's an important factor to consider in long-term applications or when handling highly penetrative substances.

The initial cost of PTFE-lined V-type ball valves can be higher compared to some alternatives. However, this cost is often offset by their longevity and reduced maintenance needs in corrosive environments. Proper installation and handling are crucial to prevent damage to the PTFE lining, which could compromise the valve's protective capabilities.

Comparing PTFE-Lined V-Type Ball Valves with Alternative Acid-Resistant Valves

Ceramic-Lined Valves: Strengths and Weaknesses in Acid Handling

Ceramic-lined valves present a formidable alternative to PTFE-lined options in acid handling applications. These valves utilize materials like alumina or zirconia, known for their exceptional hardness and chemical resistance. The ceramic lining provides superior protection against abrasive and highly corrosive fluids, often surpassing PTFE in extreme conditions.

One of the primary advantages of ceramic-lined valves is their ability to withstand higher temperatures compared to PTFE-lined valves. This makes them suitable for processes involving hot acids or other corrosive fluids at elevated temperatures. Additionally, ceramic linings offer excellent resistance to permeation, reducing the risk of chemical penetration to the valve body.

However, ceramic-lined valves are not without drawbacks. They tend to be more brittle than their PTFE counterparts, making them potentially susceptible to damage from thermal shock or mechanical stress. The initial cost of ceramic-lined valves is often higher, which can be a limiting factor in some applications. Furthermore, the weight of ceramic-lined valves can be greater, potentially requiring additional support in piping systems.

High-Alloy Valves: Performance in Acidic Environments

High-alloy valves, constructed from materials like Hastelloy, Inconel, or titanium, and including the electric V-type ball valve, offer another approach to acid handling. These valves rely on the inherent corrosion resistance of their alloy composition rather than a protective lining. This construction provides excellent durability and can withstand a wide range of corrosive media.

One of the key advantages of high-alloy valves is their ability to handle high pressures and temperatures simultaneously. This makes them suitable for extreme process conditions where lined valves might be inadequate. High-alloy valves also offer excellent mechanical strength, reducing concerns about structural integrity in demanding applications.

However, the performance of high-alloy valves can vary depending on the specific acid and concentration. Some alloys may be highly resistant to certain acids but vulnerable to others. The cost of these valves is often significantly higher than lined alternatives, reflecting the expense of the specialized materials used in their construction. Additionally, while resistant to many corrosive substances, high-alloy valves may still experience gradual degradation over time in particularly aggressive environments.

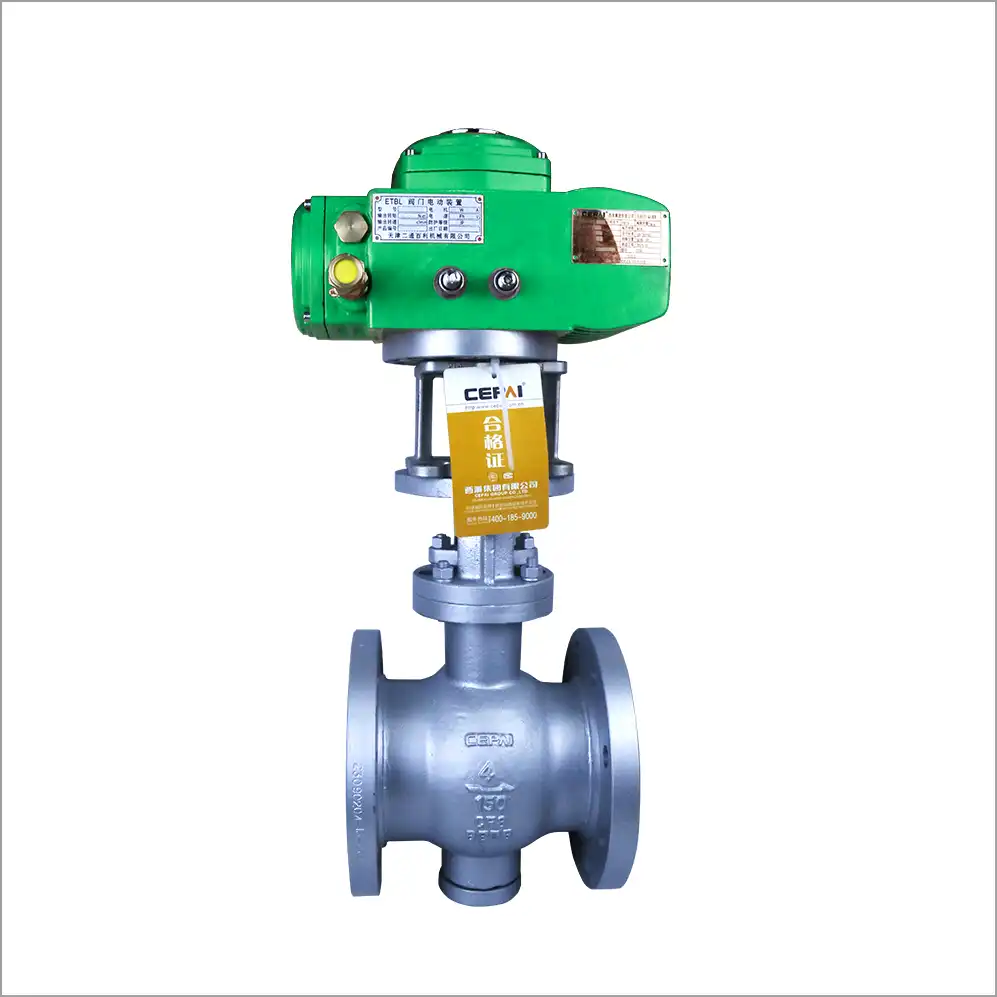

Electric V-Type Ball Valves: Automation and Control in Acid Handling

Electric V-type ball valves represent an evolution in acid handling technology, combining the benefits of V-type ball valves with automated control. These valves incorporate electric actuators, allowing for remote operation and integration into automated systems. This feature is particularly valuable in processes requiring precise and repeatable fluid control.

The automation capabilities of electric V-type ball valves enhance safety in acid handling applications by reducing the need for manual intervention. They can be programmed for specific opening and closing sequences, improving process consistency and reducing the risk of human error. The ability to rapidly shut off flow in emergency situations is another significant safety advantage.

Electric V-type ball valves can be equipped with various lining materials, including PTFE, to suit specific acid handling requirements. This versatility allows for customization based on the particular corrosive environment. However, the addition of electrical components introduces new considerations, such as the need for proper sealing to protect sensitive parts from corrosive atmospheres and potential maintenance requirements for the actuator system.

Selecting the Optimal Valve for Specific Acid Handling Applications

Factors Influencing Valve Selection in Corrosive Environments

Choosing the right valve for acid handling involves careful consideration of multiple factors. The specific properties of the acid being handled, including its concentration and temperature, play a crucial role. Some valves may perform excellently with certain acids but falter with others, making it essential to match the valve material to the specific chemical environment.

Operating conditions such as pressure, temperature, and flow rate significantly impact valve selection. High-pressure applications may require valves with robust body materials, while elevated temperatures could necessitate specialized sealing solutions. The frequency of valve operation is another important consideration, as it affects wear rates and maintenance requirements.

Compatibility with existing infrastructure and control systems should not be overlooked. For instance, integrating electric V-type ball valves into an automated process may require consideration of power supply, control signals, and communication protocols. Long-term cost considerations, including initial investment, maintenance expenses, and expected lifespan, should be factored into the decision-making process.

Case Studies: Successful Applications of PTFE-Lined V-Type Ball Valves

In a chemical processing plant handling hydrochloric acid, PTFE-lined V-type ball valves demonstrated exceptional performance. The valves maintained their integrity over an extended period, resisting corrosion and providing reliable flow control. The precision offered by the V-type design allowed for accurate acid dosing, contributing to improved product quality and reduced waste.

Another success story comes from a wastewater treatment facility where PTFE-lined V-type ball valves were employed in sulfuric acid handling. The valves' resistance to both the acid and the abrasive particles present in the wastewater stream resulted in reduced maintenance frequency and improved operational efficiency. The smooth operation of these valves, even after prolonged exposure to harsh conditions, highlighted their suitability for challenging environments.

An interesting application was observed in a pharmaceutical manufacturing process where precise control of corrosive reagents was critical. Electric V-type ball valves with PTFE lining were integrated into the automated system, allowing for remote operation and precise flow control. This setup not only enhanced safety by minimizing direct human interaction with corrosive substances but also improved process consistency, leading to higher product quality.

Guidelines for Maintenance and Longevity of Acid-Resistant Valves

Proper maintenance is crucial for maximizing the lifespan and performance of acid-resistant valves. Regular inspections should be conducted to check for signs of wear, corrosion, or damage to the valve lining. For PTFE-lined valves, particular attention should be paid to the integrity of the lining and seals, as these are critical for maintaining the valve's protective capabilities.

Cleaning procedures should be tailored to the specific valve type and the acids being handled. Gentle cleaning methods are typically recommended for lined valves to avoid damaging the protective layer. For electric V-type ball valves, ensuring the actuator and electrical components remain free from corrosive vapors is essential for long-term reliability.

Proper storage and handling of valves when not in use can prevent unnecessary damage. Valves should be stored in a clean, dry environment and protected from extreme temperatures or physical impacts. When reinstalling valves, careful attention to alignment and tightening procedures can prevent stress on the valve components and ensure optimal performance.

Implementing a predictive maintenance strategy, possibly utilizing data from automated systems for electric valves, can help identify potential issues before they lead to failures. This approach can optimize maintenance schedules, reduce downtime, and extend the overall lifespan of acid-resistant valves in challenging chemical processing environments.

Conclusion

While PTFE-lined V-type ball valves excel in many acid handling scenarios, they're not universally the best choice. Their effectiveness depends on specific application requirements, including the type and concentration of acid, temperature, pressure, and operational needs. For some extreme conditions, ceramic-lined or high-alloy valves might be more suitable. Electric V-type ball valves offer additional benefits in automated systems. The ideal valve choice balances performance, durability, and cost-effectiveness for your unique acid handling application. Careful consideration of all factors, including long-term maintenance and operational requirements, is crucial for optimal valve selection in corrosive environments.

FAQs

How does the V-shape in V-type ball valves improve flow control?

The V-shaped ball allows for more precise flow regulation, especially in partially open positions, compared to traditional spherical designs.

Can PTFE-lined valves handle all types of acids?

While PTFE is resistant to most acids, extremely strong oxidizing acids or high-temperature applications may require alternative materials.

Are electric V-type ball valves suitable for all acid handling applications?

Electric V-type ball valves are versatile, but their suitability depends on factors like the specific acid, process conditions, and automation requirements.

How often should acid-resistant valves be inspected?

Inspection frequency depends on the application, but quarterly checks are common. More frequent inspections may be necessary in particularly harsh environments.

Can ceramic-lined valves replace PTFE-lined valves in all applications?

While ceramic-lined valves offer excellent corrosion resistance, they may not be suitable for all applications due to factors like cost, weight, and brittleness.

Experience Unmatched Quality in Acid Handling Solutions | CEPAI

At CEPAI, we leverage cutting-edge technology and extensive expertise to deliver superior acid handling solutions. Our state-of-the-art manufacturing facility, featuring Asia Pacific's longest high-precision intelligent production line, ensures unparalleled quality and precision in every valve we produce. With our commitment to innovation and customer satisfaction, we offer tailored solutions for your most challenging acid handling needs. Experience the CEPAI difference in valve technology. Contact us at cepai@cepai.com for expert guidance on selecting the perfect valve for your application.
