Manual Valve Actuators: Simplicity and Reliability
Understanding Manual Valve Actuators
Manual valve actuators are the most straightforward and traditional type of the product control mechanism. They rely on human operation to function, typically through a handwheel, lever, or gear system. These actuators are widely used in various industries due to their simplicity, reliability, and cost-effectiveness.
The operation of manual valve actuators is straightforward. An operator physically turns a handwheel or moves a lever, which translates the rotational motion into linear motion. This action then opens or closes the valve, controlling the flow of fluids or gases through the system. The simplicity of this mechanism makes manual actuators highly dependable and easy to maintain.
Advantages of Manual Valve Actuators
One of the primary benefits of manual valve actuators is their reliability. With fewer components compared to their pneumatic or electric counterparts, there's less chance of mechanical failure. This reliability makes them ideal for critical applications where consistent performance is paramount.
Another advantage is their cost-effectiveness. Manual actuators don't require external power sources or complex control systems, significantly reducing both initial investment and ongoing operational costs. This makes them an attractive option for smaller operations or in areas where power supply might be inconsistent.
Manual actuators also offer precise control. An experienced operator can make fine adjustments to the product position, allowing for accurate flow regulation. This level of control can be particularly valuable in processes that require careful calibration or frequent adjustments.
Applications and Limitations
Manual valve actuators are commonly used in scenarios where valve operations are infrequent or where automatic control is unnecessary. They're often found in maintenance bypass lines, emergency shutdown systems, and in smaller plants where the cost of automation might not be justified.
However, manual actuators do have limitations. They're not suitable for remote operations or in hazardous environments where human presence is restricted. They also may not be practical for valves that require frequent adjustments or rapid response times. In high-cycle applications, the physical strain on operators can be a concern, potentially leading to fatigue-related errors.
Despite these limitations, manual valve actuators remain a vital component in many industrial settings, offering a reliable and cost-effective solution for product control. Their simplicity and durability ensure they will continue to play a significant role in the product actuation technology for years to come.
Pneumatic Valve Actuators: Power and Precision
The Mechanics of Pneumatic Valve Actuators

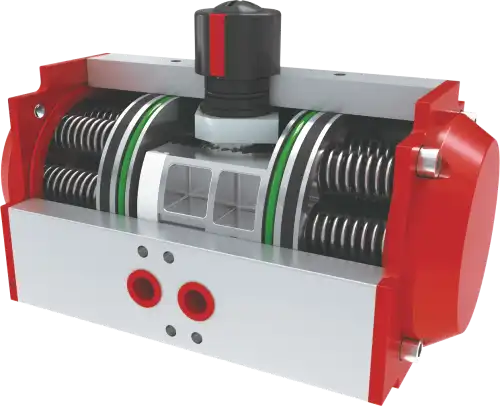

Pneumatic valve actuators harness the power of compressed air or gas to control valve operations. These actuators consist of a piston or diaphragm housed within a cylinder. When pressurized air is introduced, it causes the piston to move, which in turn opens or closes the product. The reverse action is typically achieved through spring force or by applying pressure to the opposite side of the piston.
The design of pneumatic actuators allows for quick and precise product control. They can rapidly respond to changes in system requirements, making them ideal for applications that demand fast cycling times. The force output of pneumatic actuators can be easily adjusted by regulating the air pressure, providing flexibility in various operating conditions.
Advantages and Versatility
One of the key advantages of pneumatic valve actuators is their high power-to-weight ratio. They can generate significant force while remaining relatively compact and lightweight. This characteristic makes them suitable for a wide range of valve sizes and types, from small control valves to large butterfly valves used in industrial processes.
Pneumatic actuators are also known for their reliability and longevity. With fewer moving parts compared to electric actuators, they have a lower risk of mechanical failure and require less maintenance. Their simple design contributes to a longer operational life, even in challenging environments.
Safety is another crucial benefit of pneumatic actuators. In the event of a power failure, they can be designed to automatically move the product to a safe position (either open or closed) using stored energy in the form of compressed air or spring force. This fail-safe feature is critical in many industrial applications, particularly in the oil and gas sector.
Applications and Considerations
Pneumatic valve actuators find extensive use in industries where compressed air is readily available, such as oil refineries, chemical plants, and food processing facilities. They're particularly well-suited for high-cycle applications, where valves need to be opened and closed frequently and quickly.
In explosive or flammable environments, pneumatic actuators offer an added layer of safety. Unlike electric actuators, they don't produce sparks or heat during operation, reducing the risk of ignition in hazardous areas.
However, the reliance on compressed air can be a limitation in some scenarios. The need for an air compressor and associated infrastructure can increase the overall system complexity and cost. Additionally, in very cold environments, moisture in the air lines can freeze, potentially affecting actuator performance.
Despite these considerations, pneumatic valve actuators remain a popular choice in many industrial settings. Their combination of power, precision, and reliability makes them an excellent option for a wide range of valve control applications, particularly where rapid response and fail-safe operation are crucial.
Electric Valve Actuators: Precision and Automation
The Technology Behind Electric Valve Actuators
Electric valve actuators represent the pinnacle of modern valve control technology. These sophisticated devices use electric motors to drive the opening and closing of products. The motor's rotational motion is converted into linear motion through a series of gears and a drive mechanism, which then moves the product stem.
At the heart of an electric actuator is its control system. This typically includes a variable frequency drive (VFD) or a servo motor controller, which allows for precise control over the motor's speed and position. Advanced models may incorporate features like position feedback sensors, torque limiters, and communication interfaces, enabling integration with broader control and monitoring systems.
Precision and Flexibility in Operation
One of the standout features of electric valve actuators is their exceptional precision. They can achieve very accurate valve positioning, often down to fractions of a percentage of the full stroke. This level of control is crucial in processes that require fine-tuning of flow rates or pressure levels.
Electric actuators offer unparalleled flexibility in terms of control options. They can be programmed for complex operating sequences, allowing for automated valve operations based on time, process conditions, or external signals. This programmability makes them ideal for use in sophisticated control systems and SCADA (Supervisory Control and Data Acquisition) environments.
Another advantage is their ability to provide detailed feedback and diagnostics. Many electric actuators can monitor and report on factors such as valve position, torque levels, and operational history. This data is invaluable for predictive maintenance strategies and optimizing overall system performance.
Applications and Energy Efficiency
Electric valve actuators find applications across a wide spectrum of industries, from water treatment and power generation to chemical processing and HVAC systems. They're particularly well-suited for remote or difficult-to-access locations, as they can be easily controlled and monitored from a distance.
In terms of energy efficiency, electric actuators have made significant strides. Modern designs incorporate energy-saving features such as low-power standby modes and regenerative braking systems. While they may consume more power during operation compared to pneumatic actuators, their ability to provide precise control often results in overall process efficiencies that can offset the higher energy use.
However, it's worth noting that electric actuators may have limitations in certain environments. In potentially explosive atmospheres, special explosion-proof designs are required, which can increase costs. Additionally, in applications requiring very high-speed operation or extremely high force output, pneumatic or hydraulic actuators might still hold an advantage.
Despite these considerations, the trend towards automation and digital integration in industrial processes continues to drive the adoption of electric valve actuators. Their combination of precision control, flexibility, and data feedback capabilities makes them an increasingly popular choice for modern industrial valve applications.
Conclusion
Valve actuators play a crucial role in controlling flow and pressure in various industrial applications. Manual actuators offer simplicity and reliability, ideal for infrequent operations or small-scale setups. Pneumatic actuators provide rapid response and high power, making them suitable for hazardous environments and high-cycle applications. Electric actuators excel in precision control and automation capabilities, perfect for complex systems requiring detailed feedback. Understanding the strengths and limitations of each type is essential for selecting the right actuator for specific operational needs, ultimately enhancing efficiency and safety in industrial processes.
