Understanding Butterfly Valve Components and Their Maintenance Needs
Anatomy of a Butterfly Valve

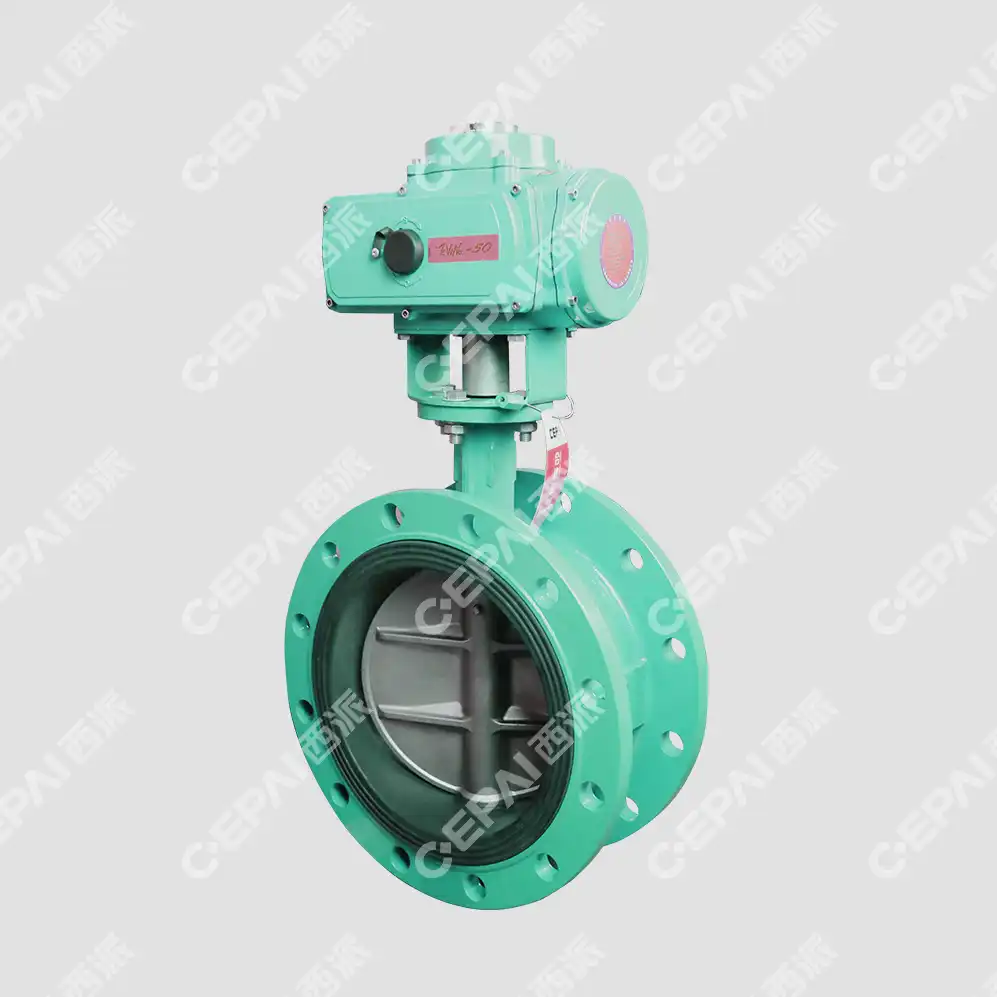

A butterfly valve is composed of several vital components that work together to regulate flow. The central part is the disc, which rotates within the valve body to either allow or restrict fluid flow. The seat, often made from durable elastomers or PTFE, ensures a leak-tight seal when the disc is closed. The stem connects the disc to the actuator or handle, enabling precise movement. Each of these components plays a specific role, and understanding their function is essential for effective inspection, operation, and long-term maintenance planning.
Common Wear Points and Potential Issues
Like all mechanical devices, butterfly valves are subject to wear and degradation over time. One of the most common issues involves seat wear, which can lead to internal leakage and reduced sealing effectiveness. The disc, especially its edges, may suffer erosion or abrasion, particularly in systems handling particulates. Stem seals are also vulnerable, with deterioration possibly resulting in external fluid leakage. Identifying these vulnerable areas allows maintenance personnel to prioritize inspections, replace worn parts promptly, and prevent valve failure that could disrupt process operations or pose safety risks.
Maintenance Frequency Based on Operating Conditions
Determining how often butterfly valves require maintenance depends largely on the conditions in which they operate. For example, valves used in high-pressure or high-temperature systems tend to degrade faster and need more frequent attention. Similarly, systems that cycle valves frequently or handle corrosive or abrasive fluids can accelerate wear. By analyzing these conditions, facility managers can create customized maintenance intervals tailored to each application. This proactive approach minimizes downtime, extends equipment life, and ensures reliable valve operation within HVAC, industrial, or process environments where performance is critical.
Essential Steps in Butterfly Valve Preventive Maintenance
Visual Inspection and Leak Detection
Regular visual inspections are the first line of defense in butterfly valve maintenance. Check for signs of corrosion, erosion, or physical damage to the valve body and components. Look for any visible leaks around the stem, body joints, or flanges. Use leak detection solutions or ultrasonic equipment to identify even minor leaks that may not be immediately apparent. Early detection of issues can prevent more significant problems down the line.
Lubrication and Cleaning Procedures
Proper lubrication is crucial for smooth valve operation. Clean and lubricate the stem and bearings according to manufacturer specifications. Use appropriate lubricants that are compatible with the valve materials and the process fluid. Remove any debris or buildup from the disc and seat to ensure proper sealing. For valves in corrosive environments, consider applying protective coatings to prevent material degradation.
Actuator and Control System Checks
The actuator and control system are integral to the valve's functionality. Verify proper alignment between the actuator and valve stem. Check for any loose connections or worn linkages. Test the actuator's full range of motion to ensure smooth operation throughout the valve's travel. For automated valves, inspect and calibrate position sensors and limit switches. Regular maintenance of these components ensures accurate and reliable valve control.
Advanced Maintenance Techniques and Troubleshooting
Non-Destructive Testing Methods
Implement advanced non-destructive testing techniques to assess the condition of butterfly valves without disassembly. Ultrasonic thickness testing can help monitor valve body and disc thickness, alerting maintenance teams to potential erosion or corrosion issues. Acoustic emission testing can detect internal leaks or structural defects. These methods provide valuable insights into valve health, allowing for proactive maintenance planning.
Valve Performance Testing and Analysis
Conduct periodic performance tests to evaluate the valve's functionality. Measure parameters such as torque requirements, sealing effectiveness, and flow characteristics. Compare these results to baseline data or manufacturer specifications to identify any deviations. Analyze trends in performance data to predict potential failures or maintenance needs. This proactive approach helps optimize maintenance schedules and prevent unexpected downtime.
Troubleshooting Common Butterfly Valve Issues
Develop a systematic approach to troubleshooting butterfly valve problems. Common issues include incomplete closure, excessive leakage, and difficult operation. For incomplete closure, check for obstructions, disc misalignment, or actuator issues. Excessive leakage may indicate seat damage or improper disc positioning. Difficult operation could stem from inadequate lubrication, misalignment, or internal damage. By understanding these common problems and their potential causes, maintenance teams can quickly diagnose and resolve issues, minimizing downtime and improving overall system reliability.
Conclusion
Implementing a comprehensive preventive maintenance checklist for butterfly valves is crucial for ensuring their longevity and optimal performance. By regularly inspecting components, conducting thorough cleaning and lubrication, and employing advanced testing techniques, operators can significantly reduce the risk of unexpected failures and costly downtime. Remember that each valve may have unique maintenance requirements based on its specific application and operating conditions. Tailor your maintenance program accordingly, and always refer to manufacturer guidelines for best practices.
