The Fundamental Principles of Electric Control Valves
Components and Design Features

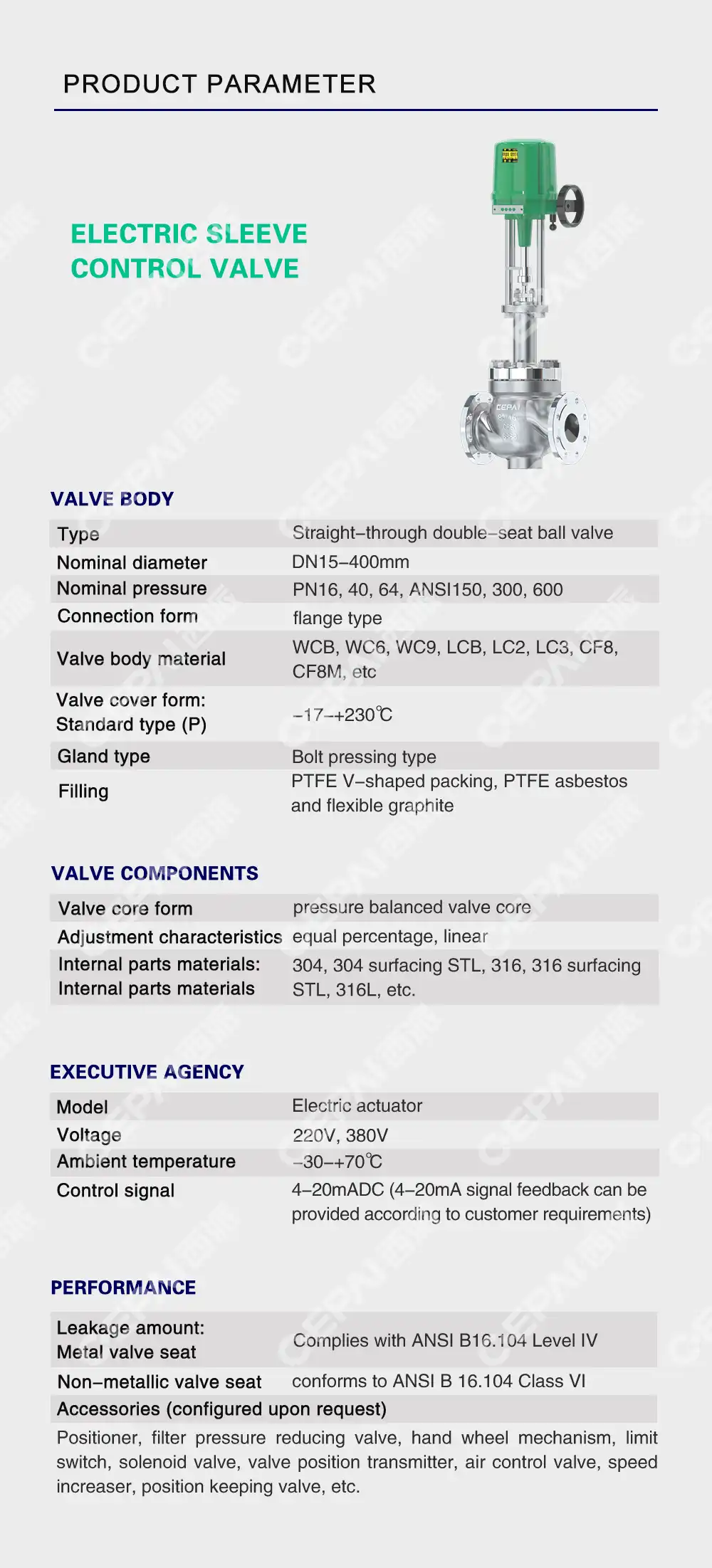

Electric control valves comprise several key components that work in harmony to achieve precise flow regulation. The valve body houses the internal mechanisms, while the actuator, typically an electric motor, provides the motive force for valve operation. A positioner translates electrical signals into mechanical movement, ensuring accurate valve positioning. Advanced models incorporate smart positioners with diagnostic capabilities, enhancing reliability and facilitating predictive maintenance. The valve stem connects the actuator to the valve plug or ball, which directly controls the flow. Seals and gaskets prevent leakage, maintaining system integrity under varying pressures and temperatures.
Operational Mechanisms
The operation of electric control valves relies on sophisticated feedback systems and control algorithms. When a process variable deviates from the desired setpoint, the control system sends an electrical signal to the valve actuator. This signal prompts the actuator to adjust the valve position, modulating flow accordingly. Proportional-Integral-Derivative (PID) control loops often govern this process, continuously fine-tuning valve response for optimal performance. Some advanced electric control valves utilize adaptive control techniques, automatically adjusting their parameters based on changing process conditions, ensuring consistent performance across a wide operating range.
Types and Applications

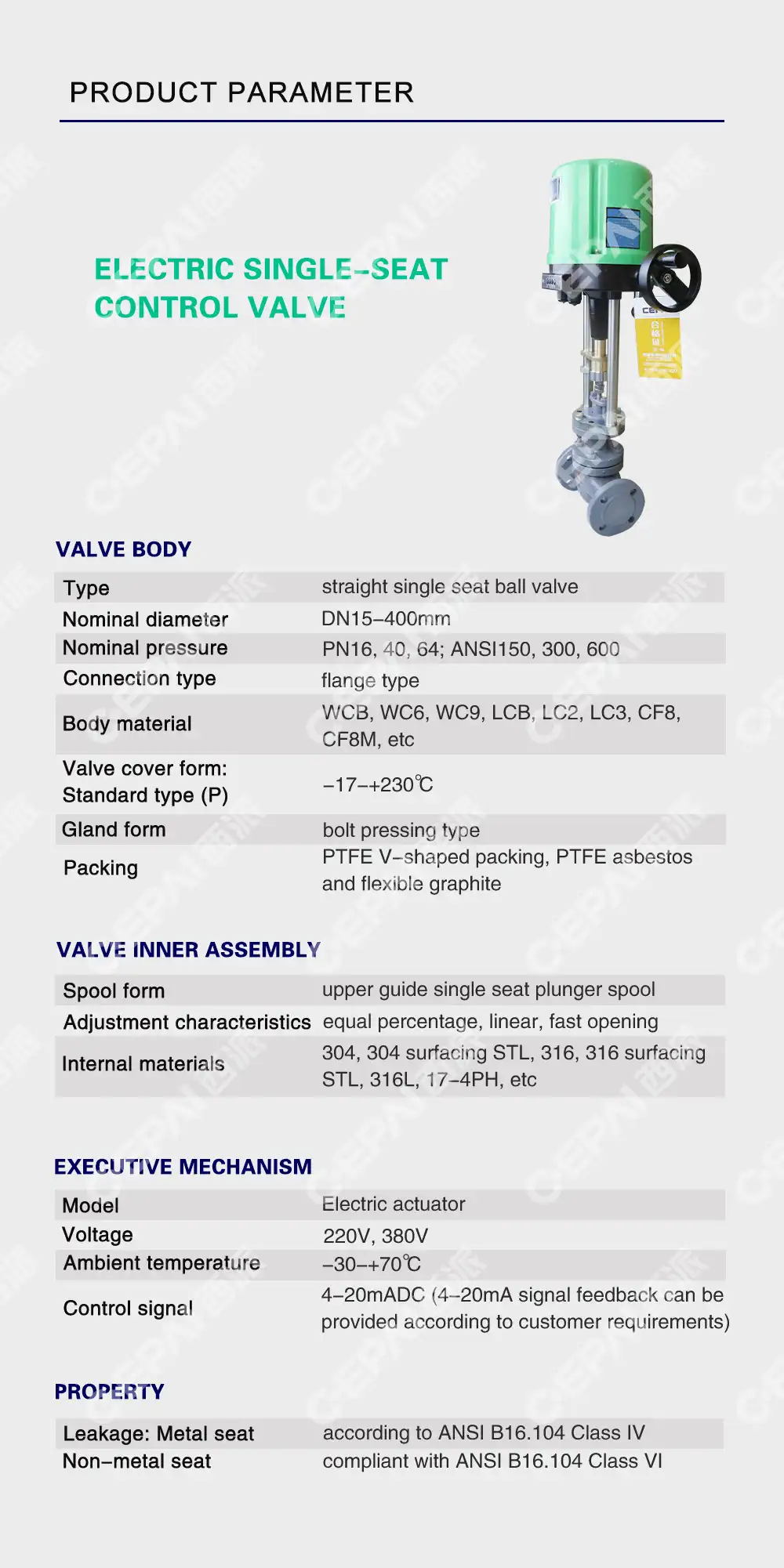

Electric control valves come in various configurations to suit different industrial applications. Globe valves excel in precise flow control and are commonly used in HVAC systems and power plants. Butterfly valves offer low-pressure drop characteristics, making them ideal for large-diameter piping in water treatment facilities. Ball valves provide tight shut-off capabilities and are frequently employed in oil and gas operations. Diaphragm valves find applications in sanitary processes, such as pharmaceutical manufacturing, due to their ability to maintain cleanliness. Each type of electric control valve offers unique advantages, and selection depends on factors such as flow characteristics, pressure ratings, and media compatibility.
Advantages of Implementing Electric Control Valves in Industrial Processes
Enhanced Precision and Control
Electric control valves offer unparalleled precision in flow regulation, allowing for minute adjustments that mechanical valves cannot achieve. This level of control is particularly beneficial in processes requiring tight tolerances, such as chemical blending or temperature-sensitive operations. The ability to make fine-tuned adjustments in real-time contributes to product quality consistency and process stability. Moreover, the repeatability of electric control valves ensures that once optimal settings are determined, they can be reliably maintained across multiple production cycles, reducing variability and improving overall process efficiency.
Energy Efficiency and Cost Savings
Implementing electric control valves can lead to significant energy savings in industrial operations. Their precise control capabilities allow for optimized flow rates, reducing unnecessary energy expenditure associated with over-pumping or excessive pressure drops. In HVAC systems, for instance, electric control valves can modulate chilled water flow more accurately, leading to improved cooling efficiency and reduced energy consumption. The ability to respond quickly to changing demand also means that systems can operate closer to their optimal points, further enhancing energy efficiency. Over time, these energy savings translate into substantial cost reductions, making electric control valves a wise investment for industries looking to improve their bottom line while reducing their environmental footprint.
Integration with Automation Systems
One of the most significant advantages of electric control valves is their seamless integration with modern automation systems. These valves can be easily incorporated into Distributed Control Systems (DCS) or Supervisory Control and Data Acquisition (SCADA) networks, allowing for centralized monitoring and control of multiple valves across a facility. This integration enables operators to have real-time visibility into valve performance and process conditions, facilitating quick decision-making and troubleshooting. Advanced electric control valves equipped with smart positioners can provide diagnostic data, enabling predictive maintenance strategies that minimize downtime and optimize maintenance schedules. The ability to remotely operate and monitor valves also enhances safety in hazardous environments, reducing the need for personnel exposure to potentially dangerous areas.
Maximizing the Benefits of Electric Control Valves through Proper Selection and Maintenance
Sizing and Selection Criteria
Proper sizing and selection of electric control valves are paramount to achieving optimal performance in industrial applications. Engineers must consider various factors, including flow rates, pressure differentials, and fluid properties, to determine the appropriate valve size and type. The valve's Cv (flow coefficient) must be carefully calculated to ensure it can handle the required flow range without over-sizing, which can lead to poor control at low flow conditions. Consideration of the process dynamics, such as the potential for cavitation or flashing, is crucial in selecting valve trim materials and configurations. Additionally, the actuator must be sized correctly to provide sufficient force for reliable operation under all anticipated process conditions. Consulting with valve manufacturers and utilizing specialized sizing software can help in making informed decisions that maximize the benefits of electric control valves in specific applications.
Installation Best Practices
Proper installation of electric control valves is critical for ensuring their longevity and optimal performance. Care must be taken to align the valve correctly within the piping system, avoiding undue stress that could lead to premature wear or failure. Installing isolation valves upstream and downstream of the control valve facilitates maintenance without the need for complete system shutdown. Proper grounding and shielding of electrical connections are essential to protect against electromagnetic interference and ensure accurate signal transmission. In applications where vibration is a concern, appropriate supports and damping mechanisms should be implemented to protect the valve and its components. Adhering to manufacturer guidelines and industry best practices during installation sets the foundation for reliable valve operation throughout its service life.
Maintenance and Troubleshooting Strategies
Implementing a comprehensive maintenance strategy is crucial for maximizing the lifespan and performance of electric control valves. Regular inspections should be conducted to check for signs of wear, leakage, or unusual noise that could indicate developing issues. Calibration checks ensure that the valve responds accurately to control signals, maintaining process precision. Lubrication of moving parts, as per manufacturer recommendations, helps prevent friction-induced wear and maintains smooth operation. For valves equipped with smart positioners, leveraging diagnostic data can provide insights into valve health, enabling condition-based maintenance approaches. When troubleshooting, a systematic approach should be employed, starting with verifying electrical connections and control signals before moving on to mechanical components. Keeping detailed maintenance records and analyzing performance trends can help identify recurring issues and inform predictive maintenance strategies, ultimately reducing downtime and extending valve life.
Conclusion
Electric control valves are indispensable components in modern industrial operations, offering unparalleled precision, efficiency, and adaptability. Their integration with advanced automation systems, coupled with their energy-saving potential, positions them as key drivers of process optimization and cost reduction. By understanding the principles behind their operation, recognizing their diverse applications, and implementing proper selection and maintenance practices, industries can fully harness the benefits of electric control valves. As technology continues to evolve, these valves will undoubtedly play an even more critical role in shaping the future of industrial process control.
