Understanding Triple Eccentric Butterfly Valve Design
The Principle of Triple Eccentricity
Triple eccentric butterfly valves operate on a unique principle that sets them apart from conventional butterfly valves. The term "triple eccentric" refers to three distinct offsets in the valve's design. The first eccentricity positions the shaft behind the disc's centerline, the second places the shaft away from the pipe's centerline, and the third creates an inclined cone shape for the sealing surfaces. This ingenious configuration allows for a cam-like action during valve closure, resulting in minimal friction and wear on the sealing components.
Key Components and Materials
The construction of triple eccentric butterfly valves involves carefully selected materials to withstand harsh environments. The valve body is typically crafted from durable alloys such as stainless steel or carbon steel, offering excellent corrosion resistance. The disc, a critical component, is often made from materials like stainless steel or nickel-aluminum bronze, chosen for their strength and resistance to wear. The seat ring, usually composed of resilient materials like PTFE or metal alloys, provides a tight seal even under high pressures and temperatures. Advanced sealing technologies, including laminated seals and fire-safe designs, further enhance the valve's performance and safety features.
Actuation and Control Systems

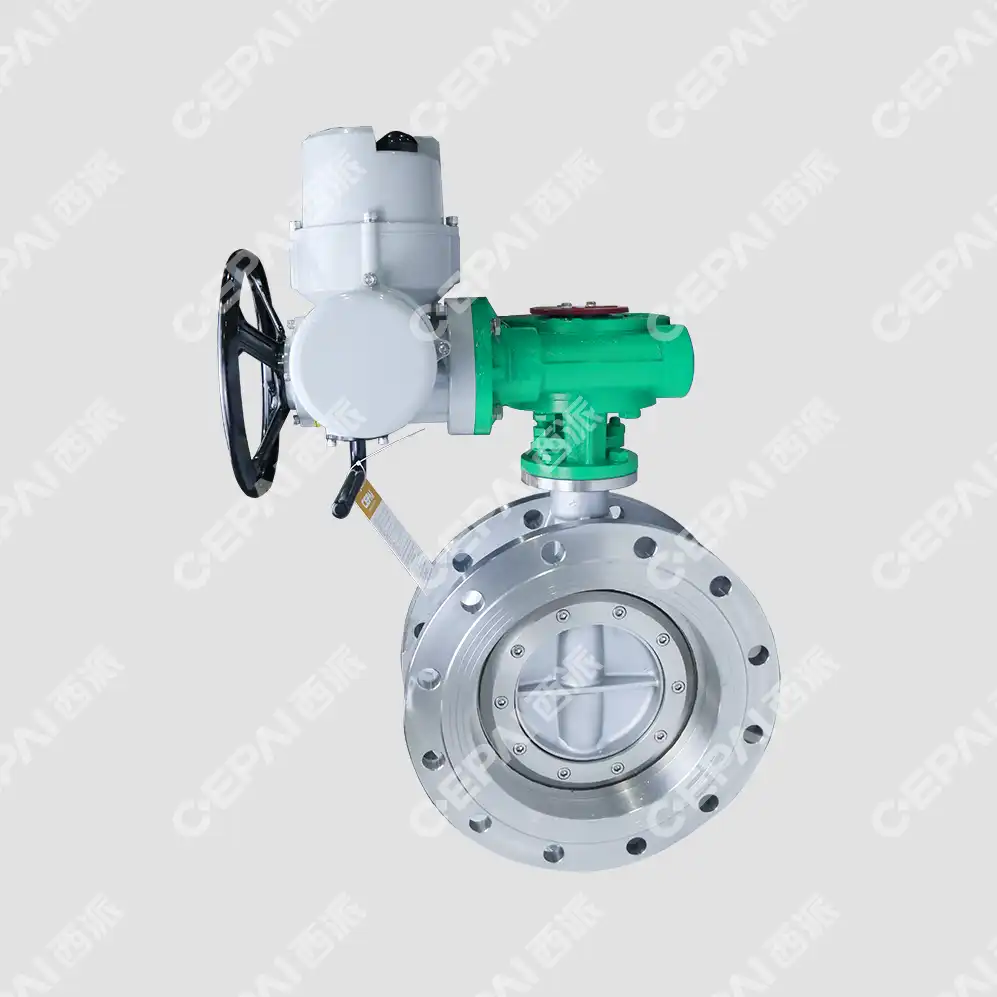

Triple eccentric butterfly valves can be equipped with various actuation systems to suit different operational requirements. Manual operators, such as handwheels or gearboxes, offer precise control in applications where frequent adjustments are unnecessary. For automated processes, pneumatic, hydraulic, or electric actuators can be integrated, allowing for remote operation and precise flow control. Advanced control systems, including positioners and smart valve controllers, enable seamless integration with plant-wide control systems, enhancing overall process efficiency and providing valuable diagnostic information for predictive maintenance strategies.
Applications and Industries
Oil and Gas Sector
In the oil and gas industry, triple eccentric butterfly valves play a crucial role in various processes. They excel in pipeline isolation, where their tight shut-off capabilities prevent leakage and ensure safety during maintenance operations. In offshore platforms, these valves withstand corrosive seawater and high-pressure environments, making them ideal for seawater injection systems and process isolation. Refineries utilize triple eccentric butterfly valves in catalytic cracking units, hydrotreating processes, and distillation columns, where their ability to handle high temperatures and aggressive media is invaluable.
Power Generation
Power plants rely on triple eccentric butterfly valves for critical applications in steam systems, feedwater lines, and cooling circuits. In thermal power plants, these valves regulate steam flow in turbine bypass systems, ensuring efficient operation and protecting equipment during start-up and shutdown procedures. Nuclear power facilities employ triple eccentric butterfly valves in safety-related systems, where their reliable performance and leak-tight sealing are essential for maintaining containment integrity. The valves' resistance to high temperatures and pressures makes them suitable for supercritical and ultra-supercritical power plant designs, contributing to improved overall plant efficiency.
Chemical and Petrochemical Industries
The chemical and petrochemical sectors benefit from the versatility of triple eccentric butterfly valves in handling a wide range of corrosive and abrasive media. These valves are employed in reactor isolation, distillation columns, and storage tank applications. Their excellent sealing properties prevent cross-contamination between process streams, ensuring product purity and safety. In polymer production facilities, triple eccentric butterfly valves withstand the challenges posed by viscous fluids and particulate-laden streams, maintaining reliable performance in critical process steps such as polymerization and extrusion.
Advantages and Considerations
Performance Benefits
Triple eccentric butterfly valves offer several performance advantages over traditional valve designs. Their unique geometry results in reduced torque requirements, facilitating easier operation and allowing for smaller, more cost-effective actuators. The cam-like action during closure eliminates sliding contact between the disc and seat, significantly reducing wear and extending the valve's service life. This design also enables bi-directional sealing, providing flexibility in installation and operation. The valves' ability to achieve tight shut-off, often exceeding industry standards, minimizes leakage and improves process efficiency. Additionally, the low-friction operation of triple eccentric butterfly valves contributes to reduced energy consumption in automated systems.
Maintenance and Lifecycle Costs
While the initial investment in triple eccentric butterfly valves may be higher compared to simpler valve types, their long-term benefits often result in lower lifecycle costs. The reduced wear on sealing components translates to extended periods between maintenance intervals, minimizing downtime and associated costs. When maintenance is required, the design of triple eccentric butterfly valves typically allows for in-line servicing, eliminating the need for complete valve removal and simplifying maintenance procedures. The valves' durability and resistance to challenging operating conditions contribute to increased reliability, reducing the frequency of unplanned shutdowns and associated production losses.
Selection and Sizing Considerations
Proper selection and sizing of triple eccentric butterfly valves are critical for optimal performance. Factors such as operating pressure, temperature range, and fluid characteristics must be carefully evaluated. The valve's Cv (flow coefficient) should be matched to the system requirements to ensure efficient flow control and prevent issues like cavitation or flashing. Consideration should also be given to the valve's rangeability, particularly in applications requiring precise flow modulation. Material selection for valve components must account for the specific process media and environmental conditions to prevent corrosion and ensure long-term reliability. Collaboration with experienced valve manufacturers or engineering consultants can help in selecting the most appropriate triple eccentric butterfly valve for a given application, ensuring optimal performance and longevity.
Conclusion
Triple eccentric butterfly valves represent a significant advancement in valve technology, offering superior performance, reliability, and versatility across various industries. Their unique design overcomes the limitations of traditional butterfly valves, providing tight shut-off, reduced wear, and efficient operation in challenging environments. As industries continue to demand higher efficiency and reliability from their fluid control systems, triple eccentric butterfly valves stand out as a robust solution. By understanding their design principles, applications, and benefits, professionals can make informed decisions to optimize their processes and enhance operational performance.
