Fundamentals of Control Valve Engineering

Control valves engineering is a critical discipline in the oil and gas industry, encompassing the design, selection, and application of control valves that regulate fluid flow and pressure in various processes. These precision instruments play a vital role in maintaining operational efficiency, safety, and product quality across drilling, production, and refining operations. Understanding the fundamentals of control valves engineering is essential for professionals in the field, as it involves a complex interplay of fluid dynamics, materials science, and automation technology. By mastering these principles, engineers can optimize system performance, reduce downtime, and ensure compliance with stringent industry standards, ultimately contributing to the overall success and sustainability of oil and gas operations worldwide.

Control Valve Design Principles

Valve Body Configuration

The valve body serves as the foundation of a control valve, housing internal components and providing the necessary structure for fluid control. Engineers must consider various body styles, such as globe, butterfly, and ball valves, each offering unique advantages in different applications. Globe valves, for instance, excel in precise flow control, while butterfly valves are ideal for large diameter pipelines. The choice of body material is equally crucial, with options ranging from carbon steel for standard applications to exotic alloys for corrosive environments. Proper selection ensures longevity and reliability in demanding oil and gas processes.

Trim Selection and Design

Valve trim components, including the plug, seat, and cage, are at the heart of control valves functionality. These elements directly interact with the process fluid, shaping flow characteristics and determining overall control valves performance. Engineers must carefully consider factors such as flow capacity, pressure drop, and noise reduction when selecting control valves trim designs. Advanced trim options, such as multi-stage trim for high-pressure applications or low-noise trim for gas services, can significantly enhance control valves efficiency and lifespan. Customized trim solutions often prove invaluable in addressing specific process challenges unique to oil and gas operations.

Actuator and Positioner Integration

The actuator and positioner work in tandem to provide precise control over valve movement and positioning. Pneumatic actuators remain popular due to their simplicity and reliability, while electric and hydraulic options offer advantages in certain scenarios. The selection of an appropriate actuator depends on factors like required force, speed of response, and fail-safe requirements. Positioners, whether pneumatic, electro-pneumatic, or digital, ensure accurate valve positioning and can provide valuable diagnostic information. Integration of smart positioners with modern control systems enables advanced monitoring and predictive maintenance capabilities, enhancing overall system reliability.

Flow Characteristics and Sizing Considerations

Understanding Flow Coefficients

Flow coefficients, such as Cv (valve flow coefficient) and Kv (metric flow coefficient), are fundamental parameters in control valve sizing. These coefficients quantify a valve's capacity to pass fluid under specific conditions. Engineers must accurately determine these values to ensure proper valve sizing and avoid issues like cavitation or flashing. Advanced computational fluid dynamics (CFD) techniques now complement traditional empirical methods, allowing for more precise prediction of valve performance across various operating conditions. Mastery of flow coefficient calculations is essential for optimizing valve selection and ensuring efficient, stable process control.

Inherent vs. Installed Flow Characteristics

Control valves exhibit inherent flow characteristics based on their design, typically categorized as linear, equal percentage, or quick opening. However, the installed flow characteristic, which accounts for the valve's interaction with the entire system, often differs significantly. Engineers must consider factors such as pressure drop ratios, pipe friction losses, and pump curves when predicting installed characteristics. Understanding this distinction is crucial for achieving desired control response and stability in oil and gas applications, where process conditions can vary widely. Sophisticated modeling tools now enable more accurate prediction of installed characteristics, facilitating improved valve selection and control loop tuning.

Rangeability and Turndown Ratio

Rangeability, the ratio between maximum and minimum controllable flow rates, is a critical factor in control valve selection. High rangeability allows a single valve to handle a wide range of flow conditions, reducing the need for multiple valves or frequent change-outs. The turndown ratio, closely related to rangeability, indicates a valve's ability to maintain accurate control at low flow rates. In oil and gas applications, where process flows can vary dramatically, selecting valves with appropriate rangeability and turndown ratios is essential for maintaining consistent product quality and operational efficiency. Advanced trim designs and materials have significantly improved these parameters, enabling more versatile and precise control in challenging applications.

Material Selection and Environmental Considerations

Corrosion Resistance and Material Compatibility

The harsh environments encountered in oil and gas operations demand careful consideration of material selection for control valves. Corrosive fluids, high temperatures, and abrasive particles can rapidly degrade valve components, leading to premature failure and costly downtime. Engineers must evaluate factors such as fluid composition, pH levels, and operating temperatures when choosing materials for valve bodies, trim, and seals. Advanced materials like duplex stainless steels, nickel alloys, and ceramics offer superior corrosion resistance in aggressive environments. Coatings and surface treatments can further enhance durability, while proper material pairing prevents galvanic corrosion. Comprehensive material compatibility analysis ensures long-term reliability and reduces maintenance requirements in challenging oil and gas applications.

Temperature and Pressure Ratings

Control valves in the oil and gas industry often operate under extreme temperature and pressure conditions. Accurate assessment of these parameters is crucial for selecting valves that can withstand the rigors of their intended service. Engineers must consider not only normal operating conditions but also potential upset scenarios and safety margins. High-temperature applications may require special alloys or cooling systems, while high-pressure services demand robust body designs and appropriate pressure classes. The relationship between temperature and pressure ratings is complex, often necessitating the use of specialized engineering standards and codes. Advanced finite element analysis (FEA) techniques now allow for more precise prediction of valve performance under various temperature and pressure combinations, enhancing safety and reliability.

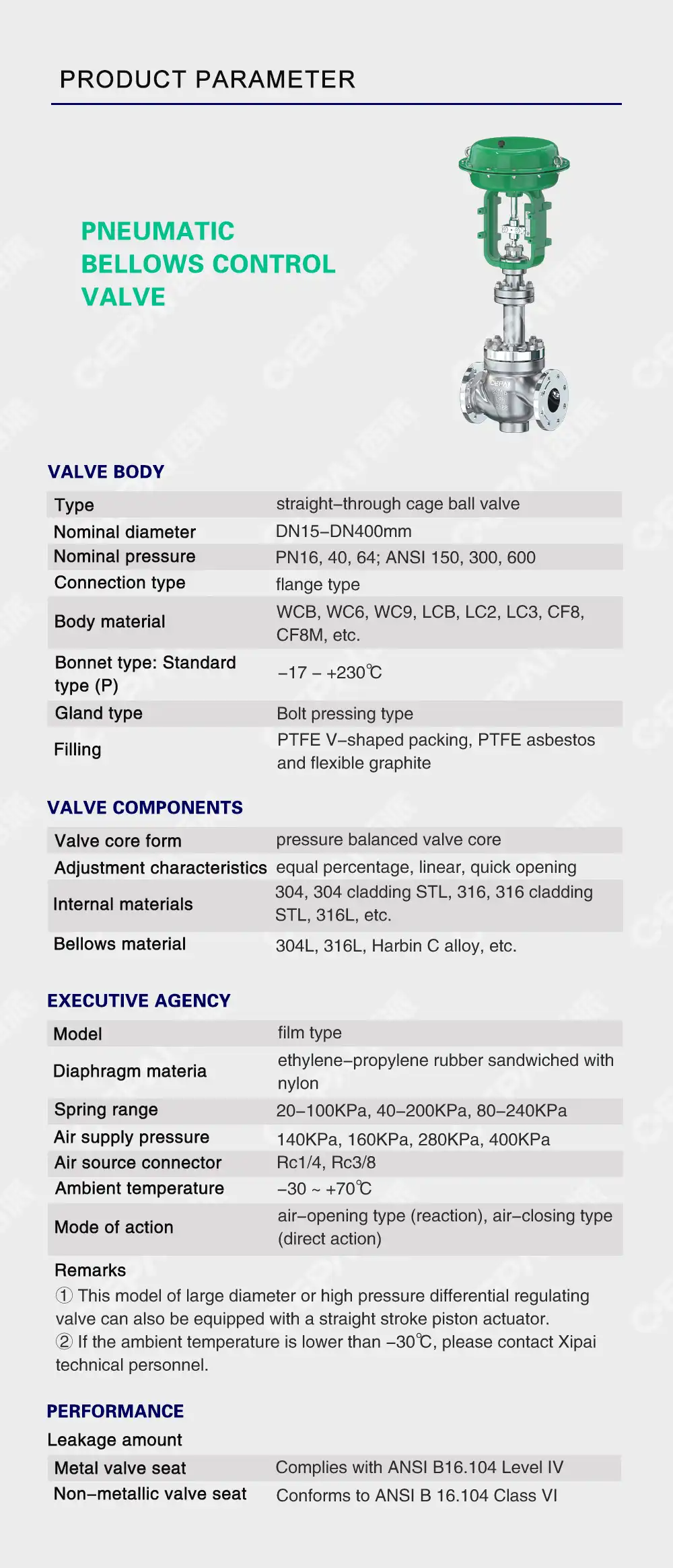

blog-1-1

Fugitive Emissions and Environmental Compliance

With increasing focus on environmental protection and regulatory compliance, control valve engineering must address fugitive emissions and leakage concerns. Stringent regulations like EPA Method 21 and ISO 15848 set strict limits on allowable emissions from valve stems and other potential leak paths. Engineers must incorporate advanced sealing technologies, such as live-loaded packing systems and bellows seals, to minimize fugitive emissions. Material selection plays a crucial role in maintaining seal integrity over time, particularly in thermal cycling applications. Regular monitoring and maintenance programs, often utilizing advanced leak detection technologies, ensure ongoing compliance and environmental stewardship. By prioritizing low-emission designs, oil and gas operators can reduce environmental impact, improve safety, and avoid costly regulatory penalties.

Conclusion

Mastering the fundamentals of control valves engineering is essential for ensuring efficient, safe, and environmentally responsible operations in the oil and gas industry. From understanding complex flow characteristics to selecting appropriate materials for harsh environments, engineers must navigate a multifaceted landscape of technical challenges. As technology continues to evolve, embracing advanced design tools, smart diagnostics, and innovative materials will be key to developing next-generation control valves solutions. By applying these fundamental principles and staying abreast of industry advancements, professionals can optimize process control, enhance operational reliability, and drive sustainable growth in the dynamic world of oil and gas production.

Contact Us

Ready to elevate your control valve solutions? CEPAI Group offers cutting-edge valve technology tailored for the oil and gas industry. Our expert engineers combine decades of experience with the latest innovations to deliver unparalleled performance and reliability. Contact us at cepai@cepai.com to discover how our advanced control valve solutions can optimize your operations and drive sustainable growth.

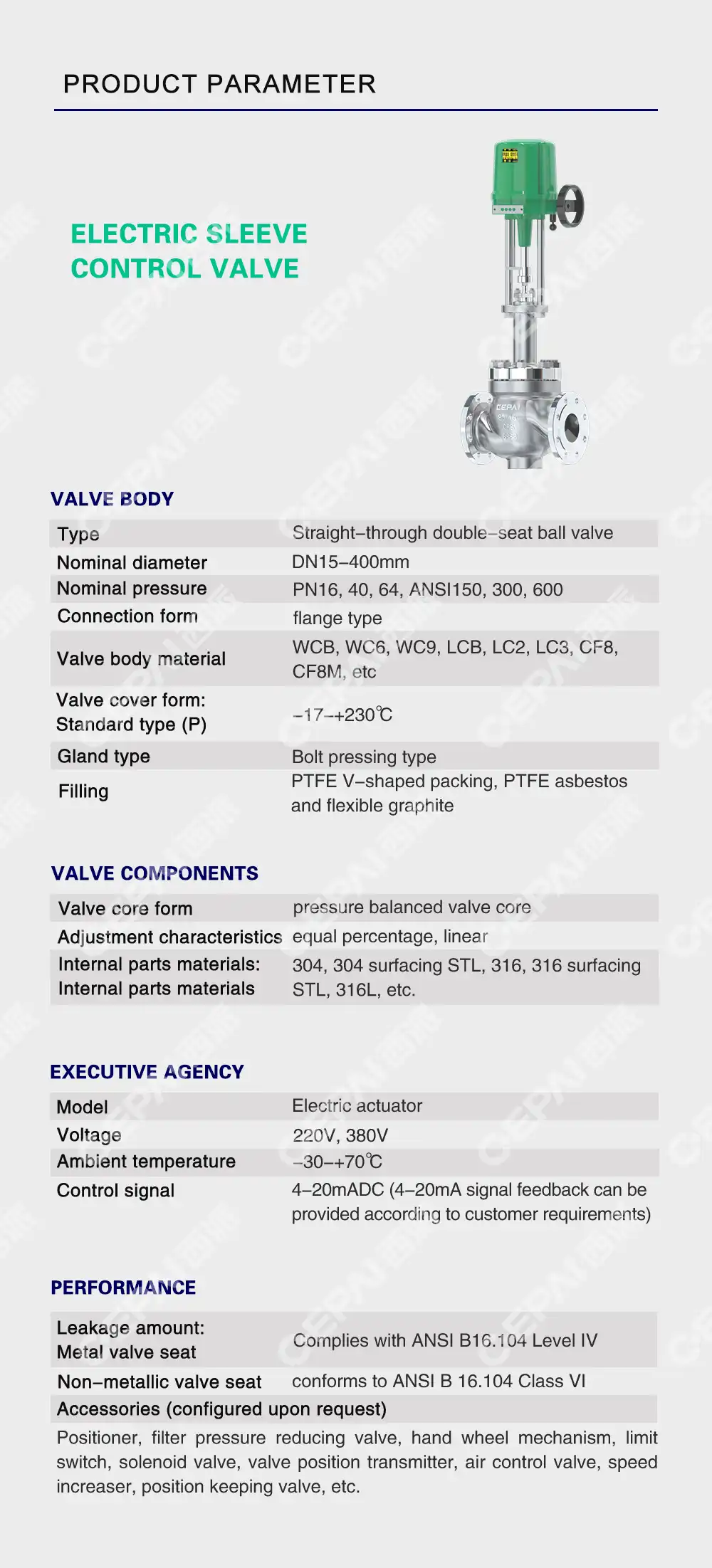

blog-1-1
