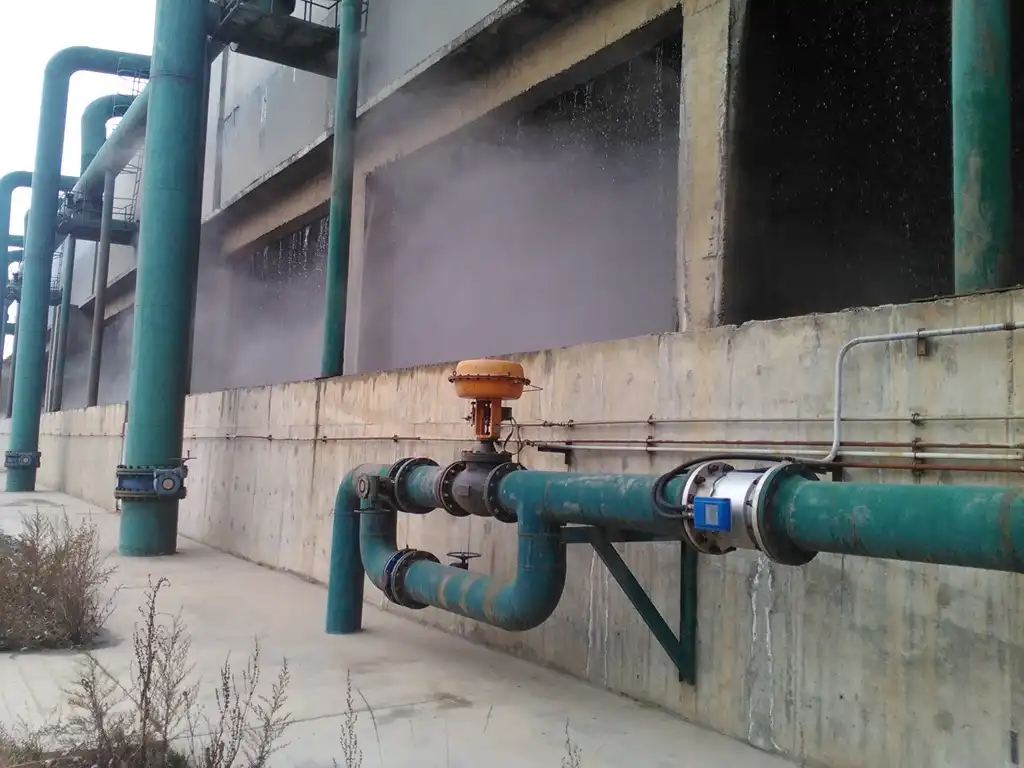

The Core Components of a Control Valve
Valve Body: The Foundation of Control
The valve body serves as the primary housing for all internal components of a control valve. Typically constructed from durable materials such as cast iron, stainless steel, or specialized alloys, the body is designed to withstand high pressures and temperatures. Its shape and size vary depending on the specific application, with globe, butterfly, and ball configurations being among the most common. The valve body also features inlet and outlet ports for fluid passage, as well as connections for actuators and other external components.
Trim: Precision Flow Control Elements
The trim components are responsible for regulating the flow of fluid through the control valve. These elements include the plug (or disc), seat, and cage. The plug is a movable part that controls the flow by changing its position relative to the seat. The seat provides a sealing surface for the plug when the control valve is closed. The cage, present in some designs, guides the plug and can incorporate additional flow characteristics. The trim's design significantly influences the control valve's performance, including its flow capacity, shutoff capability, and control precision.
Actuator: The Power Behind Movement
The actuator is the driving force that moves the valve's internal components to control flow. It can be pneumatic, hydraulic, or electric, depending on the application requirements. Pneumatic actuators use compressed air to generate movement, while hydraulic actuators employ pressurized fluid. Electric actuators utilize motors to provide precise control. The actuator connects to the valve stem, which in turn moves the plug or disc. The choice of actuator type depends on factors such as required force, speed of operation, and available power sources.
Advanced Features and Auxiliary Components
Positioners: Enhancing Control Accuracy
Positioners are intelligent devices that work in conjunction with the actuator to improve the valve's positioning accuracy. They receive a signal from the control system and adjust the actuator's output accordingly. This feedback mechanism ensures that the valve maintains the desired position, even in the presence of external disturbances or variations in supply pressure. Modern digital positioners offer advanced diagnostics and communication capabilities, enabling remote monitoring and predictive maintenance.
Stem Seals: Preventing Leakage and Contamination
Stem seals play a critical role in maintaining the integrity of the control valve system. These components prevent fluid leakage around the valve stem and protect internal parts from external contaminants. Common types of stem seals include packing, O-rings, and bellows seals. Packing consists of multiple layers of compressible material that form a tight seal around the stem. O-rings provide a simple yet effective sealing solution for lower-pressure applications. Bellows seals offer superior leak protection and are often used in applications involving hazardous or valuable fluids.
Bonnets: Providing Access and Protection
The bonnet is a removable cover that seals the top of the valve body and provides access to internal components for maintenance and repair. It also serves as a mounting point for the actuator and other external devices. Bonnets come in various designs, including bolted, welded, and pressure-seal types. The choice of bonnet depends on factors such as operating pressure, temperature, and maintenance requirements. Some bonnets incorporate additional features like extended stems for insulation or cooling fins for high-temperature applications.
Specialized Components for Enhanced Performance
Flow Characterization: Tailoring Valve Response
Flow characterization refers to the relationship between valve opening and flow rate. This characteristic can be modified using specially designed trim components or cages. Common flow characteristics include linear, equal percentage, and quick opening. Linear characteristics provide a proportional relationship between valve position and flow rate, suitable for many process control applications. Equal percentage characteristics offer more precise control at lower flow rates, making them ideal for processes with varying demands. Quick opening characteristics provide rapid changes in flow rate with small valve movements, useful for on-off or emergency shutdown scenarios.
Noise Reduction Technologies
In high-pressure or high-velocity applications, control valves can generate significant noise and vibration. To mitigate these issues, manufacturers have developed various noise reduction technologies. These include multi-stage trim designs that gradually reduce pressure across multiple orifices, attenuating noise-inducing turbulence. Other solutions involve specially designed cages or diffusers that break up flow streams and reduce overall sound levels. Implementing these technologies not only improves working conditions but also extends the life of the valve and surrounding equipment by reducing wear and fatigue.
Smart Valve Diagnostics and Monitoring
Modern control valves often incorporate smart diagnostics and monitoring capabilities. These features utilize sensors and advanced algorithms to continuously assess valve performance and health. Parameters such as stem position, actuator pressure, and cycle count are monitored in real-time. This data can be used to predict maintenance needs, optimize performance, and prevent unexpected failures. Some systems even allow for remote diagnostics and configuration, reducing downtime and improving overall system reliability. As industrial processes become increasingly automated, these smart features play a crucial role in maintaining efficient and safe operations.
Conclusion
Understanding the anatomy of a control valve is essential for anyone working with fluid handling systems. From the fundamental components like the valve body and trim to advanced features such as smart diagnostics, each element plays a vital role in ensuring precise and reliable flow control. By grasping the intricacies of these components and their interactions, engineers and technicians can make informed decisions about valve selection, maintenance, and optimization. As technology continues to advance, control valves will undoubtedly evolve, incorporating new materials, designs, and smart features to meet the ever-growing demands of modern industrial processes.
FAQs
What is the primary function of a control valve?
A control valve regulates the flow, pressure, or temperature of fluids in a system by adjusting the size of the flow passage.
How often should control valves be maintained?
Maintenance frequency depends on factors like usage, environment, and criticality. Generally, annual inspections and maintenance are recommended, with more frequent checks for critical applications.
Can control valves be retrofitted with smart diagnostics?
Yes, many existing control valves can be upgraded with smart positioners or monitoring systems to add diagnostic capabilities.
What are the most common materials used for valve bodies?
Common materials include cast iron, carbon steel, stainless steel, and specialized alloys for corrosive or high-temperature applications.
How do I choose the right control valve for my application?
Consider factors such as fluid type, flow rate, pressure, temperature, and required control precision when selecting a control valve. Consult with valve manufacturers or specialists for optimal selection.
