Understanding the Fundamentals of Control Valves
Control Valve Components and Their Functions

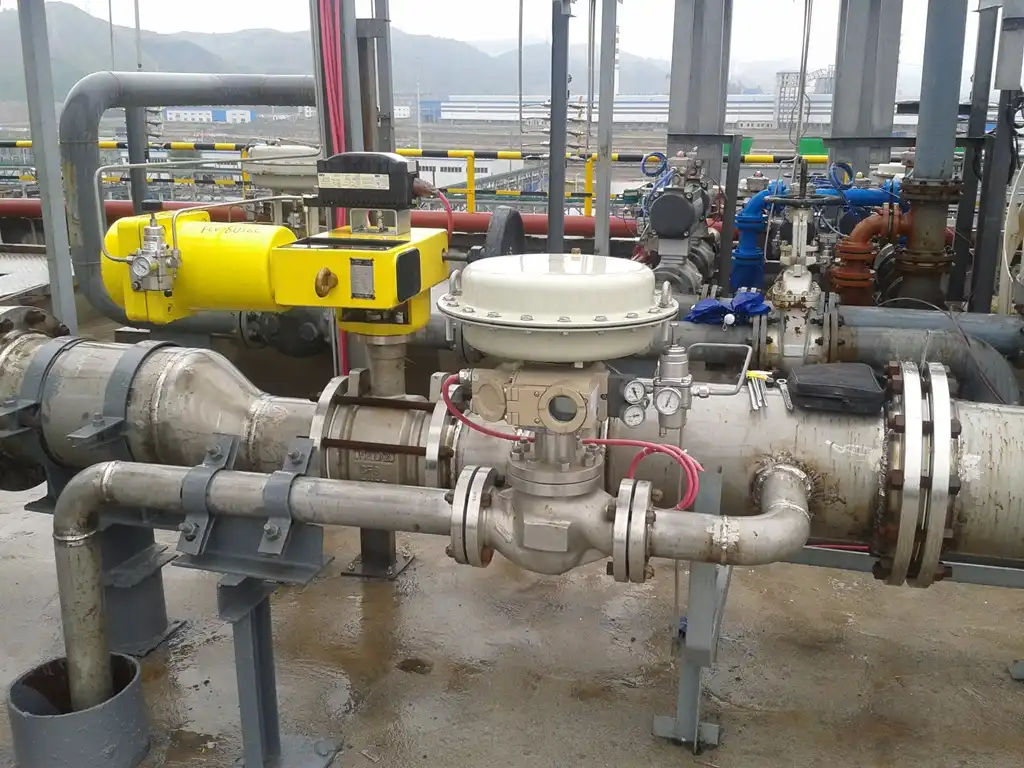

Control valves comprise several key components, each playing a vital role in their operation. The valve body houses the internal parts and provides the connection to the process piping. Within the body, the trim components, including the plug and seat, regulate the flow of fluid. The actuator, typically pneumatic or electric, supplies the force necessary to position the valve. A positioner ensures accurate valve positioning by comparing the desired position with the actual position and making adjustments as needed. These components work in harmony to achieve precise control over the process variable.
Types of Control Valves and Their Applications
Various types of control valves cater to different process requirements. Globe valves offer excellent control characteristics and are widely used in general applications. Butterfly valves provide quick operation and are suitable for large flow rates. Ball valves offer tight shutoff and are often used in on-off applications. Diaphragm valves excel in sanitary processes due to their cleanability. Each type has unique features that make them ideal for specific industries and processes, such as oil and gas, chemical processing, or water treatment.
Control Valve Characteristics and Sizing
The performance of a control valve is largely determined by its flow characteristics and proper sizing. Inherent flow characteristics describe how the flow rate changes with valve position under constant pressure conditions. Common characteristics include linear, equal percentage, and quick opening. The installed flow characteristic takes into account the effects of the process on valve performance. Proper valve sizing ensures the valve can handle the required flow rates and pressure drops while maintaining good control throughout its operating range. Undersized or oversized valves can lead to poor control and inefficient operation.
The Role of Control Valves in Process Control Loops
Integrating Control Valves into Feedback Control Systems
Control valves are integral to feedback control systems, where they act as the final control element. In a typical loop, a sensor measures the process variable, such as flow rate or pressure. This measurement is compared to the desired setpoint by a controller, which generates an output signal. The control valve receives this signal and adjusts its position accordingly, influencing the process variable. This continuous feedback loop allows the system to maintain the desired process conditions despite disturbances or changes in setpoint. The valve's ability to respond quickly and accurately to control signals is crucial for maintaining stable and efficient process control.
Control Valve Response and Dynamics
The dynamic behavior of control valves significantly impacts the overall performance of the control loop. Factors such as deadband, hysteresis, and resolution affect how the valve responds to input signals. Deadband refers to the range of input signals that produce no observable change in valve position. Hysteresis is the difference in valve position for the same input signal, depending on whether the signal is increasing or decreasing. Resolution is the smallest change in input signal that produces a detectable change in valve position. Understanding and minimizing these effects is essential for achieving precise control. Additionally, the speed of valve response, often characterized by terms like stroke time or step response, plays a crucial role in the system's ability to handle rapid changes or disturbances.
Tuning and Optimization of Control Valve Performance
Optimizing control valve performance involves careful tuning and calibration. This process includes adjusting parameters such as valve gain, deadband compensation, and positioner settings to achieve the desired response characteristics. Advanced techniques like adaptive tuning algorithms can help maintain optimal performance as process conditions change over time. Regular maintenance and diagnostics are also crucial for ensuring consistent valve performance. This may involve checking for wear, addressing issues like seat leakage or stem friction, and recalibrating sensors and positioners. By continually monitoring and optimizing control valve performance, operators can maximize process efficiency, reduce variability, and extend equipment life.
Advanced Concepts in Control Valve Technology
Smart Positioners and Valve Diagnostics
Modern control valve technology incorporates smart positioners that offer advanced diagnostic capabilities. These devices can monitor valve performance in real-time, collecting data on parameters such as cycle count, travel accumulation, and deviation from expected behavior. By analyzing this data, operators can predict potential failures, schedule preventive maintenance, and optimize valve performance. Some smart positioners even offer self-tuning features, automatically adjusting control parameters to maintain optimal performance as conditions change. This predictive maintenance approach can significantly reduce downtime and improve overall system reliability.
Digital Communication Protocols in Valve Control
The integration of digital communication protocols has revolutionized control valve operation and monitoring. Protocols such as HART, Foundation Fieldbus, and Profibus allow for bidirectional communication between the valve and control system. This enables remote configuration, calibration, and diagnostics, reducing the need for on-site interventions. Digital protocols also facilitate the transmission of rich diagnostic data, allowing for more sophisticated control strategies and improved asset management. The ability to integrate valve data with plant-wide control and asset management systems enhances overall process optimization and decision-making capabilities.
Energy Efficiency and Sustainability in Control Valve Design
As industries focus on reducing energy consumption and improving sustainability, control valve design has evolved to meet these challenges. Low-emission packing systems help minimize fugitive emissions, contributing to environmental protection. Energy-efficient actuator designs reduce the power required for valve operation. Advanced trim designs, such as those featuring noise reduction and anti-cavitation properties, not only improve process efficiency but also extend valve life and reduce maintenance requirements. Some modern control valves even incorporate energy harvesting technologies, using process fluid flow to generate power for valve accessories, further reducing the overall energy footprint of the control system.
Conclusion
Control valves play a pivotal role in process control loops, serving as the critical link between control systems and physical processes. Their ability to precisely regulate flow and pressure is fundamental to achieving efficient and stable operation across various industries. As technology continues to advance, control valves are becoming smarter, more efficient, and better integrated into overall process control strategies. Understanding the principles of control valve operation, selection, and optimization is essential for engineers and operators seeking to maximize process performance and reliability in today's complex industrial environments.
FAQs
How often should control valves be maintained?
Maintenance frequency depends on factors like process conditions and valve type, but generally, annual inspections are recommended.
Can control valves be used in hazardous environments?
Yes, specially designed control valves with appropriate certifications are available for hazardous area applications.
What's the difference between a control valve and a regulator?
Control valves require external power and signals to operate, while regulators are self-contained devices that maintain a set pressure or flow rate.
