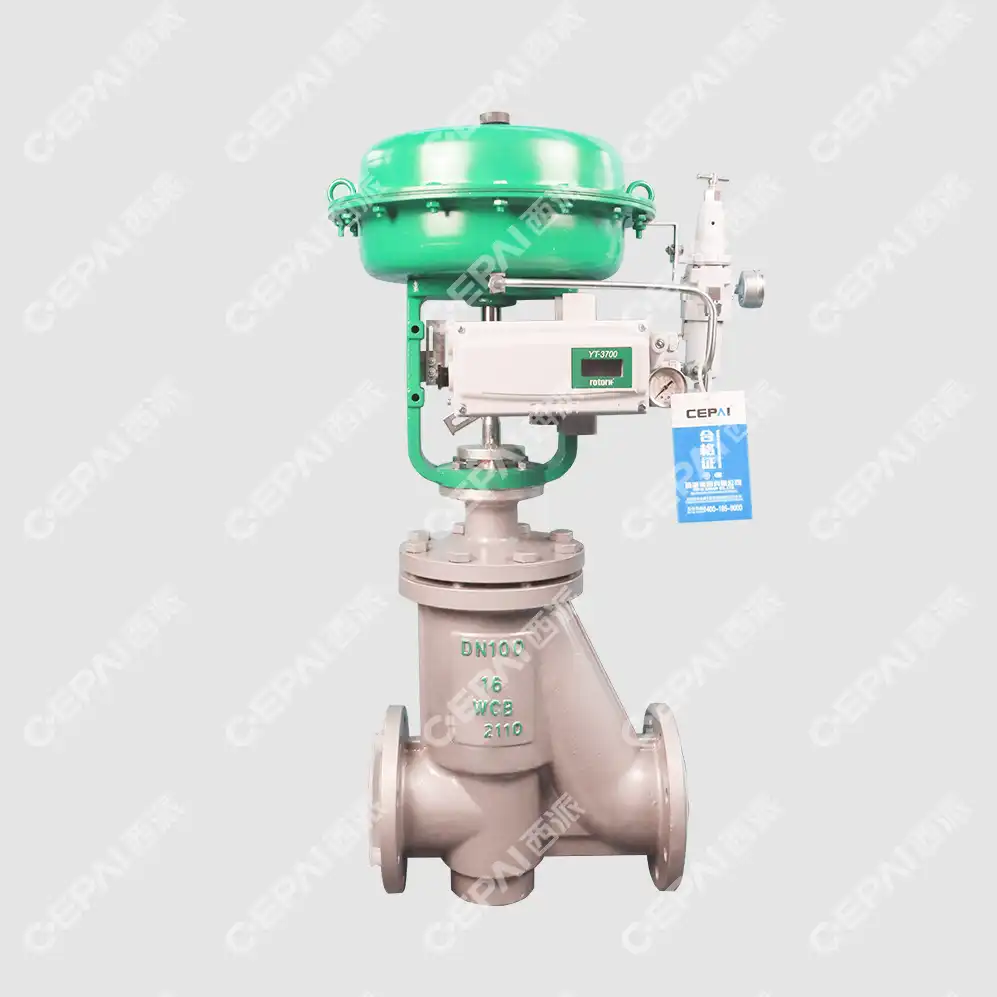

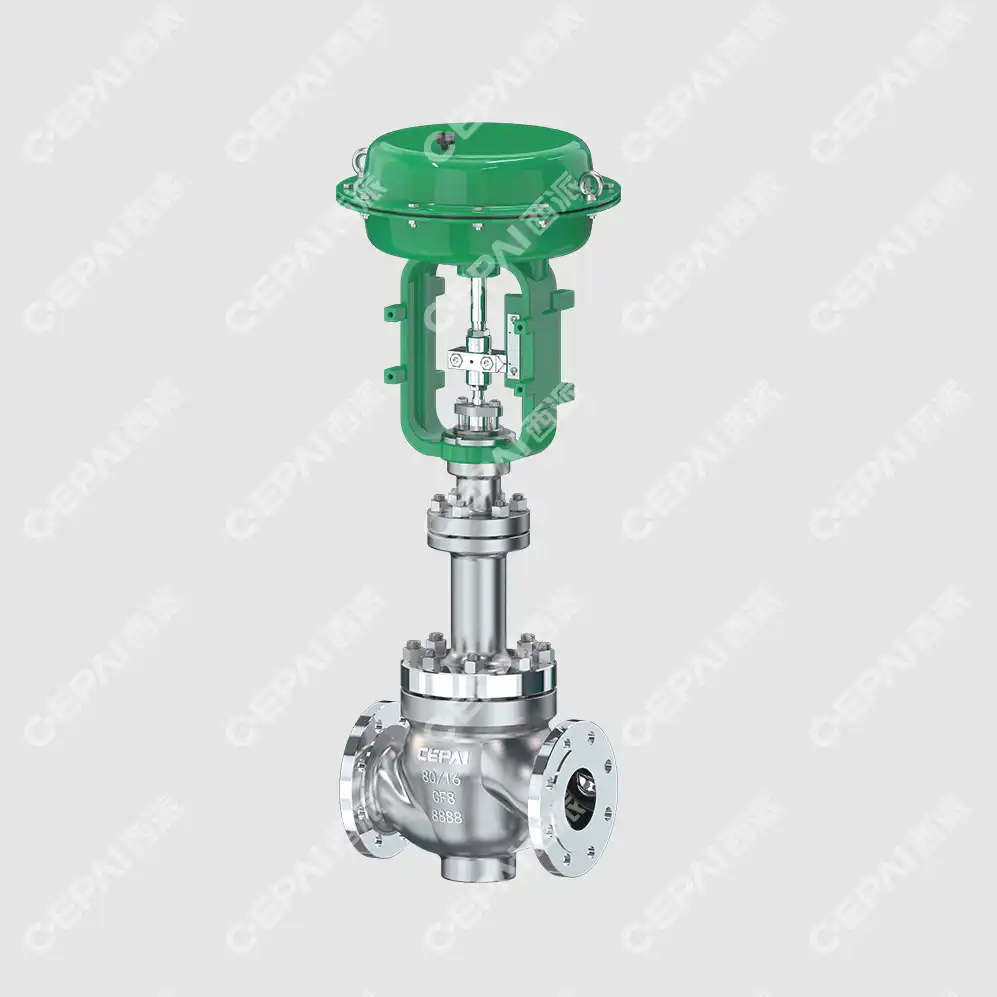

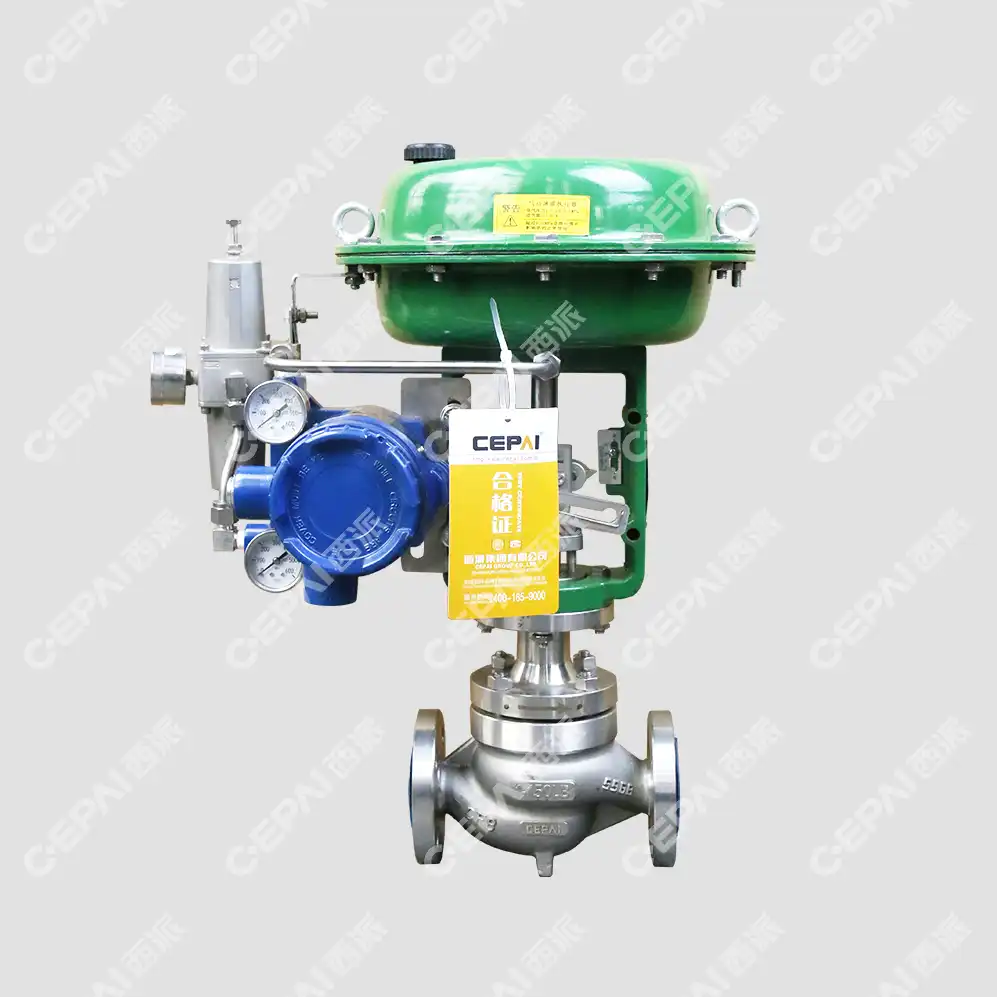

Common Causes of Pneumatic Valve Actuation Failures
Air Supply Issues
Inadequate air supply is a prevalent cause of pneumatic valve actuation failures. Insufficient pressure can prevent the valve from fully opening or closing, leading to improper flow control. Air quality also plays a crucial role; contaminated air can introduce moisture, particles, or oil into the system, causing component wear and malfunction. Regular inspection of air compressors, filters, and pressure regulators is essential to maintain optimal air supply conditions. Implementing proper air treatment systems, such as desiccant dryers and coalescent filters, can significantly improve air quality and extend the lifespan of pneumatic components.
Mechanical Wear and Tear
Over time, mechanical components of pneumatic valves experience wear due to repeated actuation cycles. Seals, O-rings, and valve seats are particularly susceptible to degradation, which can result in leaks and reduced performance. Actuator springs may lose tension, affecting the valve's ability to return to its fail-safe position. Regular inspection of these components is crucial for early detection of wear. Implementing a preventive maintenance schedule that includes periodic replacement of wear parts can help avoid unexpected failures. Additionally, selecting appropriate materials for specific operating conditions, such as high-temperature or corrosive environments, can enhance the longevity of mechanical components.
Electrical Control Problems
Electrical issues can significantly impact pneumatic valve operation, especially in systems with solenoid-controlled valves. Faulty wiring, loose connections, or damaged solenoids can lead to erratic valve behavior or complete failure. Electromagnetic interference (EMI) from nearby equipment may also disrupt control signals. Regular inspection of electrical components, including solenoid coils and wiring harnesses, is essential for maintaining system integrity. Implementing proper grounding techniques and using shielded cables can minimize EMI-related issues. For critical applications, redundant control systems or fail-safe electrical designs may be necessary to ensure continued operation in the event of an electrical failure.
Diagnostic Techniques for Pneumatic Valve Troubleshooting
Visual Inspection and Physical Checks
Visual inspection forms the foundation of effective pneumatic valve troubleshooting. This process involves carefully examining the valve assembly for signs of wear, damage, or misalignment. Look for obvious issues such as loose fittings, cracked housings, or visible leaks. Pay close attention to actuator components, checking for proper alignment and freedom of movement. Inspect seals and gaskets for signs of deterioration or improper seating. Physical checks include manually actuating the valve (when safe to do so) to assess its operation and feeling for any unusual resistance or sticking points. This hands-on approach can reveal problems that may not be immediately apparent through visual inspection alone, such as internal binding or excessive friction in moving parts.
Pressure and Flow Testing
Pressure and flow testing are crucial diagnostic techniques for evaluating pneumatic valve performance. Using calibrated gauges or flow meters, measure the inlet and outlet pressures across the valve to ensure they meet specified operating parameters. Flow testing can reveal issues with valve seating, internal leakage, or restrictions in the flow path. For proportional control valves, step response tests can be performed to assess the valve's ability to accurately respond to control signals. Leakage tests, conducted by pressurizing the valve and monitoring pressure decay over time, can identify internal or external leaks that may not be visible during standard operation. These quantitative measurements provide valuable data for comparing valve performance against manufacturer specifications and historical trends.
Electrical and Signal Analysis
For pneumatic valves with electrical controls, comprehensive troubleshooting must include electrical and signal analysis. Use multimeters to check for proper voltage and current at solenoid terminals, ensuring they match the specified values. Oscilloscopes can be employed to analyze control signals, verifying proper waveforms and timing sequences. In systems with digital communication protocols, such as HART or Fieldbus, specialized diagnostic tools can interrogate valve positioners or smart solenoids to retrieve detailed performance data and error logs. Signal injection tests, where known good signals are applied to the valve controls, can help isolate issues between the control system and the valve itself. For complex systems, consider using portable data loggers to capture long-term performance data, enabling trend analysis and predictive maintenance strategies.
Preventive Maintenance Strategies for Pneumatic Valve Systems
Implementing Regular Inspection Schedules
Establishing a comprehensive inspection schedule is paramount for maintaining the reliability of pneumatic valve systems. These schedules should be tailored to the specific valve types, operating conditions, and criticality of the application. Visual inspections can be performed frequently, often as part of daily or weekly walkthroughs, to catch obvious issues like external leaks or unusual noises. More in-depth inspections, involving partial disassembly and internal component checks, may be scheduled on a monthly or quarterly basis. During these inspections, technicians should document their findings, including the condition of seals, actuator components, and control elements. Trending this data over time can reveal gradual deterioration and inform predictive maintenance decisions. Additionally, consider implementing condition-based monitoring techniques, such as vibration analysis or thermography, to supplement regular inspections and provide early warning of developing issues.
Proper Lubrication and Cleaning Practices
Adequate lubrication is essential for the smooth operation and longevity of pneumatic valve components. Develop a lubrication schedule based on manufacturer recommendations and operating conditions. Use lubricants specifically formulated for pneumatic applications, taking care not to over-lubricate, which can attract contaminants and impede valve function. Regular cleaning of valve internals and associated piping is crucial for removing built-up debris and preventing contamination-related failures. For valves in harsh environments, consider implementing purge systems or protective enclosures to minimize exposure to corrosive elements or particulates. When cleaning, use appropriate solvents or cleaning agents that are compatible with valve materials and seals. Implement proper procedures for reassembly after cleaning, including torque specifications for fasteners and verification of proper alignment and seating of components.
Training and Documentation Best Practices
Effective maintenance of pneumatic valve systems relies heavily on well-trained personnel and comprehensive documentation. Develop robust training programs that cover not only basic maintenance procedures but also troubleshooting techniques and system-specific knowledge. Include hands-on training sessions where technicians can practice assembly, disassembly, and adjustment of various valve types. Maintain up-to-date documentation, including detailed maintenance manuals, parts catalogs, and technical specifications for all pneumatic valves in use. Implement a system for recording maintenance activities, including repairs, replacements, and adjustments. This historical data is invaluable for trend analysis and future troubleshooting efforts. Consider implementing digital asset management systems that can provide instant access to valve documentation, maintenance histories, and spare parts information. Regular review and updating of maintenance procedures ensure that best practices evolve with technological advancements and lessons learned from field experiences.
Conclusion
Effective troubleshooting of pneumatic valve actuation failures requires a multifaceted approach combining technical knowledge, systematic diagnostics, and preventive maintenance strategies. By addressing common causes such as air supply issues, mechanical wear, and electrical problems, and employing advanced diagnostic techniques, operators can significantly reduce downtime and improve system reliability. Implementing robust preventive maintenance practices, including regular inspections, proper lubrication, and comprehensive training programs, is crucial for long-term success. As pneumatic valve technology continues to evolve, staying informed about the latest developments and continuously refining maintenance strategies will ensure optimal performance and longevity of these critical components in industrial processes.
