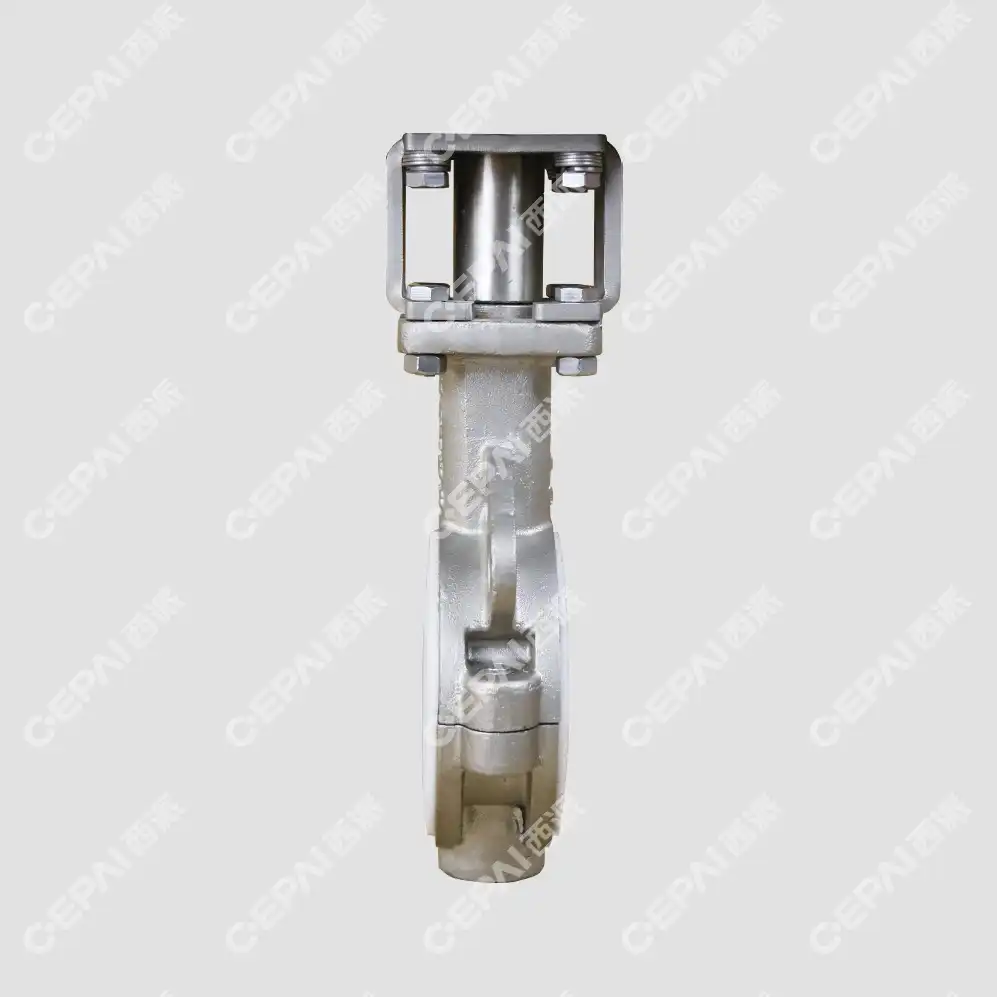

Common Issues with Pneumatic Butterfly Valves
Leakage Problems
One of the most frequent issues encountered with pneumatic butterfly valves is leakage. This can occur at various points, including the valve seat, stem, or body. Leaks not only compromise the valve's effectiveness but can also lead to product loss, contamination, or safety hazards. To address leakage problems, start by visually inspecting the valve for any visible signs of wear or damage. Check the valve seat for proper alignment and ensure that the disc is making full contact with the seat when closed. Examine the stem packing for signs of deterioration or looseness, and tighten or replace as necessary. If the leak persists, it may be necessary to disassemble the valve for a more thorough inspection and potential replacement of worn components.
Actuator Malfunctions
The pneumatic actuator is a critical component of the butterfly valve system, responsible for opening and closing the valve. Actuator malfunctions can manifest as slow operation, incomplete valve closure, or failure to operate altogether. Begin troubleshooting by checking the air supply to ensure adequate pressure is reaching the actuator. Inspect air lines for leaks, kinks, or blockages that may impede proper operation. Verify that solenoid valves are functioning correctly and that electrical connections are secure. If these checks don't resolve the issue, examine the actuator diaphragm or piston for damage or wear. In some cases, the actuator may require lubrication or rebuilding to restore proper functionality.
Control Signal Issues
Pneumatic butterfly valves often rely on control signals for precise operation. Problems with these signals can lead to erratic valve behavior or complete failure to respond. Begin by verifying the integrity of the control signal at its source, ensuring that the correct commands are being sent. Check all wiring connections for loose or corroded terminals, and inspect signal cables for damage. If using a positioner, confirm that it is properly calibrated and functioning as intended. In some instances, electromagnetic interference may be affecting the control signal, necessitating the use of shielded cables or repositioning of nearby electrical equipment. By systematically addressing these potential issues, you can restore reliable control over your pneumatic butterfly valve.
Step-by-Step Troubleshooting Process
Initial Assessment and Safety Precautions
Before diving into the troubleshooting process, it's crucial to conduct an initial assessment and take necessary safety precautions. Begin by reviewing the valve's documentation, including its specifications, operating parameters, and maintenance history. This information will provide valuable context for identifying potential issues. Next, ensure that the work area is safe and that all relevant safety protocols are in place. This may include de-energizing electrical systems, isolating pneumatic lines, and using appropriate personal protective equipment (PPE). Remember to communicate with other personnel in the area about the maintenance activities to prevent any accidental valve operation during troubleshooting.
Systematic Component Inspection
Once safety measures are in place, proceed with a systematic inspection of the pneumatic butterfly valve components. Start with the valve body, checking for any visible damage, corrosion, or material buildup that could affect operation. Examine the disc and seat for signs of wear, misalignment, or debris accumulation. Move on to the stem and packing area, looking for leaks or excessive play in the stem movement. Inspect the actuator, paying close attention to its mounting, linkages, and any visible wear on moving parts. Don't forget to check associated components such as limit switches, positioners, and solenoid valves. Document your findings thoroughly, as this information will be valuable for diagnosis and future maintenance planning.
Diagnostic Testing and Analysis
After completing the visual inspection, proceed with diagnostic testing to pinpoint the root cause of any issues. Begin by cycling the valve through its full range of motion, observing for any unusual noises, hesitations, or incomplete travel. Use appropriate testing equipment to measure actuator air pressure, control signal integrity, and valve position feedback. If possible, perform leak tests using soap solution or specialized leak detection equipment to identify any escaping media. For more complex issues, consider using advanced diagnostic tools such as vibration analysis or thermal imaging to detect hidden problems. Analyze the collected data in conjunction with your visual inspection findings to form a comprehensive understanding of the valve's condition and any underlying issues affecting its performance.
Advanced Troubleshooting Techniques
Root Cause Analysis
When dealing with persistent or recurring issues in pneumatic butterfly valves, conducting a thorough root cause analysis is essential. This process involves digging deeper than surface-level symptoms to identify the fundamental reasons behind valve failures or malfunctions. Start by gathering all available data, including maintenance records, operational logs, and environmental factors that may impact valve performance. Use structured problem-solving methodologies such as the "5 Whys" technique or fishbone diagrams to systematically explore potential causes. Consider factors such as material compatibility, process conditions, and operational practices that might contribute to the problem. By identifying the root cause, you can implement more effective, long-term solutions rather than repeatedly addressing symptoms.
Predictive Maintenance Strategies
Implementing predictive maintenance strategies can significantly reduce unexpected downtime and extend the lifespan of pneumatic butterfly valves. Advanced monitoring techniques, such as continuous vibration analysis or acoustic emissions monitoring, can detect early signs of wear or impending failures before they escalate into major issues. Consider implementing smart valve positioners that provide real-time diagnostic data, allowing for proactive maintenance based on actual valve condition rather than fixed time intervals. Machine learning algorithms can be employed to analyze historical data and predict potential failures, enabling maintenance teams to schedule interventions at optimal times. By adopting these predictive maintenance approaches, you can optimize valve performance, reduce maintenance costs, and improve overall process reliability.
Performance Optimization
Beyond troubleshooting immediate issues, focusing on performance optimization can yield significant benefits for pneumatic butterfly valve operations. This involves fine-tuning valve parameters to achieve optimal flow characteristics, minimize wear, and improve energy efficiency. Start by reviewing the valve's sizing and specifications to ensure they are appropriate for the current process conditions. Analyze flow patterns and consider implementing advanced trim designs or control algorithms to enhance valve control precision. Investigate opportunities to reduce actuator air consumption through the use of volume boosters or more efficient actuator designs. Additionally, explore the potential benefits of upgrading to smart valve technology, which can provide enhanced control capabilities, self-diagnostics, and integration with plant-wide control systems. By continuously seeking ways to optimize valve performance, you can achieve better process control, reduced energy costs, and extended equipment life.
Conclusion
Mastering the art of troubleshooting pneumatic butterfly valves is essential for maintaining efficient and reliable operations in various industrial settings. By following this comprehensive step-by-step guide, you can effectively identify, diagnose, and resolve common issues that affect these critical components. Remember that successful troubleshooting requires a combination of systematic approach, technical knowledge, and practical experience. Continuously updating your skills and staying informed about the latest advancements in valve technology will ensure you're well-equipped to handle any challenges that arise in your pneumatic butterfly valve systems.
