Design and Construction: Understanding the Unique Features

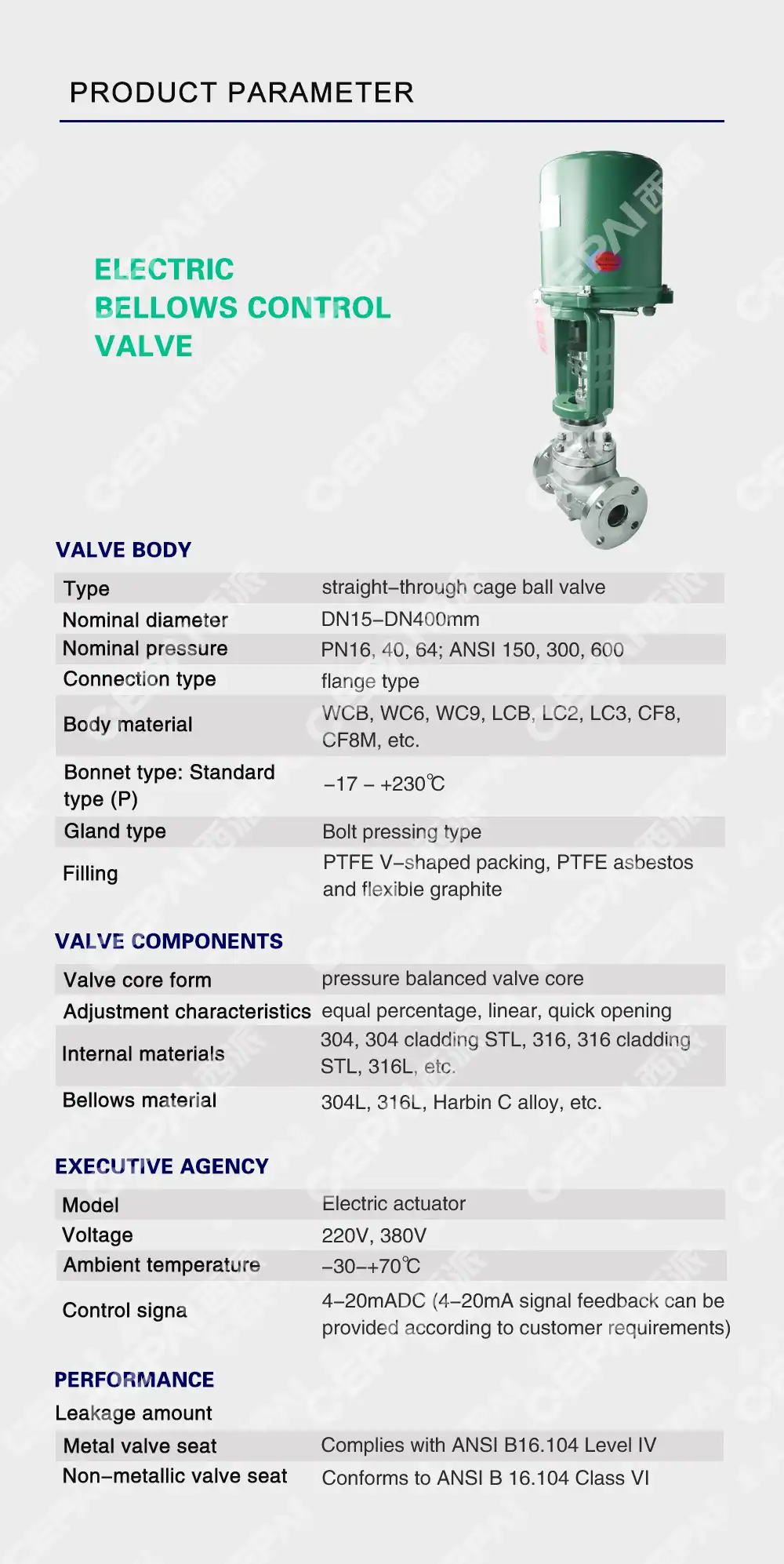

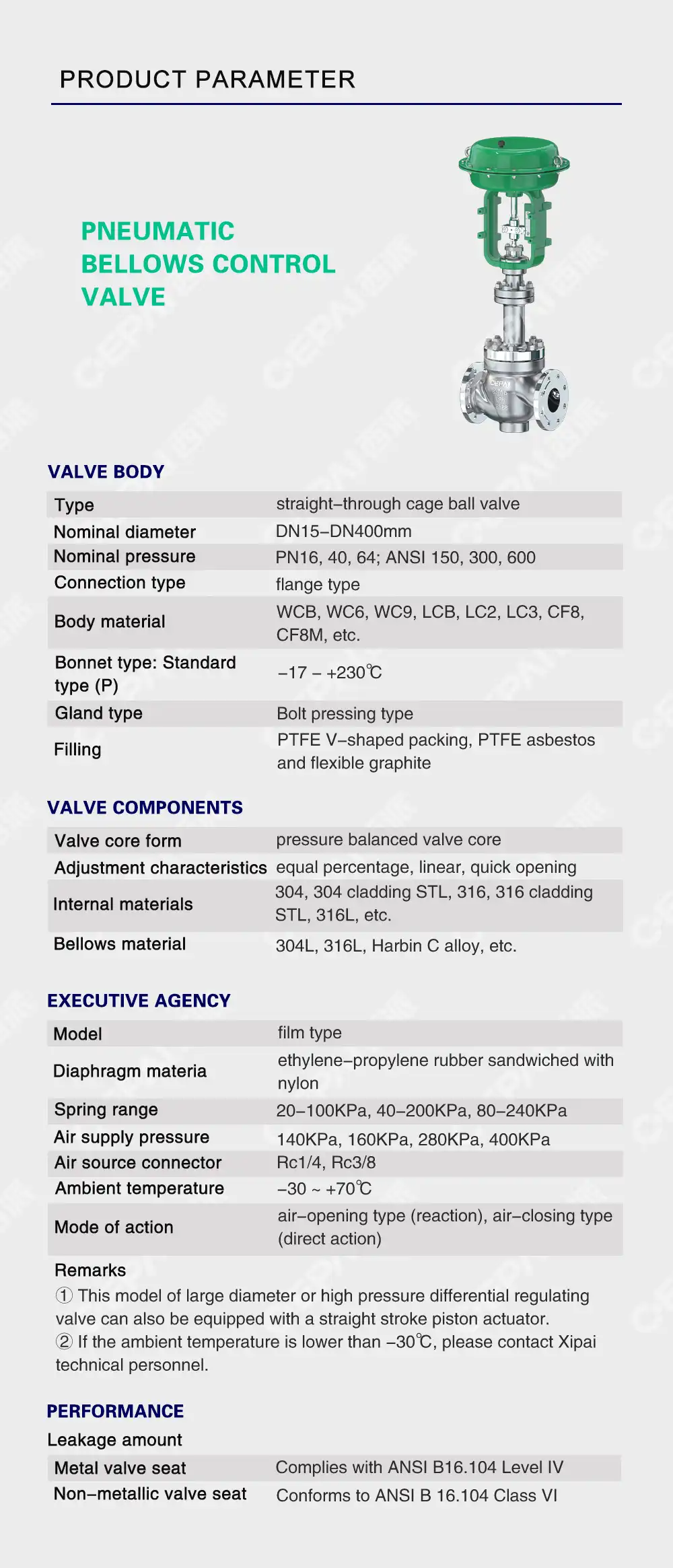

Bellows Control Valve Architecture
Bellows control valves are engineered with a distinctive design that sets them apart from conventional control valves. The hallmark feature of these valves is the incorporation of a flexible, accordion-like structure known as the bellows. This component is typically fabricated from resilient materials such as stainless steel or specialized alloys, allowing it to expand and contract in response to pressure changes.
The bellows serves as a dynamic seal, effectively isolating the valve stem from the process fluid. This innovative design eliminates the need for traditional packing materials, which are commonly used in standard control valves to prevent leakage around the stem. By replacing conventional packing with the bellows seal, these valves offer superior leak prevention and reduced maintenance requirements.
Another notable aspect of bellows control valve construction is the integration of a balanced trim design. This feature helps to minimize the effects of varying inlet pressures on valve performance, ensuring more consistent and accurate flow control across a wide range of operating conditions.
Traditional Control Valve Structure
In contrast to bellows control valves, traditional control valves employ a more conventional design that has been widely used across various industries for decades. These valves typically consist of a body, bonnet, stem, and plug or ball, depending on the specific type of control valve.
The sealing mechanism in traditional control valves relies on packing materials, usually in the form of graphite or PTFE rings, which are compressed around the valve stem to prevent leakage. While effective, this approach may require periodic adjustment and replacement of the packing to maintain optimal sealing performance.
Traditional control valves often incorporate various trim designs, such as cage-guided or contoured plugs, to achieve specific flow characteristics. These design elements allow for customization of the valve's performance to suit particular application requirements, offering flexibility in terms of flow control and pressure drop management.
Material Selection and Compatibility
The choice of materials used in both bellows control valves and traditional control valves plays a crucial role in their performance and longevity. Bellows control valves often utilize high-grade alloys for the bellows component to ensure durability and resistance to corrosion and fatigue. The body and trim materials are selected based on the specific process fluid and operating conditions.
Traditional control valves offer a wider range of material options for body, trim, and sealing components. This versatility allows for greater customization to meet the demands of diverse applications across various industries. Common materials include stainless steel, carbon steel, and specialized alloys for corrosive or high-temperature environments.
Functionality and Performance: Evaluating Operational Characteristics
Leak Prevention and Stem Sealing
One of the primary advantages of bellows control valves lies in their superior leak prevention capabilities. The bellows seal provides a hermetic barrier between the process fluid and the external environment, effectively eliminating the potential for stem leakage. This feature is particularly valuable in applications involving hazardous or expensive fluids, where even minor leaks can have significant consequences.
The absence of traditional packing in bellows control valves also reduces friction on the valve stem, resulting in smoother operation and potentially improved control precision. This reduction in friction can lead to enhanced responsiveness and more accurate flow modulation, especially in applications requiring fine control.
Traditional control valves, while generally effective, may be more prone to stem leakage over time due to wear and degradation of the packing materials. Regular maintenance and periodic replacement of packing components are often necessary to maintain optimal sealing performance in these valves.
Response Time and Control Accuracy
Bellows control valves often exhibit excellent response times due to their unique design. The flexible nature of the bellows allows for quick adjustments to pressure changes, resulting in rapid valve positioning. This characteristic can be particularly beneficial in processes that require fast and precise flow control.
The balanced trim design commonly found in bellows control valves contributes to improved control accuracy by minimizing the effects of varying inlet pressures. This feature helps maintain consistent valve performance across a range of operating conditions, potentially reducing the need for frequent recalibration or adjustment.
Traditional control valves, while capable of providing accurate control, may be more susceptible to variations in performance due to changes in process conditions. The effectiveness of their control depends largely on the specific trim design and the quality of the actuator system employed.
Maintenance Requirements and Longevity
Bellows control valves typically require less frequent maintenance compared to their traditional counterparts. The elimination of packing materials reduces the need for regular adjustments and replacements, potentially lowering overall maintenance costs and minimizing process downtime.
However, it's important to note that in the event of bellows failure, repair or replacement can be more complex and costly compared to replacing packing in a traditional control valve. Proper selection of bellows materials and regular inspection are crucial to maximizing the longevity of these valves.
Traditional control valves generally offer easier maintenance procedures, with packing adjustments and replacements being relatively straightforward tasks. The availability of standardized parts and repair kits for these valves can contribute to reduced downtime during maintenance operations.
Application Suitability: Identifying Ideal Use Cases
High-Purity and Sensitive Processes
Bellows control valves excel in applications where maintaining process purity is paramount. The hermetic seal provided by the bellows effectively prevents contamination of the process fluid by external elements or lubricants. This makes these valves particularly suitable for industries such as pharmaceuticals, semiconductor manufacturing, and food processing, where even trace contamination can have severe consequences.
In addition to purity considerations, bellows control valves are often the preferred choice for handling sensitive or reactive materials. The absence of packing materials eliminates the risk of chemical interactions between the process fluid and sealing components, ensuring the integrity of the fluid and the valve itself.
Traditional control valves, while versatile, may not be the optimal choice for ultra-high purity applications due to the potential for minute leakage or contamination from packing materials. However, they remain suitable for a wide range of standard industrial processes where absolute purity is not a critical factor.
Extreme Temperature and Pressure Conditions
Bellows control valves demonstrate exceptional performance in applications involving extreme temperatures or pressures. The bellows design allows for effective operation in cryogenic conditions or high-temperature environments where traditional packing materials might fail or degrade rapidly.
The ability of bellows to absorb thermal expansion and contraction makes these valves particularly valuable in systems subject to significant temperature fluctuations. This characteristic helps maintain consistent sealing performance and reduces the risk of leakage due to thermal cycling.
While traditional control valves can be engineered to handle a wide range of temperature and pressure conditions, they may require more frequent maintenance or specialized materials to achieve comparable performance in extreme environments.
Space Constraints and Installation Considerations
The compact design of many bellows control valves can be advantageous in applications where space is limited. The elimination of external packing glands often results in a more streamlined valve profile, allowing for installation in tight spaces or crowded piping systems.
Additionally, the reduced stem friction in bellows control valves can translate to lower actuator force requirements. This may allow for the use of smaller, more compact actuators, further contributing to space savings in valve installations.
Traditional control valves, while available in various configurations, may require additional clearance for maintenance activities such as packing adjustments. However, their widespread use and standardized dimensions often make them easier to integrate into existing systems or replace in retrofit applications.
Conclusion
In conclusion, the choice between bellows control valves and traditional control valves depends on the specific requirements of the application. Bellows control valves offer superior leak prevention, excellent performance in extreme conditions, and benefits in high-purity processes. Traditional control valves provide versatility, ease of maintenance, and a wide range of customization options. Understanding these key differences enables engineers and plant operators to make informed decisions, optimizing their flow control systems for efficiency, reliability, and long-term performance.
