Types of Control Valves and Their Specific Applications

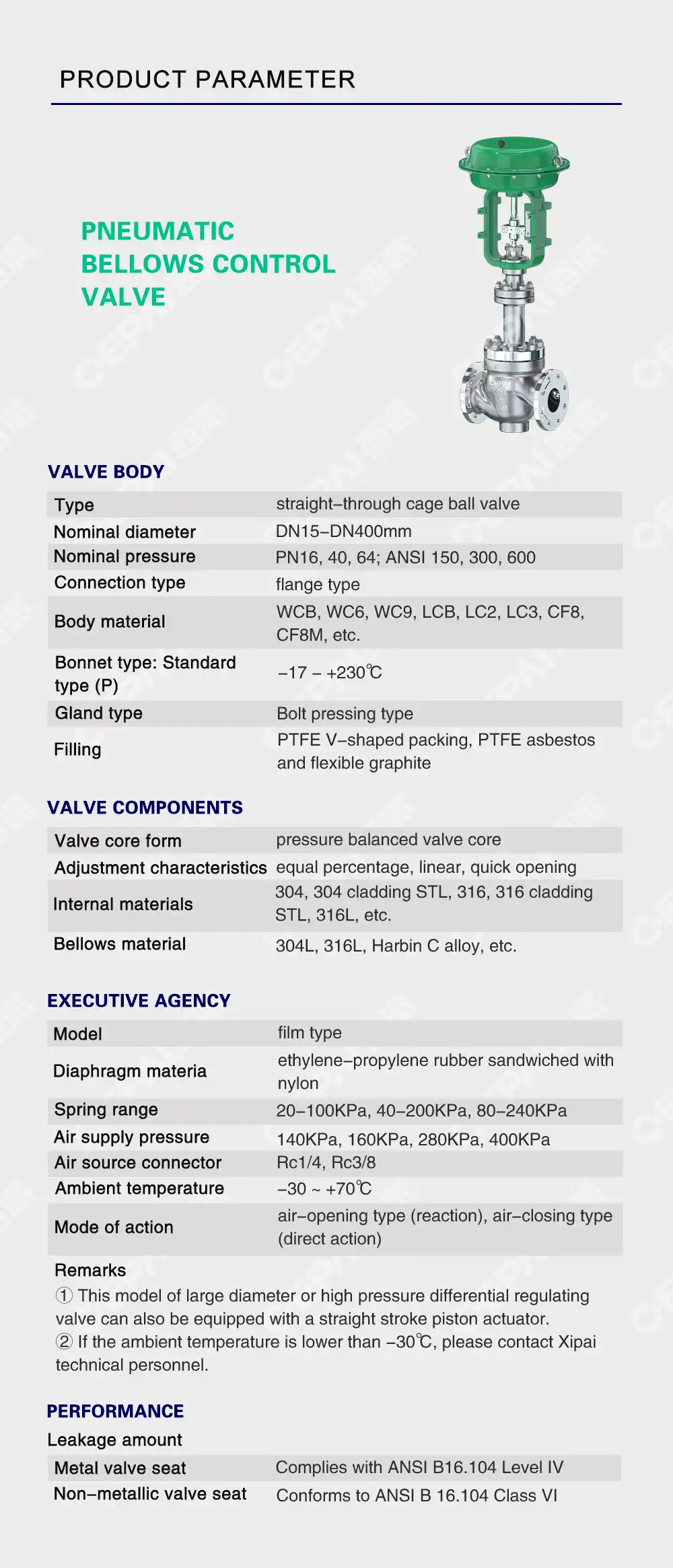

Globe Valves: Precision Flow Control in Various Industries
Globe valves are widely used in process control applications due to their excellent throttling capabilities. These valves feature a plug-like disc that moves perpendicular to the flow, allowing for precise flow regulation. In the oil and gas industry, globe valves are often employed in wellhead control systems to manage the flow of crude oil and natural gas. Their ability to handle high pressures and temperatures makes them ideal for this demanding environment. Additionally, globe valves find applications in power plants for boiler feedwater control and in chemical processing plants for precise reactant flow management.
Butterfly Valves: Efficient Flow Control in Large Pipelines
Butterfly control valves are known for their compact design and quick operation, making them suitable for applications requiring rapid flow control in large diameter pipelines. These control valves consist of a disc that rotates on a shaft to regulate flow. In water treatment facilities, butterfly control valves are commonly used to control the flow of water through various treatment stages. The oil and gas industry also utilizes butterfly control valves in pipeline systems for isolating sections during maintenance or emergencies. Their low-pressure drop characteristics and ability to handle high flow rates make them an excellent choice for these applications.
Ball Valves: Versatile Control in High-Pressure Systems
Ball valves are versatile control devices that offer excellent sealing properties and low-torque operation. These valves use a spherical disc with a bore to control flow, providing quick on-off functionality and good throttling capabilities. In the petrochemical industry, ball valves are frequently used for controlling the flow of various chemicals and gases under high-pressure conditions. Their ability to provide tight shutoff and handle abrasive media makes them suitable for demanding applications. Ball valves also find use in natural gas distribution systems, where they help regulate gas flow and pressure in pipelines.
Key Factors in Selecting Control Valves for Process Applications
Process Parameters: Pressure, Temperature, and Flow Characteristics
When selecting control valves for specific process applications, it's crucial to consider the operating conditions they will encounter. Pressure ratings are a primary concern, as valves must withstand the maximum system pressure without failure. Temperature considerations are equally important, as extreme heat or cold can affect valve materials and performance. Flow characteristics, such as the required flow rate and pressure drop across the valve, also play a significant role in valve selection. Engineers must analyze these parameters to choose valves that can maintain precise control and reliability under the given process conditions.
Material Compatibility: Ensuring Longevity and Performance
The selection of appropriate materials for control valve components is critical to ensure long-term performance and reliability. Valve body, trim, and sealing materials must be compatible with the process fluid to prevent corrosion, erosion, or chemical degradation. For instance, in oil and gas applications, valves may need to withstand corrosive substances like hydrogen sulfide, requiring the use of special alloys or coatings. In chemical processing, valves might encounter aggressive chemicals, necessitating the use of corrosion-resistant materials like stainless steel or exotic alloys. Proper material selection not only extends valve life but also maintains the integrity of the process control system.
Valve Sizing and Capacity: Optimizing Flow Control
Proper sizing of control valves is essential for achieving optimal flow control in process applications. Undersized valves may not provide sufficient flow capacity, leading to process inefficiencies or bottlenecks. Conversely, oversized valves can result in poor control resolution and unnecessary costs. Valve capacity is typically expressed in terms of flow coefficient (Cv), which relates the flow rate to the pressure drop across the valve. Engineers must carefully calculate the required Cv based on process conditions and select a valve that offers the appropriate rangeability to handle both normal operating conditions and potential process variations.
Advanced Features and Technologies in Modern Control Valves
Smart Positioners: Enhancing Valve Performance and Diagnostics
Modern control valves often incorporate smart positioners, which significantly enhance valve performance and provide valuable diagnostic capabilities. These advanced devices use microprocessor-based technology to accurately control valve position and monitor various parameters. Smart positioners can perform self-calibration, reducing commissioning time and ensuring optimal valve response. They also offer advanced diagnostic features, such as valve signature analysis, which can detect issues like excessive friction or seat wear before they lead to failure. By providing real-time data on valve health and performance, smart positioners enable predictive maintenance strategies, minimizing downtime and improving overall process reliability.
Digital Communication Protocols: Integrating Valves with Process Control Systems
The integration of control valves with process control systems has been revolutionized by digital communication protocols. Technologies such as HART (Highway Addressable Remote Transducer), Foundation Fieldbus, and Profibus allow for seamless communication between valves and control systems. These protocols enable bidirectional data exchange, providing operators with detailed information about valve status, position, and performance. Digital communication also facilitates remote configuration and tuning of valves, reducing the need for manual intervention. By leveraging these technologies, plant operators can achieve more precise control, improved troubleshooting capabilities, and enhanced asset management across their valve networks.
Advanced Materials and Coatings: Improving Durability and Efficiency
Continuous advancements in materials science have led to the development of innovative materials and coatings for control valves, enhancing their durability and performance in challenging applications. Ceramic-based materials, for instance, offer excellent wear resistance and can withstand high temperatures, making them suitable for severe service conditions. Specialty coatings like diamond-like carbon (DLC) provide superior hardness and low friction, extending valve life in abrasive or erosive environments. Nanostructured materials are also emerging as promising options for valve components, offering improved strength and corrosion resistance. These advanced materials and coatings enable control valves to operate more efficiently and reliably in a wider range of process conditions, ultimately contributing to improved plant performance and reduced maintenance costs.
Conclusion
Control valves are indispensable components in modern process control systems, offering precise regulation of fluid flow across various industries. From the versatile globe valves to the efficient butterfly valves and robust ball valves, each type serves specific applications with unique advantages. Selecting the right control valve involves careful consideration of process parameters, material compatibility, and proper sizing. As technology advances, features like smart positioners and digital communication protocols are enhancing valve performance and integration with control systems. The development of advanced materials and coatings further extends the capabilities of control valves in challenging environments. By understanding these aspects, industry professionals can make informed decisions to optimize their processes and achieve superior control in their operations.
