Swing Check vs Piston Check Valves: Preventing Water Hammer

When choosing a check valve to stop water hammer, the difference between swing check and piston check valves has a big effect on how well the system works and how much it costs to run. A piston check valve has faster reaction times and more accurate flow control. This makes it especially useful in high-pressure situations where quick sealing stops damaging pressure spikes. Both types of valves are important for protecting pipeline infrastructure, but their different workings and performance traits need to be carefully thought through when buying them to get the best water hammer protection.

​​​​​​​

Understanding Water Hammer and Check Valve Roles

Water hammer is one of the most destructive forces in industrial piping systems. It happens when the speed of the fluid changes quickly, causing sudden pressure spikes that can reach several times the usual working pressure. These pressure waves move through pipelines as fast as sound, and they could damage equipment, joints, and the structures of the pipes within seconds.

The Physics Behind Water Hammer

Use of Newton's rules of motion to explain fluid dynamics is at the heart of water hammer. When a fluid that is moving suddenly stops or changes direction, its kinetic energy changes into pressure energy right away. This creates shock waves that move through the system. These pressure waves can go 200 to 300 percent above what was planned, which can cause crashes right away or damage that builds up over time and makes the system less reliable in the long run.

Critical Role of Check Valves in Protection

As one-way flow guards, check valves stop the backward flow that causes water hammer events on their own. Putting them in specific places along pipe networks makes walls that stop backflow from happening. When check valves are properly chosen and installed, they absorb changes in pressure while keeping the forward flow capacity. This effectively dampens the energy that would otherwise show up as damaging pressure spikes.

Swing Check Valve vs Piston Check Valve: Design and Working Principles

By understanding the main differences between swing check and piston check valves, you can see why each type works best in certain situations and uses. These differences in design have a direct effect on how well they stop water hammer and how well the system works generally.

Swing Check Valve Mechanism

Swing check valves have a disc that is movable and attached to a pivot pin. This disc can move easily inside the valve body. In forward flow, the disc rotates away from the seat because of the pressure of the fluid. This makes a clear path for the flow. Gravity and reverse pressure make the disc swing back against the seat when flow stops or turns around. This stops overflow, unlike a piston check valve. This straightforward system doesn't need much upkeep and works reliably in a wide range of common situations.

Piston Check Valve Operation

A piston check valve has a cylinder-shaped piston element that slides axially inside a body that has been carefully polished. Forward flow pressure pushes the piston off its seat, which lets fluid pass through holes that are placed in a way that makes sense or around the piston's edge. When the flow changes directions, the spring force and reverse pressure push the piston hard against its seat, closing the valve right away. Compared to swing-type systems, this design lets it respond faster and seal more tightly.

Performance Characteristics Comparison

Because these types of valves are mechanically different, they work in different ways. Due to their wide-open flow path when fully opened, swing check valves usually have less pressure drop when they are working normally. Their reaction time, on the other hand, depends on the speed of the flow and may let backflow happen briefly when the flow changes quickly.

On the other hand, piston check valves respond more quickly and close within milliseconds of the start of flow reversal. Because they can respond quickly, they are especially useful in situations where stopping backflow right away is important for controlling water hammer.

Performance Comparison: Efficiency and Durability

To compare the working performance of swing and piston check valves, you need to look at a number of things that affect how well they stop water hammer and how reliable they are over time. These success metrics have a direct effect on decision-making about purchases and prices of running the business.

Flow Characteristics and Pressure Loss

During steady-state operation, swing check valves usually lose less pressure because their fully open disc doesn't block much flow. Because the efficient flow path cuts down on noise and energy use, they can be used in situations where pumping costs are important. But if they close slowly, their bigger internal volume can make the water hammer stronger.

Response Time and Sealing Performance

Piston check valve reaction qualities are very important for how well they stop water hammer. A piston check valve usually closes in 10 to 50 milliseconds, which is a lot faster than swing check valves, which can take 100 to 500 milliseconds, based on their size and how they are being used. This ability to respond quickly directly leads to less severe water hammer and better system security.

Material Considerations and Longevity

Both types of valves are made with modern metals and surface processes that make them last longer in harsh industrial settings. In swing check valves, wear is mostly seen where the hinge pin meets the seat. In piston check valves, on the other hand, the spring may need to be replaced and the piston seal may need to be maintained. Which materials you use, like stainless steel, duplex metals, or special finishes, affects how long they last and how well they work with chemicals.

Maintenance Requirements and Operational Costs

The amount of maintenance needed for these valve systems is very different. Because they work in an easier way, swing check valves usually don't need to be serviced as often. However, hinge wear and seat damage can mean that the whole disc system needs to be replaced. For piston check valves, the springs and sealing parts need to be checked more often, but repair can often be done without taking the valve off completely.

Procurement Insights: Choosing the Right Valve for Your System

When choosing the right check valve technology, you have to balance technical needs with procurement issues that affect both short-term prices and long-term operating value. By understanding these factors, you can make smart choices that improve system performance while staying within your budget.

Technical Specification Analysis

The working factors of a system have a big impact on the choice of valves. For high-pressure situations above 1500 PSI, piston check valves are usually better because they can seal better and respond faster. Swing check valves may be enough to protect lower pressure systems, and they also have the added bonus of requiring less upkeep and less pressure drop.

Flow speed is another factor that affects valve choice. Piston devices are needed for systems that need to respond quickly to changes in flow rate or a lot of start-stop cycles. In steady-flow situations where the flow direction doesn't change often, swing check valves may work well and cost less at first.

Supplier Evaluation and Support Services

Reliable valve providers for piston check valve offer more than just delivery of products. They also offer technical advice, the ability to customize products, and service after the sale. Manufacturers of good products give thorough records of their pressure tests, material certificates, and proof that they follow international standards like API, ANSI, and ISO.

For important uses, engineering help is especially helpful when choosing piston check valves. Suppliers with a lot of experience can tell you the best spring specs, piston materials, and fitting orientations to protect against water hammer and keep the system running smoothly for as long as it lasts.

Total Cost of Ownership Considerations

When making purchases, people shouldn't just look at the initial purchase price; they should also look at the total cost of ownership. Although piston check valves may cost more up front, they offer better protection against water hammer, which can help avoid costly system damage and unplanned downtime. On the other hand, swing check valves are less expensive at first, but they may need to be replaced more often in tough situations.

Best Practices for Installation and Maintenance to Avoid Water Hammer

For check valves to work best in water hammer prevention uses, they must be installed and maintained correctly. These steps make sure that the valves work properly, increase their useful life, and keep the system safe.

Installation Guidelines and Positioning

The direction of the check valve has a big effect on how well it works and how long it lasts. To make sure the disc works right, swing check valves must be installed horizontally with the hinge pin perpendicular to the flow direction. If the flow is going up, vertical placement might be okay, but if the flow is going down, gravity will make it hard to close properly, so it should be avoided.

A piston check valve gives you more fitting options because it can work properly in any direction as long as you follow the manufacturer's instructions. Vertical placement with upward flow, on the other hand, usually gives the best performance because gravity helps spring-loaded closure devices work better.

Maintenance Scheduling and Inspection Protocols

When inspecting regularly, you should take into account how the valves are being used and how they work. In normal use, swing check valves need to be inspected once a year. In harsh or high-cycle environments, they need to be inspected more often. Check the state of the disc, the wear on the hinge pins, and the soundness of the seat.

Every six months, piston check valves should be inspected to check the state of the springs, the movement of the piston, and the wear on the closing surface. Finding spring wear or piston buckling early on stops performance loss that could weaken water hammer protection.

Troubleshooting Common Issues

Water hammer usually means that the check valve isn't working right or is the wrong size. Pressure jumps happen when the pump starts up or stops, there is strange noise when the flow changes, and equipment further downstream fails before it should. Systematic repair should check the reaction time of the valve, the efficiency of the seals, and the compliance of the installation.

Conclusion

To choose between swing check and piston check valves for stopping water hammer, you need to carefully look at the system needs, performance features, and long-term operating goals. Swing check valves are easy to use and don't cost much, but piston check valves have better reaction times and closing performance, which is important for high-pressure systems and situations where the flow changes quickly. No matter what technology is used, the best valve performance is guaranteed by proper installation, upkeep, and assistance from the supplier. This protects important infrastructure while keeping safety and operational standards high.

FAQ

What are the main differences between piston and swing check valves in preventing backflow?

The main difference is how they close and how long it takes for them to respond. In swing check valves, reverse pressure and gravity move a flexible disc against the seat. In piston check valves, spring-loaded pistons slide axially to close the valve. Most piston designs close 5–10 times faster than swing designs, making them better at protecting against water hammer in important situations.

How can I identify if water hammer is occurring due to valve issues?

Sudden pressure jumps during changes in flow, loud banging or knocking sounds in pipes, early failure of joints or fittings, and pressure gauge changes that are outside of normal working ranges are all signs of water hammer. These signs usually mean that the valve is closing too slowly, is the wrong size, or was installed in the wrong way, which makes backflow prevention less effective.

Are there any ways that piston check valves can be customized for specific uses?

Yes, reputable manufacturers offer a wide range of customization options, such as special spring materials for high temperatures, constructions made of rare alloys for corrosive environments, custom port configurations for specific flow needs, and changed piston designs for specific pressure situations. These changes make sure that the best performance in tough industrial settings is maintained while water hammer safety is kept up to date.

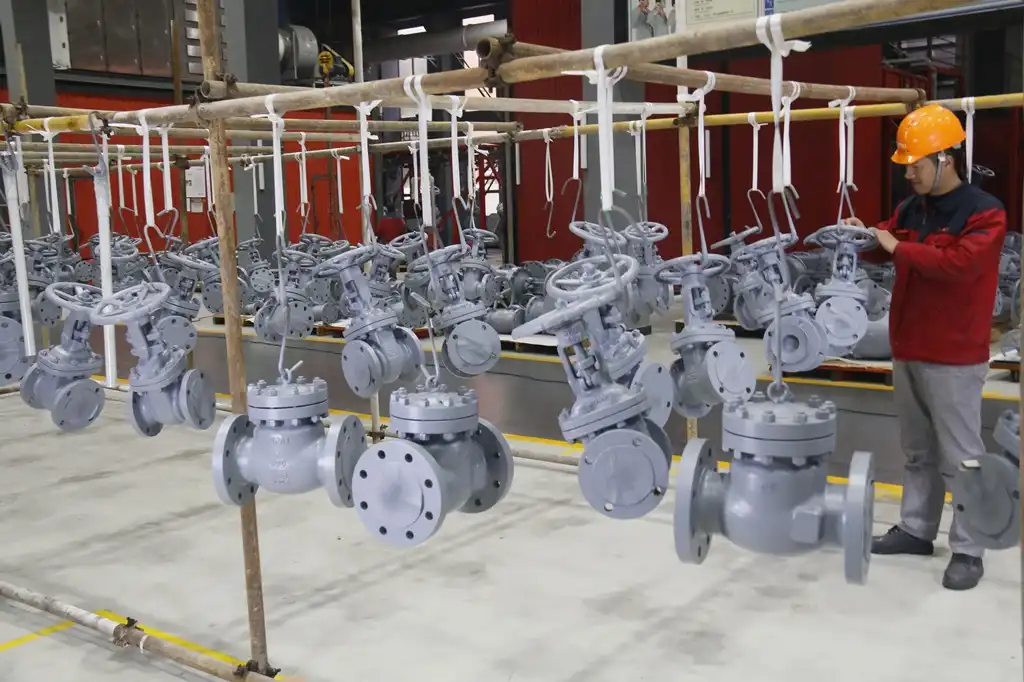

CEPAI: Your Trusted Piston Check Valve Manufacturer

As a top piston check valve provider, CEPAI has all the necessary API approvals, such as API 6A, API 6D, and API 16C. This means that our goods are up to the highest standards for oil and gas use. Our advanced production skills and ISO-certified quality systems allow us to provide reliable valve solutions that stop water hammer and last a very long time in harsh settings.

Our engineering team offers personalized help with valve selection, guiding you to the best piston check valve options for your pressure, temperature, and flow needs. CEPAI has a lot of experience making wellhead equipment and pipeline valves. They offer full technical help and advice after the sale to make sure the valves work well and last a long time.

Contact CEPAI at cepai@cepai.com right away to talk about how to stop water hammer and find out how our certified piston check valve solutions can protect your important assets while lowering operational risks and upkeep costs.

References

American Petroleum Institute. "Specification for Wellhead and Christmas Tree Equipment - API Specification 6A." Washington, DC: API Publishing Services, 2019.

Thorley, A.R.D. "Fluid Transients in Pipeline Systems: A Guide to the Control and Suppression of Fluid Transients in Liquids in Closed Conduits." Professional Engineering Publishing, 2004.

Watters, G.Z. "Analysis and Control of Unsteady Flow in Pipelines." Butterworth Publishers, 1984.

American Society of Mechanical Engineers. "Pipeline Valves: Design and Performance Standards - ASME B16.34." New York: ASME Press, 2020.

Tullis, J.P. "Hydraulics of Pipelines: Pumps, Valves, Cavitation, Transients." John Wiley & Sons, 1989.

Miller, D.S. "Internal Flow Systems: Design and Performance Prediction." British Hydromechanics Research Association, 1990.
