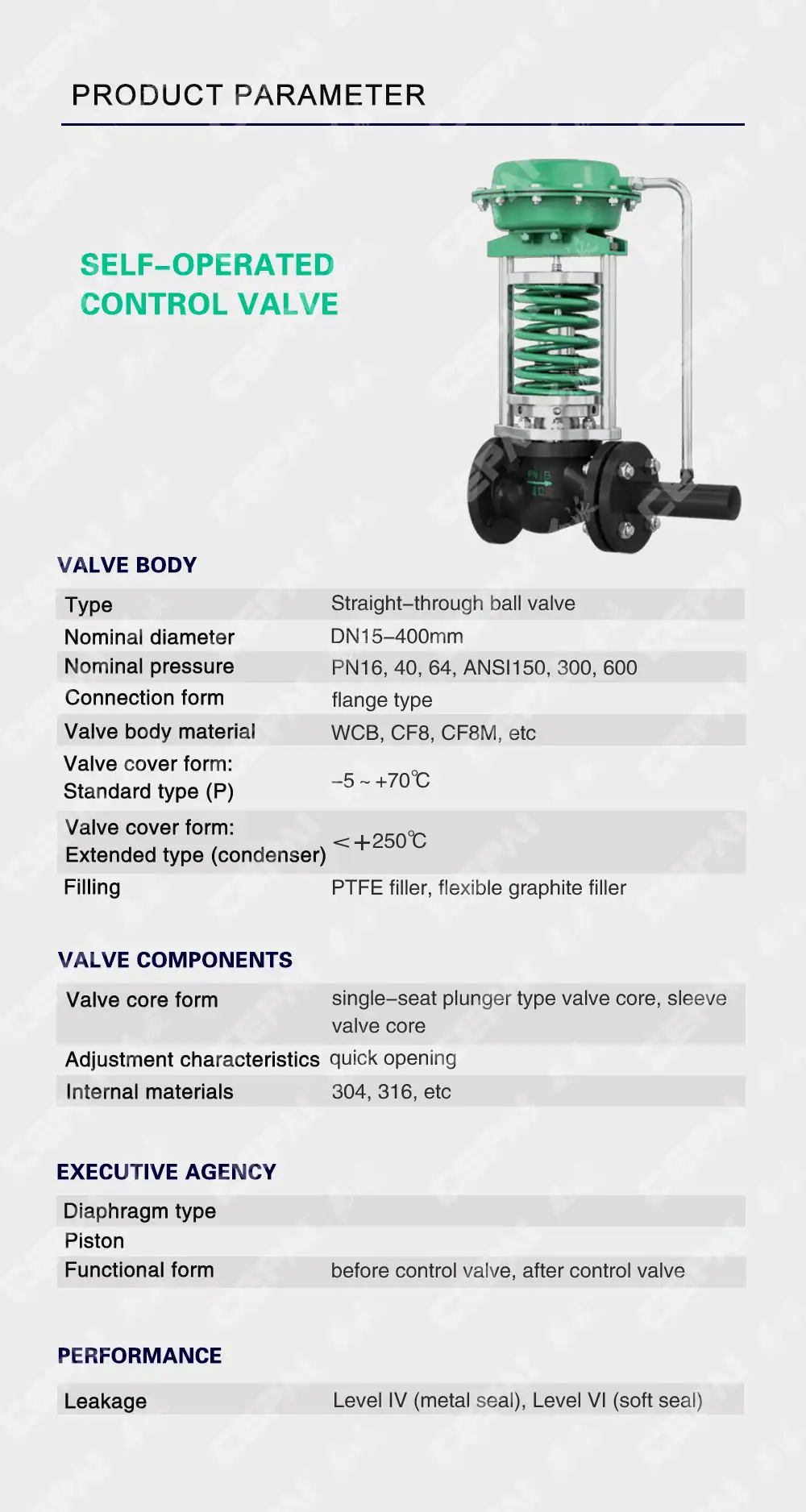

Understanding the Components of Self-Actuated Pressure Control Valves
Main Body and Diaphragm Assembly
The main body of a self-operated control valve houses the critical components that enable its functionality. Typically constructed from durable materials like stainless steel or cast iron, the body provides a robust enclosure for the internal mechanisms. Within this structure, the diaphragm assembly plays a pivotal role. This flexible membrane, often made from reinforced elastomers or metal, separates the control chamber from the flow path. The diaphragm's ability to deform under pressure variations is fundamental to the valve's operation, as it translates pressure changes into mechanical movement.
Spring Mechanism and Adjustable Set Point
A key element in the self-operated control valve is the spring mechanism. This component provides the counterforce against which the pressure acts. The spring's tension can be adjusted, allowing operators to set the desired pressure point at which the valve should respond. This adjustability is crucial for fine-tuning the valve's performance to meet specific operational requirements. The set point adjustment is typically achieved through a screw or lever mechanism that compresses or relaxes the spring, effectively changing the force required to open or close the valve.
Valve Seat and Plug Assembly
The valve seat and plug assembly form the core of the flow control mechanism. The valve seat is a fixed component with a precisely machined surface that creates a seal when the plug is fully closed. The plug, connected to the diaphragm, moves in response to pressure changes. This movement alters the gap between the plug and the seat, controlling the flow rate through the valve. The design of the plug and seat can vary depending on the specific application, with options including V-port, cage-guided, and balanced plug designs, each offering different flow characteristics and control precision.
Operational Dynamics of Self-Operated Control Valves
Pressure Sensing and Response Mechanism
The self-operated control valve's ability to sense and respond to pressure changes is at the heart of its functionality. As fluid enters the valve, it exerts pressure on the diaphragm. This pressure is constantly compared to the force exerted by the spring mechanism. When the fluid pressure exceeds the spring force, it causes the diaphragm to flex, moving the plug away from the seat and allowing more flow. Conversely, when the pressure drops, the spring force dominates, pushing the plug closer to the seat and restricting flow. This continuous balancing act ensures that the valve maintains the desired pressure without external intervention.
Flow Characteristics and Control Precision
The flow characteristics of self-operated control valves are crucial for their performance in various applications. These valves can be designed with different flow curves, such as linear, equal percentage, or quick opening. The choice of flow characteristic depends on the specific requirements of the system. For instance, equal percentage characteristics provide more precise control at lower flow rates, making them suitable for processes that require fine adjustment. The control precision is also influenced by the valve's rangeability, which is the ratio between the maximum and minimum controllable flow rates. High rangeability valves offer greater flexibility and accuracy across a wide range of operating conditions.
Stability and Response Time Considerations
Stability is a critical factor in the performance of self-actuated pressure control valves. These valves must respond quickly to pressure changes while avoiding oscillation or hunting behavior. The stability is influenced by factors such as the spring rate, diaphragm area, and the dynamics of the fluid system. Valve designers often incorporate damping mechanisms or pilot-operated designs to enhance stability in challenging applications. The response time of the valve is another important consideration, especially in systems with rapid pressure fluctuations. Optimizing the balance between quick response and stable operation is essential for achieving optimal performance in diverse industrial settings.
Applications and Advantages of Self-Actuated Pressure Control Valves
Industry-Specific Uses and Adaptations
Self-actuated pressure control valves find extensive applications across various industries, each with its unique requirements. In the oil and gas sector, these valves are crucial for wellhead pressure control, pipeline regulation, and separator level control. The chemical industry utilizes them for reactor pressure management and product transfer operations. In power generation, self-operated valves play a vital role in steam distribution systems and turbine bypass applications. The water treatment industry employs these valves for pressure reduction in distribution networks and backpressure maintenance in reverse osmosis systems. Each application may require specific adaptations, such as corrosion-resistant materials for chemical processing or high-temperature designs for steam systems, showcasing the versatility of self-actuated valve technology.
Energy Efficiency and Maintenance Benefits
One of the significant advantages of self-operated control valves is their energy efficiency. Unlike electrically or pneumatically actuated valves, these devices operate without external power sources, reducing overall energy consumption and operational costs. This self-sufficiency makes them particularly valuable in remote locations or areas with unreliable power supplies. Additionally, the simplicity of their design translates to lower maintenance requirements. With fewer moving parts and no complex control systems, these valves are less prone to failures and require less frequent servicing. This reliability not only reduces maintenance costs but also minimizes system downtime, contributing to improved overall operational efficiency.
Safety Features and Fail-Safe Operations
Safety is paramount in industrial processes, and self-actuated pressure control valves incorporate several features to ensure safe operation. Many designs include built-in overpressure protection, automatically relieving excess pressure to prevent system damage. Fail-safe configurations are also common, where the valve is designed to move to a predetermined safe position (either open or closed) in case of system failure or loss of pressure. Some advanced models incorporate additional safety features such as manual override capabilities, allowing operators to control the valve manually in emergency situations. These safety attributes make self-actuated pressure control valves a preferred choice in critical applications where reliable pressure management is essential for preventing accidents and ensuring process integrity.
Conclusion
Self-operated control valves represent a crucial technology in modern industrial processes, offering reliable, efficient, and cost-effective pressure management solutions. Their ability to operate autonomously, coupled with their versatility across various applications, makes them indispensable in industries ranging from oil and gas to water treatment. As automation and efficiency continue to drive industrial advancements, the role of these valves in ensuring precise pressure control and operational safety remains paramount. Their ongoing development and adaptation to new challenges underscore their enduring importance in the field of fluid control systems.
