Understanding the Basics of Bellows Control Valves
What is a Bellows Control Valve?
A bellows control valve is a specialized type of valve designed for precise flow regulation in fluid systems. It features a unique bellows element, typically made of metal or elastomeric materials, that acts as both a sealing mechanism and a pressure-balancing component. This design allows for accurate control of fluid flow while minimizing the effects of pressure fluctuations on valve performance.
The bellows element in these valves is a flexible, accordion-like structure that expands and contracts in response to changes in pressure or mechanical actuation. This movement enables the valve to modulate flow rates with high precision, making it ideal for applications that require sensitive control over fluid dynamics.

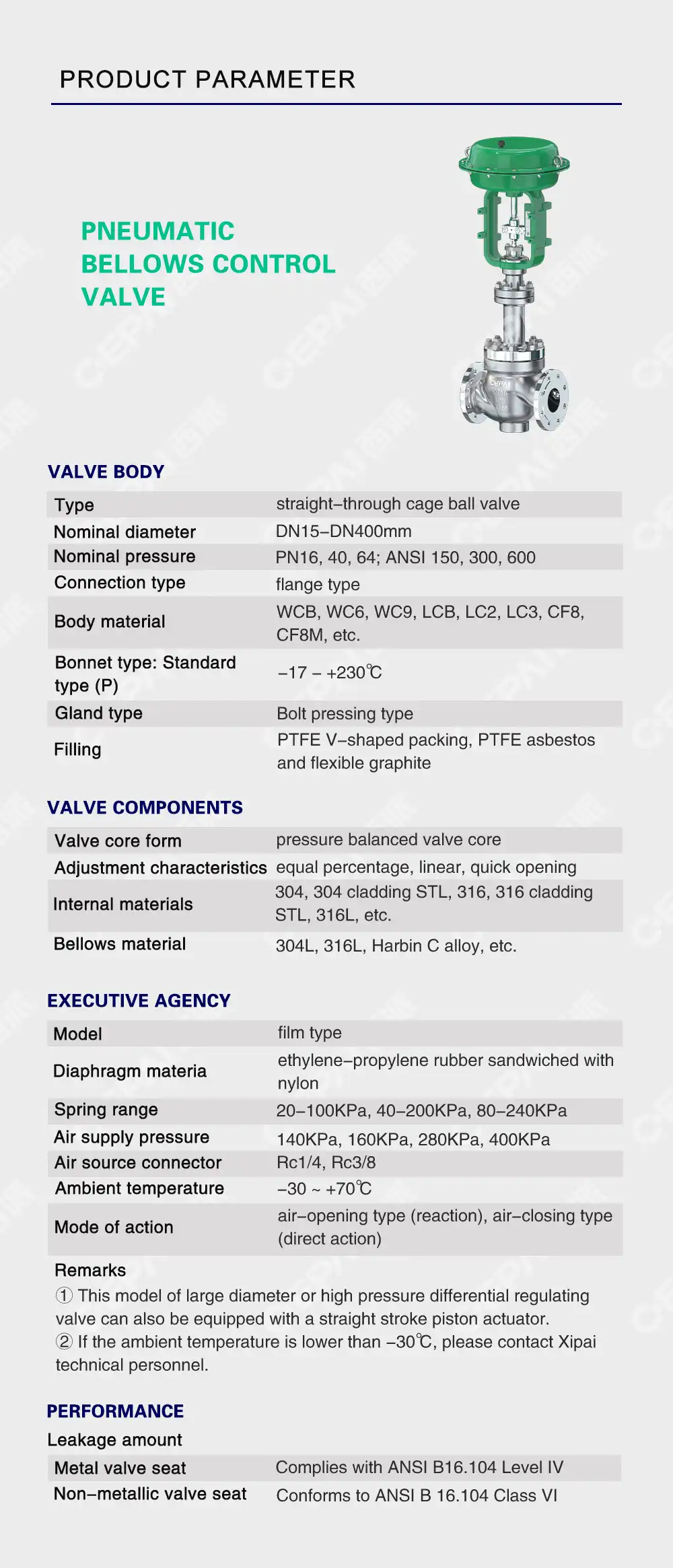

Key Components of Bellows Control Valves
Bellows control valves consist of several essential components that work together to achieve precise flow regulation:
- Valve body: Houses the internal components and provides connections to the piping system
- Bellows element: The flexible, accordion-like structure that serves as a sealing and pressure-balancing mechanism
- Valve stem: Connects the actuator to the valve plug, transmitting movement for flow control
- Valve plug: Regulates flow by moving in and out of the valve seat
- Actuator: Provides the motive force to adjust the valve position, which can be pneumatic, electric, or hydraulic
- Bonnet: Encloses the bellows and provides a secondary seal
These components work in harmony to ensure accurate flow control, leak-tight sealing, and reliable operation in demanding industrial environments.
Operating Principles of Bellows Control Valves
Bellows control valves operate on the principle of pressure-balanced flow regulation. As the actuator moves the valve stem, the bellows element expands or contracts, allowing the valve plug to modulate the flow through the valve body. The bellows design offers several advantages in this process:
First, it provides a hermetic seal between the valve stem and the process fluid, preventing leakage and contamination. Second, the bellows acts as a pressure-balancing mechanism, reducing the effects of varying line pressures on valve performance. This results in more stable and accurate flow control across a wide range of operating conditions.
Additionally, the bellows element absorbs thermal expansion and contraction, minimizing stress on valve components and extending the valve's service life. This unique combination of features makes bellows control valves particularly well-suited for applications requiring precise control, leak-tight sealing, and long-term reliability.
Applications and Benefits of Bellows Control Valves
Industries Utilizing Bellows Control Valves
Bellows control valves find widespread use across various industries due to their versatility and performance advantages. Some key sectors that benefit from these valves include:
- Oil and gas: In upstream and downstream operations, bellows control valves regulate flow in critical processes such as wellhead control, gas compression, and refinery operations. Their ability to handle high pressures and corrosive fluids makes them invaluable in this industry.
- Chemical processing: The chemical-resistant properties of certain bellows materials make these valves ideal for handling aggressive chemicals and maintaining precise control in reaction processes.
- Power generation: Bellows control valves play a crucial role in steam systems, feedwater regulation, and turbine bypass applications, contributing to efficient and safe power plant operations.
- Pharmaceutical and biotechnology: The sanitary design and precise control capabilities of bellows valves make them suitable for sterile processing and precise fluid handling in drug manufacturing and research facilities.
Advantages of Using Bellows Control Valves
Implementing bellows control valves in fluid systems offers numerous benefits:
- Enhanced leak prevention: The bellows element provides a superior seal compared to traditional packing designs, reducing the risk of fugitive emissions and improving overall system integrity.
- Improved control accuracy: The pressure-balanced design allows for more precise flow regulation, even under varying pressure conditions, resulting in better process control and product quality.
- Extended service life: By absorbing thermal expansion and reducing wear on valve components, bellows valves often have longer operational lifespans than conventional valve types.
- Reduced maintenance requirements: The hermetic seal provided by the bellows eliminates the need for regular packing adjustments, leading to lower maintenance costs and reduced downtime.
- Versatility in harsh environments: Bellows control valves can be constructed from various materials to withstand corrosive fluids, extreme temperatures, and high pressures, making them suitable for challenging industrial applications.
Limitations and Considerations
While bellows control valves offer numerous advantages, it's essential to consider their limitations:
- Cost: The complex design and specialized materials used in bellows valves often result in higher initial costs compared to simpler valve types.
- Size constraints: The bellows element may limit the maximum valve size, potentially restricting their use in very large-scale applications.
- Maintenance complexity: Although maintenance is generally less frequent, repairs to bellows valves may require specialized skills and equipment.
- Material compatibility: Careful selection of bellows materials is crucial to ensure compatibility with process fluids and operating conditions.
By weighing these factors against the benefits, engineers can determine whether bellows control valves are the optimal choice for their specific applications.
Selection and Maintenance of Bellows Control Valves
Factors to Consider When Choosing Bellows Control Valves
Selecting the appropriate bellows control valve for a specific application involves considering several key factors:
- Process conditions: Evaluate the fluid properties, temperature range, pressure requirements, and flow rates to ensure the valve can handle the intended service.
- Material selection: Choose bellows and valve body materials that are compatible with the process fluid and can withstand the operating environment.
- Control characteristics: Determine the required flow control precision and select a valve with appropriate Cv (flow coefficient) and rangeability.
- Actuation method: Consider the available power sources and control systems when selecting between pneumatic, electric, or hydraulic actuators.
- Regulatory compliance: Ensure the selected valve meets relevant industry standards and regulatory requirements, such as fugitive emissions limits or safety certifications.
By carefully evaluating these factors, engineers can select a bellows control valve that provides optimal performance and longevity in their specific application.
Installation Best Practices
Proper installation of bellows control valves is crucial for ensuring optimal performance and longevity. Key considerations include:
- Orientation: Install the valve in the correct orientation as specified by the manufacturer to ensure proper function of the bellows element.
- Piping support: Provide adequate support for the piping system to minimize stress on the valve body and connections.
- Cleanliness: Thoroughly clean the piping system before installation to prevent debris from damaging the valve internals.
- Alignment: Ensure proper alignment of the valve with the piping to avoid undue stress on the bellows and other components.
- Protection: Install protective measures such as strainers or filters upstream of the valve to prevent particulate matter from entering and potentially damaging the valve.
Following these best practices during installation helps maximize the performance and service life of bellows control valves.
Maintenance and Troubleshooting Tips
While bellows control valves generally require less maintenance than traditional valve designs, regular care and attention can further extend their operational life:
- Periodic inspection: Regularly inspect the valve for signs of wear, corrosion, or damage, particularly focusing on the bellows element and sealing surfaces.
- Lubrication: Follow manufacturer recommendations for lubricating moving parts, such as actuator components, to ensure smooth operation.
- Cleaning: Periodically clean the valve internals, taking care not to damage the bellows element during the process.
- Leak detection: Implement a leak detection program to identify and address any developing issues promptly.
- Actuator maintenance: Regularly service the valve actuator according to the manufacturer's guidelines to ensure reliable valve positioning.
When troubleshooting bellows control valves, common issues to look for include:
- Leakage: Check for signs of internal or external leakage, which may indicate a damaged bellows or worn sealing surfaces.
- Erratic control: Investigate potential causes of unstable flow control, such as sticking valve components or actuator issues.
- Reduced flow capacity: Assess whether the valve is fully opening or closing, and check for potential obstructions or scaling in the valve body.
By implementing a proactive maintenance program and promptly addressing any issues, operators can maximize the reliability and longevity of their bellows control valves.
Conclusion
Bellows control valves represent a significant advancement in fluid control technology, offering precise regulation, enhanced sealing, and improved reliability across various industrial applications. By understanding the key features, operating principles, and maintenance requirements of these valves, engineers and plant managers can make informed decisions about their implementation and ensure optimal performance in their fluid handling systems. As industries continue to demand higher levels of precision and efficiency, bellows control valves will likely play an increasingly important role in meeting these evolving needs.
