Common Causes of Butterfly Valve Closure Issues
Debris Accumulation and Buildup
One of the primary reasons butterfly valves fail to close properly is the accumulation of debris or buildup within the valve body. Over time, particles from the fluid passing through the valve can settle on the disc or seat, preventing a tight seal. This issue is particularly prevalent in systems handling particulate-laden fluids or those prone to scaling.
To address this problem, operators should implement regular cleaning procedures. This may involve flushing the valve with a compatible solvent or using specialized cleaning tools designed for valve maintenance. In some cases, disassembly of the valve may be necessary to thoroughly remove stubborn deposits.
Prevention is key in managing debris-related issues. Installing proper filtration systems upstream of critical valves can significantly reduce the amount of particulate matter reaching the valve. Additionally, scheduling routine inspections and cleanings can help catch and address buildup before it becomes a major problem.
Valve Seat Damage
The valve seat plays a crucial role in ensuring a proper seal when the butterfly valve is closed. Damage to this component can severely compromise the valve's ability to shut off flow effectively. Common types of seat damage include scratches, gouges, or erosion caused by abrasive materials in the fluid stream.
Inspection of the valve seat should be a regular part of maintenance routines. If damage is detected, the severity will determine the appropriate course of action. Minor scratches might be addressed through polishing or lapping techniques, while more significant damage may require seat replacement.
To prevent future seat damage, consider upgrading to more durable seat materials if the application allows. For instance, metal-seated butterfly valves often offer better resistance to erosion and high-temperature applications compared to soft-seated alternatives.
Misalignment Issues
Proper alignment is critical for the smooth operation of butterfly valves. Misalignment can occur due to various factors, including improper installation, thermal expansion of piping, or external forces acting on the valve or connected piping.
Addressing alignment issues often requires a systematic approach. Start by checking the valve's mounting and ensuring it's properly secured. Inspect connected piping for signs of stress or movement that could be affecting the valve's position. In some cases, realignment of the entire piping system may be necessary to resolve persistent issues.
Preventive measures include using flexible connectors or expansion joints in the piping system to accommodate movement, and ensuring that valves are properly supported to maintain their position over time. Regular alignment checks should be incorporated into maintenance schedules, especially in systems subject to thermal cycling or vibration.
Maintenance and Lubrication Techniques
Proper Lubrication Practices
Adequate lubrication is essential for the smooth operation of butterfly valves, particularly in the moving parts such as the shaft and bearings. Insufficient or improper lubrication can lead to increased friction, wear, and ultimately, failure of the valve to close properly.
When lubricating butterfly valves, it's crucial to use the correct type of lubricant specified by the manufacturer. This ensures compatibility with the valve materials and the operating conditions. Apply lubricant to all moving parts, paying special attention to the shaft bearings and seals.
Establish a regular lubrication schedule based on the valve's usage and environmental conditions. In harsh environments or high-cycle applications, more frequent lubrication may be necessary. Keep detailed records of lubrication activities to maintain consistency and track any changes in valve performance over time.
Seal Replacement and Maintenance
The seals in a butterfly valve play a critical role in preventing leakage when the valve is closed. Over time, these seals can wear, harden, or become damaged, compromising the valve's ability to seal effectively.
Inspect seals regularly for signs of wear, cracking, or deformation. If damage is observed, replacement is often the best course of action. When replacing seals, ensure that the new components are compatible with the valve design and the process fluid.
To extend seal life, consider implementing measures to protect seals from excessive wear. This may include adjusting operating procedures to minimize unnecessary valve cycling or implementing more gradual opening and closing sequences to reduce stress on the seals.
Actuator Adjustment and Calibration

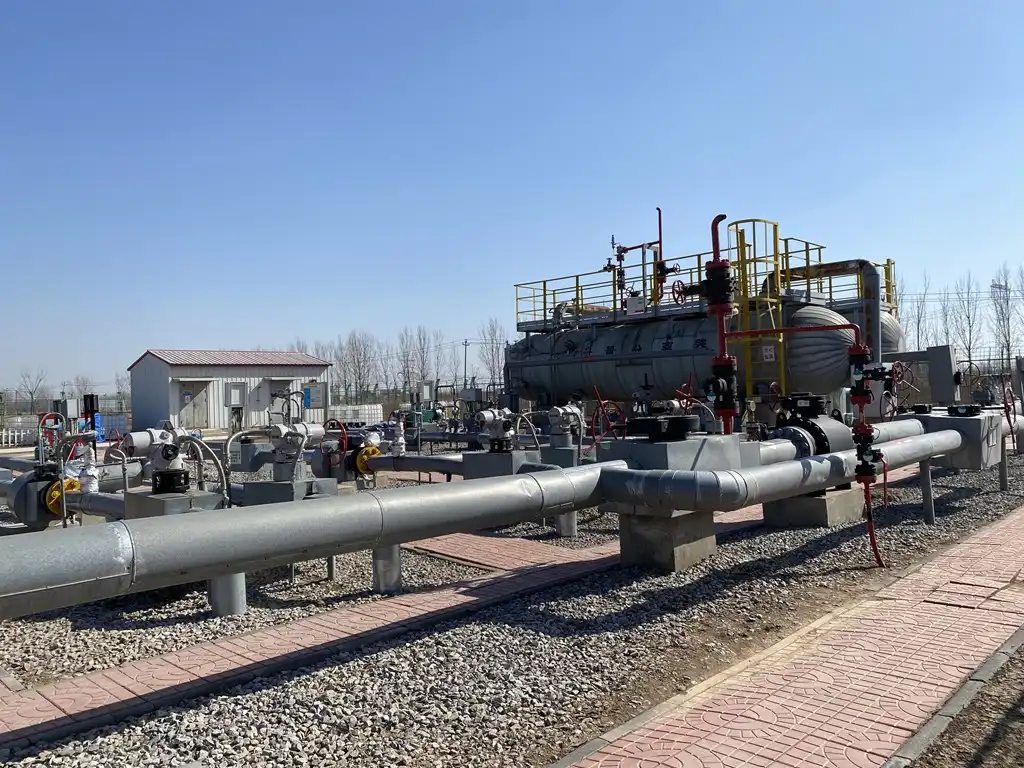

For automated butterfly valves, proper functioning of the actuator is crucial for ensuring the valve closes completely and with the correct amount of force. Actuator issues can often be the root cause of valve closure problems.
Regular calibration of actuators is essential to maintain accurate valve positioning. This process typically involves adjusting limit switches or mechanical stops to ensure the actuator moves the valve disc to the fully closed position.
Check actuator settings periodically, including torque limits and travel times. These parameters may need adjustment over time due to wear or changes in operating conditions. For pneumatic actuators, inspect air supply lines for leaks or restrictions that could affect actuator performance.
Advanced Troubleshooting and Repair Techniques
Diagnostic Tools and Methods
When simple fixes don't resolve butterfly valve closure issues, more advanced diagnostic techniques may be necessary. Modern valve diagnostics often involve specialized tools and methods to pinpoint problems accurately.
Ultrasonic testing can be particularly useful for detecting internal leakage or assessing the condition of valve internals without disassembly. This non-invasive technique can help identify issues such as worn seats or disc damage that may not be visible during external inspections.
Valve signature analysis is another powerful diagnostic tool, especially for automated valves. This method involves analyzing the torque or pressure required to operate the valve throughout its stroke, providing insights into internal friction, seal condition, and potential obstructions.
In-Line Repairs and Replacements
In some cases, it may be possible to perform repairs or component replacements without removing the butterfly valve from the line, minimizing downtime and disruption to operations. In-line repair techniques have advanced significantly in recent years, offering new possibilities for maintenance and repair.
One such technique is the use of line-stopping equipment, which allows for butterfly valve repair or replacement while maintaining flow in the rest of the system. This can be particularly valuable in critical applications where shutting down the entire system is not feasible.
For less severe issues, specialized repair kits designed for in-situ use can often address common problems such as seat or seal replacement on a butterfly valve. These kits typically include tools and components specifically designed for use in confined spaces and challenging environments.
Upgrading and Retrofitting Options
When recurring closure issues persist despite maintenance efforts, it may be time to consider upgrading or retrofitting the valve. Modern butterfly valve designs offer improved performance and reliability compared to older models.
Retrofitting options might include upgrading to more durable materials for critical components such as seats and seals. For instance, switching from a standard elastomer seat to a PTFE-based material can significantly improve chemical resistance and longevity in certain applications.
In some cases, upgrading the actuator or control system can resolve persistent closure issues. Smart positioners and digital valve controllers offer improved precision and diagnostic capabilities, potentially addressing problems related to positioning accuracy or inconsistent closure force.
Conclusion
Addressing butterfly valve closure issues promptly is crucial for maintaining operational efficiency and safety in industrial processes. By implementing the quick fixes and maintenance techniques outlined in this article, operators can often resolve common problems without extensive downtime or costly replacements. Regular inspections, proper lubrication, and timely repairs are key to preventing closure issues and extending valve life. When simple fixes aren't sufficient, advanced diagnostic tools and in-line repair techniques offer additional options for troubleshooting and resolution. For persistent problems, considering upgrades or retrofits can provide long-term solutions and improve overall system performance.
FAQs
1. How often should butterfly valves be inspected for closure issues?
Regular inspections should be conducted at least quarterly, with more frequent checks in critical applications or harsh environments.
2. Can a butterfly valve that won't close properly be repaired without removing it from the line?
In many cases, yes. In-line repair techniques and specialized tools allow for certain repairs and component replacements without full valve removal.
3. What are the signs that a butterfly valve needs immediate attention?
Signs include visible leakage, unusual noise during operation, difficulty in opening or closing, and inconsistent flow control.
