How to Test the Performance of a Control Valve?

Testing the performance of a control valve is crucial for ensuring optimal operation in various industrial applications. To evaluate a control valve's performance, engineers employ a combination of methods including flow coefficient testing, leak testing, and dynamic response analysis. These tests assess the valve's ability to regulate flow, maintain tight shutoff, and respond quickly to changing conditions. By conducting thorough performance tests, operators can verify that control valves meet specifications, identify potential issues, and optimize valve selection for specific processes. Proper testing not only enhances system efficiency but also contributes to safety, reliability, and cost-effectiveness in industries ranging from oil and gas to chemical processing.

​​​​​​​

Understanding Control Valve Performance Parameters

Flow Characteristics and Capacity

Control valves play a pivotal role in regulating fluid flow within industrial systems. To accurately assess their performance, it's essential to understand key parameters such as flow characteristics and capacity. Flow characteristics describe how the valve's flow rate changes in relation to its opening percentage. This relationship can be linear, equal percentage, or quick opening, depending on the valve design and application requirements.

Valve capacity, often expressed as the flow coefficient (Cv), indicates the volume of water that can pass through a fully open valve at a specific pressure drop. Accurate measurement of Cv is crucial for proper valve sizing and selection. Engineers use specialized flow testing equipment to determine a valve's actual Cv across its entire operating range, comparing results to manufacturer specifications.

Rangeability and Turndown Ratio

Rangeability refers to the ratio between the maximum and minimum controllable flow rates of a control valve. A higher rangeability allows for more precise control over a wider range of operating conditions. The turndown ratio, closely related to rangeability, represents the ratio of maximum to minimum flow that can be accurately controlled.

To test these parameters, technicians typically use flow benches that can simulate various process conditions. By incrementally adjusting the valve position and measuring the corresponding flow rates, they can determine the effective rangeability and turndown ratio. This information is vital for ensuring the control valve can handle the required flow variations in its intended application.

Leakage and Shut-off Performance

The ability of a control valve to achieve tight shut-off is critical in many processes, particularly those involving hazardous materials or where cross-contamination must be prevented. Leakage testing involves pressurizing the valve in its closed position and measuring any fluid that passes through. Industry standards, such as those set by the Fluid Controls Institute (FCI), define acceptable leakage rates for different valve classes.

Advanced testing methods may include helium leak detection for extremely low leakage applications or high-pressure gas tests for valves used in severe service conditions. By conducting thorough leakage tests, engineers can verify the integrity of valve seals and ensure that the valve meets the required shut-off performance for its intended use.

Conducting Performance Tests on Control Valves

Static Performance Testing

Static performance testing is a fundamental aspect of evaluating control valves. This process involves assessing the valve's behavior under steady-state conditions. Technicians typically begin by mounting the valve on a test bench equipped with precision flow meters, pressure sensors, and temperature gauges.

During static testing, the valve is subjected to various flow rates and pressure differentials while in fixed positions. This allows for the verification of the valve's flow characteristics and capacity. Engineers record data points at multiple valve openings, typically from 10% to 100% in 10% increments. The resulting data is used to generate flow curves that can be compared against theoretical models and manufacturer specifications.

Additionally, static testing often includes seat leakage tests, where the valve is fully closed and pressurized to check for any fluid passage. This test is crucial for verifying the valve's ability to provide a tight shut-off, which is essential in many process control applications.

Dynamic Response Testing

Dynamic response testing evaluates how quickly and accurately a control valve can respond to changing input signals. This is particularly important in processes that require rapid adjustments to maintain precise control. To conduct dynamic tests, engineers use specialized equipment that can generate rapid changes in control signals while measuring the valve's response.

Key parameters assessed during dynamic testing include step response, frequency response, and hysteresis. Step response tests measure how quickly the valve can move from one position to another when given a sudden change in input signal. Frequency response tests evaluate the valve's ability to follow sinusoidal input signals of varying frequencies, which is crucial for understanding its behavior in oscillating systems.

Hysteresis, the difference in valve position when approaching a setpoint from opposite directions, is also measured during dynamic testing. Excessive hysteresis can lead to control instability and reduced process efficiency. By quantifying these dynamic characteristics, engineers can ensure that the control valve will perform adequately in real-world applications where conditions are constantly changing.

Environmental and Stress Testing

To ensure reliability in diverse operating conditions, control valves often undergo environmental and stress testing. These tests simulate extreme conditions that the valve may encounter during its service life. Environmental testing may include subjecting the valve to high temperatures, corrosive atmospheres, or cryogenic conditions, depending on its intended application.

Stress testing involves operating the valve under high-pressure conditions, sometimes exceeding its rated pressure, to verify its structural integrity and safety margins. Cyclic testing, where the valve is repeatedly opened and closed thousands of times, helps predict long-term wear and identify potential failure modes.

Advanced testing facilities may also conduct vibration tests to simulate pipeline-induced vibrations or seismic events. By subjecting control valves to these rigorous tests, manufacturers can provide customers with confidence in the valve's ability to perform reliably under challenging real-world conditions.

Analyzing and Interpreting Test Results

Data Collection and Processing

Accurate data collection is the foundation of meaningful control valve performance analysis. Modern testing facilities utilize sophisticated data acquisition systems that can capture thousands of data points per second. These systems typically record variables such as flow rate, pressure drop, valve position, and temperature throughout the testing process.

Once collected, the raw data undergoes processing to eliminate noise and account for any systematic errors. Engineers apply statistical methods to ensure data integrity and may use specialized software to generate performance curves and characteristic plots. This processed data forms the basis for in-depth analysis and comparison against design specifications and industry standards.

Performance Curve Analysis

Performance curves are visual representations of a control valve's behavior under various operating conditions. Key curves include the flow characteristic curve, which plots flow rate against valve opening percentage, and the Cv curve, which shows how the flow coefficient changes with valve position.

Analysts examine these curves for linearity, symmetry, and consistency with the valve's design intent. Deviations from expected curves may indicate issues such as improper trim selection, manufacturing defects, or assembly errors. Advanced analysis techniques may involve curve fitting to mathematical models, allowing for precise characterization of valve performance and facilitating comparisons between different valve designs.

Compliance with Industry Standards

Control valve performance must often meet specific industry standards to ensure safety and reliability in critical applications. Standards organizations such as the International Society of Automation (ISA) and the American Petroleum Institute (API) provide guidelines for valve testing and performance criteria.

Test results are carefully evaluated against these standards to verify compliance. This may include checking that leakage rates fall within acceptable limits, confirming that flow characteristics match specified tolerances, and ensuring that dynamic response times meet required thresholds. Non-compliance with industry standards can lead to rejection of valves for certain applications or necessitate design modifications to meet performance requirements.

Conclusion

Testing the performance of control valves is a complex yet essential process that ensures these critical components meet the demanding requirements of modern industrial applications. Through a combination of static and dynamic tests, environmental simulations, and rigorous data analysis, engineers can verify that control valves will function reliably and efficiently in their intended roles. As industrial processes continue to evolve, so too will the methods and technologies used in valve testing, driving continuous improvements in performance, safety, and reliability. By staying abreast of the latest testing methodologies and standards, manufacturers and end-users alike can ensure that their control valve selections are optimized for peak performance and longevity.

FAQs

1. How often should control valve performance be tested?

Control valve performance should be tested regularly, typically during scheduled maintenance shutdowns or as recommended by the manufacturer. The frequency may vary depending on the application, with critical valves in harsh environments requiring more frequent testing.

2. What are the key indicators of poor control valve performance?

Poor performance indicators include excessive leakage, slow response times, inconsistent flow control, and deviation from expected flow characteristics. These issues can lead to process inefficiencies and potential safety hazards.

3. Can control valve performance be tested in-situ?

While comprehensive testing is typically done in specialized facilities, some aspects of control valve performance can be assessed in-situ using portable diagnostic tools. These tests can provide valuable insights into valve health and help identify when more thorough testing or maintenance is needed.

Expert Control Valve Testing and Manufacturing | CEPAI

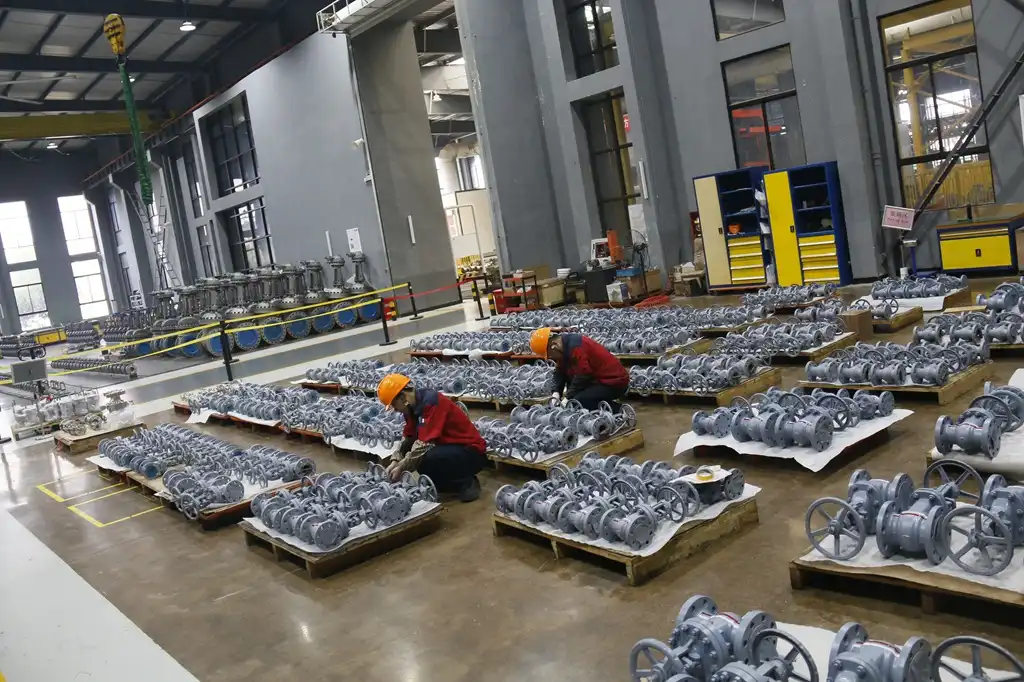

At CEPAI Group Co., Ltd., we specialize in the research, development, and manufacturing of high-performance control valves for the oil and gas industry. Our state-of-the-art testing facilities ensure that every valve meets the highest standards of quality and reliability. With our advanced intelligent manufacturing capabilities and extensive certifications, including APIQ1 and API6D, we deliver superior products tailored to your specific needs. For expert control valve solutions from a trusted manufacturer and supplier, contact us at cepai@cepai.com.
