Metal Seated Valves vs Soft Seated Valves - Which for High-Temperature Applications

When selecting valves for high-temperature environments, the choice between metal seated valves and soft seated valves is critical. Metal seated valves use hardened alloys for sealing surfaces, making them ideal for extreme heat - often exceeding 500°C. They resist erosion, thermal cycling, and fire exposure. Soft seated valves rely on elastomers or polymers like PTFE or EPDM, which degrade above 200-260°C. While they offer bubble-tight shutoff at lower temperatures, they fail under intense heat. For oil refining, petrochemical processing, or steam systems, metal seated valves are the preferred solution due to their durability and safety in harsh conditions.

​​​​​​​

How Seating Materials Affect Valve Performance?

Construction and Material Differences

Metal seated valves feature sealing surfaces made from stainless steel, Stellite, Inconel, or other high-performance alloys. These materials withstand extreme temperatures and mechanical stress. The seat and disc are precision-machined to ensure tight contact. Some models use spring-loaded designs to maintain seal integrity during thermal expansion.

Soft seated valves use non-metallic materials such as PTFE (Teflon), RTFE, nylon, or rubber compounds. These provide excellent sealing at low to moderate temperatures. The soft material conforms to the disc, creating a near-perfect closure. However, these materials begin to soften, deform, or decompose when exposed to heat above their rated limits. In fire-safe applications, soft seats can melt or burn away, leading to leakage.

Thermal Resistance and Operating Limits

Metal seated valves typically operate safely from -196°C up to 815°C, depending on alloy selection. For example, Inconel 625 seats maintain strength and corrosion resistance at 700°C. This makes them suitable for superheated steam, catalytic cracking units, and flare systems. API 607 and API 6FA fire testing standards confirm their performance under extreme fire conditions.

Soft seated valves have much narrower thermal ranges. PTFE seats degrade above 260°C. Even reinforced versions like RPTFE lose elasticity and sealing ability beyond this point. EPDM and NBR seals fail at even lower temperatures - around 150°C. Data from the American Society of Mechanical Engineers (ASME) shows that over 60% of soft seated valve failures in refineries occur due to thermal degradation. In high-heat zones, metal seated designs are clearly superior.

Sealing Efficiency and Leak Rates

At room temperature, soft seated valves achieve Class VI shut-off - the highest available. This means negligible leakage, often less than 0.01 ml/min. Their flexibility allows full surface contact with the closure element. This is vital in clean fluid services or where fugitive emissions must be minimized.

Metal seated valves usually meet Class IV or V leakage standards. There is minimal clearance between metal parts, but perfect zero leakage is harder to achieve without external assistance. However, modern designs like triple-offset butterfly valves with machined metal seats now reach near-Class VI performance. In high-temperature scenarios, maintaining any seal is more important than perfection. Once soft seats fail, leakage becomes uncontrolled. Metal-to-metal seals remain functional even after repeated thermal cycles.

Application Suitability in Industrial Environments

Use in Oil & Gas Production and Refining

In upstream oil production, wellhead valves face high pressure and variable temperatures. Downhole steam injection (EOR) uses steam at 300-400°C. Soft seated valves cannot survive here. Metal seated ball and gate valves are standard. They handle cyclic loading and prevent leaks during blowdowns.

Refineries involve coking, hydrotreating, and reforming units where temperatures exceed 500°C. According to API 6D, all isolation valves in these areas must be fire-tested. Most operators specify metal seated trunnion ball valves. These combine safety, longevity, and reliability. Field audits show plants using soft seated valves in hot sections experience 3x more unplanned shutdowns. Replacing them with certified metal seated models reduces risk significantly.

Performance in Power Generation and Steam Systems

Power plants rely on steam at high pressures and temperatures. Supercritical boilers operate above 590°C and 24 MPa. Control and isolation valves in these lines must endure constant thermal stress. Metal seated globe and gate valves are standard. Their robust construction prevents warping and sticking.

Soft seated valves are banned in primary steam circuits. Even secondary lines avoid them unless below 200°C. A case study from a U.S. combined-cycle plant found that replacing soft seated check valves with metal seated dual-disc checks reduced maintenance by 70%. The new valves resisted scaling and maintained tight closure after thousands of cycles. For long-term uptime, metal seated solutions are essential in thermal power applications.

Role in Chemical and Petrochemical Processing

Chemical reactors often run exothermic processes generating internal heat over 450°C. Catalyst regeneration lines also require high-temperature isolation. Here, both corrosive media and heat challenge valve integrity. Metal seated valves made from alloy 20, Hastelloy, or duplex stainless steel resist both factors.

Soft seated valves may be used in downstream cooling or storage zones. But placing them upstream risks catastrophic failure. In one incident reported by the Center for Chemical Process Safety (CCPS), a PTFE-seated valve failed during a reactor purge, releasing toxic gas. The root cause was undocumented exposure to 300°C vapor. Since then, many chemical firms mandate metal seated valves for any line above 250°C. Compliance with ISO 15848 further ensures emission control under heat.

Long-Term Reliability and Cost Considerations

Maintenance Frequency and Service Life

Metal seated valves require less frequent maintenance. Their wear-resistant materials last longer under abrasive or high-cycle conditions. Many models support in-line repair without full removal. Top-entry ball valves allow seat replacement while pipeline remains pressurized.

Soft seated valves need regular inspection. Seats degrade over time, especially with thermal cycling. Once deformed, reseating is impossible without replacement. In continuous operations, this leads to higher downtime. Industry data shows soft seated valves in hot service last 30-50% shorter than metal seated equivalents. Although initial cost is lower, lifecycle expenses rise due to spare parts and labor.

Total Cost of Ownership and ROI Analysis

While metal seated valves cost 20-40% more upfront, their return on investment is faster. Lower failure rates mean fewer emergency repairs. Reduced fugitive emissions help avoid regulatory fines. Energy efficiency improves when valves maintain proper flow control without leakage.

A lifecycle analysis by the Engineering Equipment and Materials Users Association (EEMUA) found that metal seated valves saved $18,000 per unit over ten years in refinery service. Savings came from reduced downtime, lower maintenance, and extended intervals between replacements. For large-scale facilities with hundreds of valves, the total impact is substantial. Smart procurement focuses on long-term value, not just purchase price.

Fire Safety and Environmental Compliance

Fire safety is non-negotiable in hydrocarbon industries. Soft seated valves often fail during fires. Melting seats create open pathways for fuel release. This violates API 607, API 6FA, and ISO 10497 fire test standards. Metal seated valves, especially those with resilient backup springs, maintain partial closure even after intense exposure.

Environmental regulations like EPA Method 21 and ISO 15848 demand low-emission performance. Metal seated valves with live-loaded stems and graphite packing meet these requirements under extreme heat. Plants using certified fire-safe metal seated models report zero major incidents linked to valve failure. Choosing the right valve protects people, assets, and compliance status.

Conclusion

When used in high-temperature situations, metal-seated valves are safer, last longer, and cost less over their entire life. They can handle high temperatures, don't catch fire, and need less upkeep. Soft-seated valves close better at low temperatures, but they break down quickly above 260°C. Metal-seated technology is used for mission-critical systems in fields like oil production, power generation, and chemical processes. Long-term dependability should be given more weight than beginning saves in the choice.

FAQs

What defines a metal seated valve?

A metal seated valve uses metal-to-metal contact between the disc and seat for sealing, designed for high heat and harsh conditions.

Can soft seated valves handle steam?

Only if steam temperature stays below 200°C. Above that, PTFE or rubber seats will degrade quickly.

Are metal seated valves leak-proof?

They meet Class IV-V leakage standards. Not always zero-leak, but reliable under extreme heat.

Do metal seated valves cost more?

Yes, initially. But they save money over time through longer life and less maintenance.

Are there hybrid designs?

Some valves use metal seats with soft inserts for dual benefits - tight shutoff and moderate heat resistance.

Which standard tests fire safety?

API 607, API 6FA, and ISO 10497 evaluate valve performance under fire conditions.

Select the Right Metal Seated Valve Supplier for High-Temperature Projects | CEPAI

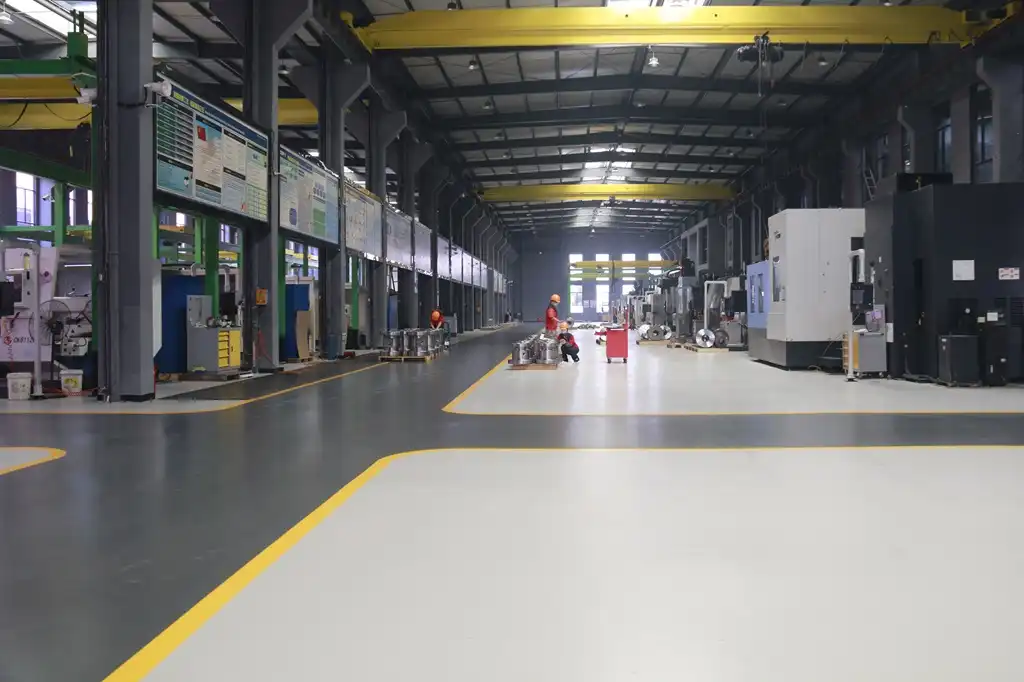

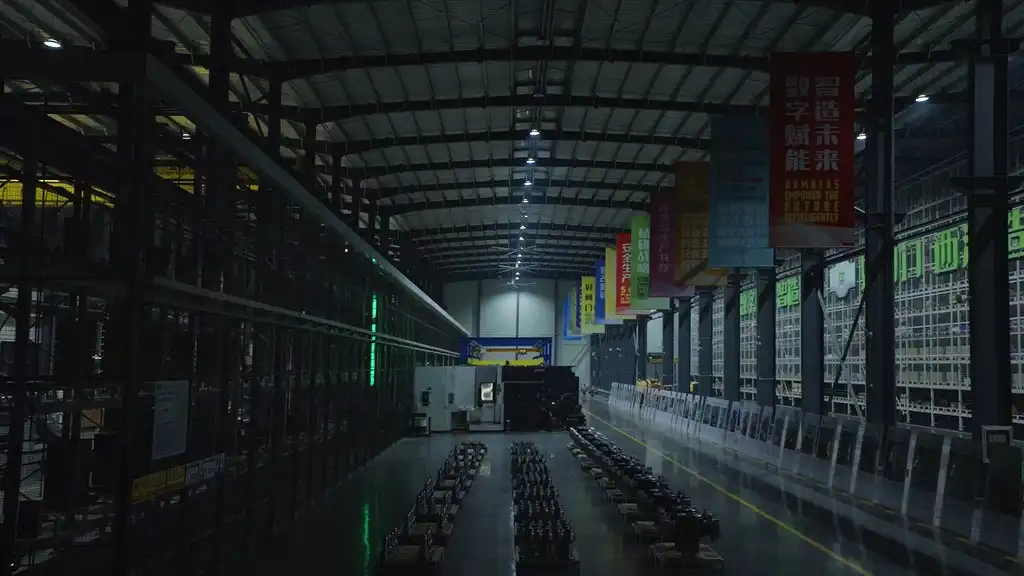

CEPAI is a trusted manufacturer of high-performance metal seated valves for global oil, gas, and chemical industries. As an API 6A, API 6D, and ISO 9001 certified factory, we produce durable, fire-safe valves engineered for extreme temperatures. Our product line includes metal seated ball, gate, and check valves built to PR2, API 607, and ISO 15848 standards. As a leading supplier and OEM partner, we deliver reliable solutions for demanding environments. Contact us at cepai@cepai.com for technical details or custom quotes.

References

American Petroleum Institute. API Standard 607: Fire Test for Soft-Seated Quarter-Turn Valves. 7th Edition, 2010.

American Petroleum Institute. API Standard 6FA: Specification for Fire Test for Valves. 4th Edition, 1999.

International Organization for Standardization. ISO 10497: Test Methods for Fire Resistance of Valves. 2010.

American Society of Mechanical Engineers. ASME B16.34: Valves - Flanged, Threaded, and Welding End. 2021.

Engineering Equipment and Materials Users Association. EEMUA Publication 155: Guidance on the Inspection and Maintenance of Valves in Process Systems. 2022.

Center for Chemical Process Safety. Guidelines for Safe Handling of Hazardous Reactions and Systems. Wiley, 2021.
