Electric Valves vs Pneumatic Valves in Chemical Plant Automation

When choosing between electric valves and pneumatic valves for chemical plant automation, engineers must consider power availability, control precision, safety, and maintenance. Electric valves use motor-driven actuators for precise positioning and integration with digital control systems. They offer quiet operation and high accuracy. Pneumatic valves rely on compressed air, delivering fast response and intrinsic safety in explosive environments. While electric models excel in modulating service, pneumatic ones dominate in emergency shutdowns. The right choice depends on process demands, facility layout, and long-term operational goals.

How Electric and Pneumatic Valves Work?

Operating Principles of Electric Valves

Electric valves use an electric motor to open or close a valve. The motor connects to a gear system that turns the stem. This allows for precise control of flow. Most electric actuators support modulating service. They can stop at any position between fully open and fully closed. This makes them ideal for continuous process control.

They connect directly to PLCs or DCS systems. Feedback signals like position, torque, and fault status are sent in real time. Modern electric valves include built-in encoders and limit switches. These ensure accurate positioning. Some models feature manual override for emergencies. With no need for air lines, installation is simpler in remote or indoor locations.

Mechanism Behind Pneumatic Valves

Pneumatic valves operate using compressed air. Air pressure moves a piston or diaphragm inside the actuator. This force turns or lifts the valve stem. Most are quarter-turn or linear motion types. Double-acting models use air to both open and close. Spring-return versions use air to open and a spring to close - useful for fail-safe functions.

These valves respond quickly. Full stroke times can be under one second. That makes them ideal for emergency shutdown (ESD) systems. They are intrinsically safe. No sparks are generated during operation. This is critical in flammable chemical zones. However, they require a clean, dry air supply. Moisture or oil in the line can damage internal parts.

Key Components and System Integration

Electric valves include motors, gears, limit switches, and control boards. Advanced models have communication protocols like Modbus, Profibus, or HART. These allow seamless integration with SCADA systems. Wiring is usually standard electrical cabling. Power sources range from 24VDC to 220VAC.

Pneumatic systems need more infrastructure. Compressors, air dryers, filters, and distribution lines are essential. Solenoid valves direct airflow to actuators. Positioners improve accuracy in modulating applications. While reliable, leaks in air lines can cause drift or failure. Regular checks of air quality and pressure are necessary. Both types support automation, but their support systems differ significantly.

Performance Comparison in Chemical Processing

Control Accuracy and Response Time

Electric valves provide superior control accuracy. They can achieve positioning precision within ±1%. This is vital in processes like pH control, blending, or dosing. Their speed is adjustable. Operators can set slow opening to prevent water hammer. In contrast, pneumatic valves act fast. They open or close in seconds. This benefits safety-critical applications.

However, rapid closure can cause pressure surges. In pipelines with volatile chemicals, this may damage equipment. Electric actuators offer soft-start and soft-stop features. These reduce mechanical stress. For steady-state regulation, electric valves outperform. But for immediate isolation - like in a leak or fire - pneumatics are preferred. The trade-off lies between precision and speed.

Durability and Maintenance Needs

Electric valves have fewer external dependencies. No air lines mean less risk of blockages or leaks. But motors and electronics can fail in extreme heat or humidity. Sealed NEMA 4X or IP68 housings protect against dust and moisture. Lubrication is minimal. Most require inspection every 12-24 months.

Pneumatic actuators are mechanically simple. They last longer under heavy cycling. However, air quality is crucial. Contaminated air wears seals and corrodes cylinders. Water traps and filters need monthly draining. Diaphragms and O-rings degrade over time. Field data from chemical plants show pneumatic systems require 30% more routine maintenance than electric ones. Yet, individual parts are easier and cheaper to replace.

Safety, Hazard Zones, and Fail-Safe Functions

In hazardous areas, safety is non-negotiable. Pneumatic valves are intrinsically safe. They don't produce sparks. This makes them suitable for Class I Div 1 zones. Many are certified under ATEX or IECEx standards. Fail-safe operation is built-in. Spring-return models automatically close on air loss - critical during power failure.

Electric valves can also be explosion-proof. They use flameproof enclosures or intrinsic barriers. Certifications like UL, ATEX, and IECEx apply. But they require careful installation. Faulty wiring could ignite vapors. Modern smart electric actuators include diagnostic alarms. These detect overload, phase loss, or communication errors. Both types can meet safety standards. The choice often depends on existing plant infrastructure.

Cost, Efficiency, and Long-Term Value

Initial Investment and Installation Costs

Electric valves usually cost more upfront. A smart electric actuator can be 20-50% pricier than a basic pneumatic one. But installation may be cheaper. No need for air compressors, dryers, or piping networks. Electrical wiring is often already available. In retrofit projects, this reduces downtime and labor.

Pneumatic systems require additional equipment. A central compressor can cost tens of thousands of dollars. Distribution lines need routing through plants. This increases project complexity. For small-scale automation, pneumatics may be more economical. But for large, distributed systems, electric solutions offer better scalability. Total installed cost must include all supporting infrastructure.

Energy Consumption and Operational Efficiency

Electric valves consume power only when moving. Once in position, they draw almost no energy. This improves efficiency. In contrast, pneumatic systems constantly use compressed air. Generating compressed air is energy-intensive. Studies show air compression accounts for 10-15% of industrial electricity use.

Leakage in pneumatic lines wastes up to 30% of compressed air. Even small leaks add up over time. A U.S. Department of Energy report found that upgrading to electric actuators in a chemical plant reduced energy costs by 22% annually. While pneumatic valves respond faster, their continuous air demand makes them less efficient. For sustainability goals, electric valves have a clear advantage.

Lifecycle Costs and Reliability in Harsh Conditions

Over a 10-year period, electric valves often prove more cost-effective. Lower energy use and reduced maintenance lower total cost of ownership. Their digital feedback enables predictive maintenance. Operators can schedule service before failure occurs. This reduces unplanned downtime.

Pneumatic valves perform well in dirty or wet environments. They tolerate vibration and temperature swings. But air quality directly affects lifespan. In coastal or high-humidity plants, corrosion is a concern. Electric models with proper sealing last just as long. Field reports from Southeast Asia and the Middle East show electric valve reliability exceeding 98% in corrosive chemical services. When properly specified, both types are durable. But electric systems offer better data visibility and control.

Conclusion

Electric valves are accurate, use little energy, and work well with computer systems. Pneumatic valves offer speed and safety in places that could be dangerous. Which option is best relies on the needs of the process, the safety zones, and the facilities. Electric valves are becoming more and more popular for modern automation and constant control. Pneumatics is still a good way to do easy on/off jobs and shut down in an emergency. In complex chemistry plants, a mixed method works best a lot of the time.

FAQs

Can electric valves work in explosive environments?

Yes. With proper certifications (ATEX, IECEx, UL), explosion-proof electric actuators are safe for hazardous areas.

Do electric valves need constant power?

No. They only use power when moving. Once positioned, they stay in place without energy.

Are electric valves slower than pneumatic ones?

Generally, yes. But adjustable speed controls prevent water hammer and allow fine tuning.

What maintenance do electric valves require?

Minimal. Check seals, wiring, and actuator function annually. Smart models self-diagnose issues.

Can I retrofit a pneumatic system with electric valves?

Yes. Many plants replace pneumatics with electric actuators to reduce air system costs and improve control.

Do electric valves support remote monitoring?

Absolutely. Most have digital outputs and communication protocols for SCADA integration.

Why Electric Valves Are the Future of Chemical Plant Automation | CEPAI

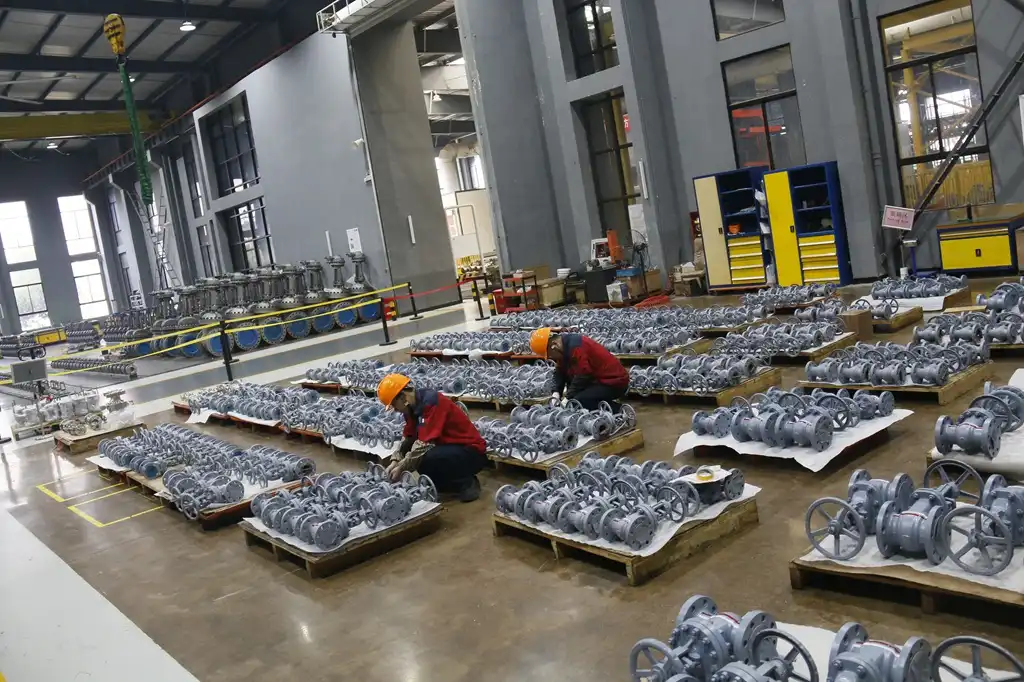

CEPAI is a leading manufacturer of industrial electric valves for chemical, oil, and gas applications. As a certified factory with API 6A, API 6D, ISO 9001, and CE certifications, we produce high-reliability electric actuators and control valves. Our products serve in automation systems worldwide, offering precision, durability, and fail-safe performance. As a trusted supplier and OEM partner, we support global engineering firms with custom solutions. Contact us at cepai@cepai.com for technical support or product inquiries.
