Understanding Butterfly Valves and Their Lubrication Needs
Types of Butterfly Valves and Their Components

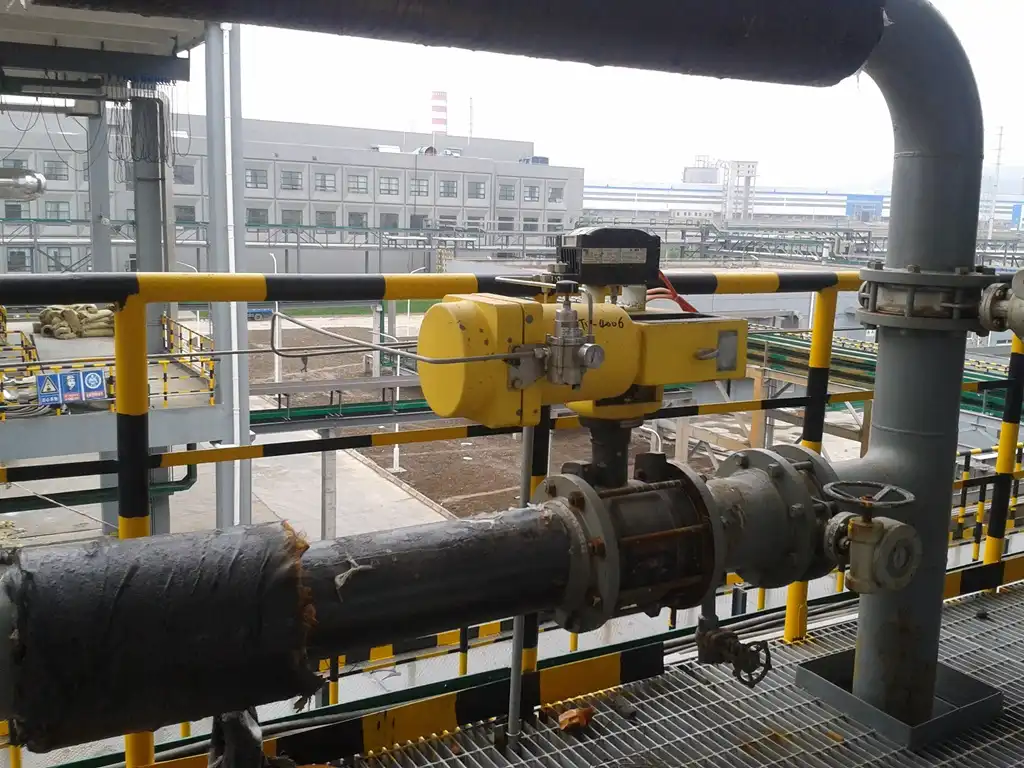

Butterfly valves are quarter-turn rotational valves used to control flow in various industrial processes. They consist of a disc that rotates on a shaft to open or close the valve. The main components include the body, disc, stem, seat, and actuator. Depending on their design and application, butterfly valves can be classified into concentric, double-eccentric, and triple-eccentric types. Each type has unique features that affect its lubrication requirements.
Importance of Proper Lubrication for Valve Performance
Adequate lubrication plays a vital role in maintaining the efficiency and longevity of butterfly valves. It reduces friction between moving parts, prevents corrosion, and ensures smooth operation. Proper lubrication also helps maintain a tight seal, reducing the risk of leakage and improving overall valve performance. Without sufficient lubrication, valves may experience increased wear, higher operating torques, and potential failure, leading to costly downtime and repairs.
Factors Affecting Lubrication Frequency and Type
Several factors influence the lubrication needs of butterfly valves. These include the valve's size, operating conditions (temperature, pressure, and media), frequency of use, and environmental factors. Valves exposed to harsh chemicals or extreme temperatures may require specialized lubricants and more frequent application. The valve's design and materials also play a role in determining the appropriate lubrication interval and type of lubricant needed. Regular inspection and maintenance schedules should be established based on these factors to ensure optimal valve performance.
Selecting the Right Lubricant for Industrial Butterfly Valves
Characteristics of Effective Valve Lubricants
Choosing the right lubricant is essential for maintaining butterfly valves. Effective valve lubricants should possess several key characteristics. They must have excellent stability to withstand high temperatures and pressures without breaking down. Good adhesion properties ensure the lubricant stays in place on valve surfaces. Compatibility with valve materials and process media is crucial to prevent chemical reactions or degradation. The lubricant should also offer corrosion protection and resist water washout. Additionally, it should maintain its viscosity across a wide temperature range to provide consistent lubrication under varying operating conditions.
Common Types of Lubricants Used in Industrial Applications
Various lubricants are used in industrial settings for butterfly valves. Synthetic greases are popular due to their wide temperature range and excellent stability. Silicone-based lubricants offer good compatibility with many elastomers and plastics used in valve seats. PTFE-based lubricants provide exceptional chemical resistance and low friction properties. For high-temperature applications, graphite-based lubricants or specialized ceramic compounds may be used. Food-grade lubricants are essential for valves in food and beverage processing. Each type has its strengths and is chosen based on specific application requirements.
Considerations for Selecting Lubricants Based on Valve Application
When selecting a lubricant for butterfly valves, several factors must be considered. The operating temperature range of the valve is crucial, as the lubricant must remain effective at both high and low temperatures. Chemical compatibility with the process media is essential to prevent lubricant degradation or contamination. The valve's operating pressure and cycle frequency also influence lubricant choice, as high-pressure or frequently cycled valves may require more robust lubricants. Environmental considerations, such as the potential for water ingress or exposure to corrosive atmospheres, should be taken into account. Lastly, industry-specific regulations, such as those for food processing or pharmaceutical manufacturing, may dictate the use of certain types of lubricants.
Step-by-Step Guide to Lubricating Industrial Butterfly Valves
Preparation and Safety Measures
Before beginning the lubrication process, proper preparation and safety measures are essential. Start by reviewing the valve manufacturer's maintenance guidelines and gathering all necessary tools and materials. Ensure the work area is clean and well-lit. If the valve is in service, follow proper lockout/tagout procedures to isolate it from the system. Wear appropriate personal protective equipment, including gloves, safety glasses, and appropriate clothing. If the valve has been in use, allow it to cool to a safe temperature before proceeding. Clean the exterior of the valve to remove any dirt or debris that could contaminate the lubricant or interfere with the lubrication process.
Detailed Lubrication Process for Different Valve Components
The lubrication process varies slightly depending on the specific components of the butterfly valve. For the valve stem, clean the exposed portion thoroughly and apply a thin layer of lubricant, ensuring even coverage. Pay special attention to the area where the stem enters the valve body. For the disc and seat interface, carefully clean both surfaces and apply a light coat of lubricant to the seating area of the disc. Be cautious not to over-lubricate, as excess grease can accumulate debris and affect valve performance. If the valve has bearings or bushings, these should be lubricated according to the manufacturer's specifications. Some valves may have dedicated lubrication points or grease fittings, which should be used as intended.
Post-Lubrication Checks and Operational Testing
After completing the lubrication process, it's crucial to perform several checks and tests. First, manually operate the valve through its full range of motion several times to distribute the lubricant evenly and ensure smooth operation. Listen for any unusual noises or feel for any resistance, which could indicate improper lubrication or other issues. Inspect the valve for any signs of lubricant leakage or overapplication, cleaning off any excess as needed. If the valve is equipped with an actuator, test its operation to ensure proper function after lubrication. Finally, document the maintenance performed, including the type and amount of lubricant used, for future reference. Once satisfied with the valve's operation, return it to service following proper procedures.
Conclusion
Proper lubrication of industrial butterfly valves is a critical maintenance task that significantly impacts their performance and longevity. By understanding the specific needs of different valve types, selecting appropriate lubricants, and following a systematic lubrication process, operators can ensure optimal valve function and minimize downtime. Regular maintenance schedules, coupled with careful attention to manufacturer guidelines and operating conditions, will help extend the life of these essential components in industrial systems. Implementing these best practices not only enhances valve reliability but also contributes to overall system efficiency and safety in industrial operations.
