Understanding Flow Coefficient (Cv) in Valve Design
Definition and Importance of Cv
The Flow Coefficient, commonly denoted as Cv, is a numerical value that characterizes the flow capacity of a product under specific conditions. It's a measure of how easily fluid can pass through a valve, taking into account factors such as the valve's internal geometry, size, and design. The importance of Cv in the product design cannot be overstated, as it provides a standardized method for comparing different valves and determining their suitability for various applications.
In practical terms, Cv represents the number of gallons of water at 60°F that will flow through a fully open the product in one minute with a pressure drop of 1 psi across the product. This definition allows for consistent comparisons across different product types and sizes. For engineers and system designers, understanding Cv is crucial for several reasons:
- It allows for accurate prediction of flow rates under different pressure conditions
- It helps in selecting the most appropriate product for specific system requirements
- It enables optimization of system performance and energy efficiency
- It facilitates proper sizing of products to avoid issues like cavitation or excessive noise
Factors Affecting Cv Values
Several factors influence the Cv value of a product, and understanding these can help in making informed decisions during the product selection and system design:
- Valve Size: Generally, larger products have higher Cv values, allowing for greater flow rates.
- Valve Type: Different product designs (e.g., globe, ball, butterfly) have inherently different flow characteristics and thus different Cv values.
- Valve Trim: The internal components of the product, such as the seat and disc, can significantly affect the Cv.
- Valve Opening: The Cv value changes with the valve's opening position, typically following a non-linear relationship.
- Fluid Properties: While Cv is standardized for water, corrections may be needed for other fluids with different viscosities or densities.
Understanding these factors is crucial for engineers working in industries like oil and gas, where precise flow control is essential for safe and efficient operations. By considering these elements, designers can select valves that provide optimal performance under specific operating conditions.
Calculating and Measuring Cv
Determining the Cv value of a product can be done through calculation or measurement. The calculation method involves using standardized equations that take into account factors such as flow rate, pressure drop, and fluid properties. These equations vary depending on whether the flow is incompressible (liquids) or compressible (gases).
For incompressible flow, a simplified equation for Cv is:
Cv = Q / √(ΔP/SG)
Where: Q = Flow rate in gallons per minute (gpm) ΔP = Pressure drop across the product (psi) SG = Specific gravity of the fluid
Measuring Cv experimentally involves setting up a test rig where the product is subjected to controlled flow conditions. The flow rate and pressure drop are measured, and the Cv is calculated using the appropriate equation. This method is often used by valve manufacturers to verify theoretical calculations and provide accurate Cv values for their products.
In the oil and gas industry, accurate Cv values are critical for ensuring that products can handle the required flow rates and pressure conditions encountered in various processes, from wellhead operations to pipeline transportation. Proper calculation and measurement of Cv contribute to the overall safety, efficiency, and reliability of fluid systems in these demanding applications.
The Role of Cv in Valve Sizing
Relationship Between Cv and Valve Size
The relationship between Cv and valve size is fundamental to the process of the product sizing. Generally, as the product size increases, so does its Cv value. However, this relationship is not always linear and can vary depending on the product type and design. Understanding this relationship is crucial for several reasons:
- Proper Flow Control: Selecting a product with the appropriate Cv for a given size ensures that the product can provide the required flow control for the application.
- System Efficiency: A well-sized product based on Cv contributes to overall system efficiency by minimizing pressure drops and energy losses.
- Cost-Effectiveness: Choosing the right product size based on Cv helps avoid oversizing, which can lead to unnecessary costs and reduced control accuracy.
In the oil and gas industry, where flow rates and pressures can vary widely, understanding the Cv-size relationship is particularly important. It allows engineers to select products that can handle the range of operating conditions encountered in different parts of the production and distribution process, from wellhead to refinery.
Importance of Proper Valve Sizing
Proper valve sizing based on Cv is critical for several reasons:
- Flow Control Accuracy: A correctly sized product provides precise control over flow rates, which is essential in many industrial processes, especially in the oil and gas sector.
- Energy Efficiency: Properly sized products minimize pressure drops, reducing the energy required to move fluids through the system.
- Noise Reduction: Correct sizing helps prevent excessive fluid velocities that can lead to noise and vibration issues.
- Cavitation Prevention: In liquid applications, proper sizing helps avoid conditions that can lead to cavitation, which can damage the product components and reduce performance.
- Longevity: Valves that are correctly sized based on Cv tend to have longer operational lifespans due to reduced wear and tear.
In the context of oil and gas operations, where safety and reliability are paramount, proper product sizing based on Cv is not just about efficiency - it's a critical safety consideration. Improperly sized products can lead to issues such as uncontrolled flow, pressure buildup, or equipment failure, all of which can have serious consequences in high-pressure, high-flow environments.
Consequences of Improper Valve Sizing
Failing to properly consider Cv in the product sizing can lead to several detrimental consequences:
Oversized Valves:
- Poor control at low flow rates
- Excessive cost for unnecessary capacity
- Increased likelihood of seat leakage
Undersized Valves:
- Inability to achieve required flow rates
- Excessive pressure drop and energy loss
- Increased wear due to high fluid velocities
- Potential for cavitation and erosion
In the oil and gas industry, these consequences can be particularly severe. For example, an undersized valve in a high-pressure pipeline could lead to significant pressure drops, reducing throughput and potentially causing safety issues. Conversely, an oversized the product in a wellhead application might result in poor flow control, affecting production rates and operational efficiency.
To avoid these issues, engineers must carefully consider the Cv requirements for each application, taking into account factors such as flow rates, pressure conditions, fluid properties, and operational flexibility. By doing so, they can ensure that products are sized appropriately, contributing to safe, efficient, and reliable operations throughout the oil and gas production and distribution chain.
Practical Applications of Cv in Valve Selection
Cv in Different Valve Types
The concept of Cv applies to various product types, each with its unique characteristics and applications. Understanding how Cv relates to different product designs is crucial for making informed selections in diverse industrial settings, particularly in the oil and gas sector:
- Globe Valves: Generally have lower Cv values due to their tortuous flow path. They're often used for precise flow control and regulation.
- Ball Valves: Typically have higher Cv values, making them suitable for applications requiring high flow rates with minimal pressure drop.
- Butterfly Valves: Offer a good balance between flow capacity and control, with Cv values that can be adjusted by changing the disc angle.
- Gate Valves: When fully open, they have very high Cv values, making them ideal for on/off applications with minimal pressure drop.
- Needle Valves: Have very low Cv values, allowing for precise control of small flow rates.
In oil and gas applications, the choice of the product type based on Cv is critical. For instance, ball products might be preferred in pipeline applications where high flow rates and low pressure drops are required, while globe valves might be chosen for wellhead choke applications where precise flow control is essential.
Industry-Specific Considerations
In the oil and gas industry, several specific considerations come into play when using Cv for valve selection:
- High Pressure Applications: Valves must be selected with Cv values that can handle the high pressures encountered in oil and gas extraction and transport.
- Multiphase Flow: Consideration must be given to how Cv values change when dealing with mixtures of oil, gas, and water.
- Corrosive Environments: The impact of corrosive fluids on the product internals can affect Cv over time, necessitating materials selection that maintains consistent performance.
- Temperature Extremes: Cv values can change with temperature, so products must be selected to perform across the wide temperature ranges encountered in oil and gas operations.
- Rapid Depressurization: In emergency shutdown scenarios, the products must have appropriate Cv values to allow for quick system depressurization.
These industry-specific factors highlight the importance of not just understanding Cv, but also how it interacts with other critical parameters in oil and gas applications. Engineers must consider these factors to ensure products perform reliably and safely under the demanding conditions typical of the industry.
Case Studies and Real-World Examples
To illustrate the practical application of Cv in the product selection, consider the following real-world scenarios from the oil and gas industry:
Case Study 1: Wellhead Choke Valve Selection
In a high-pressure oil well, engineers needed to select a choke valve to control flow from the wellhead. By carefully analyzing the required flow rates and pressure drop, they calculated the necessary Cv value. This led to the selection of a specialized choke valve with a Cv that could be adjusted over a wide range, allowing for precise control of well output under varying conditions.

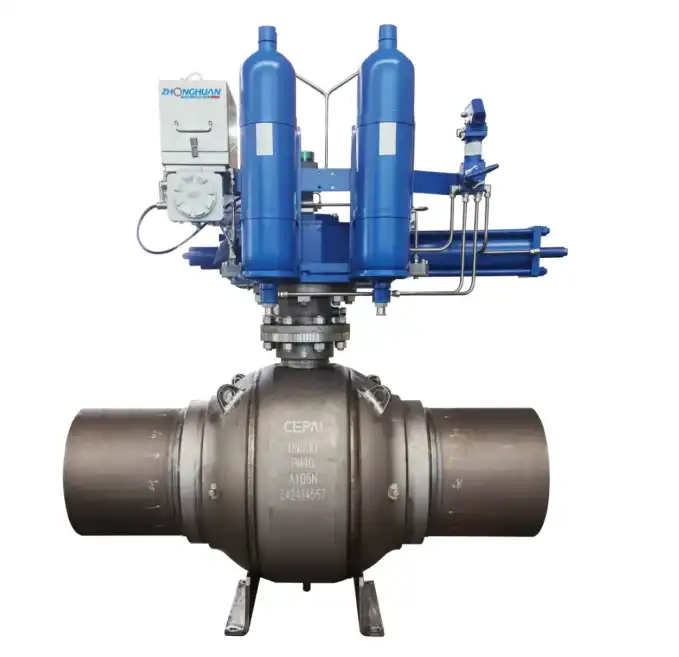

Case Study 2: Pipeline Isolation Valve Sizing
For a long-distance gas pipeline, engineers needed to select isolation products that would allow for high flow rates with minimal pressure drop when open, but provide tight shutoff when closed. By considering the pipeline's maximum flow rate and acceptable pressure drop, they calculated the required Cv. This led to the selection of large-diameter ball valves with high Cv values, ensuring efficient pipeline operation.
Case Study 3: Pressure Relief Valve Sizing
In a refinery application, a pressure relief product needed to be sized to protect a vessel from overpressure. Engineers calculated the required Cv based on the maximum possible flow rate during an overpressure event. This calculation ensured that the selected product could relieve pressure quickly enough to prevent equipment damage, highlighting the critical safety role that proper Cv selection plays.
These examples demonstrate how understanding and properly applying Cv in the product selection contributes to the safety, efficiency, and reliability of oil and gas operations. From wellhead to refinery, careful consideration of Cv ensures that products are correctly sized for their specific applications, supporting optimal system performance across the industry.
Conclusion
Understanding the Flow Coefficient (Cv) and its impact on valve sizing is crucial for ensuring optimal performance in fluid systems, particularly in the demanding environments of the oil and gas industry. Proper product sizing based on Cv considerations leads to improved flow control, enhanced system efficiency, and increased safety. By carefully selecting the products with appropriate Cv values for specific applications, engineers can minimize pressure drops, prevent cavitation, and ensure reliable operation across a wide range of conditions. As technology advances and industry requirements evolve, the importance of Cv in the product selection and system design will continue to be a fundamental consideration for professionals in the field.
